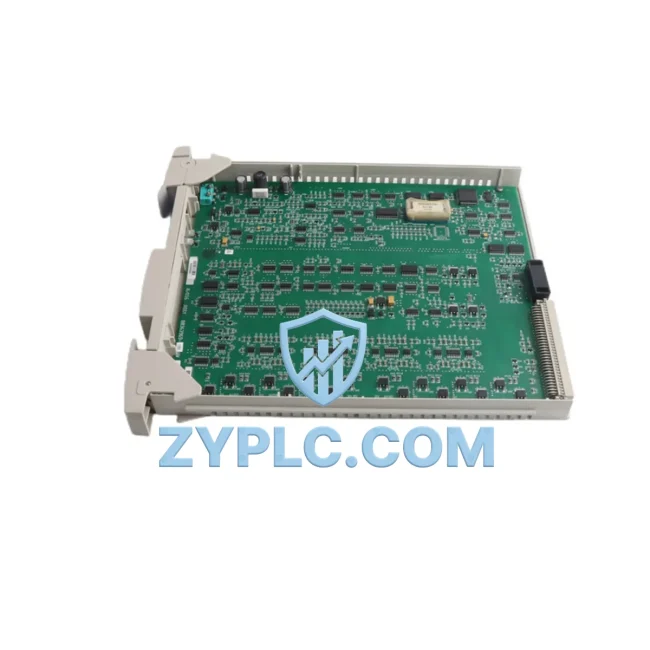

Honeywell MC-PAOY22 80363969-150 System-Ready Analog Output for Experion PKS Architecture

Honeywell MC-PAOY22 80363969-150: System-Ready Analog Output for Experion PKS Control Architecture

The Honeywell MC-PAOY22 80363969-150 is a high-precision analog output module engineered for seamless integration within the Experion PKS (Process Knowledge System) distributed control architecture. Designed to operate as a critical signal-conditioning and actuation interface at the I/O layer, this module bridges the gap between the control layer and field-level execution devices — including control valves, variable frequency drives, and positioners — ensuring deterministic, low-latency signal delivery across the full process control loop.

In modern industrial automation, the reliability of the analog output layer directly determines the responsiveness and stability of the entire control system. The MC-PAOY22 80363969-150 addresses this requirement by providing stable 4–20 mA current output channels that maintain signal integrity even in electrically noisy environments typical of petrochemical plants, power generation facilities, and heavy manufacturing lines. Its compatibility with the Honeywell Experion PKS platform means it can be configured, diagnosed, and monitored directly through the Experion Station HMI environment, reducing engineering overhead and accelerating commissioning timelines.

Within a layered automation architecture, this module occupies a well-defined role: it receives setpoint commands from the C300 Controller or the C200E Controller residing at the control layer, converts those digital commands into precise analog signals, and transmits them to field actuators at the execution layer. This clean separation of function — combined with the module’s support for HART pass-through communication — enables engineers to perform online diagnostics on connected field instruments without interrupting process operations, a capability that is indispensable in continuous-process industries such as refining, chemical processing, and water treatment.

The MC-PAOY22 80363969-150 is housed in a standard PMIO chassis-compatible form factor, allowing it to be installed alongside complementary I/O modules such as the MC-PAIH02 analog input module, the MC-PDIY22 digital input module, and the MC-PDOY22 digital output module within the same I/O cabinet. This modular co-location simplifies cable management, reduces panel footprint, and supports a consistent maintenance workflow where technicians can swap modules without specialized tooling. The module draws power from the FTA (Field Termination Assembly) bus, which is supplied by the MC-PWRJ1 or equivalent power supply module, ensuring that power distribution remains centralized and fault-tolerant.

For system architects designing redundant control topologies, the MC-PAOY22 80363969-150 supports integration with Honeywell’s Series C redundancy framework. When paired with a redundant C300 Controller pair and a redundant FIM4 (Fault-Tolerant Ethernet Interface Module), the analog output layer can maintain continuous operation even during a controller failover event, with bumpless transfer ensuring that field actuators receive uninterrupted setpoint signals. This level of redundancy is a mandatory design criterion in safety-instrumented systems and high-availability process units such as compressor control, turbine governor systems, and reactor temperature management loops.

From a network architecture perspective, the MC-PAOY22 80363969-150 communicates with the control layer via the Honeywell FTE (Fault-Tolerant Ethernet) backbone, which provides deterministic, dual-path communication between I/O modules and controllers. This eliminates single points of network failure and supports the integration of the Experion PKS system with plant-wide SCADA platforms, historian servers, and MES (Manufacturing Execution Systems) through standard OPC-DA and OPC-UA interfaces. The result is a fully connected, data-rich control environment where analog output performance data is continuously available for process optimization and predictive maintenance analytics.

Long-term maintainability is a core design principle of the Experion PKS I/O architecture, and the MC-PAOY22 80363969-150 reflects this philosophy. Its hot-swap capability — supported when used with the appropriate FTA and chassis configuration — allows field engineers to replace a faulty module during live plant operation without requiring a process shutdown. Combined with Experion’s built-in module health monitoring, which generates alarms and diagnostic messages directly at the operator workstation, maintenance teams can respond to hardware degradation proactively rather than reactively, significantly reducing unplanned downtime and associated production losses.

All MC-PAOY22 80363969-150 units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that your control system investment is protected against manufacturing defects and premature failure. Our inventory is sourced from verified supply chains, and each unit undergoes functional verification prior to dispatch. With in-stock availability and expedited shipping options, ZYPLC supports urgent MRO (Maintenance, Repair, and Operations) procurement requirements for plant shutdowns, emergency replacements, and system expansion projects.

Architecture Specification Table

Coordinated Control System Design

The MC-PAOY22 80363969-150 achieves its full performance potential when deployed as part of a coordinated Experion PKS system architecture. At the control layer, the C300 Controller executes the control strategy — PID loops, cascade control, feedforward compensation — and issues analog setpoints to the MC-PAOY22 via the PMIO chassis backplane. In redundant configurations, a paired C300 Redundant Controller monitors the primary controller’s health and assumes control within milliseconds of a detected fault, with the MC-PAOY22 maintaining its last valid output during the switchover interval.

The I/O layer surrounding the MC-PAOY22 typically includes the MC-PAIH02 Analog Input Module, which reads process variable feedback from field transmitters, and the MC-PDIY22 Digital Input Module, which captures discrete status signals from limit switches, valve position feedback, and motor run contacts. Together, these modules provide the C300 Controller with a complete picture of the process state, enabling closed-loop control with full signal visibility. The MC-PDOY22 Digital Output Module complements the MC-PAOY22 by handling on/off actuator commands — solenoid valves, motor starters, and relay outputs — within the same control cabinet.

At the network layer, the FIM4 Fault-Tolerant Interface Module connects the PMIO chassis to the plant’s FTE network, providing dual-path Ethernet communication that eliminates network-induced single points of failure. For legacy TDC 3000 integration, the UCN (Universal Control Network) Gateway enables the MC-PAOY22’s host controller to exchange data with existing AM (Application Module) and HPM (High-Performance Process Manager) nodes, preserving the value of installed TDC 3000 infrastructure during phased migration projects.

At the human-machine interface layer, the Experion Station Operator Workstation displays real-time analog output values, module health status, and HART diagnostic data sourced from the MC-PAOY22’s connected field instruments. Engineers can use the Control Builder engineering tool to configure output scaling, clamping limits, and failsafe behavior directly from the workstation, without requiring physical access to the I/O cabinet. For sites requiring panel-mounted local indication, the Honeywell HC900 Hybrid Controller can serve as a standalone backup display node in architectures where Experion PKS and hybrid control coexist.

Power integrity across the I/O layer is maintained by the MC-PWRJ1 Power Supply Module, which distributes regulated DC power to all modules within the PMIO chassis via the FTA bus. In high-availability designs, dual redundant power supplies with automatic switchover ensure that a power supply failure does not interrupt analog output continuity — a critical requirement in processes where actuator position loss could trigger a safety interlock or process upset.

Application in Layered Automation Systems

The MC-PAOY22 80363969-150 is deployed across a broad spectrum of process industries where precise analog output control is a non-negotiable operational requirement. In petroleum refining and petrochemical processing, the module drives control valve positioners on distillation column reflux loops, reactor feed flow controllers, and heat exchanger bypass valves, where output accuracy directly impacts product yield and energy efficiency. Its HART pass-through capability allows online valve diagnostics — including valve signature analysis and partial stroke testing — to be performed from the Experion Station without removing the valve from service.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the MC-PAOY22 controls boiler feedwater flow, turbine governor setpoints, and combustion air damper positions. The module’s compatibility with the Experion PKS redundancy framework ensures that analog output continuity is maintained during planned controller maintenance windows, supporting the high-availability requirements of baseload generation assets.

For water and wastewater treatment plants, the MC-PAOY22 manages chemical dosing pump speed references, aeration blower VFD setpoints, and filter backwash flow controllers. Its ability to operate reliably in humid, chemically aggressive environments — when installed in appropriately rated enclosures — makes it a preferred choice for municipal utilities upgrading from legacy SCADA-based control to fully integrated DCS architectures.

In mining and minerals processing applications, including flotation cell level control, thickener underflow density management, and conveyor belt speed regulation, the MC-PAOY22 provides the analog output precision required to maintain consistent product quality across variable ore feed conditions. Its hot-swap capability is particularly valued in continuous mining operations where scheduled maintenance windows are limited and unplanned module replacement must be completed without process interruption.

Across pharmaceutical and food-grade manufacturing environments, the MC-PAOY22 supports temperature control loops, pressure regulation systems, and flow metering applications where output repeatability and audit-trail compliance are regulatory requirements. Integration with Experion PKS’s batch management and electronic record-keeping capabilities ensures that analog output history is captured and retrievable for FDA 21 CFR Part 11 compliance audits.

Architecture Engineering FAQ

Q1: Is the MC-PAOY22 80363969-150 compatible with both Experion PKS and TDC 3000 control systems?
Yes. The MC-PAOY22 80363969-150 is designed for use within the Honeywell PMIO chassis environment, which is supported by both the Experion PKS Series C controller platform (C300, C200E) and legacy TDC 3000 architectures via appropriate gateway modules. For TDC 3000 integration, the UCN Gateway or equivalent interface module is required to bridge communication between the PMIO chassis and the UCN network. ZYPLC’s technical team can advise on the correct gateway configuration for your specific system revision and firmware version, ensuring seamless Contextual Integration between old and new control layers.

Q2: Can the MC-PAOY22 80363969-150 be replaced online without shutting down the process?
Hot-swap capability for the MC-PAOY22 is supported when the module is installed in a PMIO chassis configured with the appropriate FTA (Field Termination Assembly) and when the host controller is operating in a redundant configuration. In a hot-swap scenario, the replacement module is inserted into the chassis slot while the process continues to run; the C300 Controller detects the new module, downloads the configuration automatically, and resumes closed-loop control — typically within seconds. It is strongly recommended to verify hot-swap support against your specific chassis revision and Experion PKS software version before performing live module replacement. All units supplied by ZYPLC include a 12-Month Warranty covering manufacturing defects, providing additional assurance for MRO procurement decisions.

Q3: What is the recommended spare parts strategy for MC-PAOY22 80363969-150 in a large DCS installation?
For installations with more than 10 PMIO chassis, industry best practice recommends maintaining a minimum of 5–10% spare module inventory for critical I/O types, including analog output modules. Given the MC-PAOY22’s role in controlling final control elements — valves, drives, and positioners — a module failure without an available spare can result in process shutdown or manual override operation, both of which carry significant safety and production cost implications. ZYPLC maintains in-stock inventory of the MC-PAOY22 80363969-150 and can fulfill emergency orders with expedited shipping to minimize plant downtime. Our 12-Month Warranty on all supplied units ensures that spare stock held in your MRO inventory is covered against latent manufacturing defects for the duration of the warranty period.
