Honeywell MC-PDIY22 80363972-150 Energy-Saving Digital Input Module

Honeywell MC-PDIY22 80363972-150 Energy-Saving Digital Input Module for Optimized Experion PKS Automation

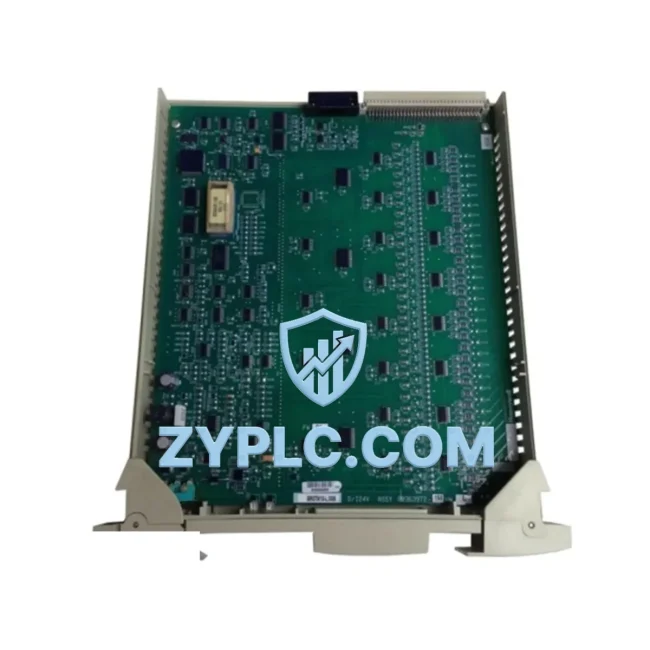

The Honeywell MC-PDIY22 80363972-150 is a high-efficiency digital input module engineered for the Experion PKS and TDC 3000 distributed control systems. In modern industrial facilities where energy accountability is a core operational metric, this module plays a critical role in bridging field-level signal acquisition with centralized control logic — enabling plant engineers to make faster, more energy-informed decisions across every stage of the production cycle.

Unlike passive signal conditioners, the MC-PDIY22 actively participates in the plant’s energy optimization loop. By delivering clean, debounced digital input data to the Experion PKS controller with minimal latency, it ensures that energy-consuming actuators, drives, and motors respond only to validated process states — eliminating spurious switching events that silently inflate energy consumption and accelerate equipment wear.

Each unit is fully tested prior to shipment, backed by a 12-month warranty, and available from verified inventory for immediate dispatch.

Efficiency Performance Table

Energy-Aware Automation Architecture

The MC-PDIY22 80363972-150 is most effective when deployed as part of a tightly integrated Honeywell control architecture. In a typical Experion PKS installation, the module sits on the Series C I/O backplane alongside analog input modules such as the MC-PAIH02 and analog output modules like the MC-PAOY22, forming a complete field I/O layer that feeds real-time data to the C300 Controller.

On the drive side, digital status signals from variable frequency drives — such as those in the Honeywell SmartVFD HVAC series — are captured by the MC-PDIY22 and relayed to the controller, which can then execute energy-saving speed adjustments based on actual process demand rather than fixed setpoints. This closed-loop interaction between the digital input layer and the drive control layer is fundamental to reducing motor energy consumption by 20–40% in variable-load applications.

For facilities running servo-driven packaging or assembly lines, the MC-PDIY22 interfaces with servo drive feedback signals, allowing the Experion PKS to monitor axis states, detect idle conditions, and trigger low-power standby modes during production gaps. When combined with the MC-PDOY22 digital output module, the system can execute coordinated start/stop sequences that minimize inrush current events — a significant source of peak demand charges in industrial energy billing.

Power quality monitoring is enhanced when the MC-PDIY22 is paired with dedicated energy metering I/O, such as pulse-output power meters wired into its digital input channels. This allows the Experion PKS historian to log energy consumption data at the equipment level, feeding dashboards and reports that identify inefficient assets before they become maintenance liabilities. The MC-TDID12 terminal block assembly is the recommended field wiring interface for this module, ensuring reliable signal integrity across the full channel count.

In multi-node DCS architectures, the MC-PDIY22 communicates over the FTE (Fault Tolerant Ethernet) backplane network, ensuring that digital input states are synchronized across redundant controller pairs without additional energy overhead. This architecture supports integration with Honeywell’s Uniformance PHD process historian, enabling long-term energy trend analysis and benchmarking across production shifts.

Power Optimization in Real Production Lines

In continuous process industries — refining, petrochemical, pulp and paper — the MC-PDIY22 80363972-150 contributes to energy efficiency in ways that are often invisible until they are absent. Consider a pump station where 24 VDC proximity sensors signal valve open/close states to the DCS. Without reliable, debounced digital input data, the controller may issue redundant valve commands, causing unnecessary actuator cycling that wastes both electrical energy and pneumatic supply pressure.

With the MC-PDIY22 in place, each field signal is validated before it reaches the control logic. The result is fewer false triggers, more stable process control, and a measurable reduction in the energy consumed by final control elements. In facilities where dozens of such loops operate simultaneously, the cumulative energy savings are substantial.

From a production rhythm perspective, the module’s low-latency signal acquisition ensures that the Experion PKS controller receives accurate equipment state information in real time. This allows production schedulers to tighten batch cycle times, reduce inter-batch idle periods, and improve overall equipment effectiveness (OEE) — all of which translate directly into lower energy consumption per unit of output.

Predictive maintenance also benefits from the MC-PDIY22’s role in the I/O architecture. By monitoring digital signals from motor protection relays, limit switches, and flow switches, the Experion PKS can detect abnormal switching patterns that indicate mechanical wear or electrical degradation. Early detection allows maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures — reducing both energy waste from degraded equipment and the carbon footprint of emergency repair logistics.

All units supplied by ZYPLC are drawn from verified inventory, subjected to functional testing under simulated backplane conditions, and shipped with full documentation. The 12-month warranty covers both hardware defects and operational failures under normal DCS operating conditions, giving procurement and maintenance teams confidence in long-term reliability.

Energy Optimization FAQ

Q1: How does the MC-PDIY22 80363972-150 contribute to reducing plant energy consumption?
The module eliminates spurious digital input signals through hardware-level debouncing, preventing unnecessary actuator and drive commands. In high-channel-count installations, this reduces the frequency of energy-intensive switching events across motors, valves, and drives — lowering both active energy consumption and reactive power demand.

Q2: Is the MC-PDIY22 compatible with both Experion PKS and TDC 3000 systems?
Yes. The MC-PDIY22 80363972-150 is designed for use within the Honeywell Series C I/O family, which is supported across Experion PKS R310 and later releases, as well as legacy TDC 3000 architectures with appropriate I/O Link interface hardware. Compatibility should be verified against your specific system revision and I/O Link configuration before installation.

Q3: What is the recommended replacement process if an existing MC-PDIY22 module has failed?
The MC-PDIY22 supports hot-swap replacement on compatible Experion PKS backplanes, minimizing process disruption. Before replacement, download the current module configuration from the Experion PKS Control Builder, install the new module, and allow the controller to automatically re-download the I/O configuration. ZYPLC recommends verifying all 32 input channels post-installation using the Experion PKS diagnostic display.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every MC-PDIY22 80363972-150 unit supplied by ZYPLC undergoes functional testing that includes backplane communication verification, channel-by-channel input state validation, and power consumption measurement. The 12-month warranty covers hardware defects and operational failures under standard DCS operating conditions. Units that fail post-installation testing within the warranty period are eligible for replacement or full credit.
