HONEYWELL MC-PDOY22 80363975-150 Digital Output Module for Experion Systems

HONEYWELL MC-PDOY22 80363975-150: Industrial Data Link for Smart Factory Connectivity

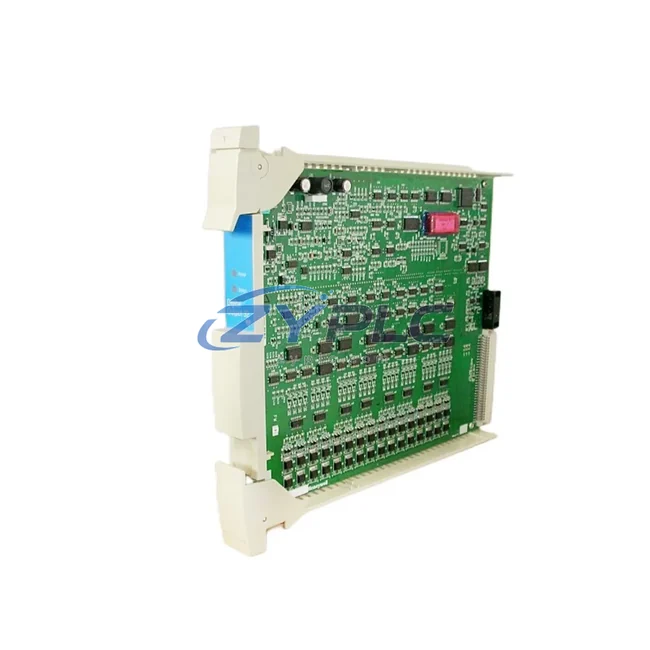

The HONEYWELL MC-PDOY22 80363975-150 is a high-performance Digital Output Module engineered for the Experion Process Knowledge System (PKS) — Honeywell’s flagship Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges the gap between field-level actuators and upper-layer control networks, enabling seamless signal transmission, real-time process control, and transparent plant-floor visibility across complex automation architectures.

In modern smart factory deployments, the MC-PDOY22 functions as a precision output interface, converting digital control commands from the Experion controller into discrete switching signals for field devices such as solenoid valves, motor starters, relay coils, and indicator panels. Its role in the data flow begins at the controller level — where the Honeywell C300 Process Controller or C200E Controller issues command signals — and extends through the I/O subsystem to the physical process layer, ensuring deterministic, low-latency actuation with full diagnostic feedback.

Compatibility & Integration Notes

Connected Automation Data Flow

The MC-PDOY22 80363975-150 operates at the heart of a layered industrial communication architecture. At the field level, discrete output signals are routed through Honeywell Field Terminal Assemblies (FTA) — such as the MC-TAIH32 or MC-TAOY22 — which provide the physical wiring interface between the module and field devices. These FTAs connect back to the I/O chassis via the CEE bus, where the MC-PDOY22 receives command data from the process controller over the Experion I/O Link protocol.

Moving up the network stack, the Honeywell C300 Controller aggregates I/O data from multiple modules — including analog input modules like the MC-PAIH03 and digital input modules such as the MC-PDIY22 — and communicates with the Experion server over Fault Tolerant Ethernet (FTE). This dual-ring redundant network ensures that even in the event of a cable fault or switch failure, process data continues to flow without interruption. Industrial-grade managed Ethernet switches, such as those in the Honeywell FSC (Fail Safe Controller) network topology, provide the backbone for this resilient communication layer.

At the supervisory level, the Experion PKS server interfaces with Honeywell HMIWeb Display Builder and third-party SCADA platforms via OPC DA/UA gateways. Operators can monitor the real-time status of every output channel on the MC-PDOY22 — including open-circuit detection, short-circuit alarms, and channel-level diagnostics — directly from the SCADA console or the Experion Station HMI. Integration with Honeywell Safety Manager modules further extends the data chain into safety-instrumented systems (SIS), enabling coordinated emergency shutdown (ESD) responses triggered by field-level anomalies detected through the output module’s feedback loop.

For remote diagnostics and predictive maintenance, the MC-PDOY22 supports integration with Honeywell Uniformance PHD (Process Historian Database), allowing historical output state data to be logged, trended, and analyzed. Edge gateway devices — including third-party IIoT gateways compatible with the Experion Open Connect interface — can further push this data to cloud-based analytics platforms, enabling AI-driven anomaly detection and remote asset health monitoring without disrupting the real-time control loop.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is the fragmentation of control data across incompatible protocols and isolated subsystems. The MC-PDOY22 80363975-150, as part of the Honeywell Experion PKS ecosystem, directly addresses these pain points through a unified I/O architecture that supports protocol-transparent communication between field devices, DCS controllers, and upper-layer enterprise systems.

Protocol Unification: Many brownfield facilities operate a mix of legacy HART instruments, Modbus RTU field devices, and modern Profibus DP actuators alongside Experion DCS nodes. The MC-PDOY22, when paired with Honeywell’s Multifunction Controller (MFC) or third-party protocol gateways, enables seamless data exchange across these heterogeneous environments — eliminating the data silos that prevent plant-wide visibility.

Remote Monitoring & Transparent Production Lines: With channel-level diagnostics embedded in the module firmware, maintenance engineers can remotely identify a failed output channel, a wiring fault, or a field device failure without dispatching personnel to the field. This capability, surfaced through the Experion Station or a connected SCADA dashboard, dramatically reduces mean time to repair (MTTR) and supports continuous production transparency.

System Scalability: The modular architecture of the Experion PKS I/O subsystem allows plants to expand their digital output capacity by adding MC-PDOY22 modules to existing I/O chassis without reconfiguring the entire control network. This plug-and-play scalability supports phased smart factory upgrades, enabling facilities to incrementally digitize their operations while maintaining backward compatibility with existing field wiring and control strategies.

Pre-Shipment Testing & Inventory Assurance: Every MC-PDOY22 80363975-150 unit supplied by ZYPLC undergoes functional verification testing prior to dispatch, including channel continuity checks, communication handshake validation with Experion controller emulators, and output switching cycle tests. availability subject to RFQ confirmation is maintained in our warehouse to support urgent project timelines, with global shipping available to meet delivery requirements across Asia, Europe, and the Americas.

Industrial Connectivity FAQ

Q1: What communication protocols does the MC-PDOY22 80363975-150 support?
The MC-PDOY22 communicates natively over the Honeywell Experion I/O Link and CEE bus protocols within the DCS I/O subsystem. At the network level, it operates within the Fault Tolerant Ethernet (FTE) architecture, which is fully compatible with standard IEEE 802.3 Ethernet infrastructure. For integration with third-party SCADA or MES systems, OPC DA/UA gateways can be deployed at the Experion server layer to bridge protocol differences without modifying the I/O module configuration.

Q2: Is the MC-PDOY22 compatible with both Experion PKS R500 and earlier Experion releases?
The MC-PDOY22 80363975-150 is designed for use within the Honeywell Experion PKS platform and is compatible with Experion R500 and later releases. For earlier Experion versions or TDC 3000 migration projects, compatibility should be verified against the specific system release notes. ZYPLC’s technical team can assist with compatibility assessment prior to procurement.

Q3: How does the module handle network instability or communication interruptions?
The MC-PDOY22 is designed for operation within Honeywell’s redundant FTE network topology, which provides automatic failover in the event of a network path failure. In the event of a controller communication loss, the module can be configured to hold last state or de-energize outputs based on the defined fail-safe strategy, ensuring process safety is maintained during network interruptions. Diagnostic alarms are generated at the Experion server level to alert operators immediately.

Q4: What warranty and post-sale support does ZYPLC provide for the MC-PDOY22?
All MC-PDOY22 80363975-150 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical support team is available to assist with installation guidance, system integration questions, and replacement coordination throughout the warranty period. Contact us at plc.sales@zyplc.com or +86 19859288691 for post-sale support.
