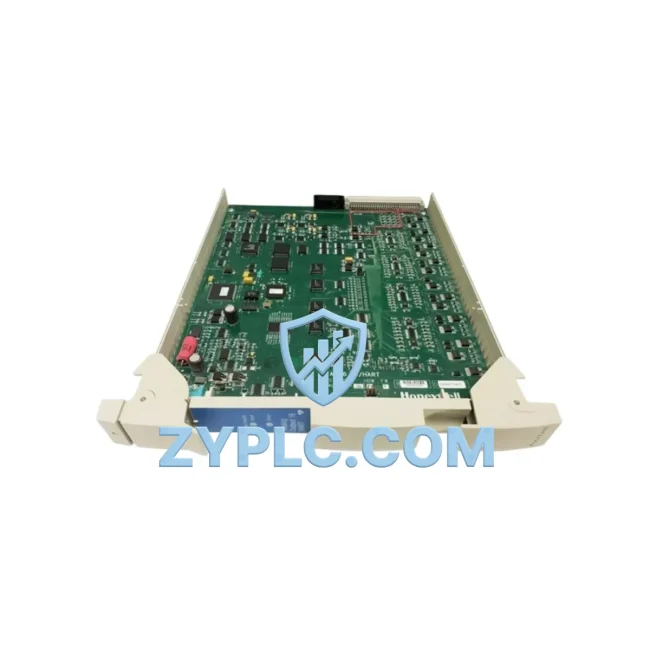

Honeywell MC-PHAO01 51403476-150 System-Ready Analog Output for Experion PKS Architecture

Honeywell MC-PHAO01 51403476-150 System-Ready Analog Output for Experion PKS Architecture

The Honeywell MC-PHAO01 (part number 51403476-150) is a 16-channel HART-enabled analog output module engineered for seamless integration within the Experion PKS (Process Knowledge System) distributed control architecture. Rather than functioning as a standalone component, this module is designed to operate as a precision signal-conditioning layer within a multi-tier automation hierarchy — bridging the controller layer, field device layer, and supervisory network with consistent, high-fidelity output performance. Its role in the system is to translate digital control commands from the C300 or C200E process controllers into calibrated 4–20 mA analog signals, enabling precise actuation of control valves, variable-speed drives, positioners, and other field-mounted final control elements.

In a fully integrated Experion PKS architecture, the MC-PHAO01 is typically installed within a Series C I/O chassis or IOLIM-compatible backplane, sharing rack space with complementary modules such as the MC-PAIH02 analog input module, MC-PDIY22 digital input module, and MC-PDOY22 digital output module. This co-location within a common chassis reduces inter-module wiring complexity, supports coordinated scan-cycle timing, and simplifies cabinet layout in high-density control panel designs. The module communicates upstream via the FTE (Fault Tolerant Ethernet) network backbone, ensuring that output commands from the C300 controller are delivered with deterministic latency — a critical requirement in process industries where loop response time directly affects product quality and safety margins.

One of the defining strengths of the MC-PHAO01 in a system context is its native HART (Highway Addressable Remote Transducer) pass-through capability. This allows the Experion PKS operator station — running HMIWeb or Experion Station software — to communicate bidirectionally with HART-enabled field instruments without requiring a separate HART multiplexer or gateway. Maintenance engineers can remotely access device diagnostics, perform loop calibration, and retrieve instrument health data directly through the DCS console, reducing the need for physical field access and shortening planned maintenance windows. This capability integrates naturally with the Experion Asset Manager module, enabling condition-based maintenance workflows across the entire field device population.

From a redundancy and availability standpoint, the MC-PHAO01 supports Honeywell’s standard I/O redundancy schemes when paired with the appropriate redundancy modules and IOLIM backplane configurations. In critical process loops — such as reactor feed control, compressor surge protection, or boiler drum level regulation — redundant output modules ensure that a single card failure does not interrupt the control signal to the final control element. This architecture aligns with IEC 61511 functional safety requirements and supports SIL-rated loop designs when combined with appropriate safety instrumented system (SIS) components such as the SM-Series Safety Manager modules.

The module’s compatibility with the Experion PKS Universal I/O strategy also means it can be configured and reconfigured through software without physical rewiring, supporting late-binding engineering workflows that are increasingly common in modular plant designs and skid-based process units. When integrated with the Experion PKS FDM (Field Device Manager) and paired with HART communicators or wireless HART adapters, the MC-PHAO01 becomes a node in a fully digitized field network — enabling loop documentation, as-found/as-left calibration records, and regulatory compliance reporting to be managed centrally from the control room.

For system integrators and plant engineers managing multi-vendor environments, the MC-PHAO01’s standardized signal range (4–20 mA, 0–20 mA selectable), wide supply voltage tolerance, and DIN rail or chassis-mount flexibility make it a practical choice for retrofit projects where existing field wiring must be preserved. Its compact form factor allows it to be installed in existing Experion PKS cabinets alongside legacy C200 controllers, PM I/O modules, or FIM4 field interface modules without requiring cabinet expansion — a significant advantage in brownfield modernization projects where physical space is constrained.

Architecture Specification Table

Coordinated Control System Design

The MC-PHAO01 achieves its full value when deployed as part of a coordinated Experion PKS system architecture. In a typical process plant configuration, the module shares a Series C I/O chassis with the MC-PAIH02 analog input module, which handles 4–20 mA and HART input signals from transmitters measuring pressure, temperature, flow, and level. The chassis backplane connects to the C300 Process Controller via the FTE network, which also links to the EPLCG Ethernet Gateway for integration with third-party subsystems or legacy PLCs. For digital I/O requirements within the same cabinet, the MC-PDIY22 digital input module and MC-PDOY22 digital output module handle discrete signals from limit switches, solenoid valves, and motor starters.

Power distribution to the I/O chassis is managed through the MC-PWRJ1 power supply module, which provides regulated 24 VDC to all installed I/O cards including the MC-PHAO01. In redundant power configurations, a secondary MC-PWRJ1 operates in hot-standby mode, ensuring uninterrupted output signal delivery even during a power supply failure. The IOLIM I/O Link Interface Module serves as the communication bridge between the I/O chassis and the C300 controller, supporting up to 40 I/O modules per link and enabling high-density I/O configurations in large process units.

At the human-machine interface layer, operator interaction with the MC-PHAO01’s output channels is managed through Experion Station or HMIWeb Display Builder graphics, where loop faceplate displays show current output values, setpoints, and HART device status. For field-level commissioning, the Honeywell FDM (Field Device Manager) provides a dedicated interface for HART device configuration, loop calibration, and diagnostic data retrieval — all without requiring a handheld HART communicator in the field.

Application in Layered Automation Systems

In refinery and petrochemical applications, the MC-PHAO01 is commonly deployed in distillation column control loops, where precise 4–20 mA output signals drive control valve positioners regulating reflux ratios, reboiler duties, and overhead condenser flows. The module’s HART capability allows online valve diagnostics — detecting valve stiction, hysteresis, and actuator wear — without interrupting the control loop, supporting predictive maintenance programs that reduce unplanned shutdowns.

In power generation facilities, the module is used in boiler combustion control systems, where it drives burner management actuators, fuel control valves, and air damper positioners. Its deterministic output response and redundancy support make it suitable for turbine governor control auxiliary loops and feedwater control systems where output signal integrity is directly linked to unit availability and grid stability.

In water and wastewater treatment plants, the MC-PHAO01 controls variable-speed pump drives, chemical dosing pumps, and aeration blower VFDs. Its ability to handle 16 independent output channels from a single module reduces cabinet footprint in pump station control panels, where space is typically limited. The HART pass-through capability supports remote calibration of dosing pump controllers and flow control valves without requiring field technician visits to remote pump stations.

In mining and minerals processing applications, the module is deployed in grinding circuit control systems, flotation cell level control, and thickener underflow density control loops. Its wide operating temperature range and robust chassis-mount design make it suitable for installation in process control buildings adjacent to harsh mining environments.

Architecture Engineering FAQ

Q1: Is the MC-PHAO01 compatible with both C200E and C300 controllers in the same Experion PKS system?
Yes. The MC-PHAO01 is compatible with both the C200E and C300 process controllers within the Experion PKS platform. When used with the C300, it connects via the IOLIM backplane and FTE network. With the C200E, it integrates through the Series C I/O chassis using the standard backplane communication protocol. Both configurations support full HART pass-through and channel-level diagnostics through the Experion operator station.

Q2: Can the MC-PHAO01 be used in a redundant I/O configuration, and what additional components are required?
Yes. Redundant output operation requires the addition of a compatible redundancy module and an IOLIM backplane that supports redundant I/O linking. In this configuration, a primary and secondary MC-PHAO01 operate in lockstep, with the secondary module taking over output signal generation within milliseconds of a primary module fault. This architecture is recommended for SIL-rated control loops and critical process applications where output signal continuity is a safety or production requirement.

Q3: What does the 12-Month Warranty cover, and how is the module tested before shipment?
Every MC-PHAO01 unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing including channel-by-channel output verification across the full 4–20 mA range, HART communication validation, backplane interface continuity checks, and isolation resistance measurement. Modules that do not meet Honeywell’s original factory specifications are rejected and not offered for sale. The warranty covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair support provided within the warranty period.
