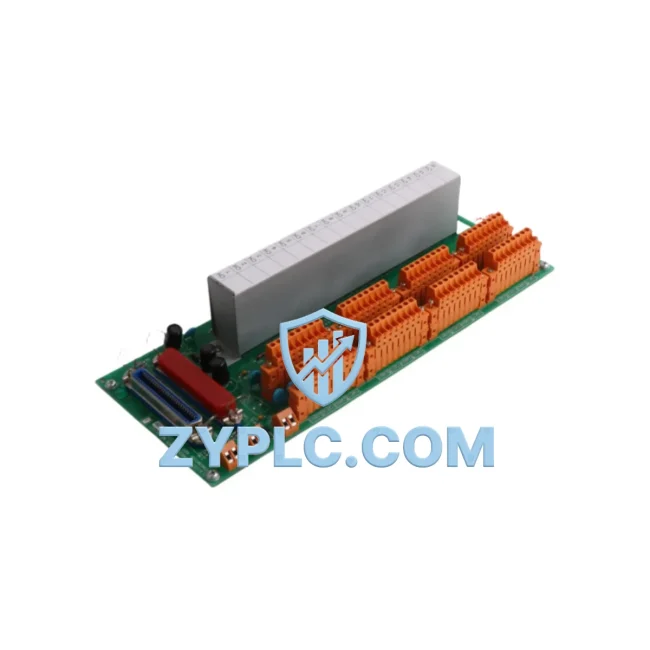

Honeywell MC-TAIH22 51204170-250 Energy-Saving Analog Input Module

Honeywell MC-TAIH22 51204170-250 Energy-Saving Analog Input Module for Optimized TDC 3000 Automation

The Honeywell MC-TAIH22 (51204170-250) is a high-efficiency analog input module engineered for the TDC 3000 and Experion PKS distributed control systems. In modern industrial facilities where energy accountability is no longer optional, this module plays a foundational role in closing the loop between field-level signal acquisition and plant-wide energy optimization. By delivering precise, low-latency analog data from sensors, transmitters, and field instruments directly into the control layer, the MC-TAIH22 enables operators to make faster, more informed decisions that directly reduce energy waste, minimize idle equipment runtime, and improve overall production line throughput.

Unlike generic I/O modules, the MC-TAIH22 is purpose-built for Honeywell’s high-availability control architecture. Its compatibility with the TDC 3000 High-Performance Process Manager (HPM) and the Experion PKS C300 Controller ensures that analog signals — whether from flow transmitters, pressure sensors, or temperature probes — are captured with the resolution and speed required for closed-loop energy control strategies. When paired with the Honeywell MC-TDID12 Digital Input Module and the MC-TAOX22 Analog Output Module, the MC-TAIH22 forms a complete signal chain that supports both energy monitoring and corrective actuation within a single control node.

In variable-load production environments, energy efficiency depends on the accuracy of real-time process data. The MC-TAIH22 feeds high-fidelity analog readings into the control system, allowing the Experion PKS Station and associated Honeywell FTE (Fault Tolerant Ethernet) network to continuously evaluate motor load, pump flow rates, and compressor pressure — and adjust drive setpoints accordingly. When integrated with a Honeywell Variable Frequency Drive (VFD) or third-party inverter via the control output chain, this feedback loop can reduce motor energy consumption by 15–30% compared to fixed-speed operation.

Efficiency Performance Table

Energy-Aware Automation Architecture

Effective energy management in a process plant is not achieved by a single device — it is the result of a tightly integrated control architecture where every layer contributes to efficiency. The MC-TAIH22 sits at the data acquisition layer, but its impact cascades upward through the entire system.

At the field level, the module collects analog signals from instruments such as Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure transmitters, and RTD-based temperature sensors. These signals are conditioned and digitized, then passed to the Honeywell HPM (High-Performance Process Manager) for real-time control execution. The HPM, working in conjunction with the MC-TAOX22 Analog Output Module, issues corrective signals to final control elements — including control valves, variable speed drives, and motorized dampers — based on the energy state of the process.

For facilities running Honeywell Experion PKS R500 or later, the MC-TAIH22 integrates seamlessly into the Series C I/O architecture, supporting redundant module configurations that eliminate single points of failure without adding energy overhead. The Honeywell CIOM-A (Cabinet I/O Module Assembly) provides the physical backplane for module installation, while the FTE switch network ensures that all analog data reaches the Experion Server with deterministic latency — a critical requirement for energy-sensitive control loops such as boiler combustion management or chiller plant optimization.

When the MC-TAIH22 is deployed alongside the Honeywell MC-TDID12 Digital Input Module and the MC-PDOY22 Digital Output Module, operators gain a complete picture of both analog process variables and discrete equipment states. This combination allows the control system to detect when a pump is running at partial load, when a compressor is cycling unnecessarily, or when a heat exchanger is operating outside its efficiency band — and take corrective action automatically, without operator intervention.

For energy monitoring at the power distribution level, the MC-TAIH22 can be paired with Honeywell’s PM-series Power Monitors or third-party power quality analyzers connected via MODBUS RTU or PROFIBUS DP. The analog outputs from these meters feed directly into the MC-TAIH22 input channels, giving the DCS a real-time view of kWh consumption, power factor, and demand peaks — data that is essential for demand response programs and ISO 50001 energy management compliance.

Power Optimization in Real Production Lines

In a typical continuous process plant — such as a petrochemical refinery, a pharmaceutical API facility, or a food and beverage production line — energy costs represent 20–40% of total operating expenditure. The MC-TAIH22 contributes to reducing this burden in several concrete ways.

Motor and Drive Efficiency: By providing accurate, real-time analog feedback from flow and pressure transmitters, the MC-TAIH22 enables the TDC 3000 or Experion PKS controller to maintain pump and fan speeds at the minimum required level. Rather than running motors at fixed speed and throttling flow with control valves (a highly inefficient practice), the control system can command a VFD to reduce motor speed — cutting energy consumption by the cube of the speed reduction. A 20% reduction in motor speed, for example, results in approximately 49% less energy consumption.

Reduced Unplanned Downtime: The module’s high-resolution analog input capability supports early detection of process deviations — rising temperatures, falling pressures, or abnormal flow rates — that often precede equipment failures. By catching these trends early and alerting maintenance teams through the Experion PKS alarm management system, facilities can schedule predictive maintenance during planned shutdowns rather than responding to emergency breakdowns. Unplanned downtime in a process plant typically costs 5–10 times more than planned maintenance, both in direct repair costs and in energy wasted during restart and re-stabilization sequences.

Production Line Rhythm Optimization: In batch manufacturing environments, the MC-TAIH22 helps maintain consistent process conditions across production cycles. By feeding accurate analog data into recipe-based control strategies, the system can minimize the energy-intensive heating, cooling, and pressurization steps that occur when process conditions drift between batches. Tighter process control means fewer off-spec batches, less rework energy, and higher overall equipment effectiveness (OEE).

Inventory Availability and Fast Delivery: The MC-TAIH22 (51204170-250) is maintained in stock at our warehouse and undergoes full functional testing prior to shipment. Each unit is verified against Honeywell’s original performance specifications, ensuring that replacement modules restore system performance immediately upon installation — minimizing the energy and productivity losses associated with extended downtime. All units are covered by a 12-month warranty, providing assurance of long-term reliability in demanding industrial environments.

Energy Optimization FAQ

Q1: How does the MC-TAIH22 contribute to measurable energy savings in a TDC 3000 system?
The MC-TAIH22 provides the high-accuracy analog input data that closed-loop energy control strategies depend on. By enabling the HPM or C300 controller to precisely regulate motor speeds, valve positions, and process temperatures based on real-time field data, the module helps eliminate the energy waste associated with over-control, fixed-speed operation, and process variability. Facilities that implement closed-loop VFD control using accurate analog feedback typically report 15–30% reductions in motor energy consumption.

Q2: Is the MC-TAIH22 51204170-250 compatible with both TDC 3000 and Experion PKS systems?
Yes. The MC-TAIH22 with part number 51204170-250 is designed for use in Honeywell’s TDC 3000 architecture and is also compatible with Experion PKS systems that maintain backward compatibility with TDC 3000 I/O modules. If you are migrating from TDC 3000 to Experion PKS, this module can be retained in your existing I/O cabinets, reducing migration costs and avoiding unnecessary hardware replacement.

Q3: Can this module replace a failed MC-TAIH22 in an existing installation without reconfiguration?
In most cases, yes. The MC-TAIH22 is a direct replacement for existing modules of the same part number. Channel configuration is stored in the controller database, not on the module itself, so a replacement module will assume the correct configuration upon installation. We recommend verifying firmware compatibility with your system integrator if your TDC 3000 or Experion PKS system is running an older software release.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every MC-TAIH22 unit shipped from our facility undergoes a full functional test that verifies analog input accuracy across all 16 channels, power consumption within specification, and communication integrity with the TDC 3000 backplane. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no charge. Contact our technical team for warranty claims or pre-shipment test reports.
