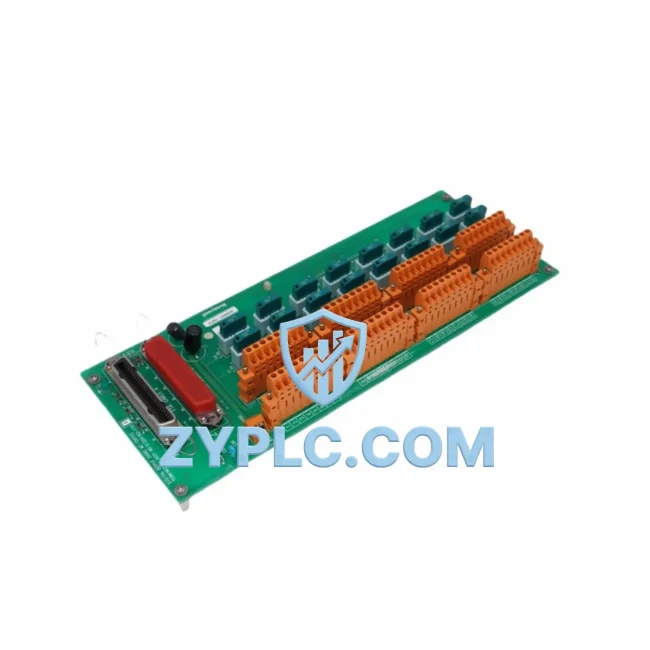

Honeywell MC-TD1D12 System-Ready Digital Input Module for C300 Architecture

Honeywell MC-TD1D12 System-Ready Digital Input Module for C300 Architecture: Control System Coordination and Contextual Integration

The Honeywell MC-TD1D12 is a 12-channel digital input module engineered for seamless deployment within the Honeywell Experion PKS distributed control system, specifically optimized for C300 controller-based architectures. Rather than functioning as a standalone field device, the MC-TD1D12 is designed as an integral node within a layered automation hierarchy — connecting field-level discrete signals upward through the I/O subsystem, across the control network, and into the supervisory and historian layers of a complete process control environment. Its role in system architecture is to provide reliable, high-integrity digital signal acquisition that supports real-time decision-making, alarm management, and process interlocking across demanding industrial applications.

In a fully realized Experion PKS architecture, the MC-TD1D12 occupies the I/O layer, mounted on a Series C I/O Link carrier or compatible IOTA (I/O Termination Assembly) such as the MC-TAIH12 or MC-TAIX12, which provides the physical termination interface for field wiring. The module communicates upstream to the C300 Controller Module via the C300’s I/O Link bus, enabling deterministic scan cycles and tight integration with the controller’s execution engine. This architecture ensures that digital input states — whether from limit switches, proximity sensors, valve position feedback, or motor run signals — are captured with the timing precision required for interlock logic and sequence-of-events recording.

Architecture Specification Table

Coordinated Control System Design

The MC-TD1D12 achieves its full value when considered within the broader context of a coordinated Honeywell Experion PKS control system. At the controller layer, the C300 Controller Module (MC-CONT02) serves as the primary processing engine, executing control strategies, managing I/O scan cycles, and maintaining communication with the Experion server. The MC-TD1D12 feeds discrete field states directly into this execution environment, enabling the C300 to act on real-time process conditions without latency introduced by intermediate gateways or protocol converters.

Power integrity across the I/O subsystem is maintained by the Honeywell MC-PDIY22 or equivalent Series C power supply modules, which deliver regulated DC power to the I/O carrier backplane. This ensures that the MC-TD1D12 and co-located modules — such as the MC-TD1D12 (digital output counterpart configurations), MC-TAOX12 analog output modules, or MC-TAIH12 analog input modules — operate within specified voltage tolerances even under high-load conditions or during power transients common in industrial environments.

Network communication between the C300 controller and the Experion server infrastructure is handled via the Fault Tolerant Ethernet (FTE) network, a dual-redundant Ethernet architecture that ensures continuous data flow even in the event of a single network path failure. The MC-TD1D12’s digital input states are propagated through this network to the Experion Operator Station, where process graphics, alarm displays, and trend historians consume the data in real time. Integration with the Experion historian enables long-term storage of digital state transitions — critical for post-incident analysis, regulatory compliance, and maintenance planning.

For applications requiring enhanced availability, the MC-TD1D12 is fully compatible with redundant C300 controller pairs. In a redundant configuration, the primary and secondary C300 controllers maintain synchronized state, and upon a controller fault, the secondary assumes control without interruption to I/O scanning. This redundancy architecture is particularly valuable in continuous process industries — such as refining, petrochemical, and power generation — where unplanned shutdowns carry significant operational and safety consequences.

At the human-machine interface layer, Experion Operator Stations and Engineering Stations provide the visualization and configuration environment for the MC-TD1D12’s channel assignments, alarm limits, and diagnostic status. Control Builder, Honeywell’s engineering tool, is used to configure the module’s channel parameters, assign tag names, and define interlock logic that references the module’s input states. This tight integration between the MC-TD1D12 hardware and the Experion software environment exemplifies the Contextual Integration philosophy — where every hardware component is a fully contextualized node within a unified control system, not merely a signal conditioner.

In cabinet-level design, the MC-TD1D12 is typically co-located with terminal modules, marshalling panels, and surge protection assemblies within a control system cabinet. Proper cabinet layout ensures that the I/O carrier, power supply, and communication cabling are organized for maintainability and EMC compliance — considerations that directly affect long-term system reliability and the efficiency of periodic maintenance activities.

Application in Layered Automation Systems

The MC-TD1D12 finds application across a wide range of process industries where discrete digital signal acquisition is a fundamental requirement of the control architecture.

In oil refining and petrochemical plants, the module captures valve position feedback, pump run/stop status, and emergency shutdown (ESD) system inputs. Its integration with the C300 controller enables the Experion PKS system to execute complex interlock sequences — such as high-high level shutdowns or fire and gas system responses — with the determinism required by functional safety standards.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the MC-TD1D12 monitors breaker status, turbine protection relay outputs, and auxiliary equipment run signals. The module’s compatibility with redundant C300 architectures ensures that critical monitoring functions remain available even during planned maintenance on the primary controller.

In water and wastewater treatment systems, the MC-TD1D12 acquires discrete inputs from pump stations, flow control valves, and level switch arrays distributed across geographically dispersed facilities. Its diagnostic capabilities allow operators to identify field wiring faults or sensor failures from the Experion Operator Station without requiring physical inspection of remote field panels.

In mining and minerals processing applications, the module supports conveyor belt monitoring, crusher protection interlocks, and mill drive status acquisition. The harsh electrical environment of mining operations — characterized by high-voltage switching transients and ground noise — makes the MC-TD1D12’s optical isolation and robust signal conditioning particularly valuable.

In pharmaceutical and food and beverage manufacturing, the MC-TD1D12 supports batch process control architectures where discrete event sequencing — such as valve open/close confirmation and agitator run status — must be recorded with precise timestamps for batch records and regulatory audit trails. The Experion historian’s integration with the module’s input states provides the data foundation for electronic batch records compliant with 21 CFR Part 11 and similar regulatory frameworks.

Architecture Engineering FAQ

Q1: Is the MC-TD1D12 compatible with both redundant and non-redundant C300 controller configurations, and does it require any special configuration for redundancy?

A: Yes, the MC-TD1D12 is fully compatible with both simplex and redundant C300 controller configurations within the Experion PKS architecture. In a redundant C300 setup, no special hardware modification is required at the I/O module level — the redundancy is managed at the controller pair level, with both primary and secondary C300 controllers sharing access to the same I/O subsystem via the I/O Link bus. Configuration of redundancy parameters is performed in Control Builder during system engineering. All units supplied by ZYPLC are covered by a 12-Month Warranty and are tested for compatibility with standard Experion PKS redundancy architectures prior to shipment.

Q2: What carrier and IOTA assemblies are required to install the MC-TD1D12, and how does this affect cabinet space planning?

A: The MC-TD1D12 requires a compatible Series C I/O Link carrier for backplane communication and a corresponding IOTA — typically the MC-TAIH12 or MC-TAIX12 — for field wiring termination. The IOTA is mounted separately from the carrier, connected via a cable assembly, which allows field wiring to be pre-terminated on the IOTA before the module is installed. This separation simplifies module replacement during maintenance, as the field wiring remains undisturbed. Cabinet space planning should account for both the carrier/module assembly and the IOTA panel, as well as cable routing for the IOTA interconnect. ZYPLC’s engineering support team can assist with cabinet layout recommendations as part of the procurement process.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or long-term spare parts support?

A: The 12-Month Warranty provided by ZYPLC covers manufacturing defects, functional failures under normal operating conditions, and compatibility issues identified during commissioning for all MC-TD1D12 units supplied. The warranty period begins from the date of shipment. In the event of a warranty claim, customers should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 with the unit’s serial number and a description of the observed fault. ZYPLC maintains inventory of Honeywell Experion PKS components — including C300 series I/O modules, controller modules, and power supply assemblies — to support both warranty replacements and long-term spare parts programs, minimizing the risk of extended downtime due to component unavailability.
