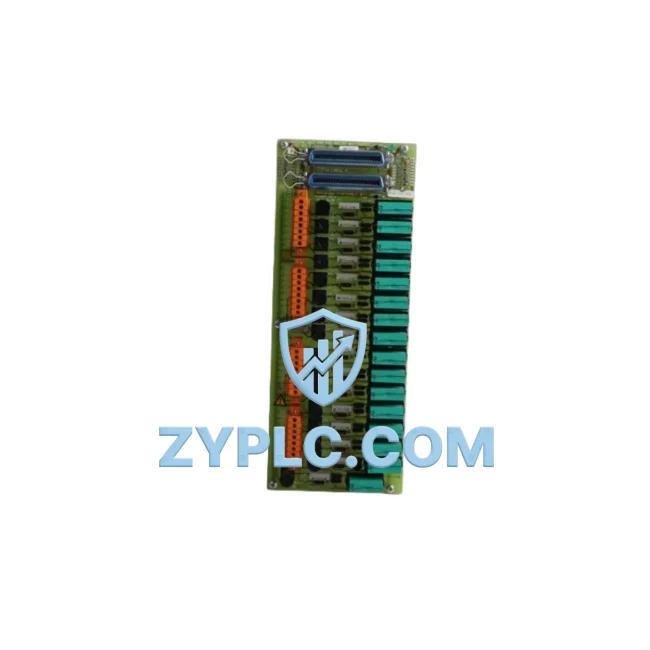

Honeywell MC-TSTX13 51309142-175 System-Ready Digital Output Relay for Experion PKS Architecture

Honeywell MC-TSTX13 51309142-175 System-Ready Digital Output Relay for Experion PKS Architecture

The Honeywell MC-TSTX13 51309142-175 is a dedicated digital output relay module engineered for seamless integration within the Experion PKS (Process Knowledge System) and TDC 3000 distributed control system architectures. Rather than functioning as a standalone component, this module is purpose-built to operate within a layered automation hierarchy — coordinating signal execution across the control layer, I/O layer, field device layer, and power distribution layer to deliver consistent, reliable, and scalable process automation performance.

In modern industrial control environments — spanning petrochemical refining, power generation, water treatment, metallurgical processing, and continuous manufacturing — the integrity of digital output relay modules is foundational to system-wide reliability. The MC-TSTX13 51309142-175 fulfills this role by providing isolated relay contact outputs that interface directly with field actuators, solenoid valves, motor starters, and alarm annunciators, ensuring that control commands from the Experion PKS controller are faithfully executed at the process level.

This module is designed for installation within the standard Honeywell I/O Link chassis and backplane infrastructure, where it communicates with upstream controller nodes — such as the C300 Controller or the MC-CONT02 Control Processor — via the FTE (Fault Tolerant Ethernet) network backbone. Its relay output architecture supports both normally open and normally closed contact configurations, making it adaptable to a wide range of field device wiring schemes and safety interlock requirements.

From a system architecture perspective, the MC-TSTX13 51309142-175 occupies a critical position in the I/O execution layer. It receives discrete output commands from the controller, converts them into physical relay contact closures, and drives field-side loads with the electrical isolation necessary to protect sensitive control electronics from voltage transients and ground loops. This isolation capability is particularly valuable in high-noise industrial environments such as mining operations, steel mills, and offshore platforms.

The module’s compatibility with the Honeywell PMIO (Process Manager I/O) subsystem and its support for the standard Honeywell I/O termination assembly — including the MC-TAIH02 and MC-TAIH12 termination panels — simplifies field wiring and reduces installation time during both greenfield commissioning and brownfield retrofit projects. Engineers can replace or hot-swap modules without disrupting adjacent I/O channels, significantly reducing planned maintenance downtime.

Within a redundant control architecture, the MC-TSTX13 51309142-175 supports integration alongside redundant controller pairs and redundant I/O link modules such as the MC-PLAM02 and MC-PLAM12, ensuring that a single module failure does not interrupt process control. This redundancy capability is essential for SIL-rated safety applications and continuous process industries where unplanned shutdowns carry significant operational and financial consequences.

The module also plays a role in system scalability. As production capacity expands or process configurations evolve, additional MC-TSTX13 units can be added to existing chassis without requiring controller reconfiguration, provided the I/O link capacity and backplane slot availability are maintained. This plug-and-play expandability, combined with Experion PKS’s centralized asset management through the Station HMI and Experion Server, allows engineering teams to manage I/O expansion projects with minimal disruption to live production systems.

For long-term maintenance planning, the MC-TSTX13 51309142-175 is supported by Honeywell’s global spare parts network and is compatible with the Honeywell Asset Manager diagnostic platform, enabling predictive maintenance workflows that reduce unplanned failures. All units supplied by ZYPLC are tested, inspected, and covered by a 12-Month Warranty, providing procurement teams and plant engineers with the confidence needed for critical spare parts sourcing.

Architecture Specification Table

Coordinated Control System Design

The MC-TSTX13 51309142-175 achieves its full performance potential when deployed as part of a coordinated Honeywell Experion PKS control system. In a typical architecture, the C300 Controller serves as the primary processing node, executing control strategies and issuing discrete output commands to I/O modules via the I/O Link communication bus. The MC-TSTX13 receives these commands and drives field-side relay contacts to actuate solenoid valves, motor control relays, and alarm outputs.

Power distribution to the I/O chassis is managed by the Honeywell MC-PDPM Power Distribution Module, which provides regulated 24VDC to the backplane and connected I/O modules. Upstream, the Experion PKS system relies on the MC-PLAM02 I/O Link Adapter Module to bridge controller communications to the I/O subsystem, while redundant link configurations use the MC-PLAM12 for failover protection.

On the human-machine interface layer, operators monitor discrete output states through the Experion Station HMI, which displays real-time relay status, alarm conditions, and diagnostic information sourced directly from the MC-TSTX13 module’s status registers. For field termination, the MC-TAIH02 and MC-TAIH12 termination assemblies provide organized, labeled wiring points that simplify both initial installation and ongoing maintenance activities.

In safety-critical applications, the MC-TSTX13 is often deployed alongside the Honeywell Safety Manager or FSC (Fail-Safe Controller) platform, where its relay outputs serve as final control elements in safety instrumented functions (SIFs). The combination of the MC-TSTX13 with the MC-PDPM power module, C300 controller, and Experion Server creates a fully integrated, redundancy-capable control architecture suitable for SIL 2 and SIL 3 rated process safety applications.

Application in Layered Automation Systems

In petrochemical and refining facilities, the MC-TSTX13 51309142-175 is commonly deployed to control emergency shutdown (ESD) valve actuators, pump motor starters, and compressor control relays within Experion PKS-based distributed control systems. Its relay isolation capability ensures that high-voltage field devices do not introduce electrical interference into the control system’s logic circuitry.

In power generation plants — including thermal, hydroelectric, and combined-cycle facilities — the module manages discrete outputs for turbine control auxiliaries, generator excitation systems, and switchgear control circuits. Its compatibility with the TDC 3000 platform makes it a preferred choice for legacy power plant modernization projects where existing Honeywell infrastructure is being upgraded to Experion PKS without full system replacement.

Water and wastewater treatment facilities use the MC-TSTX13 to control pump station motor starters, chemical dosing system relays, and UV disinfection system outputs. The module’s robust relay contact design handles the frequent switching cycles typical of pump control applications without degradation in contact reliability.

In metallurgical and mining operations, where control systems must withstand high levels of electrical noise, vibration, and temperature variation, the MC-TSTX13’s isolated relay architecture provides the signal integrity needed to maintain reliable discrete output control across extended cable runs to remote field devices. Packaging and food processing lines similarly benefit from the module’s fast response time and deterministic output behavior, which are essential for high-speed conveyor control and filling line sequencing applications.

Architecture Engineering FAQ

Q1: Is the MC-TSTX13 51309142-175 compatible with both Experion PKS and TDC 3000 systems?
Yes. The MC-TSTX13 51309142-175 is designed for use within the Honeywell PMIO subsystem, which is shared across both the Experion PKS and TDC 3000 control platforms. It can be installed in existing TDC 3000 HPM I/O chassis as well as in Experion PKS I/O Link chassis without hardware modification, making it an ideal spare part for facilities operating mixed-generation Honeywell DCS architectures.

Q2: Can the MC-TSTX13 be used in a redundant I/O configuration?
The MC-TSTX13 51309142-175 supports redundant I/O link configurations when paired with redundant MC-PLAM02 or MC-PLAM12 I/O Link Adapter Modules. In a redundant architecture, the primary and secondary I/O link adapters maintain synchronized communication with the controller, ensuring that a single adapter failure does not interrupt output command delivery to the MC-TSTX13 module. Full I/O module redundancy at the relay output level requires system-level design review with Honeywell engineering guidelines.

Q3: What warranty and quality assurance does ZYPLC provide for the MC-TSTX13 51309142-175?
All MC-TSTX13 51309142-175 modules supplied by ZYPLC are subject to incoming inspection, functional testing, and verification against Honeywell factory specifications prior to shipment. Each unit is covered by a 12-Month Warranty from the date of delivery, covering defects in materials and workmanship under normal operating conditions. ZYPLC maintains in-stock inventory of the MC-TSTX13 to support urgent spare parts requirements, with expedited shipping available to minimize plant downtime.
