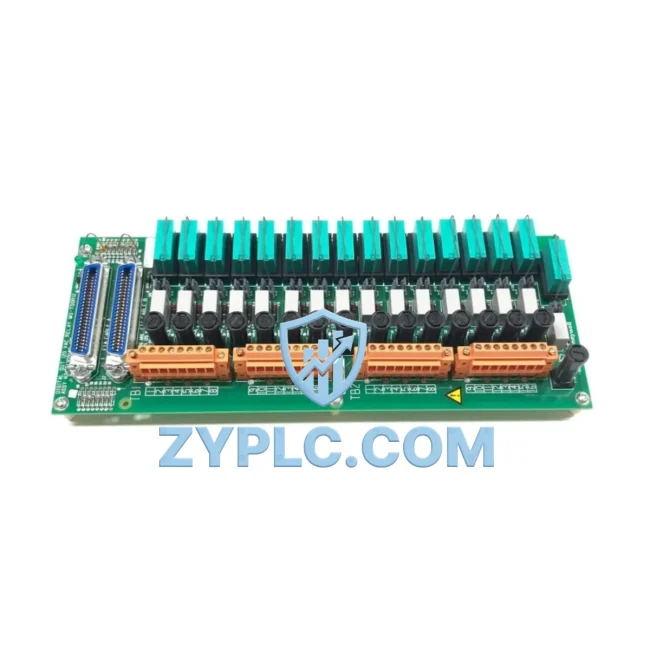

Honeywell RID-125N-1224 System-Ready Digital Output for Experion Architecture

Honeywell RID-125N-1224 System-Ready Digital Output for Experion Architecture

The Honeywell RID-125N-1224 is a precision-engineered digital output module designed to operate as a core field interface component within the Experion PKS (Process Knowledge System) distributed control architecture. Rather than functioning as a standalone device, this module is purpose-built to integrate seamlessly across the full control hierarchy — from the supervisory layer down through the I/O subsystem to the field execution layer — ensuring consistent signal delivery, deterministic response, and long-term system reliability in demanding industrial environments.

In modern process automation, the integrity of the output layer is as critical as the intelligence of the controller itself. The RID-125N-1224 addresses this requirement by providing a robust 12–24 VDC digital output interface that maintains signal fidelity under variable load conditions, electromagnetic interference, and extended operational cycles. Its design supports the architectural principles of the Experion PKS platform, including modular scalability, redundant I/O configuration, and centralized diagnostics — all of which are essential for facilities operating in continuous-process industries such as refining, petrochemicals, power generation, and water treatment.

Architecture Specification Table

Coordinated Control System Design

The RID-125N-1224 does not operate in isolation — its value is realized through its position within a coordinated, multi-layer control architecture. At the controller level, the Honeywell C300 Process Controller or the Experion PKS ControlEdge Unit Operations Controller (UOC) issues discrete output commands through the Experion Series I/O bus. These commands are received and executed by the RID-125N-1224, which drives field devices such as solenoid valves, motor starters, and relay coils with the precision timing required for process-critical operations.

The module mounts on an Experion FTA (Field Termination Assembly) carrier or compatible I/O backplane, sharing the same physical infrastructure as analog input modules such as the Honeywell MC-TAIH12 thermocouple input card and digital input modules like the MC-TDID12, enabling a unified I/O chassis that simplifies wiring, reduces panel footprint, and supports hot-swap maintenance without process interruption.

For applications requiring output redundancy, the RID-125N-1224 can be paired with a redundant I/O module configuration supported by the Experion IOLIM (I/O Link Interface Module), ensuring that a single module failure does not result in loss of field control. This redundancy architecture is particularly critical in safety-instrumented systems where output availability must be maintained at all times.

At the network layer, the Experion PKS platform communicates via FTE (Fault Tolerant Ethernet), and the RID-125N-1224’s host controller interfaces with the Experion server through this dual-ring Ethernet backbone. This ensures that output commands from the SCADA or DCS operator station — running Honeywell Experion Station or a third-party HMI connected via OPC-DA/UA — are transmitted with minimal latency and full fault tolerance.

Power distribution to the I/O chassis is managed through Honeywell-compatible 24 VDC power supplies, often paired with redundant power modules such as the Honeywell MC-PWRJ1 or equivalent DIN-rail power units, ensuring that the RID-125N-1224 and its co-located I/O modules maintain continuous operation even during primary power supply failures. The overall system architecture — from the C300 controller through the FTA backplane, the RID-125N-1224 output module, and out to the field actuator — represents a fully integrated, diagnostics-capable control loop that supports both preventive maintenance scheduling and real-time fault isolation.

Application in Layered Automation Systems

The RID-125N-1224 is deployed across a wide range of industrial sectors where reliable discrete output control is non-negotiable. In petroleum refining and petrochemical plants, this module drives solenoid valves on emergency shutdown (ESD) systems and process isolation loops, where output signal integrity directly impacts plant safety and regulatory compliance. Its compatibility with the Experion PKS Safety Manager architecture allows it to be integrated into SIL-rated control loops when configured within the appropriate safety instrumented system (SIS) framework.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the RID-125N-1224 manages discrete outputs for turbine control auxiliaries, cooling system actuators, and switchgear control circuits. The module’s deterministic output response and Experion PKS Contextual Integration capability allow operators to monitor output status in real time from the control room, reducing response time during abnormal operating conditions.

For water and wastewater treatment plants, the module controls pump motor starters, valve actuators, and chemical dosing systems across distributed pump stations. Its ability to operate within a multi-drop I/O architecture — sharing a common backplane with analog output modules and communication gateway cards — reduces installation complexity and lowers the total cost of ownership over the plant’s operational lifecycle.

In mining and metallurgical processing, where conveyor systems, crusher drives, and flotation cell actuators require reliable discrete control, the RID-125N-1224 provides the output switching capability needed to maintain production continuity. Its industrial-grade construction ensures reliable performance in environments with elevated vibration, dust ingress, and wide ambient temperature variation.

Packaging and discrete manufacturing lines also benefit from the module’s fast output response and compatibility with the Experion PKS batch control framework, enabling precise sequencing of pneumatic actuators, reject gates, and conveyor diverters within high-speed production environments.

Architecture Engineering FAQ

Q1: Is the RID-125N-1224 compatible with both legacy Experion R400 and current Experion R500 series architectures?
The RID-125N-1224 is designed for use within the Honeywell Experion PKS I/O subsystem and is compatible with Experion platform revisions that support the standard FTA-based I/O carrier infrastructure. For specific firmware revision compatibility, it is recommended to cross-reference the module’s hardware revision against the Experion PKS I/O Compatibility Matrix. Our technical team can assist with compatibility verification prior to order confirmation, and all units supplied are covered by a 12-Month Warranty from the date of shipment.

Q2: Can the RID-125N-1224 be installed in a redundant I/O configuration, and what additional components are required?
Yes. Redundant digital output configurations within the Experion PKS architecture typically require a redundant I/O link module (such as the IOLIM) and a compatible redundant FTA carrier that supports dual-module installation. The RID-125N-1224 occupies a standard I/O slot on the FTA backplane, and the redundancy switchover logic is managed at the controller level by the C300 or UOC. Engineering support for redundancy configuration is available, and all supplied modules include a 12-Month Warranty covering hardware defects and operational failures under normal installation conditions.

Q3: What is the recommended maintenance and replacement strategy for the RID-125N-1224 in a continuous-process plant?
For continuous-process facilities operating 24/7, the recommended strategy is to maintain at least one spare RID-125N-1224 module on-site as part of a critical spares inventory. The Experion PKS platform supports hot-swap replacement of I/O modules without requiring a full controller restart, minimizing process disruption during corrective maintenance. Periodic diagnostic checks via the Experion Station interface can identify output channel degradation before failure occurs. All modules supplied through ZYPLC are tested prior to shipment, include full documentation, and are backed by a 12-Month Warranty to support your long-term maintenance planning.
