Honeywell TC-FXX132 Energy-Saving I/O Chassis Experion PKS

Honeywell TC-FXX132 Energy-Saving I/O Chassis for Optimized Experion PKS Automation

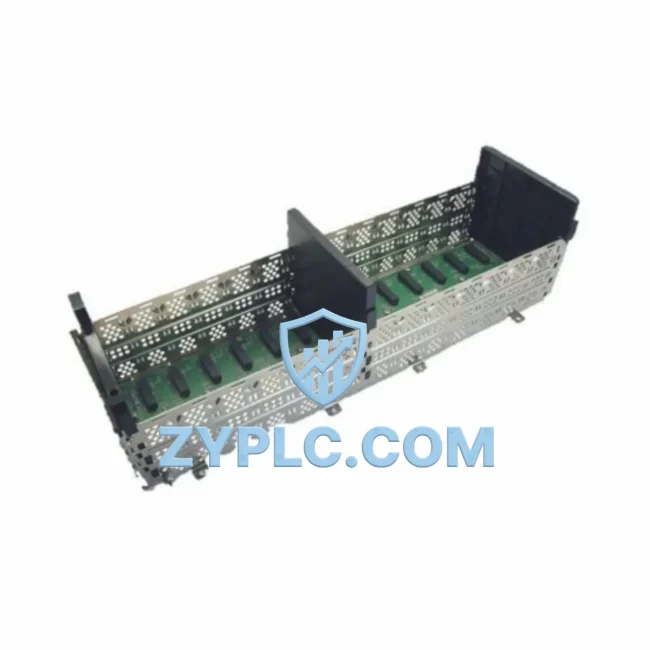

The Honeywell TC-FXX132 is a 13-slot I/O chassis module engineered for deployment within the Experion PKS (Process Knowledge System) and Safety Manager platforms. In modern industrial facilities where energy accountability is no longer optional, the TC-FXX132 plays a foundational role in reducing unnecessary power draw across distributed control architectures. By providing a stable, high-density I/O backbone, it enables tighter scan cycles, faster fault detection, and more responsive motor and drive control — all of which directly translate into measurable reductions in energy waste and unplanned downtime.

Unlike generic chassis solutions, the TC-FXX132 is purpose-built for Honeywell’s Experion ecosystem, ensuring deterministic communication between field instruments, controllers, and supervisory systems. When integrated with Honeywell C300 Process Controllers and EPLCG2 Safety Logic Controllers, the chassis supports real-time process optimization loops that continuously adjust setpoints based on live energy consumption data — eliminating the over-driving of motors, pumps, and compressors that accounts for a significant share of industrial energy loss.

Efficiency Performance Table

Energy-Aware Automation Architecture

The TC-FXX132 chassis is rarely deployed in isolation — its energy optimization value is realized through its role as the physical and logical hub connecting a broader suite of Honeywell and compatible automation components. In a typical energy-conscious plant architecture, the chassis hosts Honeywell TC-IOLI01 analog input modules for current and voltage sensing at motor terminals, alongside TC-FPDXX2 field power distribution modules that regulate 24VDC supply to field devices with minimal line loss.

On the drive side, the TC-FXX132 interfaces with Honeywell HC900 Hybrid Controllers to coordinate variable frequency drive (VFD) commands based on real-time process demand. This prevents motors from running at full speed during low-load periods — a common source of avoidable energy consumption in pumping and HVAC applications. The chassis also supports TC-DIOL01 digital I/O modules for discrete motor start/stop sequencing, enabling precise production line pacing that eliminates idle-run energy waste.

For energy monitoring at the system level, the TC-FXX132 works in conjunction with Honeywell Experion PKS R500 Series servers and Uniformance PHD historian to log per-device power consumption trends over time. This data feeds predictive maintenance algorithms that flag abnormal current draw — often the earliest indicator of bearing wear, insulation degradation, or pump cavitation — before these faults escalate into costly unplanned shutdowns. Integration with Honeywell OneWireless field devices further extends energy visibility to remote assets without additional cabling infrastructure.

Communication integrity is maintained through Fault Tolerant Ethernet (FTE) redundancy built into the Experion PKS backbone, ensuring that energy control commands from the Experion Operator Station (EOS) reach field actuators without latency spikes that could cause process upsets and associated energy penalties. For safety-critical loops, the chassis pairs with Safety Manager SC300E controllers to enforce safe operating envelopes that prevent energy-intensive emergency shutdowns triggered by process excursions.

Power Optimization in Real Production Lines

In refinery and petrochemical applications, the TC-FXX132 has demonstrated its value by enabling tighter integration between process control and energy management systems. When mounted in a remote I/O cabinet near a compressor train, the chassis collects real-time suction and discharge pressure data via analog input modules, feeds this to the C300 controller, and dynamically adjusts compressor speed through VFD output commands — reducing compressor energy consumption by eliminating unnecessary surge margin operation.

In power generation facilities, the same chassis architecture supports boiler combustion optimization. By hosting both temperature and flow I/O modules in a single 13-slot chassis, the TC-FXX132 reduces the number of separate I/O racks required, cutting panel space, wiring complexity, and the associated power supply overhead. Fewer power supplies mean lower baseline energy draw from the control system itself — a factor often overlooked in plant energy audits.

Maintenance teams benefit from the chassis’s compatibility with Experion’s asset management tools, which use I/O signal quality diagnostics to detect wiring degradation and module faults before they cause process interruptions. Predictive replacement of a failing I/O module costs a fraction of the energy and production loss associated with an unplanned trip of a major rotating machine. With 12-month warranty coverage and pre-shipment functional testing, the TC-FXX132 units supplied by ZYPLC arrive ready for immediate installation, minimizing commissioning time and the energy overhead of extended startup procedures.

Inventory availability is maintained to support both planned capital projects and urgent replacement scenarios. All units undergo outgoing quality inspection and load testing prior to dispatch, ensuring that the chassis performs to Honeywell’s original specification from day one of operation.

Energy Optimization FAQ

Q1: How does the TC-FXX132 contribute to reducing plant energy consumption?
The TC-FXX132 provides the I/O infrastructure that enables closed-loop energy control strategies within Experion PKS. By supporting high-density, low-latency I/O scanning, it allows controllers to respond faster to process deviations, reducing the over-compensation that drives unnecessary energy use in motors, heaters, and compressors.

Q2: Is the TC-FXX132 compatible with my existing Experion PKS R400/R500 system?
Yes. The TC-FXX132 is designed for the Experion PKS and Safety Manager platforms and is compatible across multiple release versions including R400 and R500 series. It is recommended to verify the specific I/O module types hosted in the chassis against your system’s supported module list, which ZYPLC’s technical team can assist with prior to purchase.

Q3: What is the recommended replacement process if a chassis fails in service?
For a like-for-like replacement, the TC-FXX132 can be swapped with the system powered down at the chassis level. I/O modules transfer directly to the new chassis. ZYPLC recommends having a tested spare chassis on-site for critical process units. All units shipped by ZYPLC are pre-tested and include a 12-month warranty, reducing the risk associated with spare part quality.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Each TC-FXX132 unit undergoes functional verification including backplane continuity testing, slot integrity checks, and power rail validation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC’s quality control process ensures that every unit meets Honeywell’s original performance specifications.
