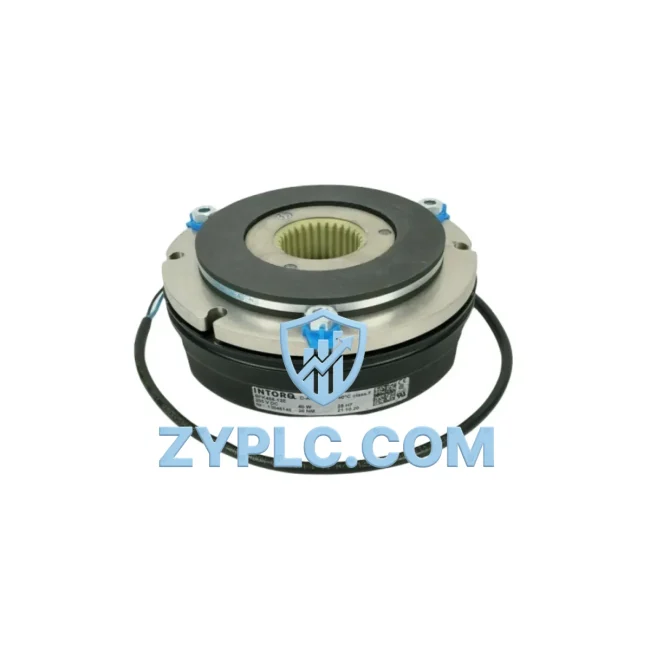

The INTORQ BFK458-12E is a precision-engineered, spring-applied electromagnetic brake designed to operate as a fully integrated safety and motion-control component within the BFK458 series drive architecture. Unlike standalone braking components, the BFK458-12E is conceived as a system element — one that coordinates with servo drives, frequency inverters, motor feedback modules, and safety relay circuits to deliver consistent, fail-safe deceleration across demanding industrial automation environments. Its role within a layered control system extends from the execution layer upward, influencing signal flow, safety logic, and maintenance scheduling across the entire drive train.

In modern industrial automation, no braking component operates in isolation. The BFK458-12E is engineered with this reality in mind. Whether deployed in a centralized PLC-controlled architecture or a distributed motion network, this brake module provides the mechanical certainty that underpins safe machine states, controlled axis parking, and emergency stop compliance — all while maintaining full system integration with the surrounding control ecosystem.

Product Specification Table

System Compatibility Notes

The BFK458-12E achieves its highest value when integrated into a coordinated drive and control architecture. In a typical servo axis application, the brake is energized and released in synchronization with the drive enable signal from a servo controller such as the NORD NORDAC FLEX SK 200E or a compatible frequency inverter. The drive’s digital output triggers the brake release circuit — typically routed through an INTORQ rectifier module (BEG or BEG-D series) — ensuring that the brake opens only when the motor has reached sufficient torque to hold the load, and closes only after the drive has confirmed a safe stop state.

At the control layer, a Siemens S7-1500 CPU or equivalent PLC manages the sequencing logic. The CPU communicates axis state, fault conditions, and motion profiles to the drive via PROFINET or EtherCAT, while simultaneously monitoring brake feedback signals through a dedicated digital input module — such as a Siemens ET 200SP DI module or equivalent distributed I/O node. This closed-loop feedback confirms brake engagement status before any motion command is executed, preventing axis movement under uncontrolled conditions.

For applications requiring functional safety compliance, the BFK458-12E is paired with a safety relay module — such as the Pilz PNOZ X series or Siemens SIRIUS 3SK safety relay — which monitors the brake coil circuit for open-circuit and short-circuit faults. The safety relay output is wired into the machine’s safety PLC or safety controller, enabling STO (Safe Torque Off) and SS1 (Safe Stop 1) functions in accordance with EN 13849 PLd or PLe requirements.

Power supply integrity is maintained through a dedicated 24 VDC SITOP PSU or equivalent DIN-rail power supply, which provides stable brake coil voltage independent of the main drive bus. This separation ensures that brake release is not compromised by drive bus fluctuations during acceleration or regenerative braking events. In redundant architectures, a secondary power supply with automatic switchover — such as a SITOP UPS module — guarantees brake control continuity during mains interruptions.

At the human-machine interface layer, brake status, fault history, and maintenance counters are visualized on a Siemens SIMATIC HMI TP700 Comfort or equivalent panel, giving operators real-time visibility into brake health without requiring physical inspection. This integration reduces unplanned downtime and supports predictive maintenance scheduling across multi-axis systems.

In multi-axis gantry or conveyor systems, the BFK458-12E is deployed across multiple axes simultaneously, with each brake instance managed by the same PLC program through structured function blocks. Terminal modules such as the Phoenix Contact PTFIX distribution block or equivalent DIN-rail terminal systems consolidate brake wiring at the control cabinet level, simplifying commissioning and reducing cable routing complexity.

Industrial Application Notes

Manufacturing & Assembly Lines: In automotive body-in-white welding lines and precision assembly stations, the BFK458-12E provides reliable axis parking for robot positioners and linear transfer units. The brake engages automatically on E-stop or power loss, holding the load without drive power — a critical requirement for overhead axis applications where gravity loading is present.

Power Generation & Energy Infrastructure: In wind turbine pitch control systems and hydroelectric gate actuators, spring-applied brakes serve as the last line of mechanical defense against uncontrolled motion. The BFK458-12E’s fail-safe design — where spring force applies the brake and electromagnetic release requires active power — aligns with the safety philosophy of energy infrastructure applications, where power loss must result in a safe, braked state.

Petrochemical & Process Industries: Valve actuators, agitator drives, and extruder systems in petrochemical plants demand braking components that maintain position under process pressure. The BFK458-12E’s IP54 (or IP65) protection rating and high insulation class make it suitable for environments with chemical vapors, elevated temperatures, and frequent wash-down cycles.

Water & Wastewater Treatment: Pump station drives, sluice gate actuators, and aeration system motors benefit from the BFK458-12E’s low maintenance design. The brake’s long service life and predictable wear characteristics reduce the frequency of planned maintenance interventions in remote or difficult-to-access installations.

Mining & Metallurgy: Hoist drives, conveyor head drives, and rolling mill auxiliary axes in mining and metallurgical applications subject braking components to high cycle rates and shock loads. The BFK458-12E’s robust spring mechanism and thermally rated coil assembly are engineered to sustain performance under these demanding duty cycles, supporting continuous production with minimal brake-related stoppages.

Packaging & Material Handling: In high-speed packaging lines and palletizing systems, the BFK458-12E enables rapid, repeatable axis parking between product cycles. Its fast response time — characteristic of the BFK458 series — supports high-throughput applications where brake engagement and release must occur within defined motion windows to maintain line synchronization.

Product Compatibility FAQ

Q1: Is the INTORQ BFK458-12E compatible with third-party servo drives and frequency inverters, or is it limited to INTORQ/NORD drive systems?

The BFK458-12E is electrically compatible with any drive system capable of providing a 24 VDC digital output for brake release control. The brake coil is driven by a separate rectifier module (INTORQ BEG or BEG-D series recommended) and does not require a proprietary drive interface. Integration with Siemens SINAMICS, ABB ACS, Schneider Altivar, and other major drive platforms is standard practice, provided the drive’s digital output is rated for the brake coil inrush current and the rectifier module is correctly sized. For safety-rated applications, the brake release circuit must be routed through a certified safety relay regardless of drive brand.

Q2: How does the BFK458-12E support redundant architecture designs, and what components are required for a dual-channel safety brake circuit?

For redundant or safety-rated brake circuits, the BFK458-12E is wired with dual-channel control — two independent switching paths, each monitored by a safety relay module such as the Pilz PNOZ X or Siemens SIRIUS 3SK. Each channel independently controls brake coil power, and the safety relay monitors both channels for welded contacts, open circuits, and cross-faults. The PLC safety program reads the safety relay’s feedback contacts to confirm brake state before issuing motion commands. This architecture supports PLd or PLe performance levels per EN 13849 when combined with appropriate safety-rated wiring and periodic proof testing as defined in the machine’s safety validation documentation.

Q3: What does the 12-Month Warranty cover for the BFK458-12E, and how is long-term maintenance managed in high-cycle applications?

The 12-Month Warranty covers manufacturing defects, coil insulation integrity, and mechanical assembly quality from the date of shipment. It does not cover wear resulting from operation beyond the rated duty cycle or damage caused by incorrect installation, overvoltage, or contamination. For long-term maintenance in high-cycle applications, INTORQ recommends monitoring the air gap between the armature plate and friction surface at defined service intervals — typically every 500,000 cycles or annually, whichever occurs first. Air gap adjustment is performed without removing the brake from the motor, using the adjustment screws accessible from the brake’s outer face. Replacement friction discs and armature plates are available as spare parts, supporting in-situ refurbishment without full brake replacement and extending the operational life of the installed base significantly beyond the warranty period.
