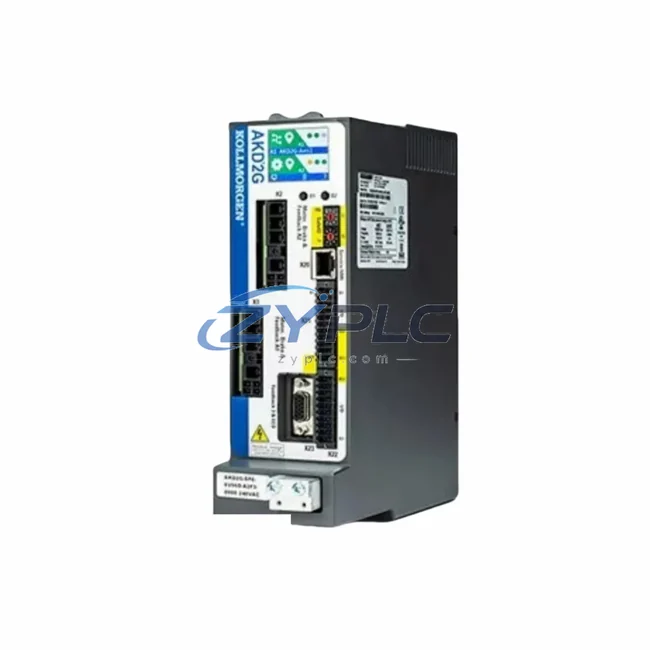

Kollmorgen AKD-P01206-NBCC-I000 Servo Drive for AKD

Kollmorgen AKD-P01206-NBCC-I000 Servo Drive for AKD: Compatibility and Replacement Notes

The Kollmorgen AKD-P01206-NBCC-I000 is a high-performance servo drive engineered for seamless integration within the AKD Series motion control architecture. Rather than functioning as a standalone component, this drive is designed from the ground up to operate as a coordinated node within a layered automation system — spanning the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer. Its role in the system is to translate digital motion commands from the controller into precise, real-time torque and velocity outputs at the actuator level, ensuring system-wide consistency, deterministic response, and long-term operational reliability.

In modern industrial automation, the servo drive is the critical bridge between the intelligence of the motion controller and the mechanical precision of the servo motor. The AKD-P01206-NBCC-I000 fulfills this role with a continuous current rating of 6 Arms and a peak current capacity suited for demanding dynamic applications. Its NBCC variant designation indicates a standard bus voltage configuration with CANopen communication capability, making it directly compatible with Kollmorgen’s AKD-C central power supply modules and the broader AKD multi-axis architecture. This system integration capability allows the drive to share a common DC bus with adjacent axes, reducing operating load, simplifying cabinet wiring, and enabling coordinated multi-axis motion profiles across the entire machine platform.

From a system architecture perspective, the AKD-P01206-NBCC-I000 is designed to work in close coordination with the AKD-C01007-NBCC-0000 central supply unit, which provides the shared DC bus infrastructure for multi-axis configurations. Alongside this, the AKD-P01206-NBCC-I000 communicates upstream with Kollmorgen’s KAS (Kollmorgen Automation Suite) motion controller platform, receiving synchronized motion commands via CANopen or EtherCAT depending on the system topology. The drive’s feedback interface supports high-resolution encoders, enabling closed-loop position control with sub-micron repeatability — a requirement in precision manufacturing, semiconductor handling, and packaging automation.

At the I/O layer, the drive integrates digital and analog I/O channels that interface directly with safety relays, proximity sensors, and limit switches. This allows the AKD-P01206-NBCC-I000 to participate in machine safety logic without requiring additional I/O expansion modules in many standard configurations. For more complex safety architectures, it can be paired with Kollmorgen’s STO (Safe Torque Off) safety modules and external safety PLCs to meet SIL 2 / PLd requirements under IEC 62061 and EN ISO 13849-1.

At the network layer, the CANopen protocol implementation in the AKD-P01206-NBCC-I000 supports CiA 402 motion control profiles, enabling plug-and-play compatibility with third-party motion controllers and SCADA systems. For installations requiring higher bandwidth and deterministic communication, the drive’s architecture is compatible with EtherCAT-based topologies when used alongside AKD gateway modules, allowing seamless migration between communication standards without hardware replacement. This flexibility is particularly valuable in brownfield upgrades where existing network infrastructure must be preserved.

The power layer coordination is handled through the shared DC bus architecture of the AKD multi-axis system. The AKD-P01206-NBCC-I000 draws regulated DC power from the AKD-C central supply, which in turn is fed from a three-phase AC input through an integrated rectifier and filter stage. This topology eliminates the need for individual AC-DC conversion at each drive axis, reducing panel space requirements, minimizing harmonic distortion on the supply network, and enabling regenerative energy recovery across the axis group. In high-cycle applications such as pick-and-place robotics or servo press systems, this energy sharing can result in measurable reductions in peak demand and overall operating load.

At the HMI and engineering layer, the AKD-P01206-NBCC-I000 is fully supported by Kollmorgen’s WorkBench commissioning software, which provides a graphical interface for drive parameterization, auto-tuning, oscilloscope-style waveform capture, and fault diagnostics. This tool significantly reduces commissioning time on new installations and simplifies troubleshooting during maintenance cycles. Drive parameters can be saved, exported, and reloaded — a critical feature for maintaining configuration consistency across multi-axis systems with identical drive types, and for rapid replacement in the event of a hardware fault.

For execution-layer coordination, the AKD-P01206-NBCC-I000 is compatible with a wide range of Kollmorgen servo motors from the AKM (Asynchronous Kollmorgen Motor) series, including the AKM21, AKM31, AKM41, and AKM52 frame sizes. The drive’s auto-identification feature reads motor nameplate data from the feedback device EEPROM, eliminating manual parameter entry and reducing the risk of configuration errors during motor replacement. This plug-and-play motor compatibility is a key advantage in high-mix manufacturing environments where motor frame sizes may vary across machine axes.

Redundancy and availability are addressed through the drive’s built-in fault detection and protection features, including overcurrent protection, overvoltage and undervoltage monitoring, overtemperature shutdown, and encoder fault detection. In critical process applications, the AKD-P01206-NBCC-I000 can be configured with a hot-standby spare drive that mirrors the active drive’s parameters, enabling rapid switchover in the event of a hardware failure. Combined with ZYPLC’s warranty terms confirmed during quotation and availability confirmed by RFQ availability, this approach minimizes unplanned downtime and supports the long-term maintenance strategy of the overall control system.

Product Specification Table

System Compatibility Notes

The AKD-P01206-NBCC-I000 achieves its full performance potential when deployed as part of a coordinated AKD multi-axis system. A typical architecture begins with the AKD-C01007-NBCC-0000 central power supply, which provides the shared DC bus that feeds multiple AKD-P drive nodes simultaneously. The motion intelligence is provided by the KAS (Kollmorgen Automation Suite) controller, which distributes synchronized motion commands to each drive axis via CANopen or EtherCAT. For applications requiring expanded I/O, the AKD-B00306-NBCC-0000 bus module extends the backplane and allows additional drive axes to be added without modifying the power supply configuration.

At the motor interface, the AKD-P01206-NBCC-I000 is paired with Kollmorgen AKM Series servo motors — typically the AKM31 or AKM41 for mid-torque applications, or the AKM52 for higher-load axes. Feedback is provided by SFD (Smart Feedback Device) or EnDat 2.2 encoders, which deliver high-resolution position data and support the drive’s auto-identification feature. For safety-critical axes, an external Kollmorgen STO safety relay module is wired in series with the drive’s STO input, providing hardware-level torque removal without requiring a full drive power cycle.

At the HMI layer, operator interaction is managed through a Kollmorgen AKI HMI panel or a third-party SCADA terminal connected via Ethernet. The HMI displays real-time axis status, fault codes, and production counters, and can trigger parameterized motion sequences stored in the KAS controller. For network-level diagnostics, a CANopen network analyzer or EtherCAT master diagnostic tool is used during commissioning to verify bus timing, node addressing, and message integrity across all drive axes. Terminal blocks and Weidmüller or Phoenix Contact DIN rail terminal modules are used at the cabinet level to organize signal wiring between the drives, safety relays, and field devices, ensuring clean signal routing and simplified maintenance access.

Industrial Application Notes

The AKD-P01206-NBCC-I000 is deployed across a wide range of industrial sectors where precise, coordinated motion control is essential to process quality and throughput. In precision manufacturing and machine tool applications, the drive controls servo axes on CNC machining centers, grinding machines, and multi-axis assembly robots, where sub-micron positioning accuracy and deterministic cycle times are non-negotiable. The shared DC bus architecture reduces cabinet footprint and simplifies thermal management in high-axis-count machine configurations.

In packaging and material handling systems, the AKD-P01206-NBCC-I000 drives servo axes on form-fill-seal machines, cartoning lines, and palletizing robots. The drive’s fast current loop response enables high-speed pick-and-place cycles with minimal settling time, directly contributing to line throughput. Its CANopen communication allows tight synchronization between multiple axes — for example, coordinating the motion of a conveyor servo, a sealing jaw servo, and a film feed servo within a single machine cycle.

In power generation and energy infrastructure applications, the drive is used in valve actuator control systems, turbine governor servo loops, and generator excitation control platforms, where long-term reliability and predictable maintenance intervals are critical. The warranty terms confirmed during quotation provided by ZYPLC, combined with availability confirmed by RFQ availability, supports the spare parts strategy required by plant maintenance teams operating under planned maintenance schedules.

In process industries such as petrochemical, water treatment, and mining, the AKD-P01206-NBCC-I000 is integrated into pump control systems, conveyor drive systems, and dosing unit servo loops. Its robust protection features — including overcurrent, overvoltage, and overtemperature monitoring — ensure reliable operation in environments with variable supply quality and demanding duty cycles. The drive’s compatibility with SIL 2 safety architectures makes it suitable for applications governed by IEC 61511 functional safety requirements.

Product Compatibility FAQ

Q1: Is the AKD-P01206-NBCC-I000 compatible with existing AKD multi-axis systems, and can it be added to an existing shared DC bus configuration?
Yes. The AKD-P01206-NBCC-I000 is fully compatible with existing AKD multi-axis architectures using the AKD-C central power supply. It can be added to an existing shared DC bus rail provided the central supply has sufficient power headroom for the additional axis. The drive’s CANopen node address is configured via rotary switches or WorkBench software, and the KAS controller automatically detects the new axis during the next network scan. No hardware modifications to the existing drives or power supply are required for standard axis additions within the rated bus capacity.

Q2: What commissioning steps are required when replacing a faulty AKD-P01206-NBCC-I000 in a running production system?
Replacement commissioning is streamlined by Kollmorgen’s WorkBench software. The replacement drive should first be loaded with the saved parameter file from the original drive — this can be done offline before installation. Once installed on the DC bus and connected to the motor and feedback device, the drive performs automatic motor identification via the SFD or EnDat encoder EEPROM. After parameter upload and motor ID, a brief auto-tune sequence verifies current loop and velocity loop gains. Total replacement commissioning time in a well-documented system is typically under 30 minutes, minimizing production downtime.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and how does it support long-term maintenance planning?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement unit dispatch to minimize system downtime. For maintenance planning purposes, ZYPLC maintains RFQ-confirmed sourcing of the AKD-P01206-NBCC-I000 and related AKD Series components, enabling rapid spare parts procurement without extended lead times. Customers are encouraged to contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss spare parts stocking agreements and extended support options tailored to their maintenance strategy.
