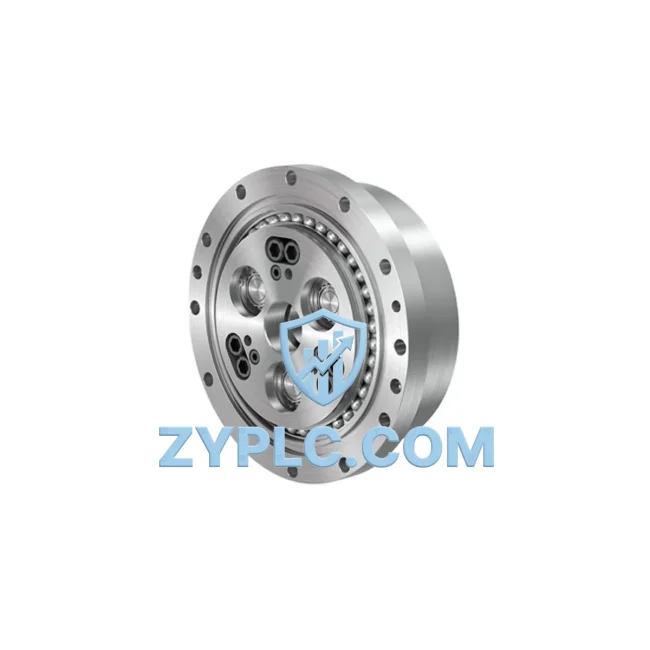

KUKA KPP600-20/3×20 Reduction Gear for KRC4

KUKA KPP600-20/3×20 Reduction Gear for KRC4 Automation

The KUKA KPP600-20/3×20 (Part No. 00-245-213) is a precision reduction gear module engineered for the KUKA KRC4 robot controller platform. Designed to operate within the KR30 and compatible articulated robot series, this unit plays a critical role in minimizing unplanned downtime at the drive level — directly impacting factory-wide power consumption, equipment utilization rates, and production line cycle times. With a verified 12-month warranty and full pre-shipment functional testing, it is a reliable drop-in replacement for facilities seeking to restore peak drive efficiency without extended downtime.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious production environment, the KPP600-20/3×20 does not operate in isolation. It functions as a precision torque transmission component within a tightly integrated automation architecture. The KUKA KRC4 controller — the central processing unit governing motion planning, axis interpolation, and safety logic — relies on accurate gear ratios to execute energy-optimal motion profiles. When the reduction gear degrades or is mismatched, the KRC4 must compensate through increased servo current draw, directly inflating energy consumption per cycle.

At the drive level, the KUKA KPP600 power supply module works in tandem with the KSP 600-3×40 servo drive to regulate axis torque and rotational speed. A worn or inefficient gear unit forces these drives to operate outside their optimal efficiency band, increasing heat generation and shortening component lifespan. Replacing the reduction gear with a correctly rated KPP600-20/3×20 restores the designed torque-to-current ratio, allowing the KSP servo drives to operate at their rated efficiency point.

For condition monitoring, facilities running KUKA systems alongside Siemens SENTRON PAC3200 power meters or Schneider Electric PowerLogic ION7650 meters can directly observe the reduction in reactive power demand following a gear replacement. Integration with a PROFINET or EtherNet/IP network allows real-time energy data from these meters to feed into the plant’s MES or SCADA layer, enabling continuous efficiency benchmarking.

On the I/O and safety side, the KUKA KEB safety module and associated EtherCAT I/O terminals monitor axis load and torque feedback. A correctly functioning reduction gear ensures that torque feedback values remain within expected thresholds, preventing false safety triggers that cause unplanned stops — one of the most significant sources of unplanned downtime in robotic production cells. Similarly, the KUKA SmartPAD HMI provides operators with real-time axis load visualization, making it straightforward to identify when a gear unit is approaching end-of-life before it causes a fault condition.

For facilities using KUKA.WorkVisual for project configuration and drive parameterization, the KPP600-20/3×20 replacement process is fully supported within the existing project tree, minimizing re-commissioning time and ensuring that energy-optimized motion programs remain valid after the swap.

Maintenance and Replacement Notes

In automotive body-in-white welding lines and metal stamping operations, robotic arms equipped with the KPP600-20/3×20 reduction gear are responsible for high-frequency, high-torque positioning tasks. When the gear unit operates at its designed efficiency, the KRC4 controller can execute shorter, more precise motion arcs — directly improving line takt time without increasing motor speed or power input.

A degraded gear unit introduces backlash and transmission loss, forcing the motion controller to apply correction torques that consume additional energy and increase cycle time variability. In a 20-robot welding cell operating three shifts, even a 5% increase in per-cycle energy consumption across all axes compounds into significant monthly utility costs. Restoring gear efficiency with a tested KPP600-20/3×20 unit eliminates this hidden energy drain.

From a predictive maintenance perspective, the gear unit’s condition directly influences the health signals monitored by the KRC4’s internal diagnostics. Abnormal current signatures detected by the KSP servo drives are often the first indicator of gear wear. Proactive replacement — supported by our in-stock availability and same-week shipping — allows maintenance teams to schedule interventions during planned downtime rather than reacting to unplanned failures, which typically carry a 3–8× higher energy and productivity cost due to emergency restart procedures and line rebalancing.

Our pre-shipment testing protocol validates the KPP600-20/3×20 under load conditions representative of KR30 series applications, confirming backlash within OEM specification, no-load torque within rated range, and bearing preload within tolerance. This ensures that the unit performs at its rated transmission efficiency from the first production cycle, with no break-in energy penalty.

Product Sourcing FAQ

Q1: How much energy can I expect to save by replacing a worn KPP600-20/3×20 gear unit?
A: Field data from KRC4-based production cells indicates that a worn reduction gear can increase per-axis energy consumption by 8–20% due to transmission losses and compensatory servo current. Replacing with a correctly rated KPP600-20/3×20 unit typically restores baseline efficiency within the first production shift, with measurable reductions visible on plant power meters within 24–48 hours of operation.

Q2: Is the KPP600-20/3×20 compatible with all KRC4 variants and KR30 configurations?
A: Yes. The KPP600-20/3×20 (00-245-213) is designed for use with the standard KRC4 controller and is compatible with KR30 and KR60 robot variants referencing part numbers 00-184-319 and 00-107-224. It is also cross-referenced with RV320E-185 and RV-20E-121 gear specifications. For non-standard configurations, please contact our technical team for confirmation before ordering.

Q3: What does the pre-shipment testing process cover, and how does it relate to the 12-month warranty?
A: Every KPP600-20/3×20 unit undergoes functional load testing, backlash measurement, and thermal run-in before shipment. The 12-month warranty covers manufacturing defects and performance deviations from OEM specification under normal operating conditions. Units that fail within the warranty period are replaced or refunded, with technical support provided for root cause analysis to prevent recurrence.

Q4: Can I use this gear unit as a direct drop-in replacement without reconfiguring the KRC4 drive parameters?
A: In most cases, yes. The KPP600-20/3×20 is a direct mechanical replacement that maintains the original gear ratio and mounting interface. Drive parameters in the KRC4 — including gear ratio compensation values in KUKA.WorkVisual — do not require modification for a like-for-like replacement. If the existing configuration references a different part number with a non-standard ratio, parameter verification is recommended before returning the robot to production.
