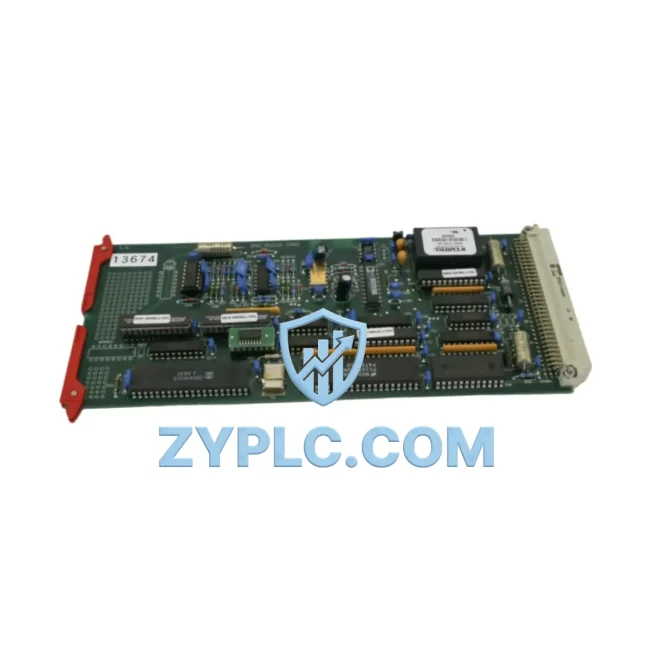

The Lam Research 810-072687-523 NODE1 Interlock Control Module is a precision-engineered safety and process coordination component designed for deployment within the MP8 multi-chamber semiconductor processing platform. In modern semiconductor fabrication environments, where process continuity, chamber isolation integrity, and system-level fault response are non-negotiable, this module occupies a critical position within the control architecture. Rather than functioning as a standalone device, the 810-072687-523 operates as a deeply integrated node within a layered automation hierarchy — coordinating signals across the process control layer, chamber I/O layer, safety interlock layer, and equipment communication bus simultaneously.

The MP8 platform is a high-throughput, multi-process system used in etch, deposition, and surface treatment applications across leading-edge fabs. Within this architecture, the NODE1 Interlock Control Module serves as the primary logic arbiter for chamber-level safety states, receiving discrete and analog signals from upstream process controllers, evaluating interlock conditions in real time, and issuing isolation or permissive commands to downstream actuators, valves, and RF subsystems. Its role in maintaining system consistency across all active chambers makes it indispensable for both normal operation and fault recovery sequences.

Engineering teams integrating or maintaining MP8 systems will recognize the 810-072687-523 as a direct replacement or spare for the NODE1 interlock board assembly, cross-referenced under alternate part numbers 2002-0096-001 and 73-580-5001. All three references identify the same functional assembly, ensuring compatibility across MP8 system revisions and simplifying procurement for multi-site fab operations.

Product Specification Table

System Compatibility Notes

The 810-072687-523 NODE1 Interlock Control Module does not operate in isolation. Its value is fully realized only when understood within the context of the complete MP8 system architecture, where multiple interdependent subsystems must communicate reliably to sustain process integrity across all chambers.

At the process control layer, the MP8 system controller — typically a Lam Research proprietary host controller board or an equivalent system CPU module — issues high-level process commands and monitors global system state. The NODE1 module receives permissive signals from this controller and translates them into chamber-specific interlock logic. When a fault condition is detected — whether from a pressure excursion, RF power anomaly, or gas flow deviation — the 810-072687-523 executes the appropriate isolation sequence without waiting for host-level intervention, ensuring sub-second fault response times critical to wafer and equipment protection.

At the I/O layer, the NODE1 module interfaces directly with chamber I/O boards and discrete signal modules responsible for reading sensor states from throttle valves, gate valves, turbo pump controllers, and endpoint detection systems. Components such as the Lam Research I/O interface board assemblies and analog input modules feed real-time process data into the interlock evaluation logic embedded in the 810-072687-523. This tight coupling between the I/O layer and the interlock layer is what enables the MP8 platform to maintain process repeatability across high-volume production runs.

At the power layer, the MP8 system relies on regulated DC power distribution modules and backplane power assemblies to supply stable voltage rails to all control electronics, including the NODE1 board. Power integrity at this layer directly affects the reliability of interlock logic execution — any transient or dropout that reaches the 810-072687-523 can result in spurious fault trips or, more critically, missed fault detection. Lam Research power supply modules designed for the MP8 chassis provide the necessary filtering and hold-up time to protect interlock logic continuity.

At the communication layer, the MP8 architecture employs an internal system bus that connects the host controller, chamber modules, and interlock nodes into a unified communication fabric. The NODE1 module participates in this bus to report interlock status, acknowledge command sequences, and synchronize fault state across multi-chamber configurations. In systems running parallel chamber processes — such as simultaneous etch and deposition — the 810-072687-523 ensures that a fault in one chamber does not propagate interlock disruption to adjacent chambers, preserving throughput on unaffected process modules.

At the human-machine interface layer, fab engineers interact with the MP8 system through the Lam Research system console or equivalent HMI terminal, which displays real-time interlock status, fault history, and chamber state derived from NODE1 module outputs. Accurate interlock reporting from the 810-072687-523 is essential for operators to make informed decisions during fault recovery, preventive maintenance scheduling, and process qualification activities.

At the execution layer, downstream actuators — including pneumatic valve drivers, RF match network controllers, and gas delivery system solenoids — receive enable and inhibit signals originating from the NODE1 interlock logic. The 810-072687-523 acts as the final authority on whether these actuators may operate, making its functional integrity central to both process safety and equipment protection across the entire MP8 chamber set.

Industrial Application Notes

The Lam Research 810-072687-523 NODE1 Interlock Control Module finds its primary application in semiconductor wafer fabrication facilities operating MP8 multi-chamber platforms for advanced etch and deposition processes. In leading-edge logic and memory fabs, where device geometries demand sub-nanometer process control and zero-defect chamber performance, the interlock architecture managed by this module is a foundational element of process reliability.

In high-volume manufacturing environments, the MP8 platform is frequently configured in multi-chamber clusters serving continuous production lines. The NODE1 module’s ability to independently manage chamber-level interlock states — without requiring host controller arbitration for every fault event — significantly reduces system downtime during fault recovery. Fab engineers report that replacing a degraded or failed NODE1 board with a verified 810-072687-523 spare restores full chamber interlock functionality within a single maintenance window, minimizing the impact on wafer throughput and production scheduling.

In research and development environments, where process recipes are frequently modified and chamber conditions are intentionally pushed toward process boundaries, the interlock control architecture provided by the 810-072687-523 serves as a critical safety backstop. Its deterministic fault response logic ensures that experimental process excursions are contained at the chamber level, protecting both the equipment and adjacent process modules from cascading damage.

For fab operations teams managing aging MP8 fleets, maintaining an adequate spare inventory of the 810-072687-523 — alongside related NODE1 assembly components — is a recognized best practice for sustaining equipment availability. The module’s cross-reference compatibility with part numbers 2002-0096-001 and 73-580-5001 simplifies spare parts management across mixed-revision MP8 installations, reducing the complexity of maintaining separate spare pools for different system generations.

Global fab operations with multi-site MP8 deployments benefit from the standardized interlock architecture that the NODE1 module provides. Consistent interlock behavior across all sites reduces the engineering effort required for process transfer, equipment qualification, and cross-site maintenance training — contributing directly to the operational efficiency goals of large-scale semiconductor manufacturers.

Product Compatibility FAQ

Q1: Is the 810-072687-523 compatible with all MP8 system configurations, and how do I verify compatibility before installation?
The 810-072687-523 NODE1 Interlock Control Module is designed for the Lam Research MP8 platform and is cross-referenced under part numbers 2002-0096-001 and 73-580-5001, covering multiple MP8 system revisions. To verify compatibility with your specific system configuration — including chamber count, I/O board revision, and system bus version — compare the part number against your MP8 system BOM or contact your Lam Research field service representative. Our team can also assist with compatibility verification prior to shipment. All units supplied by ZYPLC are covered by a 12-Month Warranty and undergo functional verification before dispatch.

Q2: What is the recommended procedure for replacing the NODE1 Interlock Control Module in a live MP8 system, and what precautions are required?
Replacement of the 810-072687-523 NODE1 module should be performed during a scheduled maintenance window with the affected chamber in a safe, vented, and de-energized state. The MP8 system should be placed in maintenance mode via the system console to disable active interlock monitoring before the module is removed. ESD precautions are mandatory during handling. After installation, the system interlock self-test sequence should be executed to verify that all interlock channels are correctly recognized by the host controller before returning the chamber to process-ready status. Our 12-Month Warranty covers any functional defects identified during commissioning.

Q3: How does ZYPLC support long-term spare parts availability for the 810-072687-523, and what does the 12-Month Warranty cover?
ZYPLC maintains dedicated inventory of the Lam Research 810-072687-523 and its cross-reference equivalents to support both emergency replacement and planned maintenance programs for global MP8 operators. Our 12-Month Warranty covers full functional performance of the NODE1 Interlock Control Module under normal operating conditions, including defects in materials, workmanship, and electronic component integrity. Warranty claims are supported by our technical team with rapid response and replacement logistics to minimize equipment downtime. For long-term supply agreements or multi-unit procurement, contact our sales team directly.
