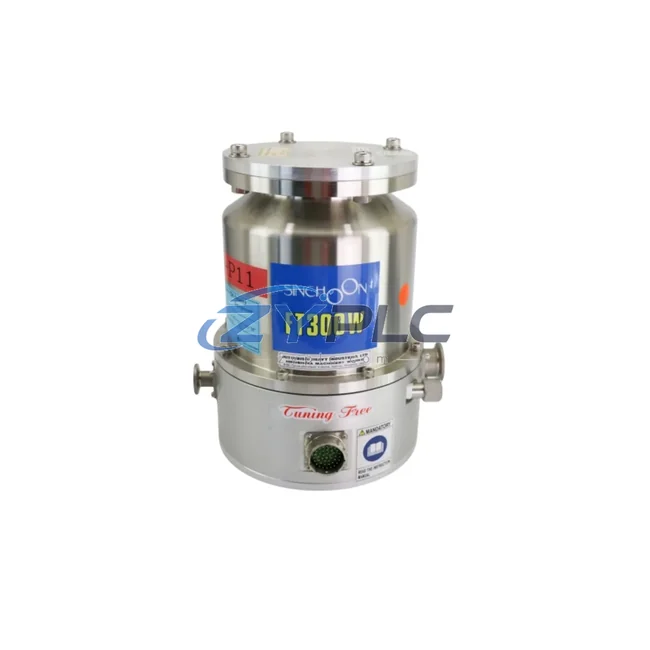

The Mitsubishi FT-300W-W211 AP9Z-1521C TKB7001-0020-84596 is a high-performance turbo molecular pump from Mitsubishi’s Sinchoon Series, engineered for precision vacuum environments in semiconductor fabrication, thin-film deposition, analytical instrumentation, and advanced industrial automation. As vacuum systems become increasingly integrated into smart factory architectures, the FT-300W-W211 serves not only as a mechanical vacuum source but as a critical data node within the plant-wide communication network — connecting field-level vacuum status, operational parameters, and fault diagnostics directly into SCADA, HMI, and upper-level control systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory vacuum system, the Mitsubishi FT-300W-W211 (TKB7001-0020-84596) operates as a field-level device whose operational data — rotor speed, bearing temperature, inlet pressure, power consumption, and fault codes — must be continuously transmitted upstream to the plant control layer. This data flow begins at the pump’s onboard controller, which communicates via RS-485 serial or an optional CC-Link field bus interface to a Mitsubishi MELSEC iQ-R Series PLC (such as the R04CPU or R08CPU), acting as the primary process controller for the vacuum chamber.

From the PLC, real-time vacuum process data is forwarded over CC-Link IE Field Network to the plant-level SCADA server. In facilities running mixed-protocol environments, a Mitsubishi NZ2GF2B1-16D CC-Link IE Field remote I/O module or a third-party PROFIBUS-DP to CC-Link gateway bridges the FT-300W-W211’s data into legacy DCS or ERP systems. Operators monitor pump status, vacuum level trends, and predictive maintenance alerts through a Mitsubishi GOT2000 Series HMI (e.g., GT2710-VTBA), mounted at the process station, providing real-time visualization of the vacuum data chain.

For multi-chamber semiconductor lines, the FT-300W-W211 is often paired with a Mitsubishi FR-F800 Series Variable Frequency Drive controlling the roughing pump motor, with both devices sharing the same CC-Link segment. A Mitsubishi MR-J4 Series servo amplifier may simultaneously manage the substrate transfer mechanism within the same vacuum cluster tool, with all motion and vacuum data converging at the iQ-R PLC before being pushed to the SCADA layer. Remote I/O expansion via Mitsubishi AJ65SBTB1-16D CC-Link remote I/O terminals allows additional sensor inputs — such as Pirani vacuum gauges, thermocouple transmitters, and gas flow controllers — to be integrated into the same network segment without additional wiring infrastructure.

For facilities requiring edge computing and cloud connectivity, an industrial edge gateway (such as the Mitsubishi MELIPC MI5122-VW) can aggregate vacuum process data from multiple FT-300W-W211 units across the fab, applying local analytics for predictive maintenance before forwarding summarized data to MES or cloud-based digital twin platforms. This architecture ensures that the FT-300W-W211 is not an isolated vacuum component but a fully networked data source within the plant’s industrial IoT fabric.

Solving Data Isolation in Industrial Vacuum Sites

One of the most persistent challenges in semiconductor and industrial vacuum environments is protocol fragmentation. Older turbo pump controllers often communicate only via proprietary RS-232C or RS-485 interfaces, creating data silos that prevent vacuum process data from reaching SCADA dashboards or MES systems in real time. The Mitsubishi FT-300W-W211 AP9Z-1521C TKB7001-0020-84596, when integrated with a Mitsubishi MELSEC PLC and CC-Link network infrastructure, resolves this isolation by providing a standardized, high-speed data pathway from the pump to the control room.

Remote monitoring is another critical requirement in modern fabs. Unplanned turbo pump downtime can halt an entire process chamber, resulting in significant yield loss. By connecting the FT-300W-W211 into the plant’s CC-Link IE or PROFIBUS network, maintenance engineers can monitor rotor speed trends, bearing vibration signatures, and inlet pressure deviations from a central SCADA workstation — or even remotely via VPN-secured industrial firewalls — enabling condition-based maintenance scheduling before failures occur.

Production line transparency is achieved by mapping the FT-300W-W211’s operational parameters as structured data tags within the SCADA historian (e.g., Wonderware Historian, OSIsoft PI). This allows process engineers to correlate vacuum performance data with wafer yield metrics, deposition rate trends, and chamber conditioning cycles — transforming raw pump telemetry into actionable process intelligence. System scalability is ensured through CC-Link IE’s support for up to 120 stations per network segment, allowing additional turbo pumps, dry pumps, and process instruments to be added to the network without architectural redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Mitsubishi FT-300W-W211 TKB7001 support for SCADA integration?
The FT-300W-W211 natively supports RS-232C and RS-485 serial communication via its onboard controller. For integration into Mitsubishi CC-Link or CC-Link IE Field networks, a compatible CC-Link interface module or gateway is required. Modbus RTU over RS-485 is also achievable via protocol conversion, enabling connectivity to third-party SCADA platforms such as Wonderware, iFIX, or GENESIS64.

Q2: How is network stability ensured when the FT-300W-W211 is integrated into a multi-device CC-Link segment?
CC-Link IE Field Network provides a 1 Gbps cyclic communication backbone with deterministic scan times, ensuring that vacuum status data from the FT-300W-W211 is updated at the PLC within milliseconds. Network redundancy can be implemented using ring topology configurations supported by Mitsubishi MELSEC iQ-R master modules, preventing single-point communication failures from disrupting vacuum process monitoring.

Q3: Can the FT-300W-W211 TKB7001-0020-84596 be monitored remotely for predictive maintenance?
Yes. When connected to a Mitsubishi MELSEC PLC via CC-Link, the pump’s operational parameters — including rotor speed, bearing temperature, and fault codes — can be exposed as SCADA data tags accessible via OPC-UA or MELSEC communication protocol over Ethernet. Remote access is typically secured through an industrial VPN gateway, allowing maintenance engineers to monitor pump health and receive alarm notifications from off-site locations.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FT-300W-W211?
All Mitsubishi FT-300W-W211 AP9Z-1521C TKB7001-0020-84596 units supplied by ZYPLC carry a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm operational integrity before dispatch. Stock is maintained in verified inventory with global DHL/FedEx express shipping available. For volume orders, lead time confirmation and technical documentation are available upon request.
