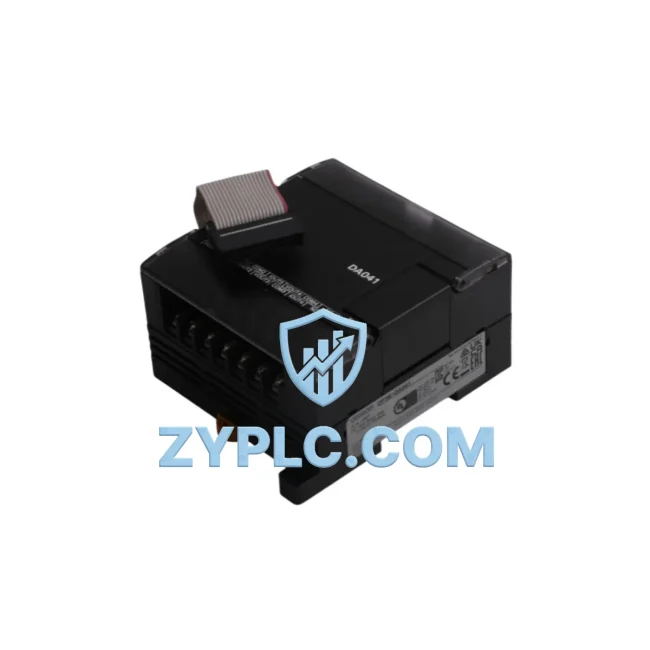

Omron CP1W-DA041 Energy-Saving Analog Output Module for CP1W

Omron CP1W-DA041 Energy-Saving Analog Output Module for Optimized CP1W Automation

In modern industrial automation, the ability to precisely regulate analog output signals is not merely a control requirement — it is a direct lever for energy efficiency. The Omron CP1W-DA041 is a 4-channel analog output module engineered for the CP1W expansion system, delivering high-resolution D/A conversion that enables fine-grained control over variable-speed drives, proportional valves, and process actuators. When integrated into a well-designed CP1W automation architecture, this module becomes a cornerstone of energy-aware production line management, reducing unnecessary motor run-time, eliminating over-actuation, and enabling demand-responsive control strategies that cut energy consumption at the source.

The CP1W-DA041 outputs analog signals in the range of 1–5 V, 0–10 V, or 4–20 mA, making it universally compatible with the majority of industrial field devices encountered in manufacturing, water treatment, HVAC, food processing, and chemical production environments. Its 4-channel configuration allows a single module to simultaneously govern multiple drive or valve outputs, reducing the number of expansion slots required and keeping the control cabinet compact and thermally efficient.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CP1W-DA041 does not operate in isolation — its energy-saving potential is fully realized when it functions as part of a coordinated CP1W control architecture. In a typical energy-optimized production cell, the Omron CP1H-XA40DR-A CPU unit serves as the central processing node, executing PID control loops and energy management logic that feed directly into the CP1W-DA041’s output channels. The CPU’s built-in analog inputs work in tandem with the DA041’s outputs to form closed-loop control circuits that continuously adjust drive setpoints based on real-time load feedback.

On the drive side, the CP1W-DA041 analog output channels connect directly to Omron MX2 series inverters (such as the 3G3MX2-A4015) via 4–20 mA or 0–10 V reference signals. This allows the PLC to dynamically modulate motor speed in response to process demand — a strategy that can reduce motor energy consumption by 30–50% compared to fixed-speed operation. In pump and fan applications, this quadratic relationship between speed and power consumption makes precise analog output control one of the highest-ROI investments in any energy reduction program.

For process monitoring and feedback, the CP1W-AD041 analog input module pairs naturally with the DA041, creating a balanced I/O expansion set that handles both signal acquisition and command output within the same CP1W bus segment. Temperature transmitters, pressure transducers, and flow meters feed their 4–20 mA signals into the AD041, while the DA041 closes the loop by adjusting valve positions or drive references accordingly. This tight integration eliminates the signal latency and conversion losses that occur when analog I/O is handled by separate, loosely coupled systems.

Communication transparency is maintained through the CP1W-CIF41 EtherNet/IP option board, which allows the CP1H CPU — and by extension the DA041’s output states — to be monitored and adjusted from a SCADA system or energy management platform in real time. Operators can observe analog output values, trend drive reference signals, and implement time-of-use energy strategies without interrupting production. For facilities running Omron NS-series HMI panels (such as the NS8-TV11B-V2), energy dashboards can be configured to display live analog output channel values alongside calculated power consumption metrics, giving line supervisors immediate visibility into energy performance.

In larger installations where multiple CP1W expansion racks are deployed, the CP1W-EXT01 expansion cable allows the DA041 to be positioned closer to the field devices it controls, reducing analog signal cable runs and the associated signal degradation and interference risks. Shorter cable runs also mean lower installation costs and reduced electromagnetic interference from long unshielded analog lines running through electrically noisy control cabinets.

For power supply integrity — a prerequisite for stable analog output accuracy — the Omron S8VS-06024 24 VDC power supply provides clean, regulated power to the CP1W expansion bus. Voltage ripple and transient noise on the 24 V rail directly affect D/A conversion accuracy, so pairing the DA041 with a high-quality DIN rail power supply is a best practice that protects both signal quality and long-term module reliability.

Power Optimization in Real Production Lines

In a bottling plant running three parallel filling lines, each line’s fill valve is governed by a proportional solenoid receiving a 4–20 mA command from one channel of the CP1W-DA041. Before the CP1W system was installed, the valves operated on fixed open/close cycles, resulting in overfill events, product waste, and excessive pump run-time. After integrating the DA041 with a CP1H CPU running a flow-based PID algorithm, fill valve positions are continuously modulated to match actual bottle fill rates. The result is a measurable reduction in pump motor run-time, lower compressed air consumption for valve actuation, and a significant decrease in product giveaway — all of which translate directly to lower operating costs per unit produced.

In a water treatment facility, the DA041 controls the speed reference of three submersible pump inverters simultaneously. The CP1H CPU reads inlet flow rate from the AD041 analog input module and calculates the minimum pump speed required to maintain target flow — then commands the MX2 inverters via the DA041’s 0–10 V output channels. During off-peak hours, pump speeds are automatically reduced, cutting energy consumption without compromising treatment capacity. Predictive maintenance logic in the CPU monitors drive current feedback and flags anomalies before they escalate into unplanned downtime, further improving overall equipment effectiveness (OEE).

In a packaging line, the DA041 governs the tension control of a web-handling servo system by providing analog reference signals to an Omron G5 series servo driver. Precise tension control eliminates material waste from web breaks and reduces the mechanical stress on rollers and guides, extending equipment service life and reducing maintenance frequency. Every avoided maintenance event represents not only direct cost savings but also the elimination of the energy overhead associated with restarting and re-synchronizing the production line after an unplanned stop.

Energy Optimization FAQ

Q1: How does the CP1W-DA041 contribute to measurable energy savings in motor-driven applications?
The CP1W-DA041 provides high-resolution analog output signals (1/6000 resolution) that allow the connected PLC to command variable-frequency drives at precisely the speed required by the process — no more, no less. By eliminating the over-speeding that occurs with fixed-reference or coarse-resolution control, the module enables the quadratic energy savings inherent in variable-speed drive operation. In fan and pump applications, reducing motor speed by just 20% can cut energy consumption by nearly 50%, and the DA041’s precision output is what makes that level of control achievable.

Q2: Is the CP1W-DA041 compatible with my existing CP1H or CP1L PLC system, and can I add it without modifying my existing program?
Yes. The CP1W-DA041 is designed for the CP1W expansion bus and is compatible with CP1H, CP1L, and CP1E series CPUs. It is recognized automatically by the CPU as an expansion I/O unit, and its output channels are mapped to standard CIO memory words. In most cases, adding the DA041 to an existing system requires only the addition of output instructions in the PLC program — no hardware modifications to the CPU or existing expansion modules are needed. Our technical team can assist with memory mapping and I/O table configuration as part of the pre-shipment support included with every order.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every CP1W-DA041 unit supplied by ZYPLC undergoes a full functional test prior to shipment. Testing includes verification of all 4 analog output channels across the full signal range (1–5 V, 0–10 V, and 4–20 mA), confirmation of bus communication with a CP1H CPU, and inspection of connector integrity and module housing. The 12-Month Warranty covers all functional defects arising from normal industrial use. Units that fail in service within the warranty period are replaced or repaired at no charge. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can the CP1W-DA041 be used in hazardous or high-temperature industrial environments?
The CP1W-DA041 is rated for operation in ambient temperatures of 0–55°C and relative humidity of 10–90% (non-condensing), making it suitable for the majority of industrial control cabinet environments. For applications in classified hazardous areas or environments with extreme temperature cycling, additional protective enclosures or barrier modules may be required. ZYPLC’s application engineers can advise on appropriate installation configurations for specific site conditions — contact us at [email protected] for a site-specific recommendation.
