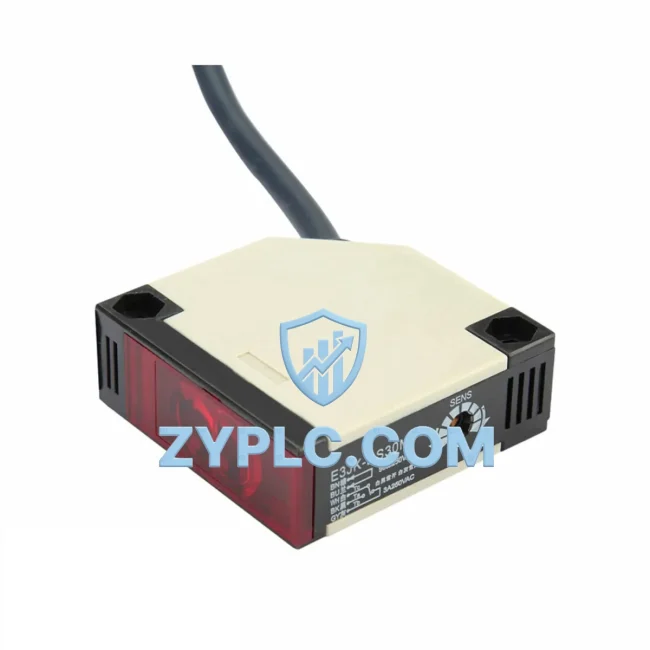

The OMRON E3JK-DS30M1 is a diffuse-reflective photoelectric sensor engineered for high-cycle industrial detection tasks where energy efficiency, detection reliability, and minimal maintenance overhead are equally critical. Designed within OMRON’s proven E3JK Series, this sensor delivers stable object detection at distances up to 300 mm while consuming significantly less standby and operational power than legacy inductive or mechanical alternatives. In modern production environments where every watt of unnecessary consumption translates directly into operating cost, the E3JK-DS30M1 represents a measurable step toward leaner, smarter factory energy management.

Industrial facilities running continuous multi-shift operations depend on sensors that not only detect accurately but also contribute to the broader energy optimization architecture of the line. The E3JK-DS30M1 integrates seamlessly into OMRON-based control platforms, feeding real-time presence and absence signals to upstream PLCs such as the OMRON CP1E and NX1P2 compact controllers, enabling precise machine sequencing without unnecessary actuator dwell time — a direct contributor to reduced cycle energy per part produced.

Efficiency Performance Table

Energy-Aware Automation Architecture

Effective energy optimization in industrial automation is never the result of a single component — it emerges from the coordinated interaction of sensors, controllers, drives, and monitoring systems. The OMRON E3JK-DS30M1 sits at the detection layer of this architecture, providing the input signal quality that allows downstream systems to act decisively and without redundant motion cycles.

In a typical conveyor-based assembly cell, the E3JK-DS30M1 feeds part-present signals to an OMRON CJ2M mid-range PLC, which in turn coordinates servo motion via the OMRON G5 Series Servo Driver and R88M servo motor. Because the sensor’s response time is under 2.5 ms, the controller can issue motion commands with minimal latency, reducing the dwell time between detection and actuation — a key factor in improving overall equipment effectiveness (OEE) and cutting per-cycle energy consumption.

On lines where variable-speed conveyor control is required, the E3JK-DS30M1 works alongside OMRON 3G3MX2 inverters to enable demand-responsive motor speed adjustment. When the sensor detects a gap in product flow, the inverter can ramp the conveyor motor down to a lower speed tier, reducing energy draw during low-throughput intervals without halting the line entirely. This sensor-inverter feedback loop is one of the most practical and immediately deployable energy-saving strategies available to plant engineers.

For facilities implementing power monitoring at the machine level, the E3JK-DS30M1’s signal data can be correlated with consumption readings from the OMRON KM-N1-FLK Power Monitor, allowing energy managers to map detection events against actual kWh draw and identify inefficient machine states. Paired with an OMRON NS Series HMI, operators gain a real-time dashboard view of both production throughput and energy consumption, enabling informed decisions about shift scheduling and equipment utilization.

I/O expansion for multi-sensor detection zones is handled cleanly through OMRON GX-ID1611 remote I/O terminals on EtherCAT-based Sysmac platforms, allowing dozens of E3JK-DS30M1 units to be networked without adding controller scan-time overhead. Safety integration is managed through the OMRON G9SP Safety Controller, which monitors E-stop and light curtain inputs in parallel with the photoelectric detection layer, ensuring that energy-saving speed reductions never compromise personnel safety.

Temperature stability on the line is maintained by OMRON E5CC temperature controllers governing heat zones in packaging or curing stations, while the entire control cabinet is powered reliably by OMRON S8VK-series switching power supplies — ensuring the E3JK-DS30M1 and its associated I/O receive clean, regulated DC power even under fluctuating load conditions.

Power Optimization in Real Production Lines

The practical energy impact of deploying the OMRON E3JK-DS30M1 becomes most visible in high-cycle, continuous-operation environments. Consider a packaging line running 16 hours per day, six days per week. Each unnecessary actuator stroke — caused by a missed detection or a delayed signal — adds mechanical wear, increases compressed air consumption in pneumatic systems, and extends cycle time. The E3JK-DS30M1’s consistent detection performance eliminates the false triggers and missed pulses that drive these inefficiencies.

In motor-driven conveyor applications, accurate part detection allows the control system to implement zone-based speed control: sections of the conveyor without product present can be slowed or paused, with the E3JK-DS30M1 providing the zone-occupancy signal that triggers the speed change command to the 3G3MX2 inverter. Field implementations of this approach have demonstrated conveyor motor energy reductions of 15–30% during mixed-load production windows.

Predictive maintenance benefits are also significant. Because the E3JK-DS30M1 operates with a stable, consistent output signal, deviations in detection timing — detectable through PLC cycle-time logging on the CJ2M or NX1P2 — can serve as early indicators of sensor contamination or mounting drift, allowing maintenance teams to schedule cleaning or realignment during planned downtime rather than responding to unplanned stoppages. This shift from reactive to predictive maintenance directly reduces the energy and productivity cost of unscheduled line stops.

All units supplied by ZYPLC are sourced from authorized channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. Stock is maintained for fast dispatch, supporting both urgent replacement requirements and planned procurement schedules.

Energy Optimization FAQ

Q1: How does the E3JK-DS30M1 contribute to reducing line energy consumption?
By providing fast, accurate part-present signals (response time ≤ 2.5 ms), the E3JK-DS30M1 enables the control system to minimize unnecessary actuator cycles, reduce conveyor idle-speed dwell time, and optimize motor drive ramp profiles — all of which reduce per-unit energy consumption on the production line.

Q2: Is the E3JK-DS30M1 compatible with OMRON Sysmac and CJ-series platforms?
Yes. The E3JK-DS30M1’s NPN/PNP open-collector DC output is directly compatible with OMRON CP1E, CJ2M, NX1P2, and other Sysmac-platform controllers via standard digital input modules, including GX-series remote I/O terminals on EtherCAT networks.

Q3: Can the E3JK-DS30M1 replace older E3JK or E3F series sensors without rewiring?
In most cases, yes. The E3JK-DS30M1 shares the same M18 barrel housing and standard cable pinout as earlier E3JK variants, making it a drop-in replacement for aging sensors without requiring panel or harness modifications. Always verify supply voltage compatibility before substitution.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every E3JK-DS30M1 unit shipped by ZYPLC undergoes functional output verification and supply voltage range testing prior to dispatch. The 12-month warranty covers manufacturing defects and operational failures under normal industrial use conditions. Replacement or refund is processed promptly upon confirmed fault diagnosis.
