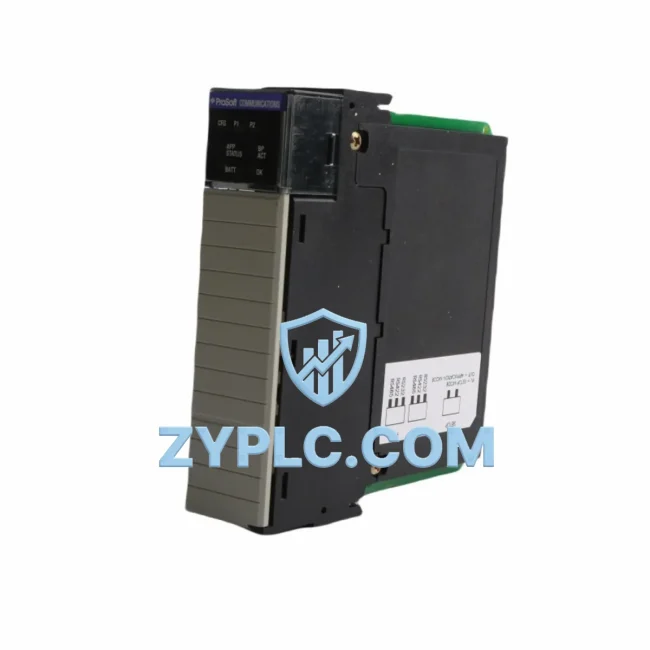

ProSoft MVI56-MDA4 Communication Module

ProSoft MVI56-MDA4 Communication Module: Efficiency Control and Production Line Optimization

The ProSoft MVI56-MDA4 is a high-performance communication module engineered for Allen-Bradley ControlLogix platforms, purpose-built to interface with MDA Scientific gas detection and analysis systems. In modern industrial environments where energy efficiency, uptime, and data integrity are mission-critical, the MVI56-MDA4 delivers a structured communication bridge that eliminates polling inefficiencies, reduces CPU overhead on the ControlLogix processor, and enables real-time data exchange between gas analyzer instrumentation and the plant-wide automation network.

By offloading serial communication tasks from the main PLC processor, the MVI56-MDA4 reduces unnecessary processing cycles, directly contributing to lower energy draw at the controller level. In facilities running continuous gas monitoring — such as chemical plants, water treatment stations, and environmental compliance installations — this translates into measurable reductions in idle-state power consumption and improved system response times across the production line.

Product Specification Table

System Compatibility and Application

The MVI56-MDA4 does not operate in isolation — it is a precision component within a broader industrial automation system. In a typical ControlLogix-based control system, the module sits in the same chassis as the 1756-L73 ControlLogix processor, sharing the backplane with I/O modules such as the 1756-IB16 digital input module and 1756-OB16E digital output module. These components together form the execution layer of the control loop, where every millisecond of scan time and every watt of backplane power matters.

On the drive side, the MVI56-MDA4 integrates naturally into systems that include PowerFlex 755 variable frequency drives for motor speed regulation. When gas concentration data from the MDA Scientific analyzer is relayed through the MVI56-MDA4 to the ControlLogix processor, the PLC can dynamically adjust fan or pump motor speeds via the PowerFlex drive — reducing energy consumption during low-demand periods and ramping up only when process conditions require it. This closed-loop maintenance planning approach is far more efficient than fixed-speed motor operation.

For facilities using EtherNet/IP as the plant network backbone, the MVI56-MDA4 bridges legacy serial instrumentation into the modern IP-based control fabric. Paired with a 1756-EN2T EtherNet/IP communication module in the same chassis, data from the gas analyzer becomes available to SCADA systems, MES platforms, and maintenance planning dashboards in real time. This visibility is essential for identifying unplanned downtime, scheduling predictive maintenance, and benchmarking equipment utilization rates.

HMI integration is equally important. When connected to a PanelView Plus 7 operator terminal via the ControlLogix backplane, operators gain live visibility into gas concentration trends, communication status, and system alarms — all without requiring additional wiring or dedicated serial HMI connections. This reduces installation complexity and the associated energy overhead of redundant communication hardware.

In multi-zone monitoring installations, the MVI56-MDA4 can be deployed alongside ProSoft MVI56-MCM Modbus communication modules to consolidate data from multiple field instruments into a single ControlLogix rack. This architecture minimizes the number of active communication processors required, reducing total system power draw while improving data coherence across the plant floor.

Power quality at the rack level is maintained through 1756-PA75 power supplies, which provide stable, regulated backplane power to all modules including the MVI56-MDA4. Stable power delivery is a prerequisite for consistent communication timing and accurate data transfer — both of which directly affect the quality of maintenance planning decisions made by the control system.

Maintenance and Replacement Notes

In real production environments, the MVI56-MDA4 contributes to maintenance planning through several interconnected mechanisms. First, by providing accurate, low-latency gas concentration data to the ControlLogix processor, it enables the PLC to make faster and more precise control decisions. In a chemical dosing line, for example, this means the system can reduce reagent pump run time when gas levels are within acceptable limits — directly cutting both chemical consumption and pump motor energy use.

Second, the module’s dedicated co-processor architecture ensures that communication tasks do not compete with time-critical control tasks on the main CPU. This separation of concerns keeps the ControlLogix processor’s scan time short and predictable, which is essential for maintaining production line rhythm (takt time) without over-clocking the processor or increasing its power state unnecessarily.

Third, the MVI56-MDA4 supports predictive maintenance workflows by providing continuous, timestamped communication logs that can be analyzed for anomalies. A sudden increase in communication errors or response latency from the MDA Scientific analyzer may indicate sensor degradation or wiring issues — catching these early prevents unplanned downtime, which is one of the most significant sources of unplanned downtime in industrial facilities (idle machinery still consumes standby power while waiting for repairs).

From an inventory and supply chain perspective, ZYPLC maintains in-stock availability of the MVI56-MDA4 to support rapid deployment and minimize production interruption. Each unit undergoes outgoing shipment testing to verify communication integrity and module functionality before dispatch. Combined with a 12-month warranty, this ensures that procurement teams can plan maintenance cycles and spare parts inventory with confidence, reducing the carrying cost of excess safety stock.

For facilities undergoing energy audits or ISO 50001 maintenance planning certification, the data visibility enabled by the MVI56-MDA4 — when integrated with a plant-wide condition monitoring system — provides the granular, real-time consumption data required for compliance reporting and continuous improvement programs.

Product Sourcing FAQ

Q1: How does the MVI56-MDA4 contribute to operational stability in a ControlLogix system?
The MVI56-MDA4 offloads serial communication processing from the main ControlLogix CPU to its own dedicated co-processor. This reduces the processor’s scan cycle load, allowing it to operate at lower utilization levels and enabling tighter, more responsive control loops. When integrated with variable frequency drives such as the PowerFlex 755, the accurate real-time data it delivers allows the PLC to optimize motor speeds based on actual process demand — a proven method for reducing energy consumption by 20–50% compared to fixed-speed operation.

Q2: Is the MVI56-MDA4 compatible with my existing ControlLogix chassis and Studio 5000 project?
Yes. The MVI56-MDA4 is designed for the MVI56 form factor and is compatible with all standard ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots). It is configured using ProSoft’s PCB (ProSoft Configuration Builder) software and integrates with Studio 5000 Logix Designer via Add-On Instructions (AOIs) provided in the module’s sample code package. No special firmware modifications to the ControlLogix processor are required.

Q3: What is the recommended replacement or upgrade path if the MVI56-MDA4 fails?
ZYPLC recommends maintaining at least one spare MVI56-MDA4 unit on-site for critical monitoring applications. In the event of module failure, the replacement process involves swapping the module in the chassis and restoring the configuration file via ProSoft Configuration Builder — typically achievable within 30 minutes by a qualified technician. For facilities transitioning to newer ControlLogix platforms, ProSoft also offers the MVI56E series with enhanced diagnostics and Ethernet-based configuration capabilities.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every MVI56-MDA4 unit supplied by ZYPLC is tested prior to shipment to verify backplane communication, serial port functionality, and configuration upload/download capability. The 12-month warranty covers manufacturing defects and module failures under normal operating conditions. Warranty claims are processed directly through ZYPLC, with replacement units dispatched from in-stock inventory to minimize downtime. For time-sensitive applications, expedited shipping options are available upon request.
