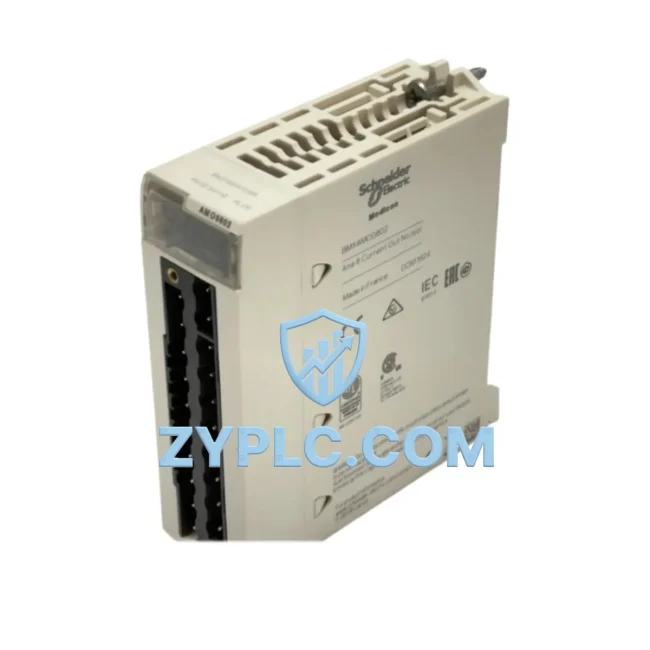

Schneider BMXAMO0802 Energy-Saving Analog Output Module

Schneider BMXAMO0802 Energy-Saving Analog Output Module: Precision Control for Optimized Modicon M340 Automation

The Schneider Electric BMXAMO0802 is an 8-channel analog output module engineered for the Modicon M340 programmable logic controller platform. Designed to deliver precise 4–20 mA or 0–10 V analog signals to field devices, the BMXAMO0802 plays a central role in reducing energy waste across motor-driven production systems. By providing accurate, low-latency output signals to variable frequency drives, control valves, and proportional actuators, this module enables factories to eliminate over-driving, reduce reactive power losses, and maintain optimal equipment utilization rates throughout every production shift.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed energy-aware control architecture, the BMXAMO0802 sits at the execution layer — translating PLC logic decisions into precise analog commands that govern real-world energy consumption. Within a Modicon M340 rack, the module works alongside the BMXP342020 CPU processor, which runs the control program and issues setpoint commands to the BMXAMO0802 at every scan cycle. The module’s 16-bit resolution ensures that drive speed references sent to a Schneider ATV320 or ATV630 variable frequency drive are accurate to within fractions of a percent — preventing the micro-corrections and hunting behavior that silently inflate energy bills in pump and fan applications.

On the input side, the BMXAMI0810 analog input module captures real-time process feedback — flow rates, pressure, temperature — and feeds that data back to the CPU. This closed-loop structure, with the BMXAMO0802 handling the output leg, allows the M340 system to continuously trim motor speed to match actual process demand rather than running at fixed, over-specified rates. In a chilled water system, for example, this dynamic adjustment alone can reduce pump motor energy consumption by 20–40% compared to fixed-speed operation.

For digital coordination, the BMXDDO1602 discrete output module handles on/off switching of contactors and solenoids, while the BMXAMO0802 manages proportional control — together forming a complete actuator control layer. Communication to supervisory systems is handled through the BMXNOE0110 Ethernet communication module, which connects the M340 rack to SCADA platforms and energy monitoring dashboards via Modbus TCP/IP. This allows energy managers to visualize real-time power setpoints alongside actual consumption data from PowerLogic PM5000 series power meters installed at the MCC level.

In servo-driven assembly lines, the BMXAMO0802 provides analog torque or speed references to Lexium 32 servo drives operating in analog input mode, enabling smooth, energy-efficient motion profiles without the overhead of a dedicated motion bus. For safety-critical zones, the module integrates with Preventa XPS safety relays through the M340’s I/O architecture, ensuring that analog outputs are safely de-energized during emergency stop sequences without causing abrupt mechanical stress that leads to premature wear.

Power Optimization in Real Production Lines

The most significant energy losses in industrial facilities rarely come from a single large inefficiency — they accumulate from hundreds of small, continuous over-corrections: a pump running 5% faster than needed, a valve held 10% more open than the process requires, a conveyor drive responding to a slightly inaccurate speed reference. The BMXAMO0802 directly addresses this class of loss by providing stable, drift-free analog outputs that keep field devices operating at their true optimal setpoints.

In a bottling plant running three-shift operations, replacing an aging 12-bit analog output module with the BMXAMO0802’s 16-bit resolution can eliminate the ±0.5% signal error that previously caused filling pumps to over-deliver by a measurable margin every cycle. Across millions of fill cycles per year, this precision translates directly into reduced product waste, lower pump motor loading, and extended seal life — all of which reduce both energy costs and maintenance expenditure.

For predictive maintenance integration, the BMXAMO0802’s consistent output behavior provides a reliable baseline for detecting actuator degradation. When a control valve begins to require increasingly large output signals to achieve the same process result, the M340 CPU — reading back process values through the BMXAMI0810 — can flag this as an early indicator of valve wear, allowing maintenance teams to schedule intervention during planned downtime rather than responding to unplanned failures. This shift from reactive to predictive maintenance is one of the highest-value energy and cost optimization strategies available to modern production facilities.

Every BMXAMO0802 unit supplied by ZYPLC is sourced from authorized distribution channels, subjected to full functional QA testing across all 8 output channels before dispatch, and backed by a 12-month warranty. In-stock inventory ensures short lead times, supporting both urgent replacement requirements and planned system expansions without extended procurement delays.

Energy Optimization FAQ

Q1: How does the BMXAMO0802 contribute to measurable energy savings on the production floor?
By delivering 16-bit resolution analog outputs, the BMXAMO0802 provides variable frequency drives and control valves with highly accurate setpoint signals. This precision eliminates the over-driving and continuous micro-corrections that occur with lower-resolution modules, directly reducing motor energy consumption and extending actuator service life. In pump and fan applications following affinity laws, even a 5% reduction in average operating speed can yield up to 14% energy savings.

Q2: Is the BMXAMO0802 compatible with my existing Modicon M340 rack and Unity Pro software?
Yes. The BMXAMO0802 is fully compatible with all Modicon M340 BMX-series backplanes and is natively supported in both Unity Pro and EcoStruxure Control Expert (the successor platform). No additional hardware adapters are required. The module is auto-detected by the CPU during rack configuration and can be commissioned within minutes using the standard I/O configuration wizard.

Q3: Can the BMXAMO0802 replace an older or third-party analog output module in my existing system?
In most cases, yes — provided the replacement module is installed in a compatible M340 BMX backplane slot. If you are replacing a module from a different Schneider platform (such as Quantum or Premium), a rack migration will be required. ZYPLC’s technical team can advise on migration paths and compatible alternatives. All units are tested before shipment to confirm full channel functionality.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every BMXAMO0802 unit undergoes functional QA testing across all 8 analog output channels — verifying signal accuracy, linearity, and channel isolation — before being cleared for shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains in-stock inventory to support rapid warranty replacements, minimizing production downtime in the event of a module failure.
