Schneider BMXDRA1605 Energy-Saving Relay Output for M340

Schneider BMXDRA1605 Energy-Saving Relay Output for Optimized M340 Automation

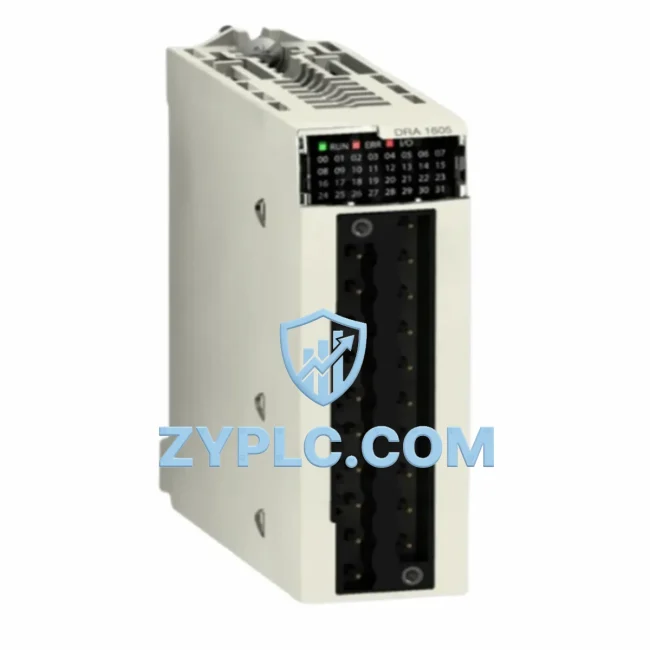

The Schneider Electric BMXDRA1605 is a 16-channel relay output module engineered for the Modicon M340 platform, delivering precise discrete control across demanding industrial environments. In modern manufacturing, every switching cycle carries an energy cost — and the BMXDRA1605 is designed to minimize that cost through reliable, low-latency relay actuation that eliminates unnecessary hold-on states, reduces coil heating losses, and ensures actuators are energized only when process logic demands it. For plant engineers focused on reducing kWh consumption per production unit, this module is a foundational component in an energy-aware control architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

The BMXDRA1605 does not operate in isolation — its energy optimization value is fully realized when integrated within a well-structured Modicon M340 control system. The M340 CPU, such as the BMXP342020 or BMXP342030, executes the application logic that governs when each relay channel is activated, enabling time-based load scheduling and demand-response routines that reduce peak energy draw on the production floor.

On the input side, analog measurement modules like the BMXAMI0410 (4-channel analog input) feed real-time current and voltage signals from field sensors into the M340 CPU, allowing the controller to make energy-informed switching decisions. When paired with a power monitoring relay such as the PM3250 (PowerLogic series), the system gains visibility into per-circuit energy consumption, enabling the PLC program to defer non-critical relay activations during peak tariff windows.

For variable-speed drive integration, the BMXDRA1605 relay outputs are commonly used to issue run/stop commands to ATV320 or ATV630 series variable frequency drives (VFDs). These drives regulate motor speed in proportion to actual load demand, and the relay module provides the discrete enable signal that initiates or halts drive operation — ensuring motors are never running at full speed when partial load is sufficient. This combination alone can reduce motor energy consumption by 20–50% in pump and fan applications.

Communication between the M340 rack and upstream SCADA or MES systems is handled through the CPU’s Ethernet port or optional BMXNOE0110 Ethernet communication module, which supports Modbus TCP and EtherNet/IP. This connectivity allows energy data collected at the field level to be aggregated at the supervisory level, feeding dashboards that track OEE (Overall Equipment Effectiveness) and energy intensity per production batch.

For distributed I/O expansion, the BMXDDI1602 discrete input module works alongside the BMXDRA1605 to capture feedback signals from contactors, limit switches, and safety relays — closing the control loop and enabling the CPU to confirm that relay-driven actuators have responded correctly, avoiding wasted energy from failed actuations that go undetected.

In safety-critical zones, the BMXDRA1605 relay outputs can be wired in series with Preventa XPS safety relay modules to implement emergency stop and guard monitoring circuits. This architecture ensures that energy is cut to hazardous machinery the instant a safety condition is detected, protecting both personnel and equipment while eliminating the energy waste associated with machinery running in an unsafe or unproductive state.

HMI visibility is provided through HMIGTO or HMISTO series Magelis panels connected via Modbus serial or Ethernet, giving operators real-time status of each relay output channel. Operators can identify which loads are active, how long they have been energized, and whether any channel is holding a load beyond its scheduled window — a simple but effective tool for reducing idle energy consumption on the shop floor.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, the BMXDRA1605 is deployed to control solenoid valves, conveyor contactors, indicator lamps, and auxiliary relay coils. Without intelligent PLC-based switching, these loads are often left energized during machine idle periods, shift changeovers, or scheduled breaks — contributing to baseline energy consumption that adds up significantly over a three-shift operation.

By programming the M340 CPU with time-of-use logic and production state awareness, plant engineers can configure the BMXDRA1605 to de-energize non-essential loads automatically when the line enters a standby state. A conveyor that would otherwise run continuously can be stopped within seconds of the upstream station going idle, reducing both energy draw and mechanical wear on drive components.

The relay output architecture also supports predictive maintenance strategies. Each relay channel has a defined mechanical and electrical endurance rating, and by logging switching cycles through the M340 CPU’s data logging functions, maintenance teams can predict relay wear before failure occurs. This eliminates unplanned downtime — which is itself a major source of energy inefficiency, as restarting cold equipment and reprocessing scrapped parts consumes far more energy than maintaining a stable, continuous production rhythm.

For lines running multiple shifts, the BMXDRA1605 enables shift-based load profiling. Energy consumption per shift can be correlated with production output, allowing energy managers to identify shifts where the energy-per-unit ratio is higher than expected — a signal that equipment is running inefficiently, loads are not being shed during breaks, or process parameters have drifted. This data-driven approach to energy management is only possible when the relay output layer is tightly integrated with the PLC control and data acquisition architecture.

All units supplied by ZYPLC undergo outgoing quality testing prior to shipment, verifying relay contact resistance, coil actuation voltage, and channel isolation. This ensures that the BMXDRA1605 you receive performs to Schneider Electric’s published specifications from day one, with no hidden degradation from improper storage or handling. Every unit is backed by a 12-month warranty, covering defects in materials and workmanship under normal industrial operating conditions.

Energy Optimization FAQ

Q1: How does the BMXDRA1605 contribute to energy savings compared to transistor output modules?
Relay outputs provide true galvanic isolation between the PLC backplane and the field load circuit. This means zero leakage current flows through the output when the relay is open, unlike solid-state transistor outputs which can exhibit small but continuous leakage. In applications with many output channels controlling resistive or inductive loads, this difference accumulates into measurable energy savings, particularly in high-channel-count installations.

Q2: Is the BMXDRA1605 compatible with my existing Modicon M340 rack and CPU?
Yes. The BMXDRA1605 is designed for the Modicon M340 platform and is compatible with all standard BMX rack configurations (BMXXBP0400, BMXXBP0800, BMXXBP1200) and M340 CPUs including the BMXP341000, BMXP342020, and BMXP342030. No firmware modification is required — the module is recognized automatically by Unity Pro / EcoStruxure Control Expert during hardware configuration.

Q3: Can the BMXDRA1605 replace an existing relay output module from a different Schneider series?
The BMXDRA1605 is specific to the M340 platform and cannot be directly swapped into Premium (TSX) or Quantum racks. If you are migrating from a TSX Micro or TSX Premium system, ZYPLC can advise on the appropriate migration path and equivalent module selection. For M340-to-M340 replacements, the BMXDRA1605 is a direct drop-in replacement for any existing BMXDRA1605 unit.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every BMXDRA1605 unit shipped by ZYPLC is tested for relay contact integrity, actuation voltage compliance, and channel-to-channel isolation before dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions (within specified voltage, current, and temperature ratings). Warranty claims are processed directly through ZYPLC — contact us at [email protected] or +86 19859288691 for support.
