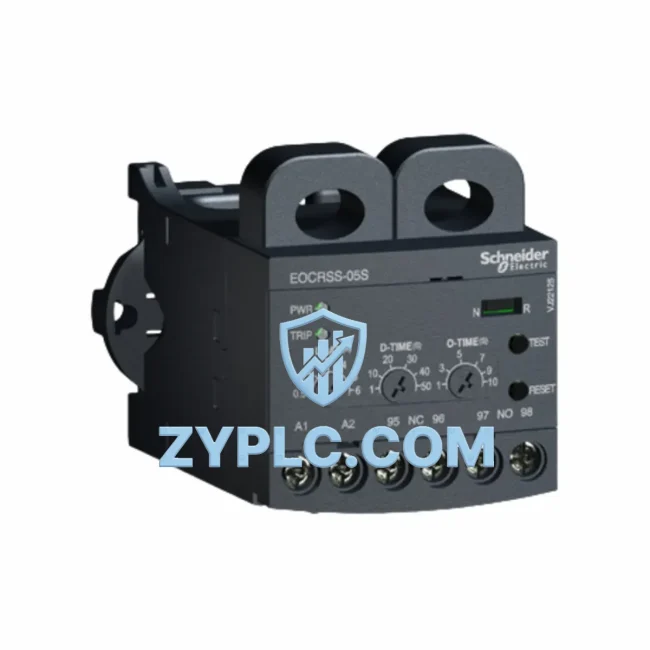

Schneider EOCR-SS-05RY7 System-Ready Overload Relay for EOCR-SS

Schneider EOCR-SS-05RY7 System-Ready Overload Relay for EOCR-SS: Control System Architecture and Coordinated Protection Design

The Schneider Electric EOCR-SS-05RY7 is a solid-state electronic overload relay engineered for seamless integration within layered industrial control system architectures. Unlike conventional thermal overload devices, the EOCR-SS-05RY7 delivers precise current-based motor protection with digital response characteristics that align with the demands of modern PLC-driven automation platforms. Its role within a complete control system extends far beyond simple motor protection — it functions as a critical node in the protection and monitoring layer, interfacing directly with motor control centers (MCCs), distributed I/O modules, and supervisory control networks to ensure system-wide operational consistency.

In a fully coordinated control architecture, the EOCR-SS-05RY7 occupies the field protection layer, working in concert with upstream components such as the Schneider Electric TeSys D contactor series (LC1D09–LC1D65), circuit breakers from the Compact NSX range, and downstream motor loads across pump stations, conveyor drives, compressor systems, and HVAC equipment. Its relay output — the RY7 suffix indicating a 7A relay contact configuration — provides a direct hardwired signal path to the PLC digital input module, enabling real-time fault status acquisition without reliance on fieldbus communication latency.

Architecture Specification Table

Coordinated Control System Design

Effective motor protection in industrial environments is never a standalone function. The EOCR-SS-05RY7 is designed to operate as part of a coordinated protection and control chain. In a typical MCC panel architecture, the relay is installed downstream of a Schneider Electric GV2ME or GV3ME manual motor starter, which provides short-circuit protection, while the EOCR-SS-05RY7 handles sustained overload and phase fault conditions. The relay output feeds directly into a Schneider Electric Modicon M221 or M241 PLC digital input card, enabling the controller to log fault events, trigger alarm outputs, and initiate controlled motor restart sequences through the application program.

For larger drive systems, the EOCR-SS-05RY7 is commonly paired with Schneider Electric Altivar ATV312 or ATV630 variable frequency drives, where the relay output serves as an external fault interlock, preventing drive restart under fault conditions until the protection relay is manually or automatically reset. In multi-motor systems, multiple EOCR-SS-05RY7 units are deployed across individual motor branches, with all relay outputs wired to a common Schneider Electric XPSAF or XPSMF safety relay module for centralized fault monitoring and emergency stop coordination.

At the network layer, the Modicon M241 PLC communicates upstream to a Schneider Electric SCADA system via Modbus TCP/IP or EtherNet/IP, transmitting motor status data collected from the EOCR-SS-05RY7 relay contacts. This Contextual Integration approach ensures that motor protection events are not isolated field-level occurrences but are fully visible at the supervisory level, enabling predictive maintenance scheduling and reducing unplanned downtime. The BMXNOE0100 Ethernet communication module on the Modicon M340 platform further extends this integration capability in larger plant architectures.

Power distribution to the EOCR-SS-05RY7 and associated control circuits is typically sourced from a Schneider Electric Phaseo ABL8 power supply unit, which provides stable 24VDC auxiliary power to the relay coil circuit and PLC I/O modules. In redundant power architectures, dual ABL8 units with a diode ORing module ensure continuous relay operation even during primary power supply maintenance or failure events.

Application in Layered Automation Systems

The EOCR-SS-05RY7 finds application across a broad spectrum of industrial sectors where motor protection reliability is critical to process continuity. In water and wastewater treatment facilities, the relay protects submersible pump motors from dry-run conditions and phase loss events that are common in variable-level wet wells. In petrochemical and refinery environments, it safeguards cooling water pump motors and compressor drives operating under continuous duty cycles, where thermal overload events can cascade into process shutdowns with significant economic impact.

In mining and mineral processing operations, the EOCR-SS-05RY7 is deployed on conveyor belt drive motors, crusher drives, and slurry pump systems, where high starting currents and frequent load variations demand a protection relay with adjustable trip class settings. The Class 10 and Class 20 trip class options allow engineers to match the relay’s thermal model to the specific motor’s starting characteristic, preventing nuisance tripping while maintaining effective overload protection.

In packaging and food processing lines, the relay is integrated into servo-driven conveyor systems and filling machine motor circuits, where the RY7 relay output provides a direct interlock signal to the machine safety circuit, ensuring that motor faults result in a controlled line stop rather than an uncontrolled mechanical failure. In metallurgical and steel mill applications, the EOCR-SS-05RY7 protects rolling mill auxiliary motors and cooling fan drives, where ambient temperatures and vibration levels demand a relay with robust solid-state construction and wide operating temperature tolerance.

Architecture Engineering FAQ

Q1: Is the EOCR-SS-05RY7 compatible with Schneider Electric Modicon PLC digital input modules for fault status monitoring?
Yes. The RY7relay output provides a standard NO/NC dry contact output rated at 7A, which is directly compatible with Schneider Electric Modicon M221, M241, M340, and M580 PLC digital input modules. No signal conditioning or intermediate relay is required. The contact output can be wired to a 24VDC or 120VAC digital input channel depending on the PLC I/O module specification. This direct hardwired Contextual Integration ensures fault status is captured at the PLC level with minimal latency.

Q2: Can the EOCR-SS-05RY7 be used in a redundant motor protection architecture alongside a Schneider Electric safety relay?
Yes. In safety-critical applications, the EOCR-SS-05RY7 relay output is commonly wired in series with a Schneider Electric XPSAF or Preventa XPSMF safety relay module. The EOCR-SS-05RY7 handles standard overload and phase fault protection, while the safety relay manages emergency stop and safety function monitoring. This dual-layer architecture ensures that motor protection and functional safety requirements are addressed independently, maintaining SIL 2 or PLd compliance in the overall machine safety design. The 12-Month Warranty covers the EOCR-SS-05RY7 unit throughout the commissioning and initial operational phase.

Q3: What is the recommended maintenance and replacement strategy for the EOCR-SS-05RY7 in long-term plant operations?
Schneider Electric recommends periodic inspection of relay contact condition, current setting verification, and trip test execution as part of annual preventive maintenance routines. Given the solid-state construction of the EOCR-SS series, the relay has no mechanical wear components in the sensing circuit, extending its operational service life compared to bimetallic thermal relays. ZYPLC maintains stock of the EOCR-SS-05RY7 to support rapid replacement requirements, and all units supplied are covered by a 12-Month Warranty from the date of shipment. For plants operating under IEC 60364 or NFPA 70E maintenance standards, replacement intervals of 5–7 years are typical for solid-state overload relays in normal industrial environments.
