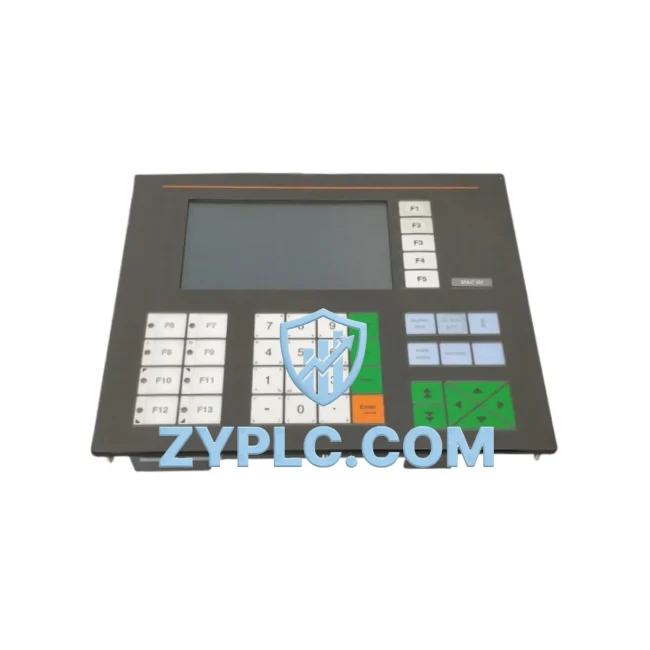

Schneider MAC90-00950C System-Ready HMI Panel for Magelis Architecture

Schneider MAC90-00950C System-Ready HMI Panel for Magelis Architecture: Control System Architecture and Upstream-Downstream Coordination

The Schneider Electric MAC90-00950C is a Magelis-series HMI touch panel engineered for seamless integration within layered industrial control architectures. Rather than functioning as a standalone display unit, the MAC90-00950C is designed to serve as the human-machine interface layer within a complete Modicon-based control system — coordinating upstream CPU logic, downstream I/O signal processing, network communication, power distribution, and field-level execution into a unified, coherent automation environment. For system integrators, OEM panel builders, and plant engineers working with Schneider Electric platforms, this panel represents a critical node in the operator-to-controller signal chain.

In modern industrial automation, the HMI layer is not merely a visualization tool — it is an active participant in system diagnostics, alarm management, recipe control, and real-time process feedback. The MAC90-00950C fulfills this role within Magelis architecture by providing a direct communication interface to Modicon M340, M580, Premium, and Quantum PLCs via Modbus TCP/IP, Uni-Telway, and Ethernet-based protocols. This contextual integration capability ensures that the panel does not operate in isolation but instead reflects the live state of the entire control system, from field sensor inputs to CPU-level logic execution.

Architecture Specification Table

Coordinated Control System Design

The MAC90-00950C achieves its full potential when deployed as part of a coordinated Schneider Electric control system. At the CPU layer, it communicates directly with the Modicon M340 BMX P34 2020 processor module, reading real-time register values and writing operator setpoints back to the PLC memory map. In high-availability architectures, the panel can be paired with the Modicon M580 BMEP582040 hot-standby CPU, where the HMI maintains continuous communication with the active CPU while the redundant unit remains synchronized in the background.

Power integrity for the HMI and associated control cabinet components is maintained through the Schneider Electric ABL8REM24030 regulated 24 VDC power supply, which provides stable voltage to both the touch panel and the I/O bus. At the I/O layer, the BMX DDI 1602 digital input module and BMX DDO 1602 digital output module handle field-level signal acquisition and actuation, with their status values reflected in real time on the MAC90-00950C operator screen.

Network connectivity between the HMI, PLC, and SCADA systems is managed through the BMX NOE 0110 Ethernet communication module, which supports Modbus TCP/IP and EtherNet/IP protocols. For legacy serial device integration, the BMX NOM 0200 serial communication module provides RS-232 and RS-485 connectivity, allowing the MAC90-00950C to bridge modern Ethernet-based architectures with older field instruments. Terminal block assemblies such as the BMXFTB2000 wiring accessories ensure clean, maintainable field wiring within the control cabinet, reducing commissioning time and long-term maintenance overhead.

In drive-integrated applications, the MAC90-00950C can display and control parameters for Schneider Electric Altivar ATV320 variable frequency drives via Modbus RTU, enabling operators to monitor motor speed, torque, and fault status directly from the HMI without requiring a separate drive keypad. This level of contextual integration across CPU, I/O, network, power, and drive layers is what distinguishes a well-engineered Magelis-based system from a collection of loosely connected components.

Application in Layered Automation Systems

The MAC90-00950C is deployed across a wide range of industrial sectors where Schneider Electric Modicon platforms are the standard control architecture. In manufacturing and assembly lines, the panel serves as the primary operator interface for conveyor control, robotic cell coordination, and production count tracking — with recipe management features allowing rapid changeover between product variants without engineering intervention.

In electrical power distribution and substation automation, the MAC90-00950C provides operators with real-time visibility into breaker status, load measurements, and protection relay states, all sourced directly from Modicon M580 CPUs managing the substation control system. The panel’s IP65 front protection rating makes it suitable for installation in outdoor-rated control enclosures in harsh environments.

For water and wastewater treatment facilities, the HMI panel displays pump station status, flow meter readings, chemical dosing setpoints, and alarm histories — all integrated with Modicon M340 PLCs managing the process control loops. The panel’s alarm management capabilities allow operators to acknowledge, silence, and log process alarms directly at the field station, reducing response time and improving regulatory compliance documentation.

In oil, gas, and petrochemical process control, the MAC90-00950C is used in wellhead control panels, compressor station HMI stations, and pipeline monitoring systems where Modicon Quantum or M580 redundant CPUs manage safety-critical control loops. The panel’s ability to maintain communication with hot-standby CPU configurations ensures that operator visibility is never interrupted during CPU failover events.

Mining, metallurgy, and heavy industry applications benefit from the panel’s robust construction and wide operating temperature range, making it suitable for installation in dusty, vibration-prone environments typical of crusher control rooms, conveyor drive stations, and smelter process control panels. Packaging and food processing lines use the MAC90-00950C for line speed control, batch counting, and CIP (clean-in-place) sequence monitoring, where hygienic panel-mount installation and easy-to-clean front surfaces are essential.

Architecture Engineering FAQ

Q1: Is the MAC90-00950C compatible with both Modicon M340 and M580 PLC platforms, and does it support hot-standby redundancy architectures?
Yes. The MAC90-00950C communicates via Modbus TCP/IP and Uni-Telway protocols, which are natively supported by both the Modicon M340 and M580 CPU families. In hot-standby redundancy configurations using M580 BMEP58•040H processors, the HMI maintains its Ethernet connection to the active CPU’s IP address; upon failover, the standby CPU assumes the primary IP, and the panel reconnects automatically without operator intervention. This ensures continuous process visibility during CPU switchover events, which is critical in high-availability process control applications.

Q2: What commissioning steps are required to integrate the MAC90-00950C into an existing Modicon control system, and what software tools are needed?
Integration requires Schneider Electric Vijeo Designer software for HMI application development, where communication drivers are configured to match the PLC’s Modbus TCP/IP or Uni-Telway address settings. The panel application is downloaded via Ethernet or USB, and variable binding is established by mapping PLC register addresses to HMI display objects. For systems using the BMX NOE 0110 Ethernet module, network switch configuration must ensure the HMI and PLC are on the same subnet or properly routed VLAN. Commissioning typically requires 4–8 hours for a standard application, with additional time for alarm configuration and recipe setup.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or technical support?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, component failures, and functional faults present at the time of delivery or arising under normal operating conditions within the warranty period. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the order reference, product serial number, and a description of the fault. ZYPLC will arrange inspection, repair, or replacement as appropriate. Technical support for integration and commissioning questions is also available through the same contact channels.
