Schneider XS1M30MA250 System-Ready Inductive Sensor for OsiSense XS

Schneider XS1M30MA250 System-Ready Inductive Sensor for OsiSense XS Architecture

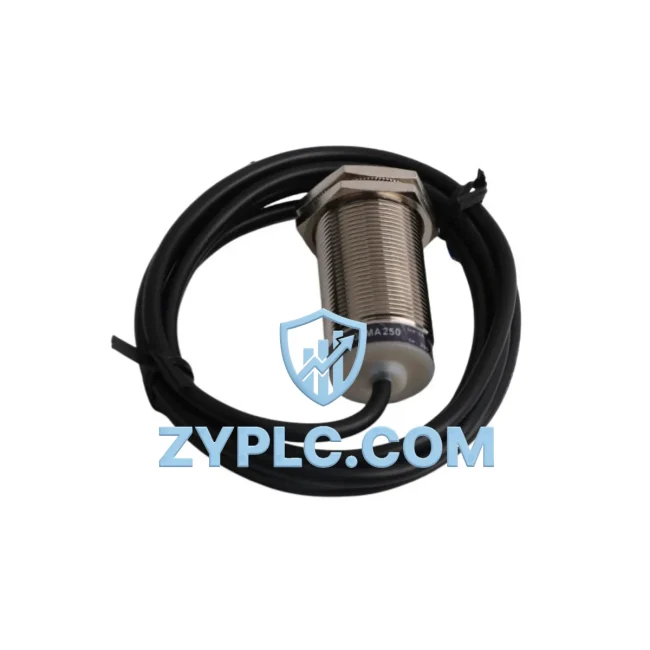

The Schneider Electric XS1M30MA250 is a 30 mm barrel-body inductive proximity sensor engineered for seamless Contextual Integration within layered industrial control system architectures. Designed as a native component of the OsiSense XS series, this sensor is not simply a standalone detection device — it is a precision field element that anchors the I/O layer of a complete automation system, feeding deterministic digital signals upward through the control hierarchy to ensure consistent machine behavior, reliable process feedback, and long-term system maintainability.

In a well-structured automation architecture, the XS1M30MA250 operates at the sensing layer, interfacing directly with discrete I/O modules such as the Schneider Electric TM3DI16 or TM3DI8 digital input expansion modules connected to a Modicon M221 or M241 logic controller. The sensor’s PNP normally-open output is fully compatible with the 24 VDC sourcing input circuits standard across the Modicon TM3 I/O platform, eliminating the need for signal conditioning or intermediate relay stages. This direct compatibility reduces wiring complexity, shortens commissioning time, and improves signal integrity across the entire control loop.

Architecture Specification Table

Coordinated Control System Design

The XS1M30MA250 achieves its full value when deployed as part of a coordinated control system rather than as an isolated component. In a typical Schneider Electric-based automation cell, this sensor connects via M12 cabling to a TM3DI16 digital input module, which in turn communicates with a Modicon M241 or M251 compact logic controller over the TM3 backplane bus. The controller executes ladder or structured text logic, processes the sensor’s position feedback, and issues output commands to a TM3DQ16 digital output module driving actuators or motor starters.

For applications requiring network transparency, the Modicon M241 can be paired with a TM4ES4 Ethernet switch module or a Modicon BMXNOE0110 Ethernet communication module, enabling the sensor’s status to be monitored in real time via EtherNet/IP or Modbus TCP from a supervisory SCADA system or a Magelis HMIGXU HMI panel. This end-to-end signal path — from the XS1M30MA250 at the field level to the HMI at the supervisory level — represents a complete, validated Contextual Integration architecture.

In redundant system designs, the XS1M30MA250 can be wired in parallel to two separate input channels on a Modicon M580 Hot Standby CPU pair, ensuring that a single sensor failure or input card fault does not interrupt process monitoring. The sensor’s robust IP67 housing and wide operating temperature range make it suitable for installation in harsh environments where vibration, coolant mist, or metal swarf are present, such as CNC machining centers, stamping lines, or automated assembly stations.

Power distribution for the sensor field network is typically managed through a Schneider Electric Phaseo ABL8 24 VDC power supply, which provides regulated, filtered DC power to multiple OsiSense XS sensors and I/O modules simultaneously. Proper power zoning — separating sensor supply from actuator supply — is a best practice that the XS1M30MA250’s low quiescent current draw supports without requiring dedicated power segmentation at the sensor level.

Application in Layered Automation Systems

The XS1M30MA250 is deployed across a wide range of industrial sectors where reliable position detection is critical to process integrity. In automotive manufacturing, it detects part presence on transfer lines and confirms fixture clamping before robotic welding cycles begin. In food and beverage packaging, its IP67 rating allows washdown-compatible installation on conveyor frames where hygiene standards require frequent cleaning. In water treatment facilities, it monitors valve position and pump coupling alignment within SCADA-integrated control panels built on Modicon M340 or M580 platforms.

In power distribution substations, the sensor provides auxiliary contact position feedback for circuit breaker monitoring panels, where its deterministic switching response time supports protection relay coordination logic. In petrochemical plants, it is installed in Ex-rated enclosures with appropriate Zener barrier or galvanic isolator interfaces to meet ATEX zone requirements while maintaining full compatibility with the upstream Modicon control architecture. In mining and metallurgy applications, the sensor’s wide temperature tolerance and vibration resistance make it a preferred choice for conveyor belt tracking and crusher feed monitoring systems.

Architecture Engineering FAQ

Q1: Is the XS1M30MA250 directly compatible with Modicon TM3 I/O expansion modules without additional signal conditioning?
Yes. The XS1M30MA250 outputs a PNP 24 VDC signal fully compatible with the sourcing input circuits of TM3DI8 and TM3DI16 modules. No interposing relay or signal converter is required, provided the sensor supply voltage matches the I/O module’s input voltage specification (12–24 VDC).

Q2: Can this sensor be integrated into a Modicon M580 Hot Standby redundant architecture?
Yes. The sensor’s discrete output can be wired to redundant input channels on dual BMXDDI3202K input modules within an M580 Hot Standby configuration. The sensor itself has no awareness of the redundancy topology — redundancy is managed at the controller and I/O module level, making the XS1M30MA250 fully transparent to the redundancy switchover process.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance sourcing?
All XS1M30MA250 units supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains verified stock of OsiSense XS series sensors and associated Modicon I/O components, enabling rapid replacement sourcing to minimize unplanned downtime. For long-term maintenance contracts or bulk procurement, contact our engineering team directly.
