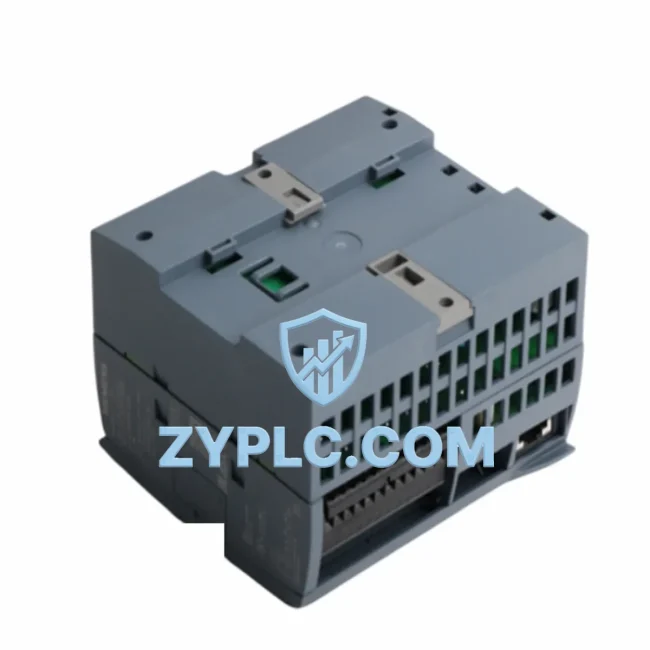

Siemens 16180-500 PSMBXNAN System-Ready Digital Input for S7 Architecture

Siemens 16180-500 PSMBXNAN System-Ready Digital Input for S7 Architecture

The Siemens 16180-500 PSMBXNAN is a digital input module engineered for seamless integration within the Siemens S7 control system architecture. Rather than functioning as a standalone component, this module is designed to operate as a precision node within a layered automation hierarchy — connecting field-level signals to the CPU processing layer with deterministic reliability. In distributed and centralized control topologies alike, the 16180-500 PSMBXNAN contributes to signal integrity, system scalability, and long-term maintainability across demanding industrial environments.

Modern industrial control systems demand that every I/O module perform not only its primary signal acquisition function but also support the broader architecture in terms of communication stability, rack compatibility, and redundancy readiness. The 16180-500 PSMBXNAN fulfills these requirements by integrating cleanly into the S7 backplane infrastructure, ensuring that digital field signals are captured, conditioned, and transmitted to the CPU with minimal latency and maximum consistency.

Architecture Specification Table

Coordinated Control System Design

The 16180-500 PSMBXNAN achieves its full value when deployed within a coordinated S7 control system rather than in isolation. At the CPU layer, it interfaces directly with processors such as the Siemens CPU 315-2 DP or CPU 317-2 PN/DP, which manage program execution and data exchange across the backplane. The module’s digital inputs feed real-time process data into the CPU scan cycle, enabling precise control logic execution.

On the power supply side, the Siemens PS 307 5A or PS 307 10A power supply modules provide the stable 24 VDC rail required for consistent module operation. Voltage fluctuations at the power layer directly affect input signal reliability, making a regulated, rack-integrated power supply essential to system performance.

For distributed I/O architectures, the 16180-500 PSMBXNAN can be paired with ET 200M or ET 200S remote I/O stations connected via PROFIBUS DP, extending the digital input capacity to field locations far from the central control cabinet. This configuration is particularly effective in large-scale process plants where field devices are distributed across multiple zones.

Communication gateways such as the Siemens CP 342-5 PROFIBUS communication processor or the CP 343-1 Industrial Ethernet module enable the S7 rack to participate in plant-wide SCADA and MES networks, ensuring that the digital input data captured by the 16180-500 PSMBXNAN is available at every level of the automation pyramid.

At the human-machine interface layer, Siemens SIMATIC HMI TP700 Comfort or TP1200 Comfort panels visualize the input states in real time, giving operators immediate visibility into field conditions. Terminal modules and Siemens SM 321 digital input signal modules within the same rack provide complementary input channels, allowing engineers to design redundant or expanded input configurations without changing the CPU program structure.

For relay output coordination, Siemens SM 322 digital output modules on the same backplane respond to the processed input signals, closing the control loop between field sensors and actuators. This tight integration between input acquisition and output execution is the foundation of reliable S7-based automation.

Application in Layered Automation Systems

The 16180-500 PSMBXNAN is suited for deployment across a wide range of industrial sectors where digital signal acquisition is critical to process safety and efficiency.

In manufacturing and assembly lines, the module captures position, presence, and limit switch signals from conveyors, robotic cells, and tooling stations, feeding the S7 CPU with the real-time data needed to sequence production operations. In power generation and electrical distribution facilities, it monitors breaker status, relay feedback, and protection relay outputs, providing the control system with accurate grid state information.

In petrochemical and refinery applications, the module acquires digital signals from valve position indicators, flow switches, and emergency shutdown (ESD) systems, where signal integrity and deterministic response times are non-negotiable. Water and wastewater treatment plants rely on similar digital input architectures to monitor pump run/fault status, level switches, and filter differential pressure alarms.

In mining and metallurgical operations, the 16180-500 PSMBXNAN handles the high-density digital input requirements of conveyor interlocking systems, crusher protection circuits, and ventilation control panels. Packaging and filling lines use the module to synchronize machine states across multiple stations, ensuring that upstream and downstream equipment respond correctly to product flow conditions.

Across all these applications, the module’s compatibility with the S7 backplane architecture means that system engineers can expand input capacity, replace modules during maintenance windows, and integrate new field devices without redesigning the control cabinet or reprogramming the CPU — a significant advantage for long-term operational continuity and total cost of ownership.

Architecture Engineering FAQ

Q1: Is the 16180-500 PSMBXNAN compatible with both S7-300 and S7-400 rack systems?
The 16180-500 PSMBXNAN is designed for the Siemens S7 platform architecture. Compatibility with specific rack generations (S7-300 or S7-400) should be confirmed against the module’s electrical and mechanical specifications. ZYPLC’s technical team can assist with rack compatibility verification prior to order placement, ensuring the module integrates correctly with your existing backplane and CPU configuration.

Q2: How does this module support redundant control architectures?
In redundant S7 systems, digital input modules like the 16180-500 PSMBXNAN can be deployed in mirrored I/O configurations where two modules monitor the same field signal from separate racks or CPU paths. This approach ensures that a single module failure does not interrupt signal acquisition. When combined with Siemens H-System (High Availability) CPUs and redundant PROFIBUS or PROFINET rings, the overall system achieves the fault tolerance required for critical process applications. ZYPLC supplies matched pairs of verified modules to support redundant deployment strategies.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance?
All modules supplied by ZYPLC, including the 16180-500 PSMBXNAN, are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains verified stock of S7-compatible I/O modules to support rapid replacement during unplanned maintenance events, minimizing production downtime. For long-term maintenance planning, ZYPLC can provide multi-unit procurement packages and technical consultation on module lifecycle management within your control system architecture.
