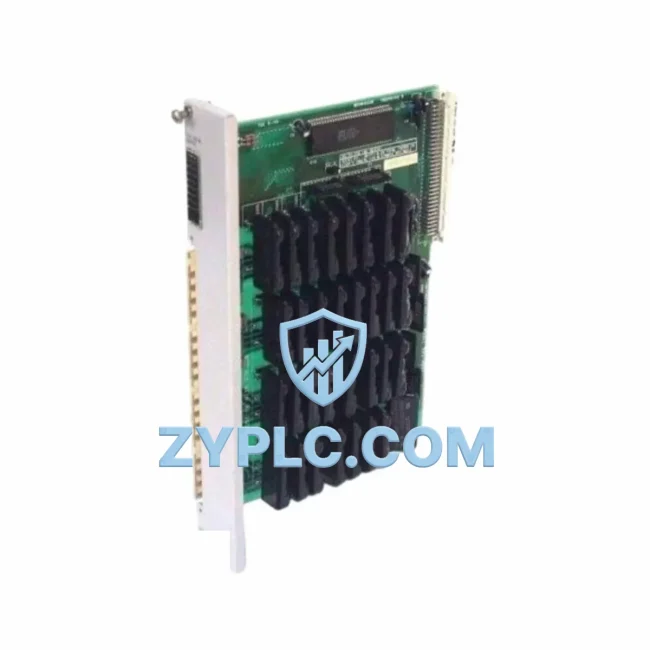

Siemens 505-4832 Energy-Saving AC Output Module TI505: Precision Energy Control for Optimized Automation Lines

The Siemens 505-4832 is a 32-point AC discrete output module engineered for the SIMATIC TI505 programmable logic controller platform. Designed to deliver reliable, high-cycle switching performance in demanding industrial environments, the 505-4832 plays a central role in reducing unnecessary energy consumption across production lines by ensuring that AC loads — motors, solenoids, contactors, and lighting circuits — are switched with precision and minimal leakage current. In energy-intensive manufacturing facilities, the difference between a well-timed output command and a delayed or erroneous one can translate directly into measurable kilowatt-hour losses. The 505-4832 eliminates that gap.

At ZYPLC, every 505-4832 unit is sourced from verified supply channels, subjected to outgoing functional testing under load conditions, and backed by a 12-month warranty. Stock is maintained on-hand for prompt shipment, supporting both planned maintenance schedules and urgent line-down recovery scenarios.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 505-4832 does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-structured TI505 automation architecture. In a typical energy-optimized plant cell, the Siemens 505-6860 CPU module serves as the central processing unit, executing ladder logic that governs when and how the 505-4832 activates AC loads. Scan-cycle optimization at the CPU level directly reduces unnecessary output toggling, which in turn lowers switching losses across the output module’s solid-state elements.

On the input side, the Siemens 505-4816 AC input module feeds real-time field status back to the CPU, enabling closed-loop control sequences that prevent motors and actuators from running beyond their required duty cycles. When paired with a Siemens 505-7001 analog output module, the system gains the ability to modulate variable-speed drives and proportional control valves — shifting from binary on/off switching to continuous energy-proportional control, which is where the largest efficiency gains are typically realized.

For drive-level energy management, the 505-4832 is commonly deployed alongside Siemens SINAMICS G120 variable frequency drives. The output module handles the discrete start/stop and direction commands, while the VFD manages motor speed in proportion to actual load demand. This combination eliminates the energy waste associated with fixed-speed motor operation under partial load — a scenario responsible for a significant share of industrial electricity consumption. Similarly, integration with Siemens SINAMICS S120 servo drive systems allows the 505-4832 to coordinate multi-axis motion sequences with precise timing, reducing idle current draw between motion segments.

Power quality and consumption visibility are addressed through the Siemens SENTRON PAC3200 power monitoring device, which can be networked alongside the TI505 system to provide real-time kWh, power factor, and demand data. When operators can see exactly how much energy each production cell consumes per shift, they gain the data needed to identify inefficient sequences and justify control logic improvements. The Siemens 505-6850 CPU supports communication via the TIWAY network, enabling the 505-4832’s output states to be monitored and logged by SCADA systems for energy reporting and predictive maintenance analysis.

HMI visibility is provided through Siemens SIMATIC TP700 Comfort Panel or equivalent operator panels connected to the TI505 network, giving line operators real-time feedback on output module status, active load counts, and alarm conditions — all of which contribute to faster fault response and reduced unplanned downtime. For facilities running mixed I/O architectures, the Siemens 505-4808 DC output module complements the 505-4832 by handling 24 VDC control circuits, allowing a single TI505 rack to manage both AC power loads and DC control signals within a unified energy monitoring framework.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive assembly, food and beverage processing, packaging lines, and material handling systems — the 505-4832 contributes to energy optimization through several concrete mechanisms.

Elimination of unnecessary load energization: Because the 505-4832 responds to CPU output commands with low propagation delay, production sequences can be timed so that AC loads such as conveyor motors, pneumatic solenoids, and process heaters are energized only during their required operational windows. Eliminating even 5–10% of unnecessary energization time across a 32-point module operating 24/7 produces measurable reductions in monthly energy consumption.

Reduced maintenance-related downtime: The module’s optical isolation architecture protects the TI505 backplane from field-side voltage transients, which are a common cause of I/O module failure in AC-heavy environments. Fewer module failures mean fewer unplanned stoppages, and fewer stoppages mean more consistent production throughput — which is itself a form of energy efficiency, since startup and ramp-up cycles consume disproportionately more energy than steady-state operation.

Predictive maintenance enablement: When the 505-4832 is integrated with a SCADA or MES system via the TI505 communication infrastructure, output state data can be logged over time to identify anomalous switching patterns — such as a solenoid that is cycling more frequently than expected, which may indicate a mechanical fault or process drift. Catching these conditions early prevents both energy waste and catastrophic equipment failure.

Line rhythm optimization: In high-speed packaging and assembly lines, output module response consistency directly affects line takt time. Inconsistent output switching introduces micro-delays that accumulate into measurable throughput losses. The 505-4832’s deterministic switching behavior supports tight takt time control, ensuring that energy is consumed productively rather than wasted in idle wait states between process steps.

All units available from ZYPLC are tested for output continuity, isolation integrity, and backplane communication prior to shipment. In-stock availability supports same-week dispatch for most orders, minimizing line-down duration for facilities operating on just-in-time maintenance schedules.

Energy Optimization FAQ

Q: How does the 505-4832 contribute to measurable energy savings compared to older relay-based output modules?
A: Solid-state AC output modules like the 505-4832 eliminate the mechanical switching losses and contact wear associated with relay outputs. More importantly, their low leakage current design (<2 mA per point) reduces phantom load on AC circuits during the off state — a factor that becomes significant when multiplied across 32 points operating continuously. When combined with VFD-based motor control and CPU-level scan optimization, the overall system energy footprint is substantially lower than relay-based equivalents.

Q: Is the 505-4832 compatible with current TI505 CPU and rack configurations, and can it be mixed with DC output modules in the same chassis?
A: Yes. The 505-4832 is fully compatible with all standard TI505 I/O chassis configurations and can be installed in any available slot alongside DC output modules such as the 505-4808, analog modules, and communication modules. The TI505 platform’s modular architecture allows mixed I/O configurations within a single rack, enabling engineers to optimize each slot for its specific field-side load type without requiring separate chassis for AC and DC circuits.

Q: What is the recommended replacement process when substituting a failed 505-4832 in a live production environment?
A: The TI505 platform supports hot-swap I/O replacement in most configurations, provided the CPU is placed in the appropriate mode prior to module removal. The replacement 505-4832 should be inserted into the same slot position, after which the CPU will automatically re-establish communication and resume output control. ZYPLC recommends verifying output continuity on all 32 points using the system’s I/O diagnostic functions before returning the line to automatic mode. All ZYPLC-supplied units are pre-tested and include documentation of outgoing test results.

Q: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every 505-4832 supplied by ZYPLC is tested for output switching function across all 32 points, backplane communication integrity, and isolation resistance before dispatch. The 12-month warranty covers functional failure under normal operating conditions and includes replacement or repair support. Units are shipped with appropriate ESD protection and packaging to prevent transit damage. For urgent line-down situations, expedited shipment options are available — contact ZYPLC directly at [email protected] or +86 19859288691 to confirm lead time and stock availability.
