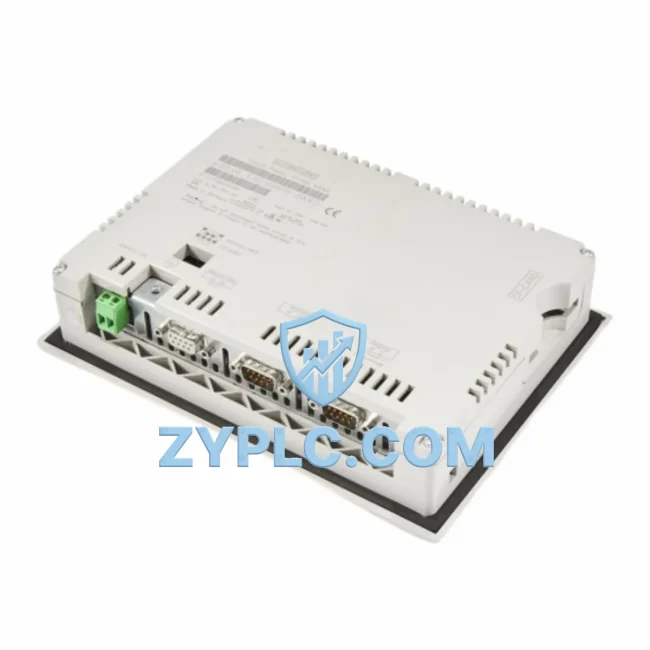

Siemens 6AV6545-0BB15-2AX0 Industrial Network Interface for SIMATIC OP77B Systems

Siemens 6AV6545-0BB15-2AX0: Industrial Data Link and Smart Factory Connectivity for SIMATIC OP77B Systems

In modern industrial automation, the human-machine interface is far more than a display panel — it is the critical node where field-level data, control logic, and operator decision-making converge. The Siemens 6AV6545-0BB15-2AX0, commercially designated as the SIMATIC OP77B, is engineered to serve precisely this role within layered automation architectures. With native MPI and PROFIBUS DP communication support, this operator panel bridges the gap between the control layer and the human layer, enabling real-time visualization, alarm management, and process parameter adjustment across a wide range of industrial environments.

The 6AV6545-0BB15-2AX0 integrates seamlessly into SIMATIC S7 control platforms, including the S7-300 and S7-400 series PLCs, which form the backbone of countless manufacturing, energy, and process control systems worldwide. Its 4.5-inch monochrome display and membrane keypad provide a rugged, reliable interface suited for demanding environments where touchscreen panels may be impractical. The panel supports WinCC flexible runtime, allowing engineers to configure screens, trends, alarms, and recipes with a standardized toolchain that reduces commissioning time and simplifies long-term maintenance.

Network Communication Table

Connected Automation Data Flow

Understanding the 6AV6545-0BB15-2AX0 requires viewing it not as a standalone display, but as an active participant in a multi-layer data flow architecture. In a typical SIMATIC-based production line, the data journey begins at the field level, where sensors, proximity switches, and actuators feed signals into distributed I/O modules such as the ET 200S or ET 200M remote I/O stations. These signals are aggregated and processed by a central controller — commonly a SIMATIC S7-300 CPU 315-2 DP or S7-400 CPU 414-3 PN/DP — which executes the control logic and updates process variables in real time.

The OP77B connects to this controller via the MPI or PROFIBUS DP bus, receiving live process data and displaying it to operators in a structured, intuitive format. When a process variable exceeds a defined threshold — for example, a tank level approaching overflow or a motor temperature rising beyond safe limits — the panel triggers a visual alarm, prompting immediate operator intervention. This closed-loop feedback mechanism is fundamental to maintaining process stability and preventing costly downtime.

Upstream from the controller, a SIMATIC NET CP 343-1 or CP 443-1 communication processor may bridge the PROFIBUS network to Industrial Ethernet, enabling data exchange with SCADA systems such as WinCC SCADA or third-party supervisory platforms. This architecture allows plant managers to monitor multiple production lines simultaneously from a centralized control room, while operators on the floor interact directly with the OP77B for local adjustments and alarm acknowledgment.

In more complex installations, a SCALANCE X208 or SCALANCE X216 industrial Ethernet switch may be deployed to segment network traffic and ensure deterministic communication between the PLC, HMI, and engineering workstations. The OP77B’s PROFIBUS DP port can also connect to SINAMICS G120 or MICROMASTER 440 variable frequency drives, allowing operators to monitor drive status, adjust speed setpoints, and view fault codes without navigating to a separate drive panel. This level of integration reduces wiring complexity and centralizes operational control, which is particularly valuable in packaging lines, conveyor systems, and pump stations.

For applications requiring recipe management — such as batch processing in food and beverage or pharmaceutical production — the OP77B supports recipe download and upload via the MPI interface, synchronizing production parameters between the HMI and the S7 controller. Combined with a SIMATIC S7-300 FM 350-1 counter module or an analog input module SM 331, the panel can display real-time production counts, flow rates, and quality metrics, giving operators the data they need to make informed decisions at the machine level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share information efficiently. The 6AV6545-0BB15-2AX0 addresses this challenge by serving as a local data aggregation and visualization point that connects directly to the PROFIBUS DP network, eliminating the need for separate data collection hardware at the machine level.

In older facilities where legacy PLCs and proprietary protocols create communication barriers, the OP77B’s MPI interface provides a direct, low-overhead connection to SIMATIC controllers without requiring additional gateways or protocol converters. This simplifies the network topology and reduces potential points of failure, which is critical in continuous process industries such as water treatment, chemical processing, and power generation.

For sites undergoing digital transformation, the OP77B can serve as an interim HMI solution while more advanced systems are being integrated. Its compatibility with WinCC flexible ensures that screen configurations and alarm definitions can be migrated to newer SIMATIC HMI platforms — such as the KTP700 Basic or TP1200 Comfort — without rebuilding from scratch. This protects the engineering investment and reduces the risk associated with system upgrades.

Remote diagnostics is another area where the OP77B contributes to operational transparency. By connecting to a SIMATIC S7 controller that supports PROFIBUS DP diagnostics, the panel can display device status, communication errors, and module faults in real time, allowing maintenance teams to identify and resolve issues before they escalate into unplanned shutdowns. This capability is especially valuable in remote or unmanned installations where on-site inspection is infrequent.

Every 6AV6545-0BB15-2AX0 supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, display performance, and keypad response. Units are shipped with full documentation and are covered by a 12-Month Warranty, ensuring that procurement teams and system integrators can plan their projects with confidence. Stock availability is maintained to support both urgent replacement orders and scheduled project deliveries.

Industrial Connectivity FAQ

Q1: What communication protocols does the 6AV6545-0BB15-2AX0 support, and which PLCs is it compatible with?
The SIMATIC OP77B supports MPI and PROFIBUS DP protocols via its combined RS-485 port. It is compatible with SIMATIC S7-200, S7-300, S7-400, and LOGO! controllers. The panel operates with WinCC flexible runtime, which supports a broad range of SIMATIC CPU variants. For S7-300 and S7-400 systems, both MPI and PROFIBUS DP connections are supported natively without additional hardware.

Q2: How does the OP77B maintain network stability in high-noise industrial environments?
The 6AV6545-0BB15-2AX0 is designed to operate reliably in electrically noisy environments typical of manufacturing and process plants. Its RS-485 physical layer provides differential signaling that is inherently resistant to common-mode noise. PROFIBUS DP communication includes built-in error detection and retry mechanisms, ensuring data integrity even in environments with significant electromagnetic interference from variable frequency drives such as SINAMICS G120 or MICROMASTER 440 units operating nearby.

Q3: Can the OP77B be integrated into a SCADA system for centralized monitoring?
Yes. While the OP77B itself does not connect directly to Ethernet-based SCADA systems, it works in conjunction with SIMATIC S7 controllers that can be networked to WinCC SCADA or third-party supervisory platforms via communication processors such as the CP 343-1 or CP 443-1. The controller acts as the data hub, sharing process variables with both the OP77B at the machine level and the SCADA system at the supervisory level, enabling Contextual Integration across all layers of the automation hierarchy.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each 6AV6545-0BB15-2AX0 unit is tested for display functionality, keypad response, and MPI/PROFIBUS DP communication integrity. Units that do not meet performance specifications are quarantined and not shipped. Warranty claims are processed through ZYPLC’s technical support team, and replacement units are dispatched promptly to minimize project delays.
