Siemens 6AV7260-5GA10-0BX0 Industrial Network Interface for SIMATIC IPC Systems

Siemens 6AV7260-5GA10-0BX0: Industrial Data Link Hub for SIMATIC IPC Smart Factory Networks

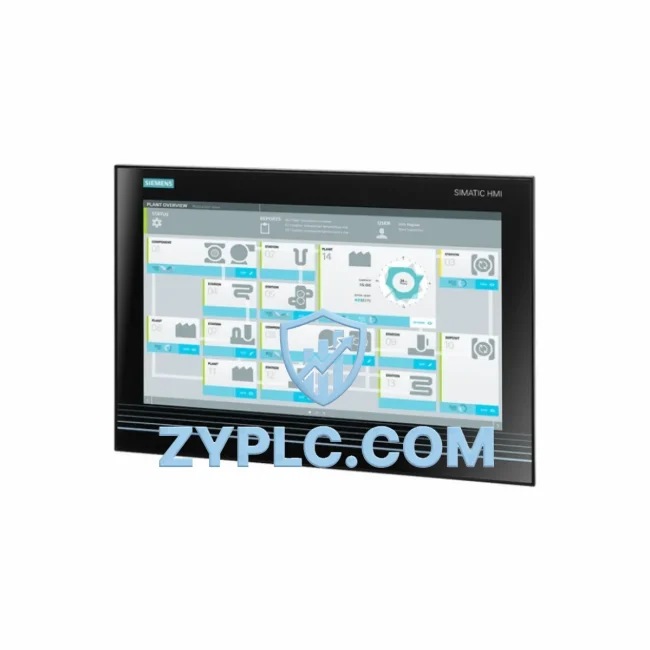

The Siemens 6AV7260-5GA10-0BX0 is a high-performance Industrial Panel PC from the SIMATIC IPC Series, engineered to serve as the central data link node in modern smart factory environments. Designed for demanding industrial applications, this unit bridges the gap between field-level devices and upper-level control and monitoring systems, enabling seamless, real-time data flow across the entire automation hierarchy. Whether deployed in discrete manufacturing, process control, or hybrid production environments, the 6AV7260-5GA10-0BX0 delivers the connectivity, processing power, and protocol versatility that Industry 4.0 demands.

At its core, this SIMATIC IPC Panel PC functions as both a visualization platform and a network communication gateway. It supports standard industrial Ethernet and PROFINET protocols natively, allowing it to interface directly with Siemens S7-1500 and S7-1200 PLC controllers without additional protocol converters. Field signals from distributed I/O modules — such as the Siemens ET 200SP remote I/O system — are aggregated and transmitted upstream through the panel’s integrated network interfaces, ensuring low-latency data delivery to SCADA and MES layers. This tight integration eliminates data silos that commonly plague multi-vendor automation architectures.

In a typical smart factory deployment, the 6AV7260-5GA10-0BX0 sits at the heart of the control network. Downstream, it communicates with Siemens SINAMICS G120 variable frequency drives and SIRIUS motor starters via PROFINET, collecting real-time speed, torque, and fault data. Simultaneously, it interfaces with Siemens SITRANS flow and pressure sensors through IO-Link or analog signal conditioning modules, feeding process values directly into the HMI visualization layer running on the panel itself. The panel’s onboard WinCC runtime environment enables operators to monitor, trend, and alarm on all connected field devices from a single touchscreen interface.

Moving up the network stack, the 6AV7260-5GA10-0BX0 connects to plant-wide SCADA systems via OPC UA or standard TCP/IP Ethernet, publishing structured data objects that can be consumed by Siemens SIMATIC WinCC Open Architecture or third-party SCADA platforms. This open communication architecture supports horizontal integration across production lines and vertical integration from the shop floor to ERP systems. Remote diagnostic capabilities are built in: maintenance engineers can access live process data, alarm histories, and device diagnostics from any networked workstation or mobile device, dramatically reducing mean time to repair (MTTR) and unplanned downtime.

The panel also supports integration with Siemens SCALANCE industrial network switches and routers, enabling network segmentation, redundancy, and cybersecurity features such as VLAN isolation and firewall rules. When paired with a SCALANCE X208 managed switch, the 6AV7260-5GA10-0BX0 can participate in Media Redundancy Protocol (MRP) ring topologies, ensuring network availability even in the event of a single cable or switch failure — a critical requirement for continuous process industries.

For edge computing and IIoT gateway applications, the SIMATIC IPC 6AV7260-5GA10-0BX0 can run Siemens Industrial Edge applications alongside traditional HMI/SCADA software. This allows local pre-processing of sensor data, machine learning inference at the edge, and selective data forwarding to cloud platforms such as Siemens MindSphere or third-party IoT hubs. The result is a leaner, more responsive data pipeline that reduces cloud bandwidth costs while maintaining full plant visibility.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, network interface checks, and communication protocol validation. Stock is maintained in our warehouse for immediate dispatch, with global logistics support to ensure fast delivery to your facility. All units are covered by a 12-month warranty, backed by our technical support team available via phone and email.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the Siemens 6AV7260-5GA10-0BX0 operates as the visualization and communication anchor of the control network. At the field level, Siemens SITRANS P320 pressure transmitters and SITRANS F M MAG 5100W electromagnetic flow meters deliver analog and digital process values to the ET 200SP distributed I/O modules, which aggregate these signals and forward them via PROFINET to the S7-1500 CPU 1516-3 PN/DP PLC. The PLC executes control logic and publishes process data to the PROFINET network, where the 6AV7260-5GA10-0BX0 panel subscribes to real-time data objects and renders them on its HMI display.

Simultaneously, the SINAMICS G120C drives — controlling conveyor motors and pump systems — report speed setpoints, actual values, and fault codes to the S7-1500 via PROFINET. The panel PC aggregates this drive data alongside sensor readings, presenting operators with a unified process overview. Alarm conditions trigger immediate visual and audible notifications on the panel, while alarm records are logged to the onboard historian and forwarded to the plant SCADA server via OPC UA. The SCALANCE X208 managed switch interconnects all PROFINET devices in a star topology, with MRP ring redundancy ensuring network continuity.

At the supervisory level, the 6AV7260-5GA10-0BX0 publishes structured data to Siemens SIMATIC WinCC Open Architecture running on the plant server, enabling multi-client SCADA visualization across the facility. Remote engineers access live process data and historical trends through the SCADA web client, while the panel’s Industrial Edge runtime forwards selected KPIs to MindSphere for fleet-wide analytics and predictive maintenance modeling.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, legacy systems, and isolated network segments. The Siemens 6AV7260-5GA10-0BX0 directly addresses these pain points through its multi-protocol communication architecture and open software platform.

Protocol Unification: Many production sites operate a mix of legacy PROFIBUS DP devices alongside modern PROFINET equipment. The 6AV7260-5GA10-0BX0, when paired with a Siemens IE/PB Link PN IO gateway module, bridges PROFIBUS and PROFINET segments transparently, allowing legacy field devices to participate in the modern Ethernet-based control network without replacement. This protects existing capital investments while enabling incremental modernization.

Eliminating Data Silos: By running WinCC and OPC UA server software natively, the panel PC acts as a data aggregation and publication hub. Process values from PROFINET, serial RS-232/RS-485 devices, and Modbus TCP instruments are unified into a single OPC UA namespace, accessible to any compliant SCADA, MES, or ERP client. This eliminates the manual data entry and spreadsheet-based reporting that characterize siloed operations.

Remote Monitoring and Diagnostics: The panel’s integrated web server and remote desktop capabilities allow maintenance teams to access live HMI screens, diagnostic pages, and alarm logs from any networked device — including smartphones and tablets. Combined with the SCALANCE network infrastructure’s built-in firewall and VPN support, secure remote access is achievable without compromising plant network integrity.

Production Line Transparency and Scalability: As production requirements evolve, the 6AV7260-5GA10-0BX0’s open PC architecture allows additional software modules — OEE calculators, energy monitoring applications, quality management tools — to be deployed without hardware changes. The system scales from single-machine HMI applications to multi-line SCADA integrations, supporting the full lifecycle of smart factory development.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 6AV7260-5GA10-0BX0 on a PROFINET network?
A: In a standard PROFINET RT (Real-Time) configuration, cycle times of 1–4 ms are achievable, depending on network load and the number of connected devices. For applications requiring deterministic sub-millisecond communication, PROFINET IRT (Isochronous Real-Time) mode is supported when used with compatible SCALANCE switches and SIMATIC controllers, ensuring precise synchronization across the automation network.

Q2: Is the 6AV7260-5GA10-0BX0 compatible with third-party SCADA systems and non-Siemens PLCs?
A: Yes. The panel PC’s OPC UA server and standard Ethernet interfaces allow integration with a wide range of third-party SCADA platforms, including Wonderware, Ignition, and iFIX. Modbus TCP and serial communication drivers are available for connecting legacy or non-Siemens field devices. The open Windows-based operating system supports virtually any industrial communication driver available on the market.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
A: Every Siemens 6AV7260-5GA10-0BX0 unit undergoes a pre-shipment inspection that includes power-on testing, Ethernet interface verification, and communication protocol checks. Units are sourced from authorized channels and stored in ESD-safe, climate-controlled warehouses. Each unit ships with full documentation and is covered by a 12-month warranty from the date of delivery.

Q4: Can the system be expanded to support additional production lines or remote sites?
A: Absolutely. The 6AV7260-5GA10-0BX0’s WinCC runtime supports multi-server and distributed architectures, allowing additional panel PCs or SCADA servers to be added to the network as production capacity grows. SCALANCE network infrastructure supports VLAN segmentation and WAN connectivity for multi-site deployments, enabling centralized monitoring of geographically distributed facilities from a single SCADA console.
