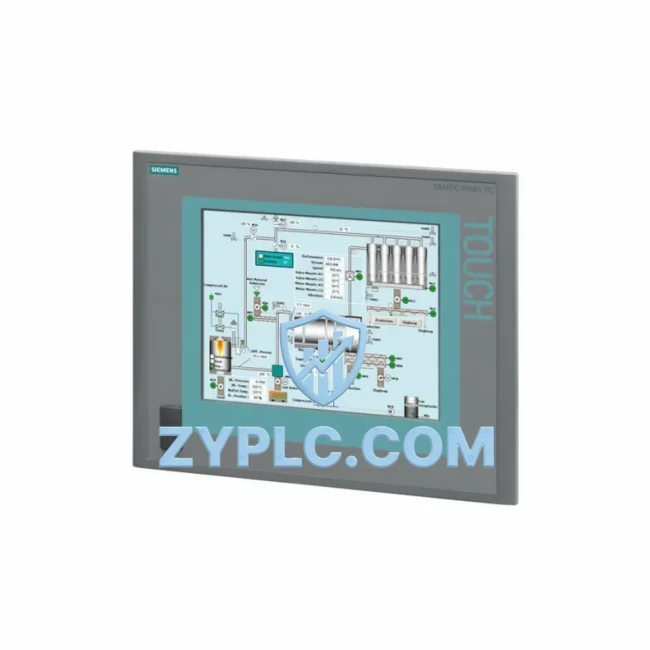

Siemens 6AV7884-2AA10-2BA0 Energy-Saving HMI Panel PC

Siemens 6AV7884-2AA10-2BA0 Energy-Saving HMI Panel PC: Precision Energy Control for Optimized SIMATIC IPC 477C Automation

The Siemens 6AV7884-2AA10-2BA0 is a high-performance HMI Panel PC from the SIMATIC IPC 477C series, engineered to serve as the central visualization and control node in energy-conscious industrial automation environments. With its robust processing architecture and seamless integration into Siemens’ TIA Portal ecosystem, this unit enables plant operators to monitor real-time energy consumption, fine-tune drive parameters, and reduce idle-state power draw across entire production lines — all from a single, ruggedized interface.

At ZYPLC, every 6AV7884-2AA10-2BA0 unit undergoes full functional testing and outgoing inspection before shipment, backed by a 12-month warranty. We maintain ready inventory to support urgent MRO demands and scheduled line upgrades alike.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-optimized production cell, the 6AV7884-2AA10-2BA0 functions as the command and visualization hub, aggregating data from field devices and translating operator intent into precise control signals. When paired with a Siemens SINAMICS G120 variable frequency drive, the Panel PC can display real-time motor load curves and trigger speed reduction commands during low-demand production windows — directly cutting kWh consumption without manual intervention.

The SIMATIC IPC 477C communicates natively over PROFINET, making it straightforward to connect with a Siemens S7-1500 PLC series controller handling the logic layer. The S7-1500’s integrated energy measurement functions feed consumption data back to the HMI, where WinCC Runtime Advanced visualizes per-zone power trends. Operators can identify which conveyor segment, press station, or robotic cell is drawing excess current and act immediately.

For servo-driven axes — such as those controlled by a Siemens SINAMICS S120 multi-axis drive system — the 6AV7884-2AA10-2BA0 provides the operator interface for tuning regenerative braking parameters. Recovered braking energy fed back into the DC bus reduces net energy draw from the grid, a measurable efficiency gain in high-cycle stamping or packaging lines.

Power quality monitoring is further enhanced when the Panel PC is integrated with a Siemens SENTRON PAC3200 power monitoring device via PROFIBUS or Modbus TCP. The PAC3200 captures voltage, current, power factor, and harmonic distortion data, which the IPC 477C can display in trend format, enabling maintenance teams to schedule capacitor bank corrections before power factor penalties appear on utility bills.

On the I/O layer, Siemens ET 200SP distributed I/O modules connect field sensors — temperature, vibration, pressure — back to the S7-1500 and surface their values on the 6AV7884-2AA10-2BA0 dashboard. This closed-loop visibility allows predictive maintenance scheduling: when a motor’s vibration signature drifts beyond baseline, the HMI alerts the operator before a bearing failure causes an unplanned stoppage and the associated energy waste of emergency restart cycles.

Communication flexibility is a key energy-management enabler. The SIMATIC IPC 477C supports OPC UA, allowing it to push production and energy KPIs to a Siemens MindSphere or third-party SCADA platform for cross-plant benchmarking. When combined with a Siemens SCALANCE X industrial Ethernet switch for network segmentation, data latency is minimized and control loop responsiveness is maintained even in large, multi-zone facilities.

For legacy line integration, the 6AV7884-2AA10-2BA0 can run STEP 7 alongside TIA Portal, enabling it to interface with older Siemens S7-300 or S7-400 controllers still managing portions of the plant. This hybrid architecture avoids costly full-line replacement while still delivering centralized energy monitoring through a single modern HMI node.

Power Optimization in Real Production Lines

Consider a mid-scale automotive parts stamping facility running two shifts. Before deploying the 6AV7884-2AA10-2BA0 as the central HMI, energy consumption data was siloed — each press had a local indicator, but no cross-machine comparison was possible. After integration with the SIMATIC IPC 477C and the connected SINAMICS G120 drives, the facility’s energy team identified that three presses were running at full speed during a 40-minute inter-shift buffer period when no parts were being produced. Implementing an automated speed-reduction schedule through the HMI’s WinCC scripting reduced those machines’ idle consumption by an estimated 18%.

Downtime reduction is equally significant. With vibration and temperature data from ET 200SP I/O modules displayed on the 6AV7884-2AA10-2BA0, maintenance intervals shifted from calendar-based to condition-based. Mean time between failures increased, and the energy cost of unplanned restarts — which typically spike current draw to 6–8× nominal during motor re-acceleration — was substantially reduced.

Production line takt time optimization is another direct benefit. The Panel PC’s high-resolution display and fast screen refresh allow operators to monitor cycle time deviations in real time. When a downstream bottleneck is detected, upstream drive speeds can be modulated via the connected S7-1500 PLC to prevent energy-wasteful over-production buffering. The result is a smoother, lower-energy production rhythm with less mechanical stress on drive components.

All units supplied by ZYPLC are tested under load prior to shipment. Functional verification includes display integrity, communication port operation, and I/O response testing. The 12-month warranty covers component failure under normal operating conditions, and our technical team provides pre-sales compatibility consultation to ensure the 6AV7884-2AA10-2BA0 integrates correctly with your existing Siemens automation architecture.

Energy Optimization FAQ

Q1: How does the 6AV7884-2AA10-2BA0 contribute to measurable energy savings on a production line?
The SIMATIC IPC 477C HMI Panel PC enables real-time visualization of energy consumption data from connected drives, PLCs, and power monitors. By giving operators immediate visibility into per-zone power draw, it supports data-driven decisions — such as scheduling drive speed reductions during low-demand periods or identifying energy-intensive idle states — that translate directly into reduced kWh consumption.

Q2: Is the 6AV7884-2AA10-2BA0 compatible with existing Siemens S7-300/S7-400 systems?
Yes. The unit supports both TIA Portal and STEP 7 environments, allowing it to communicate with legacy S7-300 and S7-400 controllers via PROFIBUS or Industrial Ethernet. This makes it suitable for phased modernization projects where full PLC replacement is not immediately planned.

Q3: What is the recommended replacement or upgrade path if my current HMI Panel PC is end-of-life?
The 6AV7884-2AA10-2BA0 is a direct form-factor and software-compatible replacement for earlier SIMATIC IPC 477 variants. For applications requiring higher processing performance or expanded connectivity, the SIMATIC IPC 477E or IPC 527G series may be considered. ZYPLC’s technical team can advise on migration compatibility based on your current configuration.

Q4: What does the 12-month warranty from ZYPLC cover, and what is the testing process before shipment?
Every 6AV7884-2AA10-2BA0 unit is subjected to a full outgoing inspection including power-on testing, display verification, communication port functionality checks, and load operation. The 12-month warranty covers manufacturing defects and component failures under normal industrial operating conditions. Units are shipped with test records available upon request. For replacement or repair inquiries, contact our team directly.
