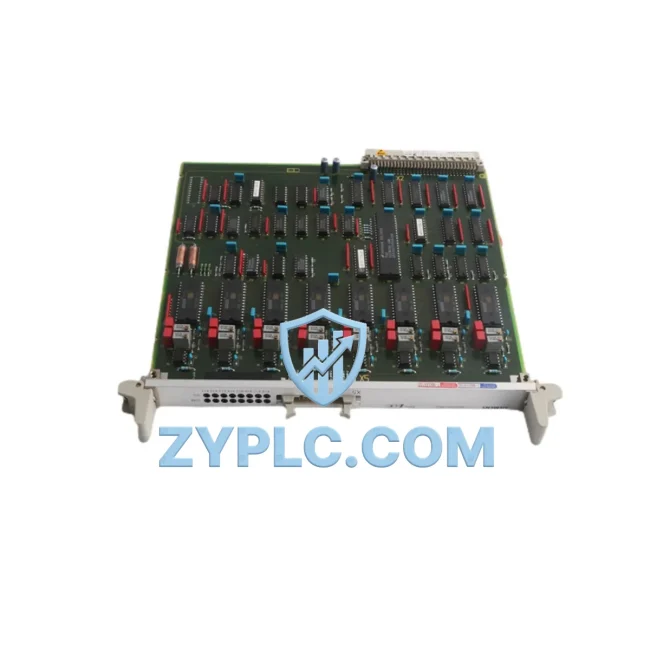

Siemens 6DD1642-0BC0 Energy-Saving Analog Output Module SIMADYN D

Siemens 6DD1642-0BC0 Energy-Saving Analog Output Module for Optimized SIMADYN D Automation

The Siemens 6DD1642-0BC0 is a high-performance analog output module engineered for the SIMADYN D modular control platform — one of Siemens’ most robust real-time automation architectures for industrial drive and process control. Designed to deliver precise signal conditioning and low-loss analog output conversion, this module plays a critical role in reducing unnecessary energy consumption across complex production environments. Whether deployed in steel mills, paper machines, chemical processing lines, or heavy-duty drive systems, the 6DD1642-0BC0 enables engineers to achieve tighter control loops, minimize reactive power losses, and extend the operational lifespan of connected actuators and drives.

In modern industrial facilities, energy waste often originates not from the primary drive itself, but from imprecise control signals that cause motors and actuators to operate outside their optimal efficiency bands. The 6DD1642-0BC0 addresses this directly by providing stable, high-resolution analog output channels that feed accurate reference signals to downstream components — ensuring that variable frequency drives, servo amplifiers, and proportional valves respond with minimal overshoot and settling time. This translates directly into measurable reductions in peak current draw, heat generation, and mechanical wear.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6DD1642-0BC0 does not operate in isolation — it is a precision instrument within a broader energy-aware automation architecture. In a typical SIMADYN D installation, the module interfaces directly with the SIMADYN D PM5 processor module, which handles real-time closed-loop calculations and dispatches analog setpoints to the output module at high cycle rates. This tight integration ensures that the analog reference signals reaching the SIMOREG DC Master 6RA70 series DC drive controllers are always synchronized with the current process demand, preventing the drive from drawing excess current during transient load changes.

On the AC drive side, the 6DD1642-0BC0 is frequently paired with SINAMICS G120 or S120 series variable frequency drives, where its analog output channels serve as speed or torque reference inputs. By delivering clean, noise-free analog signals, the module prevents the micro-oscillations that cause VFDs to continuously hunt for setpoint — a common source of hidden energy loss in poorly tuned drive systems. Complementing this, SIMATIC S7-400 PLCs or SIMATIC S7-300 controllers often serve as the supervisory layer, issuing process commands that the SIMADYN D platform translates into precise analog outputs via the 6DD1642-0BC0.

For power quality monitoring and energy accounting, the architecture typically incorporates SENTRON PAC3200 or PAC4200 power monitoring devices, which measure active power, reactive power, and harmonic distortion at the drive input. When the 6DD1642-0BC0 is properly calibrated and the analog output chain is optimized, operators consistently observe a reduction in reactive power demand — a direct indicator of improved system efficiency. On the I/O expansion side, SIMATIC ET 200M distributed I/O stations extend the control reach across the production floor, while PROFIBUS DP communication links all subsystems into a unified, low-latency control network that minimizes communication-induced delays in the energy optimization feedback loop.

HMI visibility is provided through SIMATIC TP1500 or MP377 operator panels, giving process engineers real-time insight into analog output values, drive load curves, and energy consumption trends — enabling proactive adjustments before inefficiencies escalate into costly downtime events.

Power Optimization in Real Production Lines

In a rolling mill application, for example, the 6DD1642-0BC0 provides the torque reference signal to a SIMOREG DC Master controlling the main roll drive motor. Without a stable, high-resolution analog output, the drive would experience reference signal jitter — causing the motor to draw irregular current pulses that increase both energy consumption and mechanical fatigue on the roll bearings. With the 6DD1642-0BC0 in the signal chain, the torque reference is rock-steady, allowing the drive to operate at its optimal efficiency point throughout the rolling cycle. This directly reduces specific energy consumption per ton of rolled product — a key KPI for energy-intensive manufacturing operations.

In paper machine applications, the module controls the speed reference for section drives, ensuring that web tension is maintained within tight tolerances without the constant speed corrections that waste energy and cause sheet breaks. Each avoided sheet break eliminates not only the energy cost of restarting the machine but also the material waste and production loss associated with the event.

From a maintenance perspective, the precision of the 6DD1642-0BC0’s analog outputs reduces the thermal stress on connected drives and motors by eliminating the excess current draw caused by control signal instability. This extends mean time between failures (MTBF) for downstream equipment, reduces cooling energy requirements, and lowers the total cost of ownership over the module’s service life. All units supplied by ZYPLC are fully tested under load conditions prior to shipment, with a 12-month warranty covering both parts and workmanship — ensuring that your production line investment is protected from day one.

Stock availability is maintained to support rapid deployment needs. ZYPLC holds inventory of the 6DD1642-0BC0 and compatible SIMADYN D modules, enabling same-week dispatch for urgent replacement requirements. Each unit undergoes functional verification, including analog output accuracy testing across the full output range, before being cleared for shipment.

Energy Optimization FAQ

Q1: How does the 6DD1642-0BC0 contribute to measurable energy savings in a drive system?
The module provides high-resolution, stable analog reference signals to connected drives and actuators. By eliminating reference signal noise and instability, it prevents drives from continuously hunting for setpoint — a behavior that causes repeated acceleration/deceleration micro-cycles and increases energy consumption. Stable references allow drives to operate at their designed efficiency points, reducing both active and reactive power draw.

Q2: Is the 6DD1642-0BC0 compatible with current Siemens drive platforms such as SINAMICS S120?
The 6DD1642-0BC0 is a SIMADYN D platform module and interfaces natively within that system. Its analog outputs are hardware-standard (±10V / 0–20mA) and can serve as reference inputs to SINAMICS S120, SINAMICS G120, and SIMOREG DC Master drives via standard analog input terminals. For full digital integration with newer SINAMICS platforms, a SIMADYN D to PROFIBUS or PROFINET gateway may be required.

Q3: Can this module replace a faulty analog output card in an existing SIMADYN D installation without reconfiguration?
Yes. The 6DD1642-0BC0 is a direct replacement for the same SKU in any SIMADYN D rack. Provided the system configuration (channel assignments, scaling parameters) is retained in the processor module, the replacement module will assume the same function without requiring software changes. ZYPLC recommends verifying output channel calibration after installation as a best practice.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 6DD1642-0BC0 units supplied by ZYPLC are covered by a 12-month warranty against defects in materials and workmanship. Prior to shipment, each module undergoes functional testing including power-on verification, analog output accuracy measurement across all channels, and visual inspection for component condition. Units that do not meet specification are quarantined and not shipped. Warranty claims are handled directly by ZYPLC with priority turnaround to minimize production impact.
