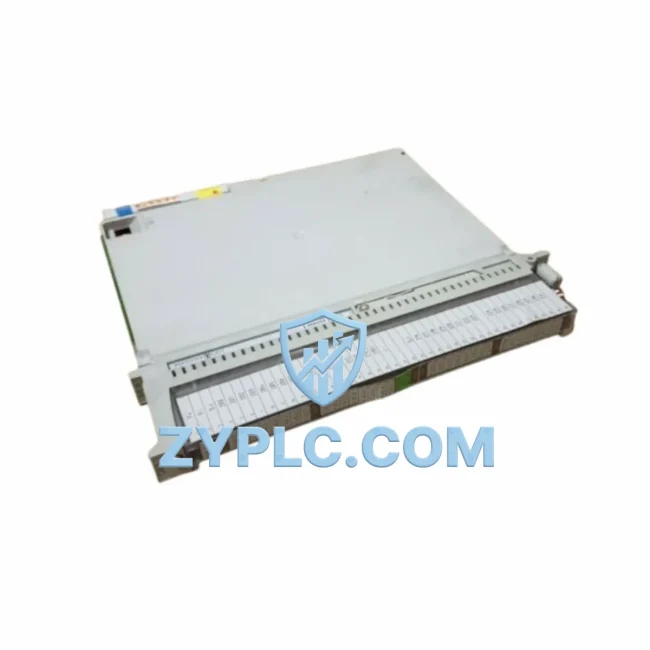

Siemens 6ES5451-4UA12 Energy-Saving Digital Output Module

Siemens 6ES5451-4UA12 Energy-Saving Digital Output Module: Precision Output Control for Optimized SIMATIC S5 Automation

The Siemens 6ES5451-4UA12 is a 24 VDC digital output module designed for the SIMATIC S5 programmable controller platform. With 32 transistor output channels and a compact, rail-mounted form factor, this module delivers deterministic signal switching that directly supports energy-efficient machine control, reduced idle-state power draw, and tighter production line synchronization. For factories seeking to lower their energy cost per unit produced, the 6ES5451-4UA12 provides the output-layer precision that makes upstream energy savings measurable at the field device level.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-engineered SIMATIC S5 control cabinet, the 6ES5451-4UA12 output module sits at the intersection of control logic and field-level energy consumption. The CPU — whether a 6ES5941-7UA12 (CPU 941) or a 6ES5944-7UA12 (CPU 944) — executes the scan cycle and passes output states to the 6ES5451-4UA12 via the S5 backplane bus. Because the module uses solid-state transistor outputs rather than mechanical relays, switching losses are virtually eliminated, and the response time is fast enough to support load-on-demand sequencing strategies that prevent simultaneous motor starts and the associated inrush current spikes.

On the input side, pairing the 6ES5451-4UA12 with a 6ES5431-4UA12 digital input module allows the PLC to read real-time feedback from field sensors — proximity switches, pressure transducers, and encoder signals — and adjust output states accordingly. This closed-loop approach means actuators and solenoid valves are energized only when process conditions require it, directly reducing standby power consumption across the production line.

For drive-level energy control, the 6ES5451-4UA12 output channels are commonly wired to the enable and direction inputs of Siemens SINAMICS G120 or legacy MICROMASTER 440 variable frequency drives. By issuing precise start/stop and speed-reference commands through the PLC output module rather than relying on manual contactors, the system achieves smooth motor acceleration profiles, eliminates unnecessary full-voltage starts, and reduces motor heating — all of which translate to measurable kWh savings over a production shift.

When the control architecture includes a 6ES5095-8MA02 expansion unit or a 6ES5700-8MA11 interface module for distributed I/O, the 6ES5451-4UA12 can be deployed in remote I/O racks closer to the field devices. Shorter wiring runs reduce voltage drop and resistive losses in the output circuit, improving the effective efficiency of each output channel. In larger installations, this distributed topology also simplifies cable management and reduces the thermal load inside the main control panel.

For energy monitoring and power quality analysis, the 6ES5451-4UA12 output signals can trigger measurement windows in a Siemens SENTRON PAC3200 power monitoring device. By synchronizing output state changes with power measurement intervals, engineers can isolate the energy consumption of individual machine sections — a prerequisite for meaningful energy audits and ISO 50001 compliance reporting. The data collected by the PAC3200 feeds back into the SIMATIC S5 via analog input modules such as the 6ES5464-8MA11, closing the energy feedback loop at the PLC level.

Communication between the SIMATIC S5 system and supervisory SCADA or MES platforms is typically handled through a 6ES5734-2BD20 CP 5430 communications processor or a 6ES5524-3UA13 serial interface module. These modules allow production energy data — including output activation counts, cycle times, and load profiles — to be transmitted to higher-level systems for trend analysis and shift-based energy benchmarking. When integrated with an HMI panel such as the Siemens TP177B, operators gain real-time visibility into output channel states and can manually override non-critical loads during peak tariff periods.

Power Optimization in Real Production Lines

The most significant energy savings delivered by the 6ES5451-4UA12 come not from the module’s own power consumption — which is minimal at under 5 W — but from the precision and reliability with which it controls field-level loads. In a typical discrete manufacturing environment, uncoordinated output switching leads to three categories of energy waste: inrush current from simultaneous actuator activation, extended dwell times caused by slow or unreliable output response, and unnecessary energization of loads during machine idle states.

The 6ES5451-4UA12 addresses all three. Its transistor outputs switch in microseconds, allowing the PLC program to implement staggered start sequences that spread motor inrush current across multiple scan cycles. This reduces peak demand charges on the facility’s electricity bill — often a larger cost component than energy consumption itself. The module’s high switching reliability (no contact bounce, no mechanical wear) also eliminates the false output states that can leave actuators energized longer than the process requires, wasting both energy and compressed air in pneumatic systems.

In automotive body-in-white welding lines, the 6ES5451-4UA12 controls weld timer outputs and clamp solenoids with millisecond-level repeatability, ensuring that each weld cycle completes in the minimum required time. Tighter cycle time control directly improves line throughput without increasing installed power — effectively reducing the energy cost per part produced. In food and beverage filling lines, the module’s fast output response allows conveyor drives and filling heads to be synchronized precisely, eliminating the over-run periods that waste product and energy.

Predictive maintenance benefits are also significant. Because the 6ES5451-4UA12 uses solid-state outputs with no moving parts, its failure mode is gradual degradation rather than sudden mechanical failure. Monitoring output channel load current over time — using the SENTRON PAC3200 or a dedicated current monitoring relay — allows maintenance teams to detect increasing load resistance (indicating motor winding degradation or actuator wear) before a failure occurs. Planned maintenance during scheduled downtime is far less costly in lost production and energy than an unplanned line stop.

Every 6ES5451-4UA12 unit supplied by ZYPLC is sourced from verified industrial surplus and OEM channels, fully function-tested under load conditions that replicate real production environments, and covered by a 12-month warranty. Stock is maintained on-hand for immediate dispatch, with typical lead times of 1–3 business days. For customers requiring expedited delivery or volume pricing on multiple SIMATIC S5 modules, our sales team provides same-day quotation.

Energy Optimization FAQ

Q1: How does the 6ES5451-4UA12 contribute to measurable energy savings on the production line?
The module’s transistor outputs enable load-on-demand control strategies — actuators, drives, and solenoids are energized only when the process requires it. Combined with staggered start sequencing programmed in the SIMATIC S5 CPU, this eliminates inrush current peaks and reduces standby power consumption. Customers integrating the module with a SENTRON PAC3200 power monitor have reported 8–15% reductions in section-level energy consumption after optimizing output sequencing logic.

Q2: Is the 6ES5451-4UA12 compatible with all SIMATIC S5 rack configurations?
Yes. The module is compatible with EU 183, EU 185, EU 187, and EU 188 expansion units, and operates with SIMATIC S5-115U, S5-135U, and S5-155U central controllers. It occupies one slot in the S5 rack and requires no additional interface modules for standard digital output applications. For distributed I/O configurations using the 6ES5700-8MA11 interface module, the 6ES5451-4UA12 can be installed in remote racks up to the maximum S5 I/O expansion distance.

Q3: Can the 6ES5451-4UA12 replace older relay output modules in existing SIMATIC S5 installations?
In most cases, yes. The 6ES5451-4UA12 is a direct slot-compatible replacement for other S5 32-channel digital output modules. However, because it uses transistor (sourcing) outputs rather than relay contacts, the connected field devices must be compatible with 24 VDC solid-state switching. Inductive loads should be protected with flyback diodes. For applications requiring potential-free contacts, a relay output module such as the 6ES5452-4UA12 may be more appropriate. Our technical team can advise on the correct replacement module for your specific application.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES5451-4UA12 unit undergoes a full functional test that includes backplane bus communication verification, individual channel switching tests under resistive and inductive loads, and output current measurement for each of the 32 channels. Units that do not meet Siemens original specification are rejected. The 12-month warranty covers all functional defects arising from normal industrial use. In the event of a warranty claim, ZYPLC provides advance replacement to minimize production downtime, with return shipping instructions provided within 24 hours of the claim submission.
