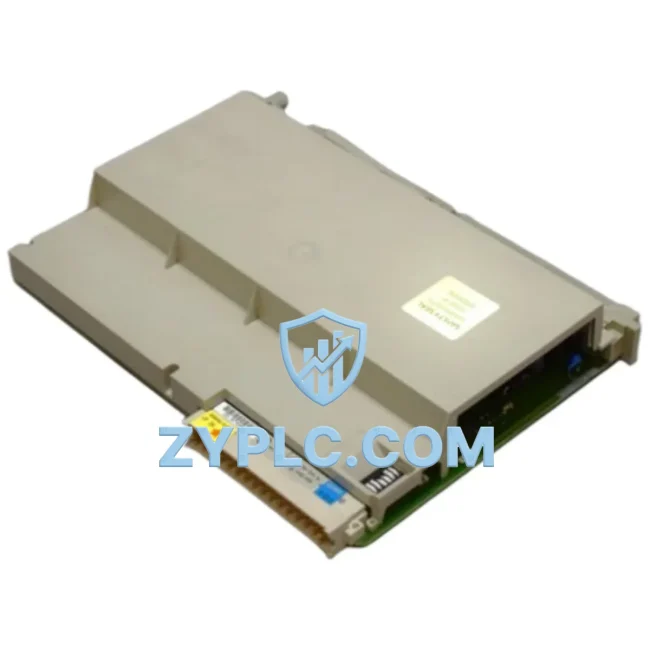

Siemens 6ES5454-4UA13 Energy-Saving Digital Output Module

Siemens 6ES5454-4UA13 Energy-Saving Digital Output Module: Precision Control for Production Line Optimization

The Siemens 6ES5454-4UA13 is a high-performance digital output module engineered for the SIMATIC S5 automation platform. Designed to deliver reliable, low-latency switching control across demanding industrial environments, this module plays a central role in reducing unnecessary energy consumption at the actuator level — one of the most overlooked sources of power waste in modern manufacturing facilities.

In production lines where output switching cycles occur thousands of times per shift, the precision and response consistency of the 6ES5454-4UA13 directly translates into measurable energy savings. By eliminating spurious switching, reducing hold-time overruns, and ensuring accurate load control, this module helps plant engineers tighten the energy envelope around every controlled device — from solenoid valves and contactors to indicator lamps and relay coils.

Sourced from verified inventory, each unit undergoes functional output testing prior to shipment, and is backed by a 12-month warranty covering operational defects under normal industrial use conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES5454-4UA13 does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-structured SIMATIC S5 automation architecture. In a typical energy-aware control system, the CPU module (such as the 6ES5095-8MA02 CPU 948 or 6ES5090-8MA01 CPU 922) orchestrates the timing and sequencing of all output commands. When the CPU issues precisely timed output pulses to the 6ES5454-4UA13, actuators are energized only for the exact duration required — eliminating the energy waste associated with over-extended hold signals.

On the input side, digital input modules such as the 6ES5431-4UA12 feed real-time process feedback back to the CPU, enabling closed-loop control that prevents redundant output activation. This feedback loop is essential for energy-efficient operation: without accurate input data, output modules may hold loads energized longer than necessary, increasing both energy consumption and component wear.

For mixed analog-digital control environments — common in motor speed regulation and temperature management — the 6ES5470-4UA12 Analog Output Module works alongside the 6ES5454-4UA13 to provide proportional control signals to variable-speed drives and servo amplifiers. When paired with a Siemens MICROMASTER 440 or SINAMICS G120 variable frequency drive, the combined system enables precise motor speed control that dramatically reduces energy consumption during partial-load operation — a key lever in factory energy optimization programs.

Power distribution and monitoring within the S5 rack is managed through the 6ES5955-3LC41 Power Supply Module, which provides regulated 24 V DC to the output module backplane. Monitoring actual power draw at the rack level — using an external power quality analyzer or an integrated energy monitoring relay such as the Siemens 7KM2112 PAC3200 — allows maintenance teams to detect abnormal consumption patterns that may indicate failing output channels or deteriorating load devices.

For facilities running PROFIBUS-DP communication backbones, the 6ES5318-8MA12 IM 318 Interface Module enables distributed I/O expansion, allowing the 6ES5454-4UA13 to be deployed in remote I/O racks closer to the load — reducing cable runs, minimizing voltage drop losses, and improving switching response times. This distributed architecture is particularly effective in large-footprint plants where centralized wiring contributes to measurable energy losses.

HMI visibility into output module status is provided through operator panels such as the Siemens OP7 or TP177B, which display real-time output channel states and alarm conditions. When operators can see which outputs are active and for how long, they gain actionable insight into production line energy consumption patterns — enabling manual intervention or recipe-based optimization to reduce idle-state energy draw.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive assembly, packaging lines, food processing, and electronics production — the digital output module is the final control element between the PLC program and the physical world. Every millisecond of unnecessary output activation represents wasted energy multiplied across hundreds of actuators and thousands of daily cycles.

The 6ES5454-4UA13 supports production line energy optimization in several concrete ways. First, its reliable channel isolation prevents cross-channel leakage currents that can cause phantom loads — a common but underdiagnosed source of baseline energy waste in aging S5 installations. Second, its compatibility with the full SIMATIC S5 rack ecosystem means it can be deployed as a direct replacement in existing installations without requiring CPU reprogramming or rack reconfiguration, minimizing downtime during energy retrofit projects.

In lines where production takt time is tightly managed, output module response latency directly affects cycle efficiency. A slow or unreliable output module forces programmers to add buffer time to output hold durations — effectively wasting energy to compensate for hardware uncertainty. The 6ES5454-4UA13’s consistent switching performance allows tighter timing margins, improving overall line takt without sacrificing process reliability.

Predictive maintenance programs also benefit from stable output module performance. When output channels behave consistently, deviations in energy consumption or switching patterns become meaningful diagnostic signals. Maintenance teams using energy monitoring tools can correlate unexpected power draw spikes with specific output channels, enabling targeted component replacement before failures cause unplanned downtime — which is itself one of the largest sources of energy waste in manufacturing (idle machines consuming standby power without producing output).

Each 6ES5454-4UA13 unit shipped from our inventory has been functionally tested across all output channels. Test records confirm switching response, load current handling, and isolation integrity. Combined with the 12-month warranty, this testing protocol gives maintenance engineers confidence that the module will perform reliably from day one of installation — reducing the risk of early-life failures that disrupt production schedules and energy optimization targets.

Energy Optimization FAQ

Q1: How does the 6ES5454-4UA13 contribute to factory energy savings?
By providing precise, reliable digital output switching, the module ensures actuators are energized only when required and for exactly the programmed duration. This eliminates phantom loads, reduces actuator hold energy, and supports tighter production takt timing — all of which contribute to measurable reductions in per-unit energy consumption.

Q2: Is the 6ES5454-4UA13 compatible with all SIMATIC S5 CPU variants?
Yes. The module is compatible with the SIMATIC S5-115U, S5-135U, and S5-155U systems via the standard S5 parallel backplane bus. It can be used in both central and expansion racks, and is fully interchangeable with other 32-channel digital output modules in the S5 family without requiring CPU program modifications.

Q3: What is the recommended replacement or upgrade path for aging S5 output modules?
For facilities maintaining SIMATIC S5 infrastructure, the 6ES5454-4UA13 is the recommended like-for-like replacement. For sites planning migration to SIMATIC S7-300 or S7-1500 platforms, Siemens offers migration tools and compatible I/O modules; however, the S5 platform remains widely supported through third-party spare parts suppliers, making direct replacement the most cost-effective short-term strategy.

Q4: What does the 12-month warranty cover, and what is the testing process?
The 12-month warranty covers operational defects arising under normal industrial use conditions, including output channel failure, isolation breakdown, and bus interface faults. Prior to shipment, each unit undergoes functional output testing across all 32 channels, verifying switching response, load current capacity, and electrical isolation. Test documentation is available upon request for quality assurance and incoming inspection purposes.
