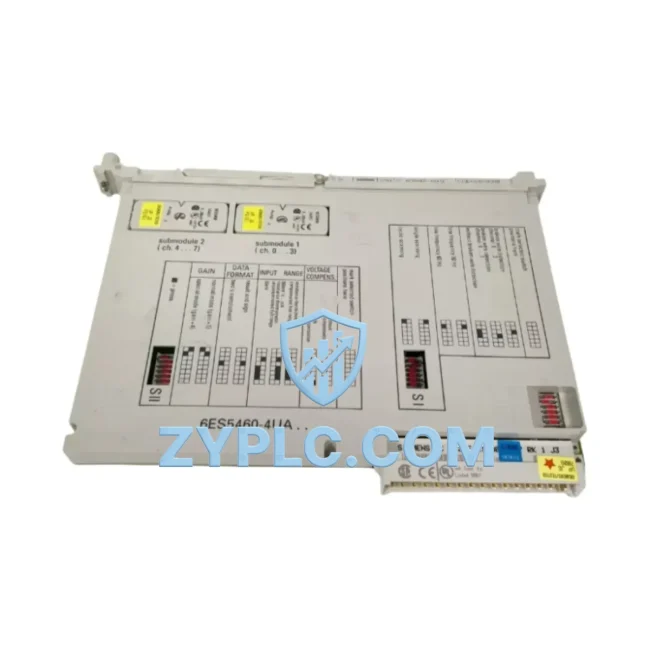

Siemens 6ES5460-4UA13 Energy-Saving Analog I/O Module S5

Siemens 6ES5460-4UA13 Energy-Saving Analog I/O Module for Optimized S5 Automation

The Siemens 6ES5460-4UA13 is a high-precision analog input/output module engineered for the SIMATIC S5 programmable logic controller platform. In industrial environments where energy efficiency and process stability are non-negotiable, this module plays a central role in bridging field-level sensors and central control logic. By delivering accurate analog signal acquisition and output with minimal signal drift, the 6ES5460-4UA13 enables production lines to operate at their optimal energy consumption profile — reducing unnecessary actuator cycling, preventing over-drive conditions in motor control loops, and supporting tighter process tolerances that directly translate into lower per-unit energy costs.

Factories running legacy SIMATIC S5 systems — including those built around the S5-115U, S5-135U, and S5-155U CPU families — rely on analog I/O modules like the 6ES5460-4UA13 to maintain closed-loop control over critical process variables such as temperature, pressure, flow rate, and motor load. When these signals are captured with high resolution and low latency, the PLC can make faster, more accurate control decisions, reducing the energy wasted in overshoot and correction cycles. This is particularly impactful in applications involving variable-speed drives, where the analog setpoint signal from the S5 CPU directly governs the output frequency of frequency inverters such as the Siemens MICROMASTER 440 or SINAMICS G120 series, enabling precise motor speed regulation and significant energy savings compared to fixed-speed operation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES5460-4UA13 delivers its greatest value when integrated into a coherent, energy-aware automation architecture. In a typical S5-based control cabinet, the module is mounted on the central rack alongside the 6ES5095-8MA02 power supply unit, which provides stable 24 VDC bus voltage to all I/O modules. Stable power delivery is the foundation of accurate analog measurement — voltage ripple or transient spikes on the backplane introduce measurement errors that cause the PLC to issue incorrect control commands, generating energy waste through unnecessary actuator movement.

On the input side, the 6ES5460-4UA13 receives analog signals from field instruments such as current transformers, pressure transmitters, and thermocouple amplifiers. These signals feed directly into the S5 CPU — for example, the 6ES5944-0UA12 CPU 944 — where ladder logic or function block programs process the values and generate control outputs. The analog outputs of the 6ES5460-4UA13 then drive downstream devices: frequency inverters such as the SINAMICS G120C for motor speed control, proportional valves for flow regulation, or electro-pneumatic positioners for valve automation. Each of these output signals, when precisely calibrated, eliminates the energy penalty of binary on/off control and replaces it with smooth, proportional regulation.

For digital coordination alongside analog control, the 6ES5460-4UA13 works in tandem with digital I/O modules such as the 6ES5420-8MA11 digital input module and the 6ES5440-8MA11 digital output module. Together, these modules form a complete I/O layer that handles both discrete event detection — motor fault signals, limit switch states, safety interlocks — and continuous process variable monitoring. The combination allows the S5 CPU to implement energy-saving strategies such as load shedding during low-demand periods, staggered motor start sequences to reduce peak current draw, and automatic standby modes for auxiliary equipment.

Communication between the S5 system and higher-level SCADA or energy management platforms is typically handled through the 6ES5734-2BD20 SINEC L2 communication processor or via CP modules supporting PROFIBUS DP. This connectivity allows real-time energy consumption data — derived from the analog measurements captured by the 6ES5460-4UA13 — to be transmitted to plant-level monitoring systems, where energy managers can identify inefficiencies, benchmark performance against production targets, and schedule predictive maintenance before equipment degradation leads to increased energy consumption or unplanned downtime. Operator visibility is further enhanced through HMI panels such as the SIMATIC OP17 or TP177B, which display live process values and energy KPIs sourced directly from the S5 analog I/O layer.

Power Optimization in Real Production Lines

In real-world production environments, the Siemens 6ES5460-4UA13 contributes to energy optimization across multiple dimensions. Consider a continuous process line — a chemical dosing system, a water treatment plant, or a food processing conveyor — where pump and motor speeds must track a process setpoint in real time. Without accurate analog feedback and output, the control system defaults to conservative fixed-speed operation, running motors at full speed regardless of actual demand. The 6ES5460-4UA13 enables the S5 PLC to implement proportional-integral-derivative (PID) control loops that continuously adjust motor drive setpoints based on measured process variables, keeping energy consumption tightly matched to actual production demand.

Downtime reduction is another critical energy efficiency lever. Unplanned stoppages force production lines to restart from cold, consuming significant energy in the ramp-up phase and generating scrap product that represents wasted manufacturing energy. The 6ES5460-4UA13 supports predictive maintenance strategies by providing high-resolution analog monitoring of equipment health indicators — motor current draw, vibration sensor outputs, temperature rise in drive cabinets — that allow maintenance teams to identify developing faults before they cause failures. When integrated with the SIMATIC S5 diagnostic framework and paired with the MICROMASTER 440 drive’s built-in fault logging, maintenance personnel receive early warning alerts that enable scheduled interventions during planned downtime windows, preserving production continuity and energy efficiency.

Equipment utilization rates also improve when analog control is precise. In batch manufacturing, the ability to ramp process parameters smoothly — rather than stepping them in coarse increments — reduces cycle time variability and allows production planners to schedule more cycles per shift without increasing energy input per unit. The 6ES5460-4UA13’s 12-bit resolution ensures that setpoint changes are executed with fine granularity, supporting the tight process tolerances required for high-utilization, energy-efficient production scheduling.

Every unit shipped from our warehouse undergoes full functional testing under load conditions, verifying analog input accuracy across all channels, output linearity, signal range switching, and backplane communication integrity before dispatch. This pre-shipment testing protocol ensures that the module performs to specification from day one, eliminating the energy and productivity losses associated with field commissioning failures. Combined with our 12-month warranty coverage, customers can deploy the 6ES5460-4UA13 with confidence in both its performance and its long-term reliability. Stock is maintained to support fast order fulfillment, minimizing lead times for facilities requiring urgent replacement or expansion of their S5 analog I/O capacity.

Energy Optimization FAQ

Q1: How does the 6ES5460-4UA13 contribute to measurable energy savings on a production line?
By enabling closed-loop PID control over motor drives and process actuators, the 6ES5460-4UA13 allows the SIMATIC S5 PLC to continuously match energy input to actual process demand. This eliminates the fixed-speed over-drive conditions common in binary-controlled systems, typically reducing motor energy consumption by 20–40% in variable-load applications when combined with a compatible frequency inverter such as the SINAMICS G120C or MICROMASTER 440.

Q2: Is the 6ES5460-4UA13 compatible with all SIMATIC S5 CPU variants?
The 6ES5460-4UA13 is designed for the SIMATIC S5 central rack system and is compatible with S5-115U, S5-135U, and S5-155U configurations. It communicates via the S5 backplane bus and is addressed through standard S5 I/O addressing. Compatibility with specific CPU variants such as the 6ES5944-0UA12 or 6ES5928-3UB21 should be verified against the system’s I/O address space and slot configuration.

Q3: What is the recommended replacement or upgrade path if the S5 system is being modernized?
For facilities planning a gradual migration from SIMATIC S5 to SIMATIC S7 or TIA Portal-based systems, the 6ES5460-4UA13 can continue to serve in its current role while migration proceeds in phases. Siemens offers the IM 463-2 interface module for connecting S5 expansion racks to S7-400 systems, allowing mixed-generation architectures during transition. For full replacement, the SIMATIC ET 200SP analog I/O modules offer equivalent functionality with enhanced energy monitoring and PROFINET connectivity.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES5460-4UA13 unit is tested prior to shipment using dedicated S5 test rack equipment that verifies analog input accuracy across all channels, output linearity, signal range switching, and backplane bus communication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge, with fast turnaround to minimize production impact.
