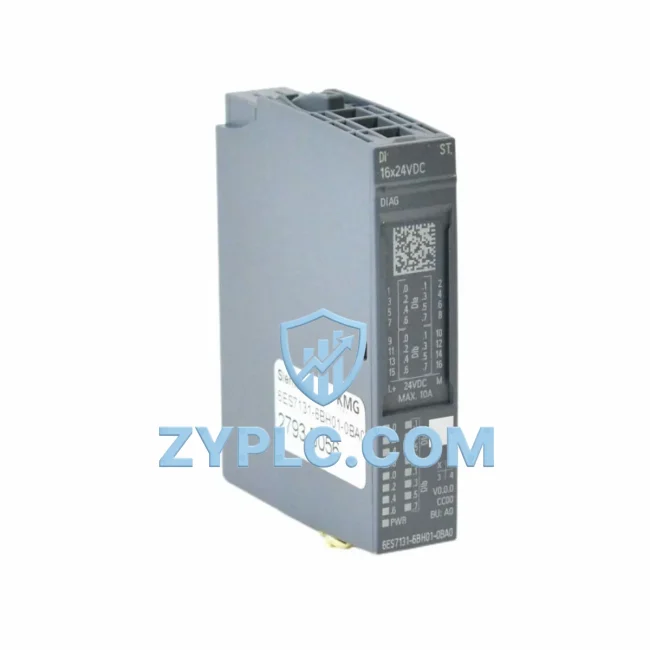

Siemens 6ES7131-6BH01-0BA0 Energy-Saving Digital Input Module ET 200SP

Siemens 6ES7131-6BH01-0BA0 Energy-Saving Digital Input Module ET 200SP: Precision Efficiency Control for Optimized Production Lines

In modern industrial automation, every signal counts — not just for control accuracy, but for energy accountability. The Siemens 6ES7131-6BH01-0BA0 is a 16-channel digital input module designed for the ET 200SP distributed I/O system, engineered to deliver fast, low-power signal acquisition that directly supports energy-aware machine control. When integrated into a Siemens S7-1500 PLC architecture, this module becomes a critical node in a plant’s effort to reduce idle energy consumption, tighten production cycle times, and improve overall equipment effectiveness (OEE).

Unlike generic I/O modules, the 6ES7131-6BH01-0BA0 is built around the ET 200SP’s modular backplane philosophy, enabling engineers to deploy only the I/O capacity required — eliminating the energy overhead of oversized I/O racks. Each channel operates at 24 VDC with a minimal current draw per input, contributing to measurable reductions in panel power budgets across multi-axis and multi-zone production environments.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7131-6BH01-0BA0 does not operate in isolation — its energy efficiency value is fully realized when deployed within a coordinated Siemens automation architecture. At the controller level, the Siemens S7-1500 CPU (such as the CPU 1515-2 PN) manages program execution and energy-mode transitions, using input signals from this module to trigger power-down sequences for idle actuators or to initiate variable-speed drive adjustments.

On the drive side, Siemens SINAMICS G120 variable frequency drives receive control commands derived from the digital input states captured by the 6ES7131-6BH01-0BA0. When a machine zone signals no-load via a proximity sensor connected to this module, the S7-1500 can instruct the G120 to reduce motor speed — directly cutting energy consumption without manual intervention. This closed-loop between input sensing and drive modulation is the foundation of real energy savings on the production floor.

For servo-driven axes, the Siemens SINAMICS S120 drive system paired with SIMOTICS S servo motors relies on accurate digital feedback to synchronize motion profiles. The 6ES7131-6BH01-0BA0 provides the high-speed input signals needed to coordinate axis homing, part-present detection, and safety interlocks — all of which reduce unnecessary motor energization time.

At the field level, the ET 200SP system is completed by the IM 155-6 PN ST interface module, which handles PROFINET communication between the distributed I/O station and the S7-1500. Alongside the 6ES7131-6BH01-0BA0 digital input module, engineers typically deploy the 6ES7132-6BF01-0BA0 digital output module for actuator control, and the 6ES7134-6GD01-0BA1 analog input module for process variable monitoring — creating a complete, energy-conscious I/O station with minimal footprint.

For power quality monitoring, the SENTRON PAC3200 power monitoring device can be integrated into the same PROFINET network, providing real-time visibility into panel-level energy consumption. When combined with the digital input data from the 6ES7131-6BH01-0BA0, plant engineers gain a correlated view of machine state versus energy draw — enabling data-driven decisions about production scheduling and load balancing.

HMI visualization is handled by the Siemens SIMATIC HMI TP700 Comfort or KTP900 Basic panels, which display machine status, energy KPIs, and alarm states derived from the I/O signals processed through this module. Operators can monitor cycle efficiency and respond to energy anomalies in real time, reducing the duration of high-consumption fault states.

Power Optimization in Real Production Lines

In a typical automotive body shop or electronics assembly line, the 6ES7131-6BH01-0BA0 is mounted on ET 200SP stations distributed across conveyor zones, robotic cells, and press stations. Each station monitors 16 discrete signals — end-of-travel switches, part sensors, safety gates, and pneumatic valve feedback — and reports their states to the S7-1500 controller over PROFINET with cycle times as low as 1 ms.

This fast, reliable signal acquisition enables the S7-1500 to implement aggressive energy-saving logic: when a conveyor zone is empty for more than a configurable dwell time, the controller commands the associated SINAMICS G120 drive to enter sleep mode, reducing motor energy consumption by up to 60% during low-demand periods. When the next part arrives — detected by a sensor wired to the 6ES7131-6BH01-0BA0 — the drive ramps back to operating speed within milliseconds, maintaining production throughput without energy waste.

Predictive maintenance is another area where this module contributes to operational efficiency. By logging input signal transition frequencies and comparing them against baseline cycle data stored in the S7-1500 data blocks, maintenance teams can identify sensors with degrading response times or mechanical components approaching end-of-life — scheduling interventions during planned downtime rather than reacting to unplanned failures. This approach reduces mean time to repair and keeps energy-intensive restart sequences to a minimum.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel-by-channel input response, backplane communication integrity, and firmware version compatibility. Each 6ES7131-6BH01-0BA0 is shipped with a 12-month warranty, ensuring that your production line investment is protected from day one of installation.

Energy Optimization FAQ

Q1: How does the 6ES7131-6BH01-0BA0 contribute to measurable energy savings on the production line?
The module enables the S7-1500 PLC to receive real-time machine state signals with minimal latency, allowing the controller to execute energy-saving logic — such as commanding SINAMICS drives to reduce speed or enter sleep mode during idle periods. The result is a direct reduction in motor running hours and associated energy consumption, quantifiable through SENTRON power monitoring integration.

Q2: Is the 6ES7131-6BH01-0BA0 compatible with existing S7-300 or S7-400 systems?
This module is designed for the ET 200SP platform and is natively compatible with S7-1500 and ET 200SP CPU controllers via PROFINET. Integration with legacy S7-300 or S7-400 systems requires an ET 200SP IM 155-6 PN interface module and appropriate PROFINET configuration. ZYPLC’s technical team can advise on migration paths and compatibility validation for your specific installation.

Q3: What is the recommended replacement or upgrade path if I am currently using an older ET 200S digital input module?
The ET 200SP platform supersedes the ET 200S in Siemens’ distributed I/O portfolio. The 6ES7131-6BH01-0BA0 offers higher channel density, lower power consumption, and improved PROFINET integration compared to equivalent ET 200S modules. ZYPLC can supply both platforms and assist with side-by-side compatibility assessment to ensure a smooth transition without production interruption.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7131-6BH01-0BA0 supplied by ZYPLC is tested prior to shipment for input channel functionality, backplane bus communication, and firmware integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement units from in-stock inventory to minimize your production downtime.
