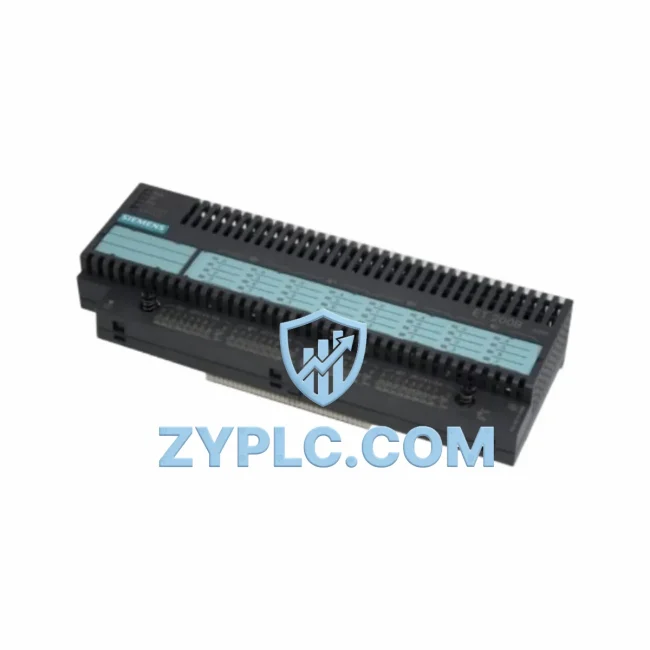

Siemens 6ES7132-0BL01-0XB0 System-Ready Digital Output for ET 200B Architecture

Siemens 6ES7132-0BL01-0XB0 System-Ready Digital Output for ET 200B Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7132-0BL01-0XB0 is a 16-channel digital output module engineered for deployment within the ET 200B distributed I/O station, a field-proven peripheral architecture designed to extend the reach of SIMATIC S7 programmable logic controllers across large-scale industrial facilities. Rather than functioning as a standalone component, this module occupies a precise and critical position within a layered automation hierarchy — bridging the control layer, I/O layer, and execution layer in a manner that ensures signal integrity, deterministic response, and long-term system maintainability.

In modern industrial control architectures, the distributed I/O concept is fundamental to scalable plant design. The 6ES7132-0BL01-0XB0 connects directly to the ET 200B base unit, which in turn communicates with the central controller via PROFIBUS-DP — one of the most widely adopted fieldbus protocols in process and discrete manufacturing environments. This communication backbone allows the S7-300 or S7-400 CPU to issue output commands to field devices — actuators, solenoid valves, motor contactors, and relay coils — with cycle-time precision that meets the demands of high-speed production lines and safety-critical process loops.

Understanding the role of this module requires examining the full system stack. At the control layer, a CPU such as the CPU 315-2 DP or CPU 414-2 DP executes the user program and generates output signals based on process logic. These signals are transmitted over the PROFIBUS-DP network to the ET 200B station, where the 6ES7132-0BL01-0XB0 receives and converts them into 24 VDC switching outputs capable of driving field-level loads. The power layer — typically supplied by a SITOP PSU100S or equivalent 24 VDC regulated power supply — provides stable voltage to both the station electronics and the output channels, ensuring that transient load variations do not compromise signal quality or module longevity.

At the I/O layer, the 6ES7132-0BL01-0XB0 works in close coordination with complementary input modules such as the 6ES7131-0BL01-0XB0 digital input module, which captures field signals from sensors, limit switches, and proximity detectors. Together, these modules form a complete I/O assembly on the ET 200B base, enabling bidirectional data exchange between the field environment and the central controller. For applications requiring analog signal handling, the ET 200B platform also supports analog I/O modules that can be integrated into the same station, allowing mixed-signal architectures without requiring additional hardware infrastructure.

The network layer is equally important to system performance. PROFIBUS-DP supports data transfer rates up to 12 Mbit/s and can address up to 126 nodes on a single segment, making it suitable for large distributed systems spanning multiple production zones. The ET 200B station, with the 6ES7132-0BL01-0XB0 installed, participates as a standard DP slave, responding to master polling cycles with deterministic latency. Network topology can be extended using PROFIBUS repeaters or optical link modules (OLMs) where cable distances or electromagnetic interference conditions require it.

From a redundancy and system resilience perspective, the modular architecture of the ET 200B platform allows for rapid module replacement without disturbing adjacent stations or interrupting the PROFIBUS network. Maintenance engineers can swap the 6ES7132-0BL01-0XB0 in the field using standard tools, and the replacement module is automatically parameterized by the CPU upon restart — a feature that significantly reduces mean time to repair (MTTR) in production environments where downtime carries high operational cost.

The human-machine interface layer, typically implemented using SIMATIC HMI panels such as the TP700 Comfort or MP277, provides operators with real-time visibility into output channel states, alarm conditions, and system diagnostics. Integration between the HMI and the ET 200B station is achieved through the S7 controller, which maps I/O data to HMI tags, enabling intuitive process visualization without requiring direct communication between the HMI and the field station.

For engineering teams responsible for system commissioning and long-term maintenance, the 6ES7132-0BL01-0XB0 is fully supported by STEP 7 and TIA Portal engineering environments. Hardware configuration, I/O address assignment, and diagnostic parameterization are performed within the software, and the module’s diagnostic capabilities — including short-circuit detection and wire-break monitoring on output channels — are accessible through standard system function blocks. This reduces the time required for fault isolation during commissioning and simplifies root-cause analysis during production incidents.

Inventory availability and supply chain continuity are critical considerations for facilities operating long-lifecycle automation systems. ZYPLC maintains stock of the 6ES7132-0BL01-0XB0 and related ET 200B components to support both planned maintenance schedules and emergency replacement requirements. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing assurance of product authenticity and operational reliability from the date of delivery.

Architecture Specification Table

Coordinated Control System Design

The 6ES7132-0BL01-0XB0 achieves its full operational value when deployed as part of a coordinated control system rather than in isolation. A representative architecture for a mid-scale discrete manufacturing line might include a CPU 315-2 DP as the central processing unit, managing program execution and PROFIBUS-DP master communication. The ET 200B station housing the 6ES7132-0BL01-0XB0 would be paired with a 6ES7131-0BL01-0XB0 digital input module on the same base unit, creating a complete local I/O node at the machine level.

Power distribution to the station is handled by a SITOP PSU100S 24V/10A regulated power supply, which provides the stable 24 VDC rail required for both the ET 200B electronics and the output channel loads. For applications involving analog process variables — such as temperature, pressure, or flow — an ET 200B analog input module (6ES7134-0xx series) can be added to the same station, enabling mixed-signal I/O without additional hardware.

At the network level, PROFIBUS-DP segment integrity is maintained using PROFIBUS termination resistors and, where required, PROFIBUS OLMs (Optical Link Modules) to bridge long cable runs or electrically noisy environments. For systems requiring higher availability, a CPU 414H redundant controller pair can serve as the PROFIBUS master, with automatic switchover ensuring that output states are maintained even during controller maintenance windows.

The operator interface layer is typically implemented using a SIMATIC TP700 Comfort HMI panel, which communicates with the S7 CPU via PROFINET or MPI and provides real-time visualization of output channel states, alarm histories, and system diagnostics. For remote monitoring and SCADA integration, an IE/PB Link PN IO gateway (6GK7443-1EX30 or equivalent) can bridge the PROFIBUS-DP segment to an Ethernet-based supervisory network, enabling plant-wide data aggregation without disrupting the field-level communication architecture.

Terminal wiring at the ET 200B station is facilitated by the base unit’s integrated terminal block design, which accommodates standard 0.5–1.5 mm² conductors and supports labeling systems compatible with WAGO or Phoenix Contact terminal accessories. This wiring approach simplifies cabinet assembly, reduces commissioning time, and supports systematic cable management practices that are essential for long-term maintainability in industrial environments.

Application in Layered Automation Systems

The 6ES7132-0BL01-0XB0 is deployed across a wide range of industrial sectors where distributed I/O architecture is the preferred approach to field signal management. In automotive manufacturing, the module controls solenoid valves, pneumatic actuators, and conveyor drive contactors along assembly lines, where cycle times are measured in milliseconds and output reliability directly impacts throughput. The PROFIBUS-DP communication ensures that output commands from the S7 CPU reach the field devices within the deterministic latency window required by the production control system.

In power generation and electrical substation applications, the module is used to control switching equipment, alarm annunciators, and auxiliary relay circuits. The 24 VDC output voltage is compatible with standard substation control wiring practices, and the module’s optocoupler isolation provides the electrical separation required between the control system and high-voltage field circuits.

For water and wastewater treatment facilities, the 6ES7132-0BL01-0XB0 controls pump motor starters, valve actuators, and chemical dosing equipment distributed across large treatment plants. The distributed I/O architecture allows control panels to be located close to the field equipment, reducing cable runs and improving signal integrity in environments where long cable distances would otherwise introduce voltage drop and noise susceptibility.

In petrochemical and refinery applications, the module is integrated into safety-instrumented system (SIS) architectures where output reliability and diagnostic transparency are mandatory. While the 6ES7132-0BL01-0XB0 itself is a standard (non-SIL-rated) module, it is commonly used in the basic process control system (BPCS) layer alongside dedicated safety controllers, providing the operational output functions that complement the safety shutdown logic.

For packaging and material handling lines, the module drives conveyor belt contactors, reject gate solenoids, and labeling machine actuators. The 16-channel output capacity allows a single ET 200B station to control a complete machine section, minimizing the number of field stations required and simplifying the overall network topology.

Architecture Engineering FAQ

Q1: Is the 6ES7132-0BL01-0XB0 compatible with both S7-300 and S7-400 controllers, and does it require specific hardware configuration in STEP 7 or TIA Portal?
The 6ES7132-0BL01-0XB0 is compatible with any SIMATIC S7 controller configured as a PROFIBUS-DP master, including the S7-300 and S7-400 families. Hardware configuration is performed in STEP 7 (v5.x) or TIA Portal by adding the ET 200B station to the PROFIBUS-DP network and selecting the appropriate module from the hardware catalog. The I/O addresses are assigned automatically during configuration and can be adjusted to suit the user program’s address map. No special firmware or licensing is required beyond the standard STEP 7 or TIA Portal installation.

Q2: Can the 6ES7132-0BL01-0XB0 be replaced in the field without taking the entire ET 200B station offline, and how does the system handle re-parameterization after replacement?
Module replacement on the ET 200B platform requires the station to be powered down during the physical swap, as the module connects directly to the base unit backplane. However, the PROFIBUS-DP network and other stations on the segment remain unaffected. Upon power restoration, the S7 CPU automatically downloads the stored hardware configuration to the new module, including I/O address assignments and diagnostic parameters. This automatic re-parameterization eliminates the need for manual module configuration in the field and ensures that the replacement module is operational within the normal system startup sequence. The 12-Month Warranty provided by ZYPLC covers the replacement module from the date of delivery.

Q3: What are the long-term supply and maintenance considerations for facilities running ET 200B systems, and how does ZYPLC support ongoing inventory requirements?
The ET 200B platform, while a mature product line, remains widely deployed in industrial facilities with long equipment lifecycles. ZYPLC maintains dedicated inventory of the 6ES7132-0BL01-0XB0 and related ET 200B components — including base units, input modules, and power connectors — to support both scheduled maintenance programs and unplanned replacement events. All units are supplied with a 12-Month Warranty and are verified for authenticity prior to shipment. For facilities managing large installed bases of ET 200B equipment, ZYPLC can provide volume procurement support and lead-time commitments aligned with planned maintenance windows. Contact the ZYPLC technical sales team to discuss inventory reservation and supply continuity arrangements.
