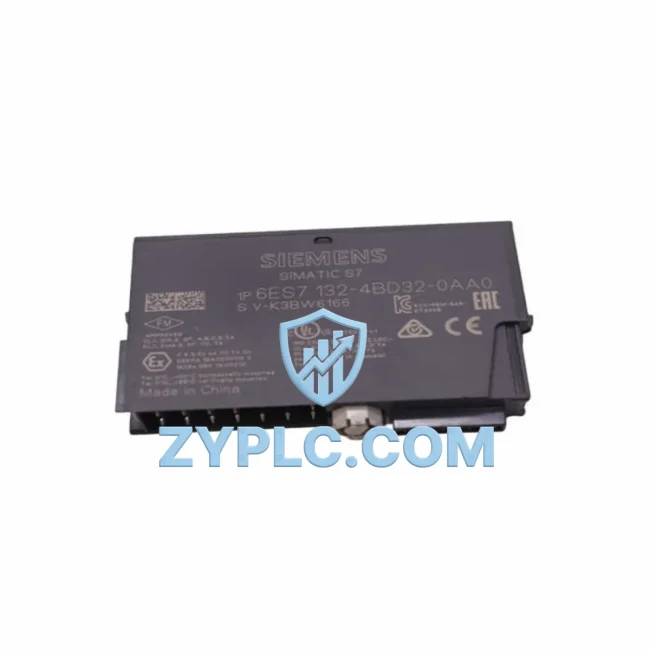

Siemens 6ES7132-4BD32-0AA0 System-Ready Digital Output for ET 200S Architecture

Siemens 6ES7132-4BD32-0AA0 System-Ready Digital Output for ET 200S Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7132-4BD32-0AA0 is a 4-channel 24 VDC digital output module engineered for the ET 200S distributed I/O station, a cornerstone component within SIMATIC S7-300 and S7-400 control architectures. Rather than functioning as a standalone device, this module is designed from the ground up to operate as an integral node within a layered automation hierarchy — coordinating signal flow from the control layer down through the I/O layer to field-level actuators, contactors, solenoid valves, and motor starters. Its role in the system is to translate logical commands issued by the CPU into precise, reliable 24 VDC switching signals that drive physical processes in real time.

In distributed control architectures, the ET 200S station — of which the 6ES7132-4BD32-0AA0 is a key output module — is typically mounted close to the process, reducing field wiring complexity and improving signal integrity. The station communicates upstream via PROFIBUS DP or PROFINET IO, depending on the interface module selected, such as the IM 151-1 or IM 151-3 PN. This contextual integration capability allows the output module to participate in high-speed cyclic data exchange with the S7-300 or S7-400 CPU, ensuring deterministic response times critical to process control and machine safety applications.

System architects deploying the 6ES7132-4BD32-0AA0 benefit from its compact terminal module design, which allows hot-swapping of the electronic module without interrupting the terminal wiring — a significant advantage in continuous-process environments such as petrochemical plants, water treatment facilities, and power distribution substations where unplanned downtime carries substantial operational cost. The module slots into the ET 200S backplane rail alongside power modules such as the PM-E 24VDC (6ES7138-4CA01-0AA0), which provides the load voltage supply for the output channels, and terminal modules such as the TM-E15S26-A1 that form the mechanical backbone of the station assembly.

Architecture Specification Table

Coordinated Control System Design

The 6ES7132-4BD32-0AA0 achieves its full potential when integrated within a complete ET 200S station and coordinated with the broader SIMATIC control architecture. A typical system deployment begins at the CPU level — for example, a Siemens CPU 315-2 DP (6ES7315-2AH14-0AB0) or a CPU 414-3 PN/DP (6ES7414-3EM05-0AB0) — which manages the control program and cyclically exchanges I/O data with all distributed stations on the PROFIBUS or PROFINET network.

At the ET 200S station level, the IM 151-1 Standard interface module (6ES7151-1AA06-0AB0) or the IM 151-3 PN interface module (6ES7151-3BA23-0AB0) serves as the communication gateway, connecting the station to the fieldbus and forwarding output commands from the CPU to the individual electronic modules. The 6ES7132-4BD32-0AA0 receives its switching commands through this interface, executing them within the same scan cycle to maintain process synchronization.

Power integrity within the station is maintained by the PM-E 24VDC power module (6ES7138-4CA01-0AA0), which supplies the 24 VDC load voltage required by the output channels of the 6ES7132-4BD32-0AA0. For applications requiring redundant power supply, a second PM-E module can be inserted to provide automatic failover, ensuring output continuity even during a power module fault. This redundancy design is particularly relevant in critical infrastructure applications such as water treatment pump control, substation automation, and continuous chemical process lines.

On the input side of the same ET 200S station, digital input modules such as the 6ES7131-4BD01-0AA0 (4-channel 24 VDC digital input) capture field signals from proximity sensors, limit switches, and pushbuttons, feeding real-time process status back to the CPU. Analog output modules such as the 6ES7135-4GB01-0AB0 may coexist in the same station for proportional valve or variable-speed drive control, enabling a mixed-signal architecture within a single compact rail assembly.

For human-machine interface integration, the ET 200S station data is accessible through the SIMATIC HMI layer — typically a Siemens TP700 Comfort Panel (6AV2124-0GC01-0AX0) or a KTP900 Basic Panel — connected via PROFINET to the same network as the CPU. Operators can monitor output channel states, acknowledge faults, and adjust setpoints in real time, with the HMI reflecting the actual switching status of the 6ES7132-4BD32-0AA0 output channels as reported by the CPU’s process image.

In applications requiring motor control, the digital outputs of the 6ES7132-4BD32-0AA0 are commonly wired to Siemens SIRIUS 3RT contactor coils or to the digital inputs of SINAMICS G120 variable frequency drives, enabling start/stop, direction reversal, and speed-step commands to be issued directly from the PLC program. This tight integration between the output module, the contactor, and the drive forms the execution layer of the automation hierarchy, translating logical control decisions into physical motion and process action.

Application in Layered Automation Systems

The 6ES7132-4BD32-0AA0 is deployed across a wide range of industrial sectors where distributed I/O architecture is preferred for its flexibility, reduced wiring cost, and ease of maintenance.

In manufacturing and assembly lines, the module controls pneumatic cylinder solenoids, conveyor belt drives, and part-ejection actuators, with each output channel mapped to a specific machine function in the PLC program. The hot-swap capability of the ET 200S electronic module allows maintenance technicians to replace a faulty output module during a scheduled micro-stop without dismantling terminal wiring, reducing mean time to repair (MTTR) significantly.

In power distribution and substation automation, the module’s transistor outputs drive relay coils for circuit breaker control, tap changer positioning, and alarm annunciation panels. The deterministic PROFIBUS DP communication cycle ensures that switching commands are executed within defined time windows, meeting the response time requirements of IEC 61850-compliant protection and control schemes.

In water and wastewater treatment facilities, the 6ES7132-4BD32-0AA0 controls pump motor starters, valve actuators, and chemical dosing systems distributed across multiple field panels. The module’s IP20 protection class, combined with appropriate enclosure selection, makes it suitable for installation in control cabinets located in pump houses and treatment buildings with moderate environmental exposure.

In petrochemical and oil & gas process plants, the module is integrated into safety-instrumented system (SIS) architectures alongside fail-safe CPU modules and F-I/O modules, where it handles non-safety output functions while the safety layer manages emergency shutdown (ESD) and process isolation. The clear separation of standard and safety I/O within the same ET 200S station simplifies cabinet design and reduces overall footprint.

In mining and metallurgical applications, the module drives conveyor interlocks, crusher control outputs, and ventilation fan starters, operating reliably in environments with high vibration, dust, and wide temperature variation when installed in appropriately rated enclosures. The robust terminal module mechanical design of the ET 200S platform ensures connection integrity under continuous vibration loads.

Architecture Engineering FAQ

Q1: Is the 6ES7132-4BD32-0AA0 compatible with both PROFIBUS DP and PROFINET IO ET 200S stations?
Yes. The 6ES7132-4BD32-0AA0 electronic module is compatible with all standard ET 200S interface modules, including the IM 151-1 (PROFIBUS DP) and the IM 151-3 PN (PROFINET IO). The electronic module itself is bus-agnostic — the communication protocol is determined by the interface module selected for the station. This allows the same output module to be deployed in both legacy PROFIBUS-based architectures and modern PROFINET-based systems, protecting your hardware investment during network migration projects.

Q2: Can the 6ES7132-4BD32-0AA0 be replaced without powering down the entire ET 200S station?
Yes, the ET 200S platform supports hot-swapping of electronic modules. The 6ES7132-4BD32-0AA0 can be removed from its terminal module and replaced with a new unit while the station remains powered and communicating, provided the replacement module is of the same type. The terminal module retains all field wiring connections during the swap, eliminating the need to disconnect and reconnect field cables. This capability is critical for minimizing downtime in continuous-process applications. Note that the output channels will be inactive during the swap interval, so process safety must be evaluated before performing hot-swap operations in live systems.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of purchase. Warranty service includes module replacement or repair at no additional cost for confirmed defective units. For system integration support — including configuration in STEP 7 or TIA Portal, GSD/GSDML file installation, hardware configuration, and commissioning guidance — our technical team is available to assist. Contact us at [email protected] or +86 19859288691 to discuss your architecture requirements, confirm module compatibility with your existing ET 200S station, or arrange expedited supply for project timelines.
