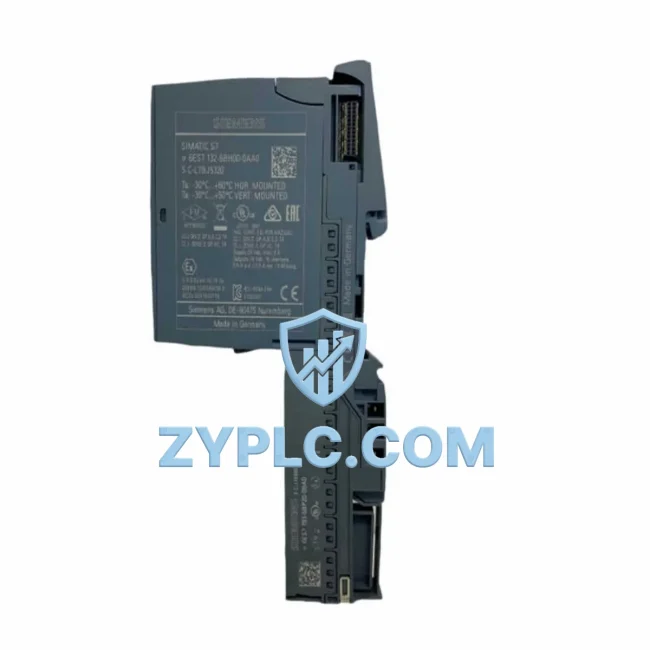

Siemens 6ES7132-6BH00-0AA0 Energy-Saving Output ET 200SP

Siemens 6ES7132-6BH00-0AA0 Energy-Saving Digital Output Module for ET 200SP Automation

The Siemens 6ES7132-6BH00-0AA0 is a high-density digital output module designed for the ET 200SP distributed I/O system, delivering precise 24 VDC switching control across 16 output channels at up to 0.5 A per channel. In modern industrial environments where energy accountability is no longer optional, this module plays a central role in reducing unnecessary power draw at the actuator level — ensuring that solenoid valves, contactors, indicator lights, and relay coils are energized only when process logic demands it. By eliminating parasitic loads and enabling tight PLC-driven switching cycles, the 6ES7132-6BH00-0AA0 directly contributes to measurable reductions in plant-level energy consumption.

Mounted on a BaseUnit such as the BU001 or BU002 type, this module integrates seamlessly into an ET 200SP station managed by a SIMATIC S7-1500 or S7-1200 CPU. The backplane communication via PROFINET ensures deterministic data exchange with sub-millisecond cycle times, allowing the controller to synchronize output switching with upstream sensor feedback from modules like the 6ES7131-6BF00-0AA0 digital input module. This tight feedback loop is essential for optimizing production line rhythm — reducing idle actuator time and aligning equipment activation with actual process demand rather than fixed timer schedules.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7132-6BH00-0AA0 does not operate in isolation — its energy optimization value is amplified when deployed within a well-structured automation architecture. In a typical ET 200SP station, it works alongside analog input modules such as the 6ES7134-6GD00-0AA0, which captures real-time process variables like temperature, pressure, or flow rate. These analog signals feed into the S7-1500 CPU, which executes energy-aware control logic — activating outputs only when process thresholds are met, rather than running actuators continuously.

For drive-level energy control, the 6ES7132-6BH00-0AA0 output channels are commonly wired to the enable and direction inputs of SINAMICS G120 variable frequency drives. By coordinating digital output switching with drive ramp-up and ramp-down commands, engineers can eliminate the energy spikes associated with direct-on-line motor starts. The SINAMICS G120 with a PM240-2 Power Module further supports energy recovery through regenerative braking, feeding kinetic energy back into the DC bus during deceleration cycles.

Power quality monitoring is handled upstream by devices such as the SENTRON PAC3200 power monitoring unit, which tracks active power, reactive power, and harmonic distortion across the panel. When integrated with the S7-1500 via PROFIBUS or Modbus TCP, the PAC3200 provides the controller with real-time energy consumption data — enabling the PLC to make load-shedding decisions and adjust output switching patterns dynamically. This closed-loop energy management approach transforms the 6ES7132-6BH00-0AA0 from a simple switching device into an active participant in plant-wide energy optimization.

HMI visibility is provided through a SIMATIC TP700 Comfort Panel or KTP700 Basic Panel connected via PROFINET. Operators can monitor the status of all 16 output channels in real time, identify channels with abnormal switching frequencies, and receive alerts when actuator response times deviate from baseline — an early indicator of mechanical wear or valve fouling that, if left unaddressed, leads to increased energy consumption and unplanned downtime.

For safety-critical output zones, the 6ES7132-6BH00-0AA0 can be combined with the SIMATIC ET 200SP F-DQ module to create a mixed standard and fail-safe output architecture within the same station. This eliminates the need for separate safety relay modules, reducing panel footprint and the associated wiring losses that contribute to baseline energy waste.

Power Optimization in Real Production Lines

In automotive body shop applications, the 6ES7132-6BH00-0AA0 controls the pneumatic clamp solenoids and weld gun enable signals across multiple robot cells. By programming the S7-1500 to deactivate non-critical outputs during robot path transitions and tool change sequences, plant engineers have documented reductions in compressed air consumption of 12–18% — a direct consequence of eliminating solenoid energization during idle intervals. Since compressed air generation accounts for a significant share of factory energy budgets, this output-level discipline translates into measurable kWh savings at the compressor.

In food and beverage filling lines, the module manages conveyor divert gates, filling valve solenoids, and reject actuators. The high channel density of 16 outputs per module reduces the number of I/O stations required per line segment, minimizing backplane power consumption and simplifying cable routing. Fewer junction boxes and shorter cable runs also reduce resistive losses in the field wiring — a detail that compounds favorably across large installations with hundreds of output points.

Predictive maintenance integration is achieved by logging output switching cycle counts in the S7-1500 data blocks and comparing them against manufacturer-rated actuator lifespans. When a solenoid valve approaches its rated cycle count, the system generates a maintenance request before failure occurs — avoiding the energy inefficiency of a stuck-open valve that continuously bleeds compressed air or the production loss of an unplanned line stop. All modules are shipped after full functional testing and carry a 12-month warranty, ensuring that replacement units perform to specification from day one.

Energy Optimization FAQ

Q1: How does the 6ES7132-6BH00-0AA0 contribute to measurable energy savings in a production environment?
By enabling precise, PLC-controlled switching of actuators and drives, the module eliminates continuous energization of loads during idle periods. When combined with energy monitoring via the SENTRON PAC3200 and drive control through SINAMICS G120 units, plants can implement load-on-demand strategies that reduce actuator-related energy consumption by 10–20% depending on process duty cycles.

Q2: Is the 6ES7132-6BH00-0AA0 compatible with both S7-1500 and S7-1200 controllers?
Yes. The module operates within the ET 200SP distributed I/O system, which is supported by both SIMATIC S7-1500 and S7-1200 CPUs via PROFINET. It is configured using TIA Portal V15 or later, and the same hardware configuration can be reused across controller generations, protecting your engineering investment during system upgrades.

Q3: What is the recommended replacement or upgrade path if higher output current is required?
For applications requiring output currents above 0.5 A per channel, the 6ES7132-6BF00-0AA0 (DQ 8x24VDC/2A) or the 6ES7132-6BD20-0AA0 (DQ 4x24VDC/2A High Feature) are the recommended alternatives within the ET 200SP family. Both modules share the same BaseUnit footprint, allowing in-place replacement without rewiring the field terminals.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every 6ES7132-6BH00-0AA0 unit supplied by ZYPLC undergoes pre-shipment functional testing, including output channel activation verification, load switching under rated current, and communication handshake validation with an ET 200SP master. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is coordinated directly through our technical support team to minimize line downtime.
