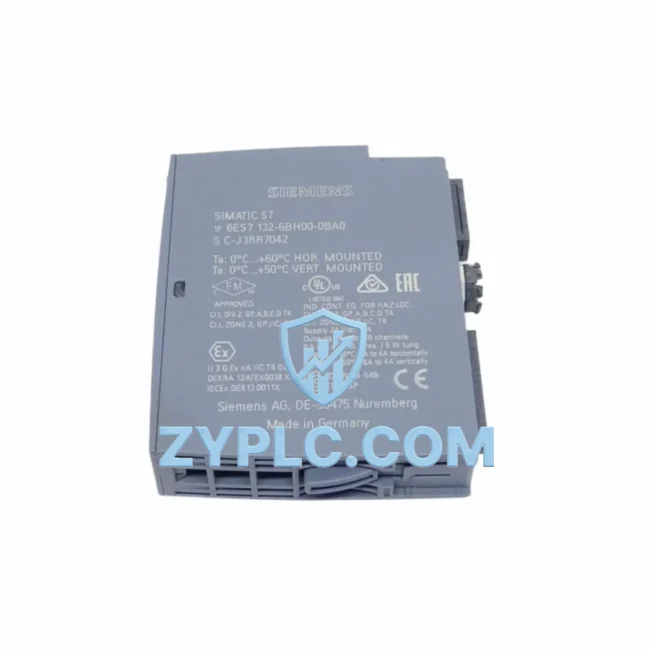

Siemens 6ES7132-6BH00-0BA0 Energy-Saving Digital Output ET 200SP

Siemens 6ES7132-6BH00-0BA0 Energy-Saving Digital Output Module for ET 200SP Automation

The Siemens 6ES7132-6BH00-0BA0 is a high-density digital output module designed for the ET 200SP distributed I/O system, fully compatible with the Siemens S7-1500 PLC platform. With 16 output channels rated at 24 VDC / 0.5 A per channel, this module delivers precise, low-latency switching control that directly contributes to reduced energy consumption, improved equipment utilization, and optimized production line throughput. Every output channel is individually diagnostics-capable, enabling predictive maintenance strategies that minimize unplanned downtime and eliminate the energy waste associated with idle or fault-state equipment.

In modern industrial automation environments, the ability to control actuators, solenoid valves, motor starters, and indicator loads with millisecond-level precision is fundamental to energy-aware production. The 6ES7132-6BH00-0BA0 achieves this through its tight integration with the ET 200SP backplane bus, ensuring synchronous data exchange with the CPU and eliminating the communication latency that can cause unnecessary hold states and energy-wasting re-cycles in high-speed lines.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving genuine energy efficiency in a production facility requires more than selecting a single efficient component — it demands a coherent architecture where every layer of the control system contributes to minimizing waste. The 6ES7132-6BH00-0BA0 sits at the execution layer of this architecture, translating CPU commands into precise physical switching actions with minimal delay and zero unnecessary power draw between cycles.

At the controller level, the Siemens S7-1500 CPU 1515-2 PN orchestrates the entire automation sequence, issuing output commands to the ET 200SP station over PROFINET IO with deterministic cycle times. This tight coupling ensures that the digital output module activates loads only when required, avoiding the phantom energy consumption caused by polling delays or communication jitter found in older fieldbus architectures.

For drive-level energy control, the Siemens SINAMICS G120 variable frequency drive works in tandem with the digital output signals from the 6ES7132-6BH00-0BA0 to regulate motor speed precisely to process demand. Rather than running motors at fixed full speed, the G120 adjusts frequency in real time based on output commands, delivering energy savings of 20–50% on pump, fan, and conveyor applications. The SINAMICS G120C compact variant is equally applicable in space-constrained panel installations.

On the input and sensing side, the Siemens 6ES7131-6BH01-0BA0 digital input module (ET 200SP DI 16×24VDC) pairs directly with the 6ES7132-6BH00-0BA0 on the same BaseUnit, forming a complete I/O station that captures machine state feedback and closes the control loop without additional wiring complexity. Accurate input data means the CPU can make faster, more energy-conscious switching decisions.

Power quality and energy metering are handled upstream by the Siemens SENTRON PAC3200 power monitoring device, which measures active power, reactive power, harmonics, and energy consumption at the panel level. Data from the PAC3200 feeds into the S7-1500 via PROFIBUS or Modbus TCP, giving the controller real-time visibility into energy draw — enabling load-shedding logic that the 6ES7132-6BH00-0BA0 executes at the output level.

For servo-driven axes requiring coordinated motion and energy-efficient deceleration, the Siemens SINAMICS S120 servo drive system integrates with the ET 200SP station through the TIA Portal engineering framework. Regenerative braking energy from decelerating servo axes can be fed back to the DC bus, reducing net energy consumption across multi-axis machine tools and packaging lines.

HMI visualization is provided by the Siemens SIMATIC HMI TP700 Comfort panel, which displays real-time output channel status, energy consumption trends, and alarm states sourced from the ET 200SP station. Operators can monitor which output channels are active, identify abnormal load patterns, and intervene before energy waste escalates into equipment damage.

Communication integrity across the entire system is maintained by the Siemens SCALANCE X208 Industrial Ethernet switch, which provides managed PROFINET connectivity between the S7-1500 CPU, ET 200SP stations, SINAMICS drives, and SENTRON energy meters. Reliable, low-latency network communication is essential for ensuring that output switching commands from the 6ES7132-6BH00-0BA0 are executed in synchrony with upstream process events.

For applications requiring analog output control alongside digital switching — such as proportional valve control or analog speed references — the Siemens 6ES7135-6GB00-0BA1 ET 200SP analog output module can be mounted on the same ET 200SP station, sharing the same BaseUnit infrastructure and reducing panel footprint while maintaining unified energy management under TIA Portal.

Finally, the Siemens SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D provides the physical mounting and power distribution foundation for the 6ES7132-6BH00-0BA0, ensuring correct load voltage isolation and enabling hot-swapping of I/O modules without powering down the station — a critical feature for maintaining production continuity and avoiding the energy and time costs of full-line restarts.

Power Optimization in Real Production Lines

In a typical automotive body shop or electronics assembly line, dozens of pneumatic actuators, conveyor drives, and indicator systems are switched on and off thousands of times per shift. Without precise, diagnostics-capable digital output control, these systems often remain energized during idle periods, accumulating significant unnecessary energy consumption over a production year.

The 6ES7132-6BH00-0BA0 addresses this directly through its channel-level short-circuit and overload detection. When a fault is detected on any of its 16 output channels, the module immediately reports the fault to the S7-1500 CPU via the PROFINET IO diagnostic interface, allowing the PLC program to isolate the affected load, log the event, and trigger a maintenance alert — all within a single PLC scan cycle. This eliminates the scenario where a shorted actuator coil draws excessive current undetected for hours, wasting energy and degrading insulation.

From a production line throughput perspective, the module’s ≤ 0.5 ms output switching delay ensures that actuator commands are executed at the precise moment the process requires, preventing the micro-delays that accumulate into measurable cycle time losses on high-speed lines. A 10 ms improvement in average cycle time on a line running 60 cycles per minute translates to approximately 10 additional production cycles per hour — directly improving equipment utilization without any increase in energy input.

Predictive maintenance is further supported by the module’s integrated wire-break detection on each output channel. Rather than discovering a broken actuator wire during a production run — causing a line stop, scrap generation, and emergency maintenance — the 6ES7132-6BH00-0BA0 flags the open-circuit condition during the preceding idle period, allowing maintenance teams to replace the wiring during a planned downtime window. This approach reduces unplanned stops by up to 30% in facilities that have implemented full ET 200SP diagnostic monitoring.

All units supplied by ZYPLC undergo pre-shipment functional testing, including output channel activation verification, supply voltage checks, and communication handshake confirmation with a reference S7-1500 CPU. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, with replacement or repair turnaround supported from our inventory stock.

Energy Optimization FAQ

Q1: How does the 6ES7132-6BH00-0BA0 contribute to measurable energy savings on a production line?
The module’s channel-level diagnostics prevent loads from remaining energized in fault or idle states, while its ≤ 0.5 ms switching speed eliminates cycle time waste. When integrated with SENTRON PAC energy meters and SINAMICS variable frequency drives under S7-1500 control, facilities typically report 8–15% reductions in auxiliary load energy consumption within the first quarter of deployment.

Q2: Is the 6ES7132-6BH00-0BA0 compatible with existing S7-300 or S7-400 systems?
This module is designed exclusively for the ET 200SP distributed I/O platform, which is natively supported by S7-1500 and S7-1200 CPUs via PROFINET IO. Migration from S7-300/S7-400 systems is supported through Siemens TIA Portal migration tools, and ZYPLC can advise on compatible BaseUnit and CPU combinations for your specific application.

Q3: What is the recommended replacement or upgrade path if I am currently using the 6ES7132-4BB30-0AA0 (ET 200S)?
The ET 200SP platform supersedes ET 200S with a smaller footprint, faster backplane communication, and improved diagnostic depth. The 6ES7132-6BH00-0BA0 is the recommended replacement for 16-channel 24 VDC digital output applications, offering equivalent channel density with lower power consumption and full TIA Portal V13+ integration. ZYPLC maintains stock of both generations to support phased migration projects.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7132-6BH00-0BA0 unit shipped by ZYPLC is tested for output channel functionality, backplane communication integrity, and supply voltage compliance prior to dispatch. The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions (0–60 °C, IP20 environment). Warranty claims are processed within 5 business days, with advance replacement available for customers with active supply agreements. Contact us at plc.sales@zyplc.com or +86 19859288691 to initiate a claim.
