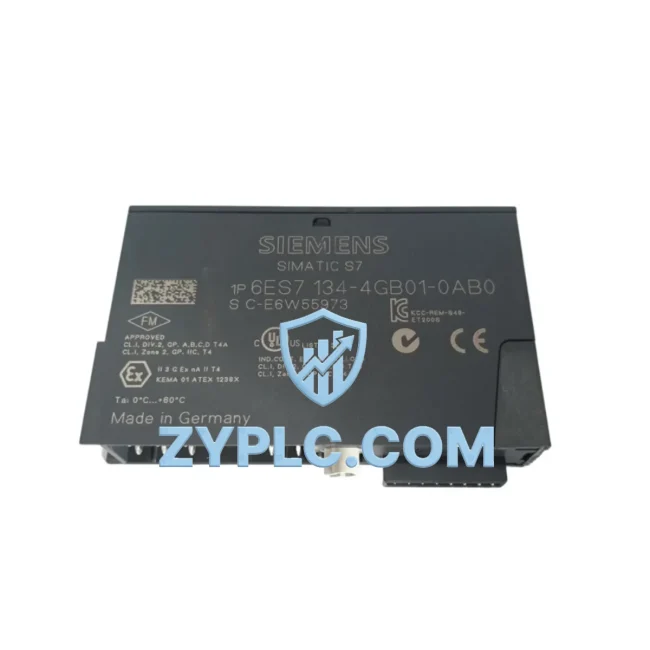

Siemens 6ES7134-4GB01-0AB0 System-Ready Analog Input for ET 200S Architecture

Siemens 6ES7134-4GB01-0AB0 System-Ready Analog Input for ET 200S Architecture

The Siemens 6ES7134-4GB01-0AB0 is a 2-channel analog input module engineered for seamless integration within the ET 200S distributed I/O platform. Rather than functioning as a standalone component, this module is designed to operate as a precision signal acquisition node within a layered industrial control architecture — connecting field-level sensors to the control layer through a structured, high-integrity signal path. Its role spans the boundary between the physical process and the digital control domain, making it a foundational element in any SIMATIC-based automation system.

In a complete control system architecture, the 6ES7134-4GB01-0AB0 occupies the I/O layer, receiving analog signals from field instruments such as pressure transmitters, temperature sensors, and flow meters. These signals are conditioned and digitized at 15-bit resolution before being passed upstream to the CPU layer — typically a SIMATIC S7-300 or S7-400 series controller — via the PROFIBUS-DP network backbone. The module’s high-resolution conversion ensures that process variables are represented with the accuracy required for closed-loop control, regulatory compliance, and predictive maintenance strategies.

System architects integrating the 6ES7134-4GB01-0AB0 into a distributed control cabinet will typically pair it with the IM 151-1 interface module, which serves as the PROFIBUS-DP slave head for the ET 200S station. The interface module manages all upstream communication, while the 6ES7134-4GB01-0AB0 handles signal acquisition independently — a modular design that supports hot-swapping and simplifies field maintenance without disrupting the broader control loop. Power distribution within the ET 200S rack is managed by the PM-E 24VDC power module, ensuring stable supply voltage across all I/O modules in the station.

From a network layer perspective, the ET 200S station housing the 6ES7134-4GB01-0AB0 connects to the PROFIBUS-DP segment alongside other distributed I/O stations, drives, and intelligent field devices. In larger architectures, this segment may be managed by a CP 342-5 communications processor or integrated directly into the CPU’s onboard DP port. The analog data collected by the 6ES7134-4GB01-0AB0 is cyclically transmitted to the central controller, where it feeds into PID control blocks, alarm management routines, and historian data logging — all coordinated through STEP 7 or TIA Portal engineering software.

For redundancy-critical applications, the ET 200S platform supports fault-tolerant configurations where the 6ES7134-4GB01-0AB0 can be deployed in mirrored I/O arrangements. In such designs, a secondary IM 151-3 PN interface module may be used alongside the primary station to ensure continuous signal availability during module replacement or communication faults. This architecture is particularly relevant in power generation, chemical processing, and water treatment facilities where process continuity is non-negotiable.

At the HMI layer, the analog values acquired by the 6ES7134-4GB01-0AB0 are visualized on SIMATIC HMI panels such as the TP700 Comfort or MP377, providing operators with real-time process insight. At the execution layer, the processed analog data drives actuators, variable frequency drives, and control valves — completing the signal chain from field sensor to final control element. The 6ES7134-4GB01-0AB0 thus serves as a critical link in this end-to-end architecture, ensuring that analog process data is accurately captured, reliably transmitted, and correctly interpreted at every system level.

Architecture Specification Table

Coordinated Control System Design

The 6ES7134-4GB01-0AB0 achieves its full potential when deployed within a coordinated system architecture. A typical ET 200S station built around this module includes the IM 151-1 PROFIBUS-DP interface module as the communication head, TM-E15S24-A1 terminal modules for each I/O slot, and the PM-E 24VDC power segment module for isolated power distribution. Adjacent slots may be populated with digital input modules such as the 6ES7131-4BF00-0AA0 or digital output modules like the 6ES7132-4BF00-0AA0, creating a mixed I/O station that handles both analog and discrete signals within a single compact rail assembly.

At the controller level, the ET 200S station communicates with a SIMATIC S7-400 CPU — for example, the CPU 414-3 DP — which coordinates multiple PROFIBUS-DP segments across a large-scale process plant. In smaller installations, a SIMATIC S7-300 CPU 315-2 DP provides equivalent functionality with a reduced footprint. For PROFINET-based architectures, the IM 151-3 PN interface module replaces the IM 151-1, allowing the same 6ES7134-4GB01-0AB0 module to operate within an Industrial Ethernet topology without hardware changes to the I/O layer. Complementary components such as the SCALANCE X208 managed switch and CP 343-1 communications processor complete the network infrastructure, ensuring deterministic data delivery across the automation network.

Application in Layered Automation Systems

The 6ES7134-4GB01-0AB0 is deployed across a wide range of industrial sectors where precise analog signal acquisition is essential to process integrity. In power generation facilities, the module monitors generator output parameters, transformer temperatures, and cooling system pressures — feeding real-time data to the plant DCS for load balancing and fault detection. In petrochemical and refinery applications, it acquires flow and pressure signals from field transmitters in hazardous areas, supporting safe and efficient process control within SIL-rated architectures.

Water and wastewater treatment plants rely on the 6ES7134-4GB01-0AB0 to monitor pH levels, dissolved oxygen concentrations, and pump discharge pressures across distributed pump stations. In mining and metallurgical operations, the module integrates into conveyor control systems and ore processing lines, where analog feedback from load cells and speed sensors drives automated material handling sequences. Packaging and food processing lines use the module to monitor fill levels, seal temperatures, and conveyor speeds — ensuring product consistency and regulatory compliance. In each of these environments, the module’s robust design, high resolution, and compatibility with the broader SIMATIC ecosystem make it a reliable long-term component in the control architecture.

Architecture Engineering FAQ

Q1: Is the 6ES7134-4GB01-0AB0 compatible with both PROFIBUS-DP and PROFINET architectures?
A: Yes. The module itself is interface-agnostic at the I/O level. Compatibility with PROFIBUS-DP or PROFINET is determined by the interface module selected for the ET 200S station — the IM 151-1 for PROFIBUS-DP and the IM 151-3 PN for PROFINET. This allows the same 6ES7134-4GB01-0AB0 to be retained when migrating between communication protocols, protecting your hardware investment during system upgrades.

Q2: Can this module be replaced in the field without shutting down the entire ET 200S station?
A: The ET 200S platform supports module-level replacement with minimal disruption. The 6ES7134-4GB01-0AB0 is mounted on a TM-E terminal module, which retains all wiring connections independently of the electronic module. This design allows the electronic module to be swapped without rewiring, significantly reducing maintenance downtime. In redundant configurations, the affected channel can be taken offline while the parallel path maintains process continuity.

Q3: What does the 12-Month Warranty cover, and how does it support long-term system maintenance planning?
A: The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. For system integrators and plant engineers, this warranty provides a defined support window that aligns with annual maintenance cycles and spare parts planning. Combined with our in-stock availability and rapid dispatch capability, the warranty ensures that replacement units can be sourced and deployed quickly — minimizing the risk of extended downtime in critical process environments.
