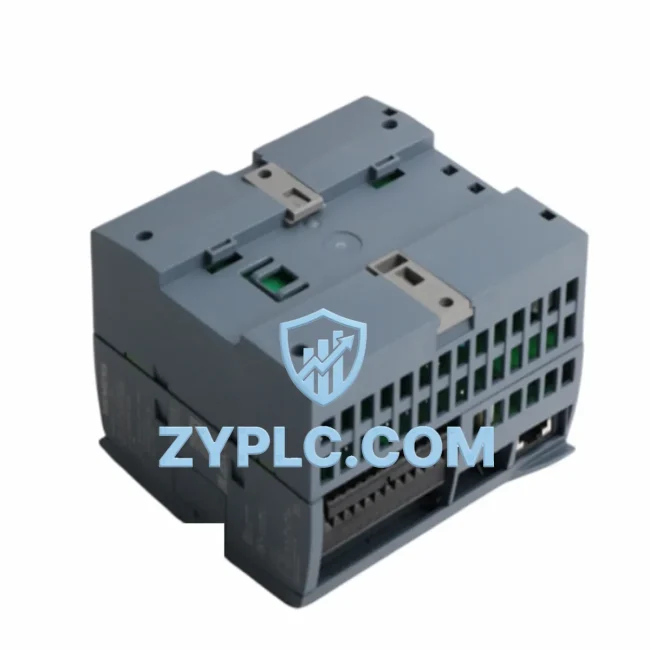

Siemens 6ES7214-1BG40-0XB0 Industrial Network Interface for S7-1200 Systems

Siemens 6ES7214-1BG40-0XB0: Industrial Data Link for Smart Factory Connectivity

The Siemens 6ES7214-1BG40-0XB0 is a high-performance CPU 1214C module from the S7-1200 series, engineered to serve as the central intelligence and industrial network interface in modern smart factory environments. With native PROFINET communication, onboard 14 digital inputs, 10 digital outputs, and 2 analog inputs, this compact controller bridges the gap between field-level devices and upper-level supervisory systems — enabling seamless, real-time data flow across the entire automation architecture.

In today’s industrial landscape, the ability to connect field sensors, remote I/O stations, variable frequency drives, HMI panels, and SCADA platforms through a unified, deterministic network is no longer optional — it is the foundation of operational transparency. The 6ES7214-1BG40-0XB0 delivers exactly this capability, acting as the protocol gateway and data aggregation node that transforms isolated equipment into a fully integrated, remotely monitored production system.

Network Communication Table

Connected Automation Data Flow

At the heart of a typical smart factory deployment, the 6ES7214-1BG40-0XB0 operates as the primary PROFINET controller, orchestrating data exchange between distributed field devices and the supervisory layer. Signal acquisition begins at the sensor level — proximity switches, photoelectric sensors, and pressure transmitters connected via Siemens ET 200SP remote I/O stations feed real-time process values directly into the CPU’s input image table over PROFINET IO with cycle times as low as 1 ms.

From the CPU, processed data travels upstream to Siemens KTP700 Basic or KTP1200 Basic HMI panels via the integrated PROFINET port, enabling operators to visualize production status, acknowledge alarms, and adjust setpoints without leaving the floor. Simultaneously, the 6ES7214-1BG40-0XB0 communicates with Siemens SINAMICS G120 variable frequency drives through PROFINET, delivering speed references and receiving actual torque feedback in real time — eliminating the latency and wiring complexity of traditional analog command signals.

For multi-axis or multi-zone production lines, the S7-1200 CPU can be expanded with Siemens SM 1221 digital input modules and SM 1231 analog input modules, extending the I/O capacity without requiring additional network nodes. When legacy Modbus RTU devices — such as older energy meters, flow controllers, or third-party sensors — need to be integrated, the Siemens CM 1241 RS485 communication module connects directly to the CPU’s left-side expansion bus, enabling the 6ES7214-1BG40-0XB0 to act as a Modbus TCP-to-RTU gateway, bridging older serial protocols into the PROFINET backbone.

At the network infrastructure level, a Siemens SCALANCE X208 managed industrial Ethernet switch provides the physical layer for connecting multiple S7-1200 CPUs, HMI panels, and SCADA servers within the same PROFINET segment, ensuring deterministic communication with VLAN segmentation and port-based prioritization. Data collected by the 6ES7214-1BG40-0XB0 is forwarded to a WinCC SCADA server or a third-party OPC UA-compatible platform via standard TCP/IP, where historians log every process variable for trend analysis, OEE calculation, and predictive maintenance algorithms.

For remote diagnostic access, the Siemens SINEMA Remote Connect solution or a Siemens CP 1243-1 communication processor enables secure VPN tunneling over cellular or broadband networks, allowing engineers to monitor PLC diagnostics, upload program changes, and review fault logs from any location — reducing mean time to repair and eliminating unnecessary site visits.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A production line may simultaneously run PROFINET devices alongside legacy PROFIBUS DP nodes, Modbus RTU instruments, and proprietary serial interfaces — creating data silos that prevent unified monitoring and control. The 6ES7214-1BG40-0XB0, combined with the appropriate Siemens communication modules, resolves this fragmentation by acting as a multi-protocol gateway at the controller level.

Protocol unification is achieved without replacing existing field devices. The CPU’s open communication capabilities — including ISO-on-TCP, UDP, and Modbus TCP — allow it to exchange data with non-Siemens PLCs, third-party SCADA systems, and cloud-based IoT platforms using standard Ethernet protocols. This means a plant running mixed vendor equipment can achieve full production line transparency through a single S7-1200 network node, dramatically reducing integration costs and engineering time.

Remote monitoring and alarm management are equally addressed. The 6ES7214-1BG40-0XB0 supports email and SMS alarm notification through its open IE communication stack when paired with appropriate network infrastructure, ensuring that critical fault conditions — motor overloads, pressure exceedances, communication timeouts — are immediately escalated to maintenance personnel regardless of their physical location. System expansion is equally straightforward: additional S7-1200 CPUs can be added to the PROFINET network as IO controllers or IO devices, scaling the automation architecture in line with production growth without redesigning the network topology.

Every unit of the 6ES7214-1BG40-0XB0 supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFINET communication, I/O channel integrity, and program execution before dispatch. In-stock availability ensures short lead times for MRO replacement and project commissioning, backed by a 12-month warranty covering manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the maximum PROFINET IO communication cycle time for the 6ES7214-1BG40-0XB0?
The 6ES7214-1BG40-0XB0 supports PROFINET IO RT (Real-Time) with minimum cycle times of 1 ms and IRT (Isochronous Real-Time) with cycle times down to 250 µs when used with compatible PROFINET switches such as the SCALANCE X series. This ensures deterministic, low-latency data exchange between the CPU and distributed I/O stations, drives, and HMI panels — critical for motion control and high-speed process applications.

Q2: Can the 6ES7214-1BG40-0XB0 communicate with non-Siemens PLCs or third-party SCADA systems?
Yes. The CPU supports open Ethernet communication protocols including Modbus TCP (client/server), ISO-on-TCP, UDP, and TCP/IP raw socket communication. This enables data exchange with third-party PLCs, DCS systems, OPC UA servers, and SCADA platforms from vendors such as Rockwell, Schneider, and Wonderware, making it suitable for heterogeneous industrial network environments.

Q3: How is network stability maintained in high-interference industrial environments?
The 6ES7214-1BG40-0XB0 is designed to IEC 61131-2 standards with robust EMC shielding and operates reliably in environments with significant electrical noise from VFDs, welding equipment, and high-current switching. For additional network resilience, the PROFINET Media Redundancy Protocol (MRP) can be configured using compatible SCALANCE switches, providing automatic failover in ring topologies with recovery times under 200 ms.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All 6ES7214-1BG40-0XB0 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects, including PROFINET communication failures, I/O channel faults, and CPU processing errors. Pre-shipment testing includes power-on verification, PROFINET port communication check, digital and analog I/O channel validation, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not dispatched, ensuring that every module received by the customer is fully operational.
