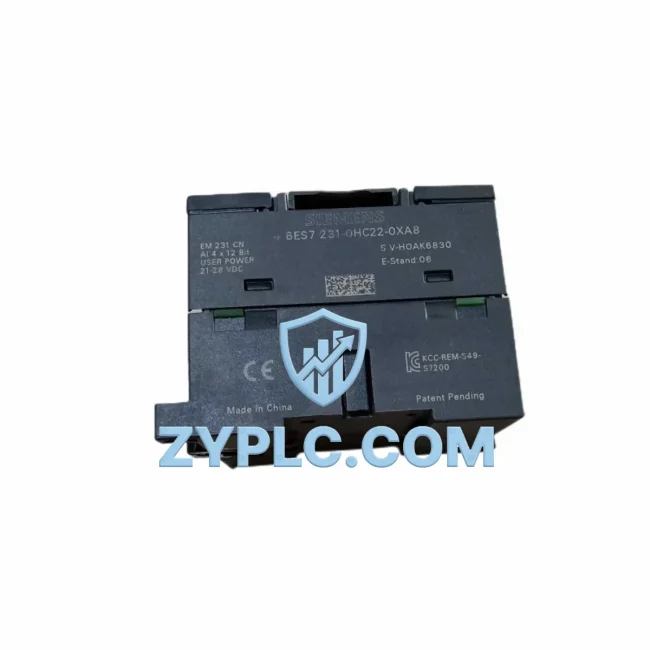

Siemens 6ES7231-0HC22-0XA8 Energy-Saving Analog Input Module

Siemens 6ES7231-0HC22-0XA8 Energy-Saving Analog Input Module for Optimized S7-200 Automation

In modern industrial facilities where energy efficiency is no longer optional but a core operational KPI, the Siemens 6ES7231-0HC22-0XA8 analog input module delivers the precise signal acquisition capability that underpins every meaningful energy optimization strategy. Designed for the Siemens S7-200 compact PLC platform, this module bridges the gap between field-level energy data and the control logic that drives real production decisions — from motor speed adjustments to load-shedding routines and predictive maintenance triggers.

At its core, the 6ES7231-0HC22-0XA8 accepts multiple analog input channels, converting real-world process variables — current draw, voltage levels, temperature, pressure, and flow — into digital values that the S7-200 CPU processes in real time. This continuous data stream is the foundation of any energy-aware automation architecture. Without accurate analog acquisition, neither the PLC nor the upstream SCADA system can make informed decisions about when to ramp a drive, throttle a pump, or flag an anomaly before it becomes a costly failure.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7231-0HC22-0XA8 does not operate in isolation — its value is fully realized when integrated into a layered automation architecture where every component contributes to energy visibility and control efficiency.

At the field level, current transformers and pressure transmitters feed 4–20 mA signals directly into the analog input channels of the 6ES7231-0HC22-0XA8. The Siemens S7-200 CPU 224 processes these values and executes PID control loops that regulate the output signals sent to a Siemens MICROMASTER 440 variable frequency drive. By continuously adjusting motor speed based on real load demand rather than running at fixed speed, the drive alone can reduce motor energy consumption by 20–40% in pump and fan applications.

The analog feedback loop extends further when paired with a Siemens EM 232 analog output module, which closes the control loop by sending corrective signals back to actuators and control valves. This bidirectional data flow — acquisition via the 6ES7231-0HC22-0XA8, processing in the S7-200 CPU, and output via the EM 232 — forms the backbone of a responsive, energy-efficient control system.

For digital I/O expansion, the Siemens EM 223 digital I/O module integrates alongside the analog module, handling discrete signals from motor contactors, limit switches, and alarm relays. This combination allows the S7-200 system to simultaneously monitor analog energy parameters and respond to discrete events — such as overcurrent trips or equipment faults — without latency.

At the network layer, a Siemens CP 243-1 Ethernet communication module connects the S7-200 system to the plant’s industrial Ethernet backbone, enabling real-time data upload to a Siemens WinCC SCADA platform. Energy consumption trends, motor load profiles, and process efficiency metrics are visualized on the HMI, giving operators and energy managers the insight needed to identify waste and optimize production schedules.

In multi-drive applications, the 6ES7231-0HC22-0XA8 also supports integration with Siemens SINAMICS G120 drives via analog setpoint signals, enabling coordinated speed control across multiple motors on a single production line. This coordinated approach eliminates the energy waste caused by motors running at mismatched speeds or unnecessary full-load operation during low-demand periods.

For remote monitoring and diagnostics, a Siemens TD 200 text display or a compact HMI panel can be connected to the S7-200 system, providing local operators with real-time energy readings and alarm status without requiring access to the central SCADA workstation. This decentralized visibility reduces response time to energy anomalies and supports faster corrective action on the production floor.

Power Optimization in Real Production Lines

The practical impact of the Siemens 6ES7231-0HC22-0XA8 on production line energy performance is most evident in three scenarios: motor load optimization, process variable stabilization, and predictive maintenance scheduling.

In motor load optimization, the analog input module continuously monitors the current draw of motors connected to variable frequency drives. When the S7-200 CPU detects that a motor is operating below its efficiency curve — a common occurrence during shift transitions or product changeovers — it adjusts the drive setpoint to match actual load requirements. This prevents the energy waste associated with motors running at rated speed under partial load, a condition that can account for 15–30% of unnecessary energy consumption in typical manufacturing environments.

In process variable stabilization, the 6ES7231-0HC22-0XA8 captures temperature, pressure, and flow signals from field instruments and feeds them into PID control loops running on the S7-200 CPU. Tight process control reduces the frequency of overcorrection events — situations where heating or cooling systems overshoot their setpoints and consume excess energy to recover. Stable process variables also extend equipment service life, reducing the maintenance burden and the energy cost of unplanned downtime.

In predictive maintenance scheduling, trending the analog data collected by the 6ES7231-0HC22-0XA8 over time reveals early indicators of equipment degradation — rising motor current at constant load, increasing vibration-correlated pressure fluctuations, or gradual temperature drift in heat exchangers. By acting on these trends before failure occurs, maintenance teams avoid the energy-intensive restart sequences and production losses associated with unplanned breakdowns. Every avoided emergency shutdown translates directly into energy savings and improved overall equipment effectiveness (OEE).

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of all analog input channels across the full signal range. In-stock availability ensures rapid deployment, minimizing the downtime window during module replacement or system expansion. Each unit is backed by a 12-month warranty, providing confidence in both product quality and supply chain reliability.

Energy Optimization FAQ

Q1: How does the 6ES7231-0HC22-0XA8 contribute to measurable energy savings?
By providing accurate, real-time analog data to the S7-200 CPU, this module enables precise PID control and drive speed optimization. When motor speeds are matched to actual load demand via a connected VFD, energy savings of 20–40% are achievable in variable-torque applications such as pumps, fans, and compressors. The module’s 12-bit resolution ensures that small process deviations are detected and corrected before they result in energy waste.

Q2: Is the 6ES7231-0HC22-0XA8 compatible with all S7-200 CPU models?
Yes. The module is compatible with the full range of Siemens S7-200 CPUs, including the CPU 221, CPU 222, CPU 224, and CPU 226. It connects via the S7-200 expansion bus and is recognized automatically by STEP 7 Micro/WIN programming software. No additional configuration hardware is required for standard analog input applications.

Q3: What is the recommended replacement or upgrade path if the S7-200 platform is being phased out?
For facilities migrating from S7-200 to newer Siemens platforms, the functional equivalent in the S7-1200 series is the SM 1231 analog input module. ZYPLC can supply both the 6ES7231-0HC22-0XA8 for existing S7-200 systems and SM 1231 modules for upgrade projects. Our technical team can advise on signal mapping and program migration to minimize downtime during the transition.

Q4: What testing and warranty coverage does ZYPLC provide?
Every 6ES7231-0HC22-0XA8 unit shipped by ZYPLC undergoes pre-shipment functional testing, including verification of all analog input channels across the 0–10 V and 4–20 mA signal ranges. Units are covered by a 12-month warranty from the date of shipment. In the event of a confirmed defect within the warranty period, ZYPLC will arrange replacement or repair at no additional cost. Contact our team at [email protected] or +86 19859288691 for warranty claims or technical support.
