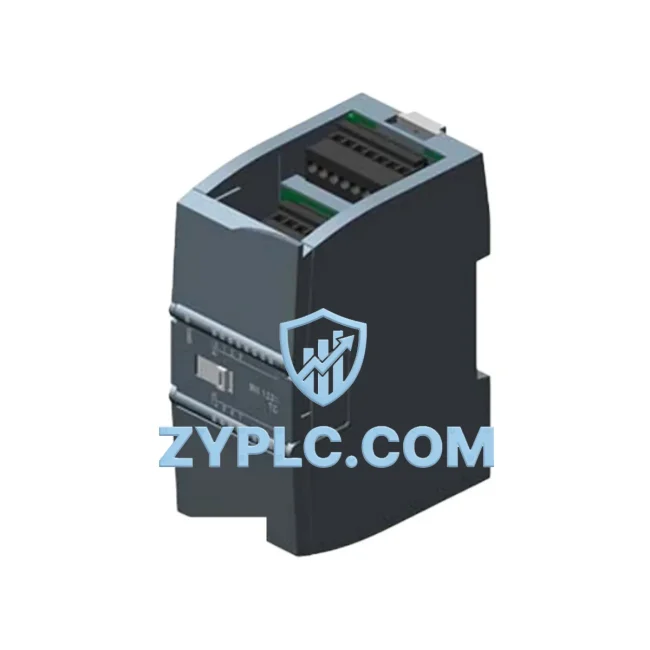

Siemens 6ES7231-5QF32-0XB0 System-Ready Analog Input for S7-1200 Architecture

Siemens 6ES7231-5QF32-0XB0 System-Ready Analog Input for S7-1200 Architecture: Contextual Integration Across Control Layers

The Siemens 6ES7231-5QF32-0XB0 is an SM 1231 series 8-channel analog input module engineered for seamless integration within the SIMATIC S7-1200 modular control platform. In modern industrial automation, no component operates in isolation — every signal module, CPU, power supply, and communication gateway must function as a coherent system. The 6ES7231-5QF32-0XB0 is designed precisely for this architectural role: it extends the analog acquisition capability of the S7-1200 controller while maintaining full compatibility with the system’s electrical, mechanical, and software environment.

Within a layered automation architecture, this module occupies the I/O layer, receiving analog process signals — such as temperature, pressure, flow, and level — from field instruments and transmitting digitized values to the CPU for real-time processing. Its 8-channel capacity allows engineers to consolidate multiple field inputs onto a single module slot, reducing panel footprint and simplifying wiring in compact control cabinets. The module supports both voltage and current input modes, making it adaptable to a wide range of transmitter types commonly found in process and discrete manufacturing environments.

System consistency begins at the hardware level. The 6ES7231-5QF32-0XB0 mounts directly onto the S7-1200 CPU rail alongside other SM 1200 series signal modules, sharing the same backplane communication bus. This eliminates the need for external signal converters or protocol bridges, preserving signal integrity and reducing potential failure points. Engineers working with the CPU 1214C (6ES7214-1AG40-0XB0) or CPU 1215C (6ES7215-1AG40-0XB0) will find that this analog input module integrates without additional configuration overhead — the TIA Portal engineering environment automatically recognizes the module and populates its parameter set upon hardware detection.

Redundancy and system resilience are critical considerations in high-availability applications. While the S7-1200 platform is primarily deployed in standard availability architectures, the modular design of the SM 1231 series allows for rapid module replacement without disturbing adjacent I/O wiring. Combined with the SIMATIC S7-1200 power supply modules such as the PM 1207 (6EP1332-1SH71), which provides stable 24 VDC bus power, the system maintains consistent analog acquisition even under fluctuating load conditions. For applications requiring higher redundancy, the 6ES7231-5QF32-0XB0 can be deployed within architectures that incorporate the CP 1242-7 GPRS communication processor or the CM 1241 serial communication module for remote monitoring and diagnostics.

Network layer integration is equally important. The S7-1200 CPU communicates over PROFINET IO, and the analog data acquired by the 6ES7231-5QF32-0XB0 is made available to SCADA systems, HMI panels, and higher-level controllers via this industrial Ethernet backbone. The SIMATIC HMI KTP700 Basic (6AV2123-2GB03-0AX0) or KTP900 Basic panels can display real-time analog values directly from the CPU’s process image, enabling operators to monitor field conditions without additional data conversion steps. This tight integration between the I/O layer and the human-machine interface layer is a hallmark of the S7-1200 system architecture.

At the execution layer, analog input data from the 6ES7231-5QF32-0XB0 drives PID control loops, alarm thresholds, and interlock logic within the CPU program. The module’s 16-bit resolution ensures that fine process variations are captured accurately, supporting precise closed-loop control in applications such as temperature regulation, pressure management, and flow balancing. Engineers can configure input ranges, filter time constants, and diagnostic reporting directly within TIA Portal, streamlining commissioning and reducing on-site engineering time.

Long-term maintenance efficiency is a key advantage of standardized modular architectures. Because the 6ES7231-5QF32-0XB0 is part of the established SM 1231 product family, spare parts availability is predictable and procurement lead times are manageable. Facilities maintaining S7-1200-based systems can stock a single module type to cover multiple analog input points across different panels, simplifying inventory management. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that replacement modules meet original performance specifications and that any latent defects are addressed without additional cost to the end user.

Architecture Specification Table

Coordinated Control System Design

The 6ES7231-5QF32-0XB0 achieves its full potential when deployed as part of a coordinated S7-1200 control system. A typical architecture begins with the CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0) as the central processing unit, executing the control program and managing the process image of all connected I/O modules. The PM 1207 power supply module (6EP1332-1SH71) provides regulated 24 VDC to the CPU and signal modules, ensuring stable operation across varying load conditions.

On the digital side, the SM 1221 digital input module (6ES7221-1BF32-0XB0) and SM 1222 digital output module (6ES7222-1BF32-0XB0) handle discrete signals from pushbuttons, limit switches, solenoid valves, and motor contactors. These modules share the same backplane rail as the 6ES7231-5QF32-0XB0, creating a unified I/O assembly that the CPU addresses through a consistent memory map. For analog output requirements — such as driving variable-speed drives or control valves — the SM 1232 analog output module (6ES7232-4HB32-0XB0) complements the analog input module within the same rack.

Communication expansion is handled by the CM 1241 RS485 communication module (6ES7241-1CH32-0XB0), which enables MODBUS RTU or USS protocol communication with variable frequency drives, intelligent field devices, and legacy equipment. For Ethernet-based integration with SCADA systems or cloud platforms, the CP 1243-1 communication processor (6GK7243-1BX30-0XE0) extends the CPU’s PROFINET capability with additional security and remote access features. At the human-machine interface layer, the SIMATIC HMI KTP700 Basic panel provides a 7-inch touch display for real-time visualization of analog trends, alarm states, and system diagnostics — all sourced directly from the CPU’s process data, which includes the analog values acquired by the 6ES7231-5QF32-0XB0.

Terminal modules and wiring accessories from the SIMATIC S7-1200 accessory range complete the installation, providing organized field wiring connections that simplify both initial commissioning and subsequent maintenance activities.

Application in Layered Automation Systems

The 6ES7231-5QF32-0XB0 is deployed across a broad spectrum of industrial sectors where reliable analog signal acquisition is fundamental to process control.

In manufacturing and assembly automation, the module acquires analog feedback from torque sensors, load cells, and position transducers, enabling the CPU to implement closed-loop quality control and reject out-of-tolerance parts in real time. In power distribution and energy management applications, it monitors current transformers and voltage transducers, providing the CPU with the data needed to calculate power consumption, detect overloads, and trigger protective relays.

In petrochemical and chemical processing plants, the module interfaces with 4–20 mA transmitters measuring temperature, pressure, and flow in hazardous area installations. Its ATEX Zone 2 certification allows deployment in control panels located adjacent to classified areas, reducing the need for costly intrinsically safe barriers in many configurations. In water and wastewater treatment facilities, the 6ES7231-5QF32-0XB0 acquires level, pH, turbidity, and dissolved oxygen signals, feeding the CPU’s PID control loops that regulate dosing pumps and aeration blowers.

In mining and metallurgical operations, the module handles high-noise analog environments by leveraging its configurable input filtering, which suppresses electromagnetic interference from large motors and variable frequency drives. In packaging and material handling lines, it monitors web tension, fill weight, and conveyor speed signals, enabling the CPU to maintain consistent product quality at high throughput rates. Across all these applications, the standardized S7-1200 architecture ensures that engineering knowledge, spare parts, and diagnostic tools are transferable between sites and projects.

Architecture Engineering FAQ

Q1: How many SM 1231 analog input modules can be connected to a single S7-1200 CPU, and are there any restrictions on module placement?

The number of signal modules that can be connected to an S7-1200 CPU depends on the CPU model. The CPU 1211C supports no signal modules, the CPU 1212C supports up to 2, the CPU 1214C and 1215C support up to 8, and the CPU 1217C supports up to 8. The 6ES7231-5QF32-0XB0 must be mounted to the right of the CPU and any existing signal modules, following the standard S7-1200 expansion sequence. No special placement restrictions apply to this module beyond the general S7-1200 hardware configuration rules. All module assignments are configured and validated within TIA Portal’s hardware configuration editor before download to the CPU.

Q2: Is the 6ES7231-5QF32-0XB0 compatible with both TIA Portal V15 and later versions, and what firmware version is required on the CPU?

The 6ES7231-5QF32-0XB0 is supported in TIA Portal V13 SP1 and all subsequent versions, including TIA Portal V15, V16, V17, V18, and V19. The CPU firmware requirement depends on the specific CPU model, but generally CPU firmware V4.0 or later is recommended for full feature compatibility, including advanced diagnostic functions. When using TIA Portal, the hardware catalog automatically filters compatible module versions based on the selected CPU firmware, preventing configuration mismatches. Engineers should verify the installed firmware version via the CPU’s web server or the TIA Portal online diagnostics view before finalizing the hardware configuration.

Q3: What does the 12-Month Warranty cover for the 6ES7231-5QF32-0XB0, and what is the process for warranty claims?

All 6ES7231-5QF32-0XB0 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, component failures, and performance deviations from the published Siemens technical specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental limits. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference, module serial number, and a description of the observed fault. ZYPLC will arrange for module inspection and, where the fault is confirmed as warranty-eligible, provide a replacement unit or repair at no additional charge.
