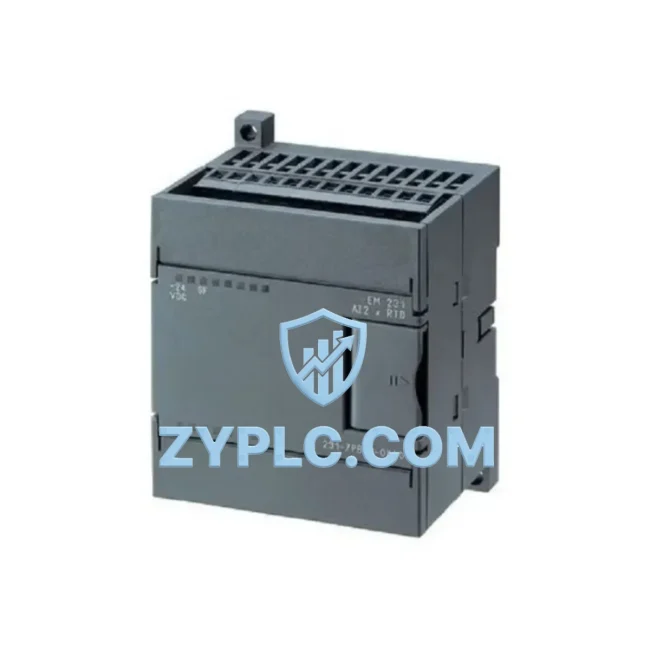

Siemens 6ES7231-7PB22-0XA0 Energy-Saving Analog Input Module S7-200

Siemens 6ES7231-7PB22-0XA0 Energy-Saving Analog Input Module for Optimized S7-200 Automation

The Siemens 6ES7231-7PB22-0XA0 is a high-precision analog input module designed for the S7-200 Micro PLC platform, engineered to deliver accurate real-time signal acquisition while minimizing system power draw. In modern manufacturing environments where energy accountability is no longer optional, this module plays a foundational role in capturing the analog process variables — temperature, pressure, flow, and current — that feed directly into energy optimization decisions at the controller level.

By delivering clean, low-noise analog readings to the S7-200 CPU — such as the CPU 224XP or CPU 226 — the 6ES7231-7PB22-0XA0 enables tighter closed-loop control, reducing the overshoot and hunting behavior that wastes energy in motor-driven and heating systems. When paired with a Siemens MICROMASTER 440 or SINAMICS G120 variable frequency drive, the analog feedback from this module allows the drive to modulate motor speed precisely to actual process demand, eliminating the fixed-speed overconsumption that accounts for a significant share of industrial electricity waste.

This module supports RTD (PT100) temperature inputs, making it particularly effective in thermal process monitoring applications. Accurate temperature data fed into the S7-200 program logic allows the controller to optimize heating and cooling cycles, reducing unnecessary energy expenditure during idle or low-demand periods. In combination with a Siemens PAC3200 power monitoring device or a 7KM2112 SENTRON energy meter, the analog signals captured by the 6ES7231-7PB22-0XA0 can be correlated with real-time power consumption data to build a complete energy audit trail for the production line.

In conveyor and packaging line applications, the module’s fast signal update cycle supports dynamic adjustment of line speed through the S7-200’s PID control blocks. This reduces mechanical stress on drive components and lowers peak current draw during acceleration phases — a direct contributor to reduced energy demand charges. The EM 231 expansion module family, of which the 6ES7231-7PB22-0XA0 is a member, integrates seamlessly with the S7-200 I/O bus without additional interface hardware, keeping system architecture lean and power-efficient.

For predictive maintenance workflows, the analog inputs from this module can be used to monitor motor winding temperature or hydraulic pressure trends over time. When these values are logged via the S7-200’s data logging capability or transmitted through a CP 243-1 Ethernet communication module to a SCADA or MES system, maintenance teams gain early warning of degrading equipment performance — preventing unplanned downtime that disrupts production rhythm and forces energy-intensive restart sequences.

The 6ES7231-7PB22-0XA0 is fully compatible with STEP 7-Micro/WIN programming software, allowing engineers to configure input ranges, filtering parameters, and alarm thresholds without additional licensing overhead. Its compact DIN-rail form factor and low self-consumption make it suitable for panel installations where space and heat dissipation are constrained. Every unit shipped by ZYPLC undergoes functional verification and output testing prior to dispatch, ensuring signal accuracy within specification from day one of installation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7231-7PB22-0XA0 operates as the sensing front-end in a layered energy-aware automation architecture. At the controller level, the S7-200 CPU 224XP processes the RTD signals and executes PID routines that govern downstream actuators. Drive-side, a SINAMICS G120 or MICROMASTER 440 variable frequency drive receives speed reference signals from the CPU’s analog output — often via the companion EM 232 analog output module — and adjusts motor torque and speed in real time based on the thermal and process feedback delivered by the 6ES7231-7PB22-0XA0.

On the power monitoring side, a Siemens SENTRON PAC3200 or 7KM2112 energy meter installed upstream of the motor control center captures active power, reactive power, and harmonic distortion data. When this energy data is cross-referenced with the process variable trends from the analog input module, engineers can identify inefficiency windows — periods where motors run at high load but deliver low process output — and reprogram control logic accordingly.

For distributed installations, a CP 243-1 Industrial Ethernet module or CP 243-2 AS-Interface master can extend the S7-200 system’s communication reach, allowing the analog data collected by the 6ES7231-7PB22-0XA0 to be transmitted to a Siemens WinCC SCADA system or third-party MES platform for enterprise-level energy reporting. In safety-critical zones, a Siemens LOGO! 8 or a dedicated EM 223 digital I/O module can be integrated alongside the analog module to handle interlock and alarm output functions without burdening the analog signal chain.

This architecture — spanning analog sensing, PLC processing, VFD actuation, power metering, and network communication — forms a complete energy optimization loop where the 6ES7231-7PB22-0XA0 serves as the critical data origin point.

Power Optimization in Real Production Lines

In a typical injection molding or extrusion line, barrel and mold temperature control is one of the largest energy consumers. The 6ES7231-7PB22-0XA0, monitoring PT100 sensors embedded in heating zones, provides the S7-200 controller with the precise temperature feedback needed to implement proportional heating control rather than simple on/off switching. This alone can reduce heating energy consumption by 15–25% in well-tuned systems by eliminating the thermal overshoot cycles that waste energy and stress heating elements.

In pump and fan applications governed by the S7-200 platform, the analog input module enables pressure or flow-based feedback control of a connected SINAMICS G120 drive. Rather than running the pump at fixed speed against a throttling valve — a notoriously inefficient practice — the system modulates pump speed to match actual flow demand. This affinity-law-based optimization can reduce pump motor energy consumption by 30–50% at partial load conditions, directly lowering electricity costs and reducing mechanical wear that leads to unplanned maintenance shutdowns.

For facilities tracking Overall Equipment Effectiveness (OEE), the real-time analog data from the 6ES7231-7PB22-0XA0 feeds into availability and performance calculations. Equipment running outside optimal thermal or pressure ranges is flagged earlier, allowing maintenance intervention before a failure event causes a line stoppage. Fewer unplanned stops mean more consistent production rhythm, lower restart energy spikes, and better utilization of installed capacity — all measurable improvements to the plant’s energy intensity per unit of output.

All units supplied by ZYPLC are sourced from verified supply channels, tested for signal accuracy and communication integrity before shipment, and covered by a 12-month warranty. Replacement and technical support are available to minimize any operational disruption.

Energy Optimization FAQ

Q1: How does the 6ES7231-7PB22-0XA0 contribute to energy savings in motor-driven systems?
By providing accurate RTD temperature feedback to the S7-200 CPU, this module enables precise closed-loop control of variable frequency drives such as the SINAMICS G120 or MICROMASTER 440. The drive adjusts motor speed based on actual process demand rather than running at fixed speed, which can reduce motor energy consumption by 30–50% in pump and fan applications operating at partial load.

Q2: Is the 6ES7231-7PB22-0XA0 compatible with all S7-200 CPU models?
Yes. The module is compatible with all S7-200 CPU variants including the CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226. It connects directly to the S7-200 expansion I/O bus without additional interface hardware and is configured using the standard STEP 7-Micro/WIN programming environment.

Q3: Can this module replace an older EM 231 RTD module in an existing installation?
The 6ES7231-7PB22-0XA0 is a direct form-fit-function replacement for earlier EM 231 RTD variants. Before installation, verify the firmware version of the host CPU is compatible and confirm the input channel configuration in your existing STEP 7-Micro/WIN project matches the new module’s parameter set. ZYPLC’s technical team can assist with compatibility verification prior to shipment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7231-7PB22-0XA0 unit shipped by ZYPLC undergoes pre-shipment functional testing, including signal accuracy verification across the supported RTD input range and I/O bus communication integrity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement units or technical support to restore system operation with minimal downtime impact.
