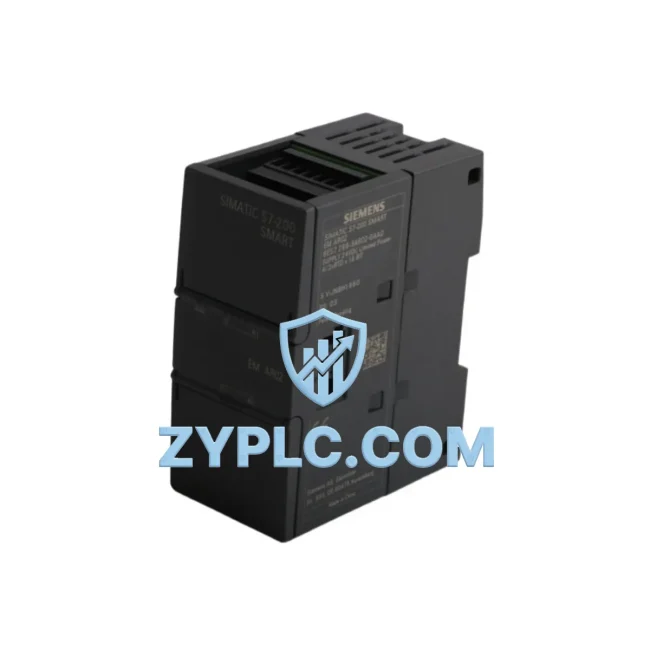

Siemens 6ES7288-3AR02-0AA0 System-Ready RTD Module for S7-200 SMART

Siemens 6ES7288-3AR02-0AA0 System-Ready RTD Module for S7-200 SMART Architecture

The Siemens 6ES7288-3AR02-0AA0 is a dedicated RTD analog input expansion module engineered for seamless integration within the S7-200 SMART control system architecture. Designed to extend the thermal measurement capabilities of the S7-200 SMART CPU series, this module occupies a critical position in the I/O layer of layered automation systems, bridging the gap between field-level temperature sensors and the central processing unit. Its role is not simply to acquire data — it is to ensure that the entire control loop, from sensor to actuator, operates with the precision, stability, and long-term reliability that industrial environments demand.

In a fully realized S7-200 SMART architecture, the 6ES7288-3AR02-0AA0 connects directly to the CPU module — such as the CPU ST20, CPU ST30, CPU ST40, or CPU ST60 — via the local expansion bus, eliminating the need for additional communication wiring and reducing signal latency to a minimum. This tight integration ensures that RTD temperature data is available to the CPU scan cycle in real time, enabling closed-loop control strategies that depend on accurate thermal feedback. Whether the application involves PID temperature regulation, thermal protection interlocking, or process trend monitoring, this module delivers the signal fidelity required for consistent control performance.

The module supports standard RTD sensor types including Pt100 and Pt1000, providing engineers with the flexibility to match existing field instrumentation without requiring sensor replacement or signal conditioning hardware. Each input channel is individually configurable, allowing mixed sensor deployments within a single module and simplifying system commissioning. The high-resolution analog-to-digital conversion ensures that even small temperature variations are captured accurately, which is essential in applications such as pharmaceutical batch processing, food and beverage temperature control, and precision chemical reactor management.

From a system architecture perspective, the 6ES7288-3AR02-0AA0 is designed to coexist with other S7-200 SMART expansion modules, including the 6ES7288-3AE04-0AA0 analog input module, the 6ES7288-3AQ02-0AA0 analog output module, and the 6ES7288-2DR08-0AA0 digital I/O expansion module. This modular expandability allows engineers to construct a precisely tailored I/O configuration without over-specifying hardware, keeping system costs controlled while maintaining full functional coverage. The expansion bus architecture supports multiple modules in a daisy-chain configuration, and the CPU automatically recognizes and maps each module during startup, reducing configuration overhead during commissioning.

At the network and communication layer, the S7-200 SMART platform — and by extension this module — integrates with PROFINET and Modbus TCP/IP communication stacks supported by the CPU. This allows the temperature data acquired by the 6ES7288-3AR02-0AA0 to be transmitted upstream to SCADA systems, distributed control systems, or HMI panels such as the Siemens SMART LINE series or KTP series panels via the CPU’s Ethernet port. The result is a fully connected data pathway from the RTD sensor in the field to the operator interface in the control room, supporting real-time visualization, alarm management, and historical data logging without additional gateway hardware.

Power integrity is a foundational concern in any expansion module deployment. The 6ES7288-3AR02-0AA0 draws its operating power from the S7-200 SMART CPU’s internal power bus, which is supplied by a dedicated 24VDC power supply module. Engineers should account for the cumulative current draw of all expansion modules when sizing the power supply, particularly in configurations that combine multiple analog and digital I/O modules. Proper power budgeting ensures that the system operates within its electrical design margins, preventing voltage sag conditions that could compromise analog measurement accuracy.

For redundancy-sensitive applications, the S7-200 SMART platform supports hot-standby CPU configurations in conjunction with appropriate communication and I/O strategies. While the 6ES7288-3AR02-0AA0 itself operates in a standard single-path I/O topology, its data can be mirrored and monitored through SCADA-level redundancy schemes, ensuring that temperature measurement continuity is maintained even during CPU switchover events. This approach is particularly relevant in power generation, water treatment, and petrochemical applications where process continuity is a regulatory and operational requirement.

Installation and commissioning of the 6ES7288-3AR02-0AA0 follow the standard S7-200 SMART expansion procedure. The module mounts on a standard DIN rail adjacent to the CPU, connects via the expansion cable, and is automatically detected by STEP 7-Micro/WIN SMART programming software. Channel configuration, including sensor type selection and filter settings, is performed within the software environment without requiring hardware jumpers or DIP switches, reducing the risk of configuration errors during field installation. The module’s compact form factor and tool-free installation design minimize panel space requirements and reduce installation time.

Long-term maintenance of the 6ES7288-3AR02-0AA0 is supported by Siemens’ established spare parts and service infrastructure. The module’s diagnostic capabilities, accessible through the CPU’s system data blocks, provide real-time status information including wire-break detection and out-of-range alerts, enabling predictive maintenance strategies that reduce unplanned downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that customers have full recourse in the event of hardware defects, and are tested prior to shipment to verify functional integrity.

Architecture Specification Table

Coordinated Control System Design

The 6ES7288-3AR02-0AA0 achieves its full potential when deployed as part of a coordinated S7-200 SMART system architecture. At the processing core, the CPU ST40 or CPU ST60 serves as the central controller, executing the PLC program and managing all expansion module data. Alongside the RTD module, the 6ES7288-3AE04-0AA0 analog input module handles standard 4–20mA and 0–10V process signals, while the 6ES7288-3AQ02-0AA0 analog output module drives control valves, variable frequency drives, and other analog actuators. Digital I/O expansion is provided by the 6ES7288-2DR08-0AA0, which handles discrete field signals such as limit switches, solenoid valves, and motor contactors.

At the power layer, a dedicated 24VDC regulated power supply — sized to accommodate the combined current draw of the CPU and all expansion modules — ensures stable operating conditions for the entire rack. Signal integrity at the field wiring level is maintained through the use of shielded twisted-pair cables for RTD connections, with cable shields grounded at a single point to prevent ground loop interference. Terminal blocks and marshalling panels within the control cabinet provide organized wiring termination points, simplifying both initial installation and subsequent maintenance activities.

For operator interaction, the S7-200 SMART CPU’s Ethernet port connects to a Siemens SMART LINE HMI panel or a KTP700 Basic panel, providing real-time temperature display, alarm acknowledgment, and trend visualization. The HMI communicates with the CPU via the S7 communication protocol over Ethernet, with the temperature values from the 6ES7288-3AR02-0AA0 mapped to HMI tags through the STEP 7-Micro/WIN SMART symbol table. This end-to-end data pathway — from RTD sensor through the analog module, CPU, Ethernet network, and HMI — represents a complete and coherent control system architecture built around the capabilities of the S7-200 SMART platform.

Application in Layered Automation Systems

In manufacturing environments, the 6ES7288-3AR02-0AA0 is widely applied in injection molding machine temperature zone control, where precise barrel and mold temperature regulation directly affects product quality and cycle time consistency. The module’s high-resolution RTD measurement capability enables tight PID control loops that maintain temperature setpoints within ±1°C, reducing scrap rates and improving process repeatability.

In the power generation sector, this module is deployed in turbine bearing temperature monitoring systems, where early detection of abnormal temperature rise is critical for preventing catastrophic equipment failure. The module’s wire-break detection diagnostic feature provides an additional layer of protection, alerting operators to sensor faults before they can cause false readings that might mask developing thermal anomalies.

In water treatment and municipal utility applications, the 6ES7288-3AR02-0AA0 monitors process fluid temperatures in chemical dosing systems, UV disinfection units, and heat exchanger circuits. Its compatibility with the S7-200 SMART platform’s Modbus TCP/IP communication capability allows temperature data to be integrated into plant-wide SCADA systems, supporting centralized monitoring and regulatory compliance reporting.

In petrochemical and oil and gas processing facilities, the module is used in heat tracing control systems, where maintaining pipeline and vessel temperatures above the pour point or freeze point of process fluids is essential for operational continuity. The module’s wide operating temperature range and robust industrial design ensure reliable performance in the demanding thermal and electrical environments typical of these facilities.

Architecture Engineering FAQ

Q1: How many 6ES7288-3AR02-0AA0 modules can be connected to a single S7-200 SMART CPU?
The S7-200 SMART CPU supports up to 6 expansion modules in a local expansion configuration, subject to the CPU’s total I/O point limit and power bus current capacity. When combining multiple analog and digital expansion modules, engineers should calculate the total current draw from the CPU’s 5VDC and 24VDC buses to ensure operation within the CPU’s rated output capacity. The STEP 7-Micro/WIN SMART system block configuration tool provides guidance on expansion module compatibility and power budgeting during the design phase.

Q2: Is the 6ES7288-3AR02-0AA0 compatible with 2-wire and 4-wire RTD sensors, or only 3-wire configurations?
The 6ES7288-3AR02-0AA0 is designed for 3-wire RTD connections, which is the most common wiring configuration for industrial Pt100 and Pt1000 sensors. This 3-wire topology provides lead resistance compensation, improving measurement accuracy over long cable runs. For applications where 2-wire or 4-wire RTD sensors are already installed, appropriate wiring adaptation or signal conditioning may be required. Engineers should consult the module’s technical manual and verify sensor compatibility during the system design phase to avoid measurement errors in the final installation.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims through ZYPLC?
The 12-Month Warranty provided by ZYPLC covers hardware defects in materials and workmanship for the 6ES7288-3AR02-0AA0 module from the date of shipment. All modules are tested prior to dispatch to verify functional integrity. In the event of a warranty claim, customers should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the fault. ZYPLC will arrange for module inspection, repair, or replacement as appropriate, minimizing system downtime and ensuring continuity of the customer’s control system operation.
