Siemens 6ES7322-1HF01-0AA0 System-Ready Digital Output for S7-300

Siemens 6ES7322-1HF01-0AA0 System-Ready Digital Output for S7-300 Architecture

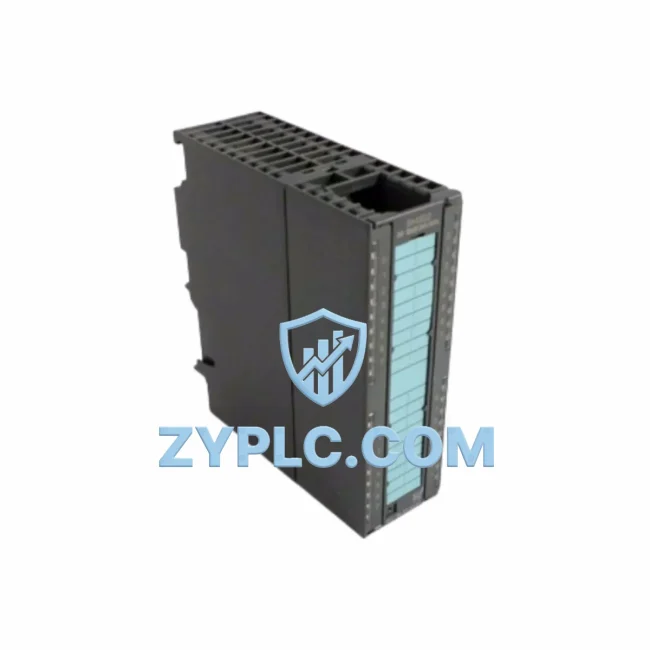

The Siemens 6ES7322-1HF01-0AA0 is a high-density SM 322 Digital Output module engineered for seamless integration within the SIMATIC S7-300 control system architecture. Designed to serve as the execution layer in multi-tier industrial automation systems, this module delivers reliable 24 VDC digital output signals across 8 channels, enabling precise actuation of solenoid valves, contactors, motor starters, and signal indicators in demanding production environments. Whether deployed in discrete manufacturing, process control, or utility infrastructure, the 6ES7322-1HF01-0AA0 is built to maintain signal integrity and system consistency across the full lifecycle of the installation.

In a well-structured SIMATIC S7-300 architecture, the 6ES7322-1HF01-0AA0 does not operate in isolation — it functions as a coordinated node within a layered control hierarchy. At the control layer, a CPU 315-2 DP or CPU 317-2 PN/DP processes the logic and dispatches output commands through the backplane bus to this module. The module’s position on the S7-300 rail system, alongside SM 321 digital input modules and SM 331 analog input modules, forms a complete I/O tier that bridges the controller’s decision-making with physical field devices. This tight integration ensures deterministic response times and minimizes latency between control logic execution and field actuation.

System architects frequently pair the 6ES7322-1HF01-0AA0 with the PS 307 power supply module to ensure stable 24 VDC bus voltage across the entire rack. In larger installations, the IM 360/IM 361 interface modules extend the I/O configuration across multiple expansion racks, allowing the digital output module to participate in distributed control architectures without compromising communication stability. For applications requiring fieldbus connectivity, the CP 342-5 PROFIBUS communication processor integrates the S7-300 station into plant-wide PROFIBUS DP networks, enabling the 6ES7322-1HF01-0AA0’s output states to be monitored and controlled from supervisory systems or SCADA platforms.

At the human-machine interface layer, TP700 Comfort or TP1200 Comfort HMI panels connected via MPI or PROFINET provide operators with real-time visibility into output channel states, fault diagnostics, and process status. This visibility is critical for rapid fault isolation and reduces mean time to repair in high-availability production lines. The module’s diagnostic capability — including short-circuit and overload detection per output channel — feeds directly into the S7-300 CPU’s diagnostic buffer, enabling proactive maintenance scheduling rather than reactive breakdown response.

In redundancy-critical applications such as power generation, water treatment, or chemical processing, the 6ES7322-1HF01-0AA0 can be deployed within hot-standby architectures using the H-System configuration with CPU 317H or CPU 319-3 PN/DP, ensuring that output commands are maintained even during CPU switchover events. Terminal modules such as the SM 374 simulation module support commissioning and loop testing without requiring live field connections, accelerating engineering validation and reducing site commissioning time.

From a long-term maintenance perspective, the 6ES7322-1HF01-0AA0’s modular design allows hot-swap replacement on the S7-300 rail without disturbing adjacent modules or requiring full system shutdown in many configurations. This characteristic is particularly valuable in continuous process industries where planned downtime windows are narrow. ZYPLC maintains verified stock of this module, with each unit subjected to functional output testing prior to dispatch, ensuring that replacement modules arrive ready for immediate installation.

Architecture Specification Table

Coordinated Control System Design

The 6ES7322-1HF01-0AA0 achieves its full potential when integrated within a coherent SIMATIC S7-300 system architecture. A typical deployment begins at the control layer with a CPU 315-2 DP, which executes the ladder logic or function block programs that govern output states. The CPU communicates with the digital output module via the S7-300 backplane bus at cycle times well within the demands of most discrete and process control applications. Adjacent to the output module on the same mounting rail, SM 321 digital input modules capture field feedback signals — limit switches, proximity sensors, and pushbutton states — completing the closed-loop control cycle.

Power integrity is maintained by the PS 307 5A or PS 307 10A power supply module, which provides regulated 24 VDC to both the CPU and I/O modules. In multi-rack configurations, IM 360 and IM 361 interface modules extend the backplane bus to expansion racks, where additional SM 322 output modules or SM 332 analog output modules handle distributed actuation tasks. For process industries requiring analog measurement, SM 331 analog input modules on the same rack provide 4–20 mA or 0–10 V signal acquisition, feeding process variables directly to the CPU for PID control loops whose output commands are ultimately executed by the 6ES7322-1HF01-0AA0.

Network integration is handled by the CP 342-5 PROFIBUS DP communication processor, which connects the S7-300 station to plant-wide fieldbus networks and enables the digital output module’s channel states to be visible at the SCADA or DCS level. For PROFINET-based architectures, the CPU 317-2 PN/DP’s integrated PROFINET interface eliminates the need for a separate CP module, reducing rack space and simplifying network topology. At the field level, ET 200S distributed I/O stations extend the system’s reach to remote panel locations, maintaining the same programming model and diagnostic framework as the centralized S7-300 rack.

Application in Layered Automation Systems

In discrete manufacturing — automotive assembly, electronics production, and packaging lines — the 6ES7322-1HF01-0AA0 controls pneumatic valve banks, conveyor drive contactors, and indicator light arrays. Its 8-channel density and compact 40mm width allow high output point counts within constrained control cabinet footprints, a critical consideration in machine-integrated panel designs.

In power generation and electrical substation automation, the module drives relay coils for circuit breaker control, transformer tap changer commands, and alarm annunciator panels. Its transistor output design eliminates mechanical contact wear, extending service intervals in applications where output switching frequency is high. Water treatment and municipal utility installations benefit from the module’s wide operating temperature range and robust short-circuit protection, which safeguard against the electrical noise and ground faults common in pump station environments.

In petrochemical and refinery applications, the 6ES7322-1HF01-0AA0 participates in safety-instrumented system architectures as a non-safety output module for utility and auxiliary control functions, operating alongside dedicated F-modules in the same S7-300 rack. Mining and metallurgical processing plants deploy this module for conveyor sequencing, crusher control, and ventilation fan management, where the module’s diagnostic transparency reduces unplanned downtime in remote or underground installations.

Architecture Engineering FAQ

Q1: Is the 6ES7322-1HF01-0AA0 compatible with both standard S7-300 racks and ET 200M distributed I/O stations?
Yes. The SM 322 6ES7322-1HF01-0AA0 is fully compatible with standard S7-300 mounting rails and with ET 200M IM 153-x interface modules, allowing it to be deployed in both centralized and distributed I/O architectures without firmware or configuration changes. The same STEP 7 or TIA Portal hardware configuration applies in both cases.

Q2: What commissioning tools are recommended for verifying output channel function before connecting field devices?
Siemens SM 374 simulation modules can be inserted in place of the 6ES7322-1HF01-0AA0 during initial rack commissioning to verify CPU communication and address assignment. Once the module is installed, STEP 7’s hardware diagnostics or TIA Portal’s online device view provide channel-level status monitoring, allowing engineers to force individual output bits and confirm field wiring continuity before full system startup.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term architectural maintenance?
Every 6ES7322-1HF01-0AA0 supplied by ZYPLC carries a 12-Month Warranty covering functional output performance, backplane bus communication, and diagnostic reporting. Each unit is tested against channel output voltage, load current capacity, and bus communication integrity prior to dispatch. ZYPLC maintains ongoing inventory of S7-300 I/O modules to support long-term architectural maintenance, enabling rapid like-for-like replacement without requiring system reconfiguration or engineering rework.
