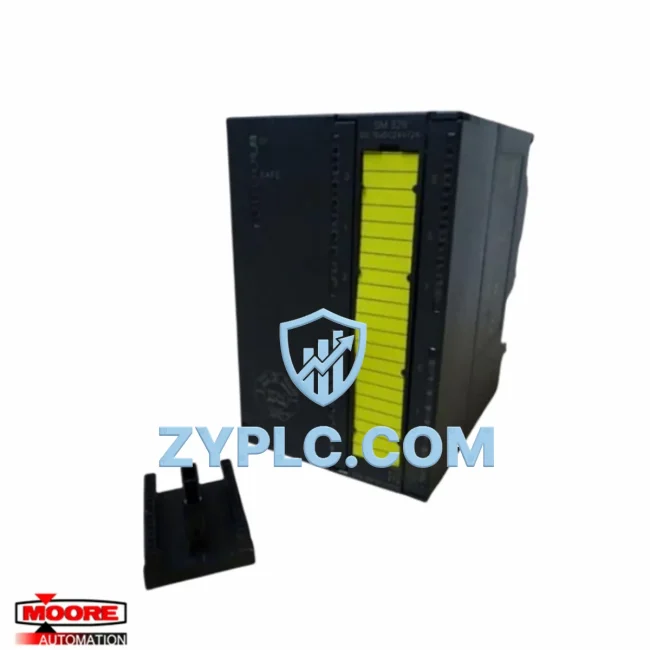

The Siemens 6ES7326-1RF00-0AB0 is a 24-channel fail-safe digital input module (SM 326 F-DI) engineered for deployment within the SIMATIC S7-300 safety-oriented control architecture. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a layered automation system — coordinating signal acquisition at the field level, transmitting safety-relevant data upward to the fail-safe CPU, and enabling the broader control platform to execute protective shutdown sequences with deterministic reliability. Its role spans the I/O layer and intersects directly with the control layer, network layer, and power distribution layer, making it a foundational element in any SIL 2/SIL 3-compliant industrial control system.

In modern industrial automation, the integrity of a safety system depends not on any single module but on the coherent interaction of every component across the control hierarchy. The 6ES7326-1RF00-0AB0 is built to support this philosophy — delivering consistent, cross-validated digital input acquisition that feeds directly into the safety logic executed by the F-CPU, while remaining fully compatible with the S7-300 backplane infrastructure and PROFIBUS DP communication backbone.

Architecture Specification Table

Coordinated Control System Design

The 6ES7326-1RF00-0AB0 achieves its full operational value when integrated within a complete SIMATIC S7-300 safety system. At the control layer, the module interfaces directly with the CPU 315F-2 PN/DP or CPU 317F-2 DP fail-safe processors, which execute the safety program and perform cross-channel comparison of the input signals received from the F-DI module. The F-CPU’s safety runtime environment — operating under IEC 61508 — validates each input state before triggering any protective action, ensuring that spurious signals or single-point failures do not result in unintended shutdowns or missed safety events.

At the power layer, the PS 307 24 V DC power supply module provides stable rail voltage to the S7-300 backplane, ensuring that the 6ES7326-1RF00-0AB0 and adjacent I/O modules receive consistent operating power. In redundant architectures, dual power supply configurations are recommended to eliminate single points of failure at the power distribution level.

For distributed I/O expansion, the module can be deployed alongside the IM 360 / IM 361 interface modules, enabling multi-rack configurations where safety I/O is physically distributed across the control cabinet while remaining logically unified under a single CPU. This is particularly relevant in large-scale process plants where field devices are spread across multiple marshalling panels.

At the network layer, PROFIBUS DP — managed through the CPU’s integrated DP port — connects the S7-300 safety system to remote I/O stations such as the ET 200M distributed I/O system, which can host additional SM 326 F-DI or SM 326 F-DO fail-safe output modules. This architecture allows safety signals to be collected at the field level and transmitted to the central F-CPU with deterministic cycle times, supporting both emergency stop circuits and safety interlock chains.

At the human-machine interface layer, SIMATIC HMI TP1200 Comfort or MP377 panels connected via PROFINET or MPI provide operators with real-time visibility into the safety system status, including channel diagnostics, module health, and safety program execution state. This transparency is critical for rapid fault identification and minimizing unplanned downtime.

At the execution layer, the digital outputs from the F-CPU — routed through SM 326 F-DO fail-safe output modules — drive safety relays, motor contactors, and solenoid valves that physically isolate hazardous energy in response to safety events detected by the 6ES7326-1RF00-0AB0. The complete signal chain — from field sensor through F-DI module, F-CPU safety logic, and F-DO output — forms a closed, validated safety loop compliant with functional safety standards.

Application in Layered Automation Systems

Manufacturing and Assembly Lines: In automotive body-in-white welding lines and robotic assembly cells, the 6ES7326-1RF00-0AB0 collects safety signals from light curtains, two-hand control devices, and emergency stop buttons distributed across the production floor. The module’s 1oo2 input evaluation mode ensures that dual-channel safety devices are correctly monitored, preventing robot motion in the presence of personnel within the safeguarded zone.

Power Generation and Electrical Utilities: In substation automation and turbine control systems, the module monitors protective relay contact outputs and circuit breaker position feedback. Its SIL 2-rated input acquisition ensures that trip signals from protection relays are faithfully captured and transmitted to the F-CPU for coordinated generator or transformer isolation sequences.

Petrochemical and Refinery Process Control: In hydrocarbon processing units, the 6ES7326-1RF00-0AB0 integrates with emergency shutdown (ESD) systems, monitoring high-pressure switches, flame detectors, and gas detection relay outputs. The module’s diagnostic coverage and cross-channel validation capabilities support the functional safety requirements of SIL 2 ESD loops as defined by IEC 61511.

Water and Wastewater Treatment: In pumping stations and treatment plant control systems, the module acquires digital status signals from level switches, valve position indicators, and motor protection relays. Its compatibility with the S7-300 platform allows seamless integration with existing SCADA systems via PROFIBUS DP, enabling centralized monitoring of distributed safety functions across multiple pump stations.

Mining and Metallurgy: In conveyor belt safety systems and crusher control applications, the 6ES7326-1RF00-0AB0 monitors pull-wire emergency stop switches and belt misalignment detectors. The module’s robust design and wide operating temperature range support reliable operation in the harsh electrical environments typical of mining infrastructure.

Packaging and Material Handling: In high-speed packaging lines, the module interfaces with safety door switches, safety mats, and area scanners, enabling the F-CPU to implement zone-based safety functions that allow partial line operation during maintenance activities without requiring a full production shutdown.

Architecture Engineering FAQ

Q1: Is the 6ES7326-1RF00-0AB0 compatible with both new S7-300 installations and existing legacy systems?
Yes. The SM 326 F-DI module is fully compatible with the standard S7-300 backplane rail and can be installed in any existing S7-300 rack alongside standard (non-safety) I/O modules. It requires a fail-safe CPU (e.g., CPU 315F-2 PN/DP or CPU 317F-2 DP) and the STEP 7 Safety Advanced software package for safety program configuration. In legacy systems already running STEP 7 V5.x, the module can be integrated without replacing the existing CPU, provided the CPU firmware and safety software versions meet the minimum compatibility requirements specified in the module’s product manual.

Q2: How does the module support system redundancy and fault tolerance in critical process applications?
The 6ES7326-1RF00-0AB0 supports 1oo2 (one-out-of-two) input evaluation, which is the primary mechanism for achieving hardware fault tolerance at the input channel level. In this mode, each safety function is monitored by two independent input channels, and the F-CPU performs cross-channel comparison to detect discrepancies caused by sensor failure or wiring faults. For higher system-level redundancy, the module can be deployed in architectures where the S7-300 rack itself is duplicated, with both racks connected to independent field sensor circuits. Combined with the PS 307 dual power supply configuration and redundant PROFIBUS DP communication paths, this approach supports the fault tolerance requirements of SIL 3 safety functions.

Q3: What does the 12-Month Warranty cover, and what support is available for commissioning and long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes replacement or repair of the module at no additional cost if a covered defect is identified within the warranty period. For commissioning support, our technical team provides pre-delivery functional verification and can assist with STEP 7 Safety configuration guidance. For long-term maintenance, we maintain stock of the 6ES7326-1RF00-0AB0 and related S7-300 safety modules to support spare parts programs, minimizing the risk of extended downtime due to component unavailability. Customers operating critical infrastructure are encouraged to establish a consignment stock arrangement to ensure immediate availability of replacement modules.
