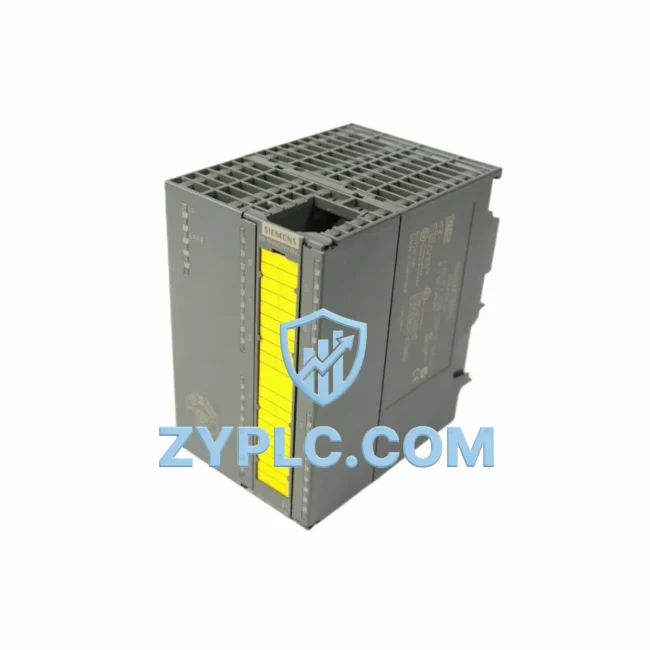

Siemens 6ES7326-2BF01-0AB0 System-Ready F-DO Safety Output for S7-300F Architecture

Siemens 6ES7326-2BF01-0AB0 System-Ready F-DO Safety Output for S7-300F Architecture

In modern industrial automation, safety is not a layer added on top of a control system — it is woven into every tier of the architecture. The Siemens 6ES7326-2BF01-0AB0 F-DO Safety Output Module is engineered to fulfill exactly this role within the SIMATIC S7-300F failsafe control platform. Designed to deliver 10 digital safety outputs at 24VDC/2A per channel, this module operates in close coordination with the CPU, power supply, I/O backplane, and field-level actuators to form a coherent, certified safety loop that meets IEC 61508 SIL 3 and EN 954-1 Category 4 requirements.

Unlike standard output modules, the 6ES7326-2BF01-0AB0 performs continuous self-diagnostics, cross-circuit monitoring, and output-state verification on every scan cycle. This means that when integrated into a safety-rated rack alongside a Siemens 6ES7315-2FJ14-0AB0 CPU 315F-2 PN/DP, the module participates in the full F-runtime environment — executing safety programs, responding to F-DI inputs, and driving actuators such as safety relays, solenoid valves, and motor contactors with deterministic, certified response times.

The module mounts directly onto the standard S7-300 DIN rail backplane and communicates via the internal P-bus, ensuring tight synchronization with the CPU and adjacent I/O modules. When paired with a Siemens 6ES7307-1EA01-0AA0 PS307 Power Supply, the entire rack operates within a stable 24VDC power envelope, supporting both standard and failsafe modules without additional power conditioning hardware.

Architecture Specification Table

Coordinated Control System Design

The 6ES7326-2BF01-0AB0 does not operate in isolation. Its value is realized through its position within a fully coordinated S7-300F control architecture. At the control layer, a Siemens CPU 317F-2 DP (6ES7317-6FF04-0AB0) executes the safety program and manages the F-runtime, issuing output commands to the F-DO module based on evaluated safety conditions from upstream F-DI modules such as the Siemens 6ES7326-1BK02-0AB0 SM326 F-DI, which reads signals from emergency stop buttons, light curtains, and safety door switches.

At the network layer, a Siemens CP 342-5 PROFIBUS Communication Processor extends the rack’s connectivity to distributed I/O stations and remote safety nodes, enabling the F-DO module’s output states to be coordinated with actuators located across the production floor. For HMI integration, a Siemens TP1200 Comfort Panel connected via PROFINET provides operators with real-time visibility into safety output states, alarm histories, and bypass conditions — all without interrupting the safety program execution.

At the power layer, the Siemens 6ES7307-1KA02-0AA0 PS307 10A Power Supply ensures that both the CPU rack and the F-DO module receive clean, regulated 24VDC power, even under load fluctuations caused by simultaneous actuator switching. For terminal connectivity, Siemens 6ES7392-1BM01-0AA0 front connectors provide reliable field wiring termination directly to the module’s output channels, supporting both screw and spring-cage wiring options for fast commissioning and long-term maintenance access.

In redundant safety architectures, the 6ES7326-2BF01-0AB0 can be deployed in parallel output configurations where two F-DO modules drive the same actuator through independent channels, achieving the dual-channel output structure required for SIL 3 applications. This approach is commonly used in conjunction with Siemens ET 200M distributed I/O stations deployed at remote field panels, where local safety output modules mirror the central rack’s safety logic for geographically distributed process control.

Application in Layered Automation Systems

The 6ES7326-2BF01-0AB0 finds application across a wide range of safety-critical industrial environments. In chemical and petrochemical plants, it drives emergency shutdown valves and pressure relief actuators, ensuring that process upsets trigger certified, deterministic safety responses within the required response time. In power generation and distribution facilities, it controls circuit breaker trip coils and interlock relays, where the module’s self-diagnostic capability ensures that latent faults are detected before they can compromise the safety function.

In automotive manufacturing lines, the module is integrated into robot cell safety systems, controlling the power-off contactors for robotic arms and conveyor drives in response to area scanner or light curtain signals processed by the upstream F-DI layer. In water and wastewater treatment plants, it manages pump isolation valves and chemical dosing actuators within safety instrumented systems (SIS) designed to IEC 61511 standards.

For mining and mineral processing operations, the 6ES7326-2BF01-0AB0 is deployed in conveyor belt safety systems, controlling belt stop actuators and diverter gates in response to pull-cord switches and belt misalignment sensors. In packaging and food processing lines, it provides the safety output layer for guarding systems, ensuring that machine motion is arrested within certified stop times when operators access restricted zones.

Across all these applications, the module’s compatibility with the S7-300F platform means that safety programs can be developed, tested, and validated using Siemens STEP 7 Safety Advanced engineering software, with full support for F-block libraries, safety program certification, and online diagnostics — reducing engineering time and ensuring regulatory compliance from first commissioning through the full operational lifecycle.

Architecture Engineering FAQ

Q1: Is the 6ES7326-2BF01-0AB0 compatible with both CPU 315F-2 PN/DP and CPU 317F-2 DP in the same S7-300F rack?
Yes. The module communicates via the S7-300 internal P-bus and is compatible with all S7-300F CPUs that support the F-runtime environment, including the CPU 315F-2 PN/DP and CPU 317F-2 DP. The safety program assigns F-DO channels to specific output addresses, and the CPU manages the F-runtime independently of the specific CPU variant used, provided the CPU firmware and STEP 7 Safety version are aligned.

Q2: Can this module be used in a mixed rack alongside standard (non-failsafe) S7-300 I/O modules?
Yes. The 6ES7326-2BF01-0AB0 can be installed in the same S7-300 rack as standard SM modules. The F-runtime isolates the safety program’s memory and execution from the standard user program, ensuring that non-failsafe modules do not interfere with the safety function. However, the physical slot assignment must comply with the rack configuration rules defined in STEP 7 Safety, and the total rack power budget must account for all installed modules.

Q3: What does the 12-Month Warranty cover, and how is the module tested before shipment?
Every 6ES7326-2BF01-0AB0 unit supplied by ZYPLC undergoes functional verification prior to shipment, including output channel continuity testing, self-diagnostic response verification, and visual inspection for physical integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent ESD damage and physical stress during transit. For warranty claims or technical support, contact our team at [email protected] or +86 19859288691.

—
