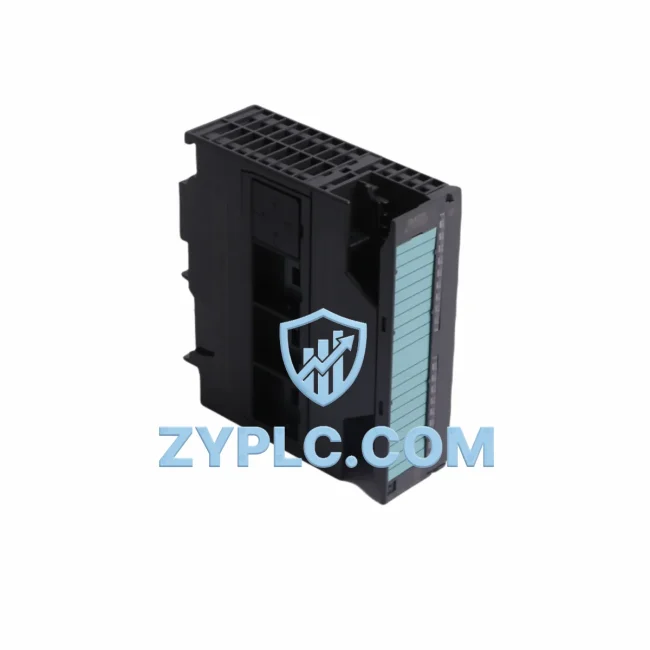

Siemens 6ES7331-7KB01-0AB0 Energy-Saving Analog Input for S7-300
The Siemens 6ES7331-7KB01-0AB0 is a high-precision analog input module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to meet the rigorous demands of modern industrial automation, this module delivers accurate, real-time analog signal acquisition that forms the backbone of energy-efficient process control. With 8 configurable analog input channels and 13-bit resolution, it enables plant engineers to capture granular data from sensors, transducers, and field instruments — translating raw electrical signals into actionable process variables that drive smarter energy decisions across the production floor.
In today’s competitive manufacturing environment, reducing energy waste is not merely a sustainability goal — it is a direct lever for operational profitability. The 6ES7331-7KB01-0AB0 plays a central role in this effort by providing the precise measurement data that control systems need to regulate motor loads, optimize drive output, and eliminate idle-state energy consumption. When integrated into a well-architected S7-300 automation system, this module enables continuous monitoring of current, voltage, temperature, pressure, and flow — all critical parameters for identifying inefficiency and enabling corrective action in real time.
Efficiency Performance Table
| Parameter |
Specification |
| Analog Input Channels |
8 x AI (configurable: voltage, current, resistance, thermocouple, RTD) |
| Resolution |
13-bit (including sign bit) |
| Conversion Time per Channel |
≥ 1 ms (depending on integration time setting) |
| Power Consumption |
≤ 60 mA at 5 VDC (from S7-300 backplane bus) |
| Operating Efficiency |
High-accuracy signal acquisition with minimal self-heating |
| Compatible Systems |
SIMATIC S7-300 (CPU 312 to CPU 319), ET 200M distributed I/O |
| Application Environment |
Industrial automation, energy monitoring, process control, motor management |
| Energy Saving Value |
Enables closed-loop control to reduce motor and drive energy waste by up to 20–30% |
| Operating Temperature |
0 °C to +60 °C |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The 6ES7331-7KB01-0AB0 does not operate in isolation — its true value emerges when it is embedded within a coordinated automation architecture designed for energy awareness. In a typical S7-300 installation, the module slots into the rack alongside a central processing unit such as the 6ES7315-2AH14-0AB0 CPU 315-2 DP, which handles the logic execution and communicates process data to higher-level SCADA or energy management systems. The CPU’s integrated PROFIBUS DP interface allows the analog input data collected by the 6ES7331-7KB01-0AB0 to be transmitted in real time to drives, controllers, and monitoring platforms across the plant network.
On the output side, digital output modules such as the 6ES7322-1BH01-0AB0 DO module work in tandem with the analog inputs to execute control commands — switching contactors, activating solenoids, or triggering alarms when energy thresholds are exceeded. For applications requiring variable-speed motor control, the analog signals from the 6ES7331-7KB01-0AB0 are typically routed to a SINAMICS G120 or MICROMASTER 440 variable frequency drive, where the measured process variable is used as a feedback signal to modulate motor speed and reduce unnecessary energy draw during partial-load conditions.
In distributed architectures, the module can be deployed via an ET 200M remote I/O station connected through a 6ES7153-1AA03-0XB0 IM 153-1 interface module, extending the reach of the S7-300 system to remote field panels without sacrificing signal integrity. Communication gateways such as the 6GK7343-1EX30-0XE0 CP 343-1 Ethernet module further enable integration with MES and ERP platforms, allowing energy consumption data to be correlated with production output for comprehensive efficiency reporting.
Power supply stability is maintained by the 6ES7307-1EA01-0AA0 PS 307 power supply module, which delivers regulated 24 VDC to the S7-300 rack and field devices. Stable power is essential for accurate analog measurement — voltage fluctuations can introduce signal noise that distorts energy readings and leads to suboptimal control decisions. For operator interaction and real-time energy dashboards, a SIMATIC HMI panel such as the 6AV2124-0GC01-0AX0 KTP700 Basic provides a clear visualization interface, enabling shift operators to monitor energy KPIs and respond to anomalies without requiring engineering-level access.
Analog output modules like the 6ES7332-5HB01-0AB0 AO module complement the input capabilities of the 6ES7331-7KB01-0AB0 by closing the control loop — sending corrective signals to positioners, control valves, or drive reference inputs based on the measured analog values. This closed-loop architecture is fundamental to achieving consistent energy optimization across variable production conditions.
Power Optimization in Real Production Lines
In real-world production environments, energy waste most commonly occurs during three conditions: equipment running at full load when partial load is sufficient, undetected sensor drift causing control systems to overcorrect, and unplanned downtime that forces energy-intensive restart cycles. The 6ES7331-7KB01-0AB0 directly addresses all three.
By providing high-resolution analog measurements from current transformers, pressure transmitters, and temperature sensors installed throughout the production line, the module gives the S7-300 CPU the data it needs to implement demand-responsive control strategies. For example, in a compressor or pump application, the module continuously monitors discharge pressure and motor current. When the measured values indicate that the system is operating above the required setpoint, the CPU can reduce the drive reference signal — slowing the motor and cutting energy consumption without interrupting the process.
Sensor drift detection is another critical energy optimization function enabled by the 6ES7331-7KB01-0AB0. The module’s diagnostic capabilities allow the CPU to detect open-circuit and short-circuit faults on individual channels, triggering maintenance alerts before a faulty sensor causes the control system to run equipment unnecessarily. This predictive maintenance capability reduces both energy waste and unplanned downtime — two of the most significant contributors to poor overall equipment effectiveness (OEE).
For production lines with variable cycle times, the module’s fast conversion rate allows the S7-300 system to adapt control parameters dynamically as production pace changes. During low-demand periods, the system can automatically reduce conveyor speeds, lower heating setpoints, and dim lighting — all based on real-time analog feedback — then ramp back up as demand increases. This dynamic load management approach can yield measurable reductions in energy cost per unit produced, directly improving the profitability of each production run.
All units are tested prior to shipment and backed by a 12-month warranty, ensuring that the module performs to specification from day one of installation. In-stock availability means minimal lead time, reducing the risk of extended downtime due to spare parts shortages.
Energy Optimization FAQ
Q1: How does the 6ES7331-7KB01-0AB0 contribute to energy savings in an S7-300 system?
The module provides accurate, real-time analog measurements from field sensors, enabling the S7-300 CPU to implement closed-loop control strategies that match equipment output to actual process demand. By eliminating over-production and reducing idle-state energy consumption, the module helps facilities achieve measurable reductions in energy cost per unit produced.
Q2: Is the 6ES7331-7KB01-0AB0 compatible with ET 200M distributed I/O systems?
Yes. The module is fully compatible with the ET 200M remote I/O platform when used with an appropriate interface module such as the IM 153-1. This allows it to be deployed in distributed cabinet configurations while maintaining full integration with the central S7-300 CPU via PROFIBUS DP.
Q3: What is the recommended replacement or upgrade path for aging S7-300 analog input modules?
For direct replacement, the 6ES7331-7KB01-0AB0 is a drop-in compatible module for the S7-300 platform. For facilities planning a migration to the S7-1500 platform, Siemens offers equivalent analog input modules in the ET 200MP range. Our technical team can advise on compatibility and migration planning based on your specific application requirements.
Q4: What testing and warranty coverage is provided?
Every 6ES7331-7KB01-0AB0 unit is functionally tested before shipment to verify channel accuracy, communication integrity, and diagnostic functionality. A 12-month warranty is provided from the date of purchase, covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available to minimize production downtime in the event of a warranty claim.
