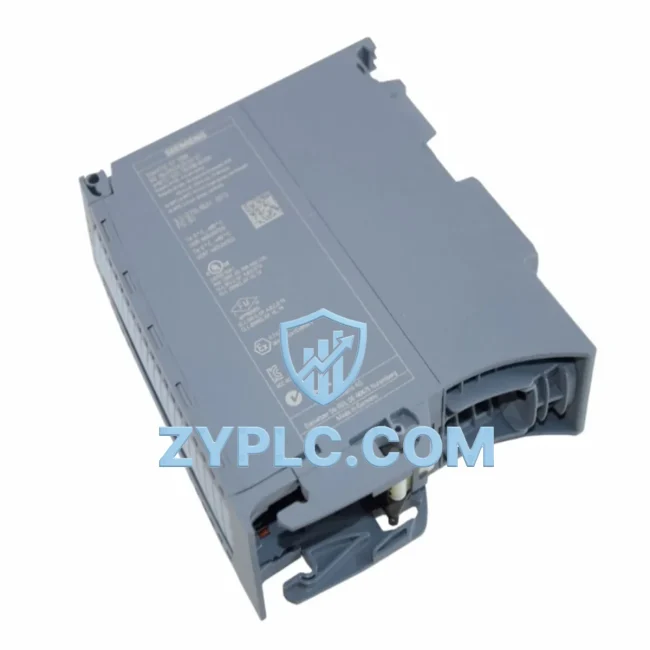

Siemens 6ES7522-1BH00-0AB0 System-Ready Digital Output for S7-1500 Architecture

Siemens 6ES7522-1BH00-0AB0 System-Ready Digital Output for S7-1500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7522-1BH00-0AB0 is a high-density digital output module purpose-built for integration within the SIMATIC S7-1500 automation platform. Rather than functioning as a standalone component, this module is engineered to operate as a coordinated element within a layered control system architecture — one that spans the control layer, I/O layer, network layer, power supply layer, human-machine interface layer, and actuator execution layer. Understanding its role within this full-system context is essential for engineers designing scalable, redundant, and maintainable industrial automation solutions.

In modern distributed control architectures, the digital output module occupies a critical position at the boundary between the controller’s logical decisions and the physical execution of those decisions. The 6ES7522-1BH00-0AB0 receives processed commands from the S7-1500 CPU — such as the CPU 1516-3 PN/DP or CPU 1518-4 PN/DP/MF — and translates them into discrete 24 VDC switching signals that drive field devices including solenoid valves, motor contactors, indicator lamps, and relay coils. This signal flow, from CPU to output module to actuator, forms the backbone of deterministic process control in demanding industrial environments.

The module mounts directly onto the S7-1500 rack backplane, communicating with the CPU via the high-speed PROFINET-based backplane bus. This tight integration eliminates the latency and complexity associated with remote I/O configurations, making the 6ES7522-1BH00-0AB0 particularly well-suited for time-critical control loops in manufacturing, energy, and process industries. Its 16-channel output capacity allows engineers to consolidate actuator control within a compact footprint, reducing panel space requirements and simplifying cable management within the control cabinet.

From a system consistency perspective, the 6ES7522-1BH00-0AB0 is designed to coexist seamlessly with other S7-1500 I/O modules. Engineers frequently pair it with digital input modules such as the 6ES7521-1BH00-0AB0 to create balanced I/O configurations that mirror the physical process symmetry. Analog output modules like the 6ES7532-5HD00-0AB0 may be deployed alongside the digital output module in mixed-signal applications, such as variable-speed drive control combined with discrete valve actuation. This modular co-deployment strategy simplifies TIA Portal project organization, as all modules share a unified hardware configuration environment and a common diagnostic framework.

Power distribution within the S7-1500 rack is managed by dedicated load current supply modules, such as the PM 70W 120/230VAC or the PS 60W 24/48/60VDC, which provide stable, regulated power to the backplane and connected I/O modules. The 6ES7522-1BH00-0AB0 draws its logic supply from the backplane while its output load circuits are powered by an external 24 VDC supply, allowing the control logic to remain energized even during field-side power interruptions — a design feature that enhances system resilience and simplifies fault isolation during commissioning and maintenance.

Network-layer integration is achieved through the S7-1500 CPU’s onboard PROFINET interface, which connects the control system to supervisory SCADA platforms, MES systems, and plant-level Ethernet networks. The digital output module’s status and diagnostic data are transparently accessible through this network interface, enabling remote monitoring of output channel states, short-circuit conditions, and wire-break faults without requiring physical access to the control cabinet. This capability is particularly valuable in geographically distributed installations such as water treatment facilities, pipeline monitoring stations, and offshore platforms.

For applications requiring high availability, the S7-1500 platform supports redundancy configurations using the S7-1500R/H redundant system architecture. In such configurations, a standby CPU continuously mirrors the active CPU’s process image, and in the event of a primary CPU failure, the standby assumes control within milliseconds. The 6ES7522-1BH00-0AB0, when deployed in a redundant rack configuration, participates in this seamless failover process, ensuring that output signals to critical actuators are maintained without interruption. This makes the module a preferred choice for safety-adjacent applications in chemical processing, power generation, and pharmaceutical manufacturing.

Human-machine interface coordination is another dimension of the module’s system role. SIMATIC HMI panels — such as the TP1200 Comfort or the KTP900 Basic — communicate with the S7-1500 CPU via PROFINET, displaying real-time output channel states and allowing operators to issue manual override commands during maintenance windows. The digital output module’s channel-level diagnostics are surfaced directly on the HMI, providing operators with actionable fault information without requiring engineering workstation access. This integration between the I/O layer and the HMI layer reduces mean time to repair and supports lean maintenance strategies.

Terminal module compatibility is an important consideration for panel builders. The 6ES7522-1BH00-0AB0 is compatible with front connector assemblies that support push-in or screw-type termination, accommodating a wide range of conductor cross-sections. For applications requiring frequent module replacement without rewiring, the front connector can be transferred to a replacement module, preserving all field wiring connections and dramatically reducing maintenance downtime. This design philosophy aligns with the broader S7-1500 serviceability strategy, which prioritizes rapid module exchange in production environments where unplanned downtime carries significant economic consequences.

Long-term inventory planning for the 6ES7522-1BH00-0AB0 should account for its position within the S7-1500 product lifecycle. Siemens maintains long-term availability commitments for S7-1500 series components, and ZYPLC maintains verified stock of this module to support both new project deployments and ongoing maintenance requirements. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing procurement teams and maintenance engineers with confidence in component quality and supply chain reliability.

Architecture Specification Table

Coordinated Control System Design

The 6ES7522-1BH00-0AB0 achieves its full potential when deployed as part of a coordinated S7-1500 control system. A typical architecture begins with a central processing unit — the CPU 1516-3 PN/DP is a common choice for mid-to-large applications, offering dual PROFINET ports, an integrated DP master interface, and sufficient memory for complex control programs. The CPU communicates with the 6ES7522-1BH00-0AB0 and other I/O modules via the backplane bus, executing the control program at deterministic scan cycle rates.

On the input side, digital input modules such as the 6ES7521-1BL00-0AB0 (32-channel DI) capture field signals from pushbuttons, proximity sensors, and limit switches, feeding real-time process data into the CPU’s input process image. The CPU processes this data and updates the output process image, which is then written to the 6ES7522-1BH00-0AB0’s output channels, completing the control loop. Analog signals from temperature transmitters, pressure transducers, and flow meters are handled by analog input modules such as the 6ES7531-7KF00-0AB0, which may coexist on the same rack as the digital output module.

Power supply integrity is maintained by the PS 60W 24/48/60VDC system power supply, which feeds the S7-1500 backplane, and by a separate 24 VDC load power supply that energizes the output load circuits of the 6ES7522-1BH00-0AB0. Communication gateways such as the CM 1542-5 PROFIBUS module extend the system’s reach to legacy field devices operating on PROFIBUS DP networks, enabling seamless integration of older instrumentation within the modern S7-1500 architecture. For applications requiring HART communication with intelligent field devices, the AI 8×U/I/RTD/TC ST analog input module with HART capability provides the necessary interface layer.

At the execution layer, the 6ES7522-1BH00-0AB0’s output channels connect to motor starter contactors, pneumatic valve solenoids, and relay modules such as the SIRIUS 3RH2 contactor relay series, translating the CPU’s logical decisions into physical process actions. This complete signal chain — from sensor through CPU to actuator — represents the core value proposition of the S7-1500 architecture: deterministic, diagnostically transparent, and scalable control.

Application in Layered Automation Systems

The 6ES7522-1BH00-0AB0 finds application across a broad spectrum of industrial sectors, each with distinct requirements for output channel density, diagnostic depth, and system integration.

In discrete manufacturing environments — automotive assembly lines, electronics production, and machine tool applications — the module controls pneumatic actuators, conveyor drives, and fixture clamping systems. Its 16-channel capacity allows a single module to manage an entire workstation’s actuator complement, simplifying the control cabinet layout and reducing inter-cabinet wiring complexity.

In power generation and electrical substation applications, the module drives protection relay trip coils, circuit breaker control circuits, and alarm annunciator panels. The transistor output type provides fast switching response and eliminates the contact wear associated with relay-based output modules, extending maintenance intervals in high-cycle applications.

In petrochemical and refinery environments, the 6ES7522-1BH00-0AB0 controls shutdown valve solenoids, pump motor starters, and flare system igniters within S7-1500-based safety-adjacent control systems. Its channel-level diagnostics enable continuous monitoring of output circuit integrity, supporting the functional safety verification requirements of IEC 61511-compliant process safety management systems.

In water and wastewater treatment facilities, the module manages pump station control, chemical dosing valve actuation, and UV disinfection system switching. The S7-1500 platform’s PROFINET connectivity allows these distributed pump stations to be monitored and controlled from a central SCADA system, with the 6ES7522-1BH00-0AB0 providing the local output interface at each remote station.

In mining and metallurgical applications, the module controls conveyor belt drives, ore crusher interlocks, and ventilation fan starters in environments characterized by high vibration, wide temperature ranges, and aggressive dust conditions. The S7-1500 rack’s robust mechanical design and the module’s IP20 protection class, combined with appropriate control cabinet enclosure selection, ensure reliable operation in these demanding conditions.

Architecture Engineering FAQ

Q1: Is the 6ES7522-1BH00-0AB0 compatible with both S7-1500 standard and redundant (R/H) system configurations?
Yes. The 6ES7522-1BH00-0AB0 is compatible with the standard S7-1500 rack configuration and can also be deployed in S7-1500H high-availability system architectures when used with the appropriate redundant rack and CPU modules. In redundant configurations, the module participates in the system’s seamless failover mechanism, maintaining output signal continuity during CPU switchover events. Configuration and assignment of the module within redundant architectures is performed in TIA Portal V16 or later, which provides dedicated hardware configuration wizards for S7-1500R/H systems.

Q2: Can the 6ES7522-1BH00-0AB0 be replaced in the field without rewiring, and what is the recommended maintenance procedure?
Yes. The module uses a detachable front connector that retains all field wiring independently of the module body. During a module replacement, the front connector is disconnected from the faulty module and transferred directly to the replacement unit, preserving all field wiring connections. The S7-1500 CPU automatically detects the new module via its backplane communication and restores normal operation without requiring a TIA Portal download, provided the replacement module is of the same order number. This hot-swap-compatible design minimizes production downtime and is a key advantage of the S7-1500 I/O architecture for maintenance-intensive applications. All replacement modules supplied by ZYPLC are covered by a 12-Month Warranty.

Q3: What diagnostic information does the 6ES7522-1BH00-0AB0 provide, and how is it accessed during system commissioning and long-term operation?
The module provides channel-level diagnostics including short-circuit detection, wire-break detection (when configured), and supply voltage monitoring. Diagnostic events are reported to the S7-1500 CPU via the backplane bus and are accessible through multiple interfaces: the TIA Portal online diagnostics view during commissioning, the SIMATIC HMI operator panel during production operation, and the PROFINET network interface for integration with SCADA and asset management systems. Diagnostic data is structured according to the IEC 61158 standard and can be mapped to alarm management systems for proactive maintenance scheduling. This diagnostic transparency is a core feature of the S7-1500 architecture’s Contextual Integration philosophy, enabling engineers to maintain system health visibility across the full operational lifecycle.
