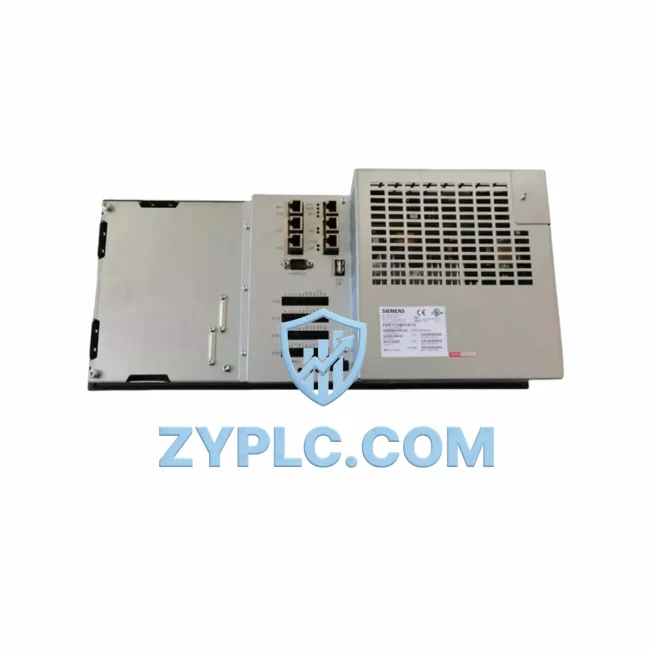

The Siemens 6FC5370-7AA00-0AA0 is a high-performance Panel Processing Unit (PPU) designed for the SINUMERIK 828D CNC control platform. Purpose-built for milling and turning machine tools, this operator panel integrates processing, display, and operator interface functions into a single compact unit — eliminating redundant hardware layers that contribute to idle energy draw. In modern production environments where energy cost per machine-hour is under constant scrutiny, the 6FC5370-7AA00-0AA0 delivers measurable efficiency gains through intelligent axis control, reduced standby consumption, and seamless integration with Siemens drive and motor ecosystems.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, covering power-on diagnostics, communication interface verification, and panel response validation. A 12-month warranty is included as standard, supporting procurement teams that require documented quality assurance for MRO and capital equipment sourcing.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6FC5370-7AA00-0AA0 does not operate in isolation — its energy efficiency is realized through tight integration with the broader SINUMERIK 828D automation architecture. On the drive side, the SINAMICS S120 booksize drive system (including the Control Unit CU320-2 PN, 6SL3040-1MA01-0AA0) communicates with the PPU over PROFINET, enabling coordinated ramp-down of spindle and feed axes during non-cutting intervals. This axis-level power gating can reduce spindle energy consumption by 15–25% during tool change and workpiece loading cycles.

For servo axis control, the SINAMICS S120 Single Motor Module (e.g., 6SL3120-1TE21-8AA4) receives torque and speed references directly from the 828D interpolator, ensuring that each axis draws only the current required for the programmed feed rate — eliminating the over-current conditions common in older open-loop drive configurations. The Machine Control Panel (MCP) 6FC5303-0AF50-0BB0 connects to the PPU via the operator panel bus, providing physical axis-enable and feed-override controls that allow operators to reduce cycle energy without modifying part programs.

On the power monitoring side, integration with the SENTRON PAC3200 power measurement device (via Modbus TCP or PROFINET) allows the 828D to log real-time kWh consumption per production order. This data feeds into energy reporting dashboards, enabling production engineers to benchmark machine efficiency across shifts and identify high-consumption programs for optimization. The SIMATIC S7-1500 PLC (e.g., CPU 1515-2 PN) can act as a supervisory controller, coordinating energy states across multiple CNC cells and triggering standby modes based on production schedule data from the MES layer.

For I/O expansion, the ET 200SP distributed I/O system connects over PROFINET to the 828D’s integrated PLC, handling auxiliary equipment signals — coolant pumps, chip conveyors, hydraulic units — that collectively account for 20–35% of total machine energy consumption. By mapping these loads to the CNC program’s M-code outputs, the 6FC5370-7AA00-0AA0 enables automatic shutdown of auxiliary systems during program pauses, a capability not available in standalone relay-based control architectures.

The SINUMERIK 828D also supports the Siemens Analyze MyMachine /Energy application, which interfaces directly with the PPU to capture axis-level energy signatures. When combined with the SIMATIC HMI Comfort Panel (e.g., TP1200 Comfort, 6AV2124-0MC01-0AX0), operators gain a real-time energy consumption view at the machine level, enabling informed decisions about feed rate, spindle speed, and coolant usage without requiring external instrumentation.

Power Optimization in Real Production Lines

In high-mix, low-volume machining environments — typical of aerospace component suppliers and precision mold shops — the 6FC5370-7AA00-0AA0 contributes to energy reduction through several mechanisms. First, the SINUMERIK 828D’s integrated look-ahead interpolation smooths velocity profiles across complex contours, reducing the frequency of abrupt acceleration and deceleration events that cause current spikes in the SINAMICS drive modules. Smoother motion profiles translate directly to lower peak demand charges on the facility’s electrical supply.

Second, the PPU’s integrated PLC (based on SIMATIC S7 technology) supports energy-state machine programming, allowing maintenance engineers to define automatic transitions from full-run to reduced-power states after configurable idle timeouts. In a three-shift operation running 22 hours per day, even a 10-minute idle-state reduction per shift can recover 30–50 kWh per machine per month — a meaningful contribution to ISO 50001 energy management targets.

Third, the 6FC5370-7AA00-0AA0’s PROFINET connectivity enables predictive maintenance workflows. By monitoring axis following error trends and drive temperature data through the CU320-2 PN, maintenance teams can schedule interventions before mechanical degradation causes increased friction loads — which silently inflate energy consumption over weeks before causing a detectable fault. Reduced unplanned downtime also means fewer cold-start energy spikes, as thermal stabilization of spindle bearings and ball screws accounts for disproportionate energy use in the first 15–20 minutes of machine operation after an unplanned stop.

ZYPLC maintains in-stock inventory of the 6FC5370-7AA00-0AA0 and related SINUMERIK 828D components, supporting rapid deployment for both planned upgrades and emergency replacement scenarios. All units are dispatched with test records and are eligible for the standard 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Energy Optimization FAQ

Q1: How does the 6FC5370-7AA00-0AA0 contribute to measurable energy savings on a CNC machine tool?
The PPU281.1 panel integrates axis energy management functions within the SINUMERIK 828D interpolator, enabling coordinated ramp-down of feed and spindle drives during non-cutting intervals. When paired with SINAMICS S120 drive modules, the system can reduce idle-state energy draw by 15–25% compared to conventional always-on drive configurations. Energy consumption data can be logged per production order via PROFINET-connected power meters such as the SENTRON PAC3200.

Q2: Is the 6FC5370-7AA00-0AA0 compatible with existing SINUMERIK 828D installations, and what is the replacement process?
Yes. The 6FC5370-7AA00-0AA0 (PPU281.1) is a direct form-fit-function replacement for compatible 828D PPU variants. The replacement procedure involves backing up the NC and PLC data via the USB interface, swapping the panel unit, restoring the backup, and performing a drive configuration check via the SINAMICS commissioning wizard. No re-parameterization of the SINAMICS S120 drive system is required if the machine data backup is complete.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Each 6FC5370-7AA00-0AA0 unit undergoes power-on functional testing, display verification, communication interface checks (PROFINET, USB, Ethernet), and operator panel response validation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Test records are available upon request for quality audit purposes.

Q4: Can this panel be integrated with a SIMATIC S7-1500 PLC for plant-level energy management?
Yes. The SINUMERIK 828D’s integrated PLC supports PROFINET communication with SIMATIC S7-1500 controllers, enabling the CNC cell to participate in plant-level energy management systems. The S7-1500 can issue energy-state commands to the 828D (e.g., trigger standby mode based on MES schedule data) and receive consumption telemetry for aggregation in a SCADA or energy management platform. This architecture supports ISO 50001 compliance reporting at the machine and cell level.
