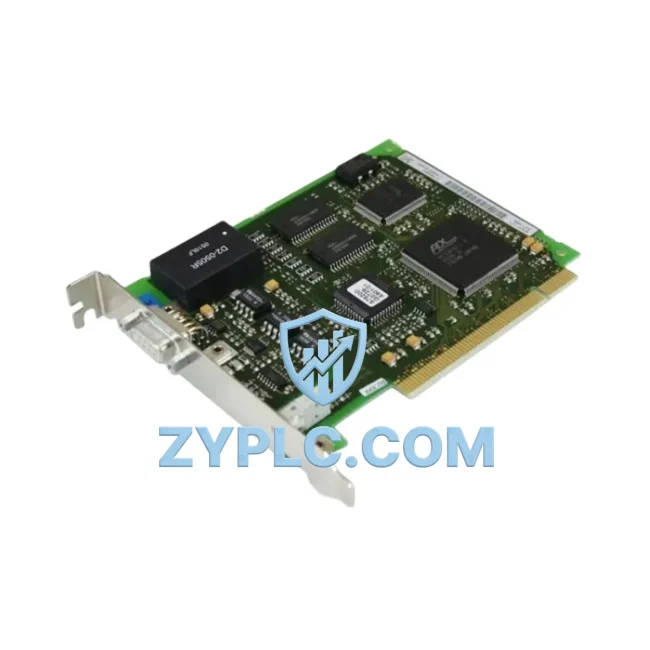

Siemens 6GK1561-1AA00 Industrial Network Interface for CP 5611 Systems

Siemens 6GK1561-1AA00 Industrial Network Interface for CP 5611 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Siemens 6GK1561-1AA00, commercially designated as the CP 5611, is a high-performance PROFIBUS/MPI communication processor designed for PCI-slot integration in engineering workstations, SCADA servers, and industrial PCs. As a critical node in the industrial data chain, the 6GK1561-1AA00 enables seamless, real-time communication between upper-level systems and field-level automation devices — forming the backbone of transparent, connected production environments.

In modern smart factory architectures, data must flow continuously and reliably from field sensors and actuators up through PLC controllers, remote I/O modules, HMI panels, and SCADA platforms to enterprise-level MES and ERP systems. The 6GK1561-1AA00 fulfills this role by providing a stable, low-latency PROFIBUS DP and MPI interface that connects the engineering PC or SCADA server directly into the automation network — eliminating data silos and enabling full process visibility.

Network Communication Table

Connected Automation Data Flow

The 6GK1561-1AA00 sits at the intersection of field-level automation and supervisory control, making it indispensable in multi-tier industrial network architectures. In a typical smart factory deployment, field devices such as Siemens ET 200M remote I/O stations and ET 200S distributed I/O modules transmit process signals — temperature, pressure, flow, and position — via PROFIBUS DP to the network backbone. The CP 5611 card, installed in the SCADA workstation or engineering PC, receives this data stream and makes it available to WinCC SCADA software for real-time visualization, alarm management, and historical trending.

At the controller level, Siemens S7-300 and S7-400 PLCs communicate with the CP 5611 via MPI or PROFIBUS DP, enabling online programming, diagnostics, and variable monitoring through STEP 7 or TIA Portal. This direct link allows engineers to perform live program uploads, force variables, and execute online diagnostics without interrupting production — a critical capability in continuous process industries. For next-generation deployments, the S7-1500 controller series can also be reached via MPI bridging, ensuring backward compatibility across mixed-generation automation environments.

For drive integration, Siemens SINAMICS G120 and MICROMASTER 440 variable frequency drives connected to the PROFIBUS segment can be monitored and parameterized through the CP 5611 interface, enabling centralized speed control, fault logging, and energy monitoring from the SCADA layer. Similarly, Siemens OP/TP series HMI panels connected via MPI benefit from the CP 5611’s stable communication link, ensuring that operator displays reflect real-time process states with minimal latency — a prerequisite for effective alarm response and operator decision-making on the plant floor.

In gateway applications, the 6GK1561-1AA00 pairs effectively with Siemens IE/PB Link PN IO modules, which bridge PROFIBUS segments to Industrial Ethernet (PROFINET), extending the data reach to cloud-connected edge gateways and remote monitoring platforms. This architecture supports the full IIoT data chain — from sensor signal acquisition at the field level, through protocol conversion and network transmission, to remote diagnostics and predictive maintenance dashboards at the enterprise level. Smart sensors and IO-Link masters connected downstream of the PROFIBUS network feed structured process data upward through the CP 5611, enabling condition monitoring and early fault detection without additional middleware.

For safety-critical applications, the CP 5611 integrates with Siemens SIMATIC S7-300F and ET 200S F-series fail-safe modules, supporting PROFIsafe protocol transmission over the PROFIBUS backbone. This ensures that safety signals are transmitted with the integrity and determinism required by IEC 61508 and IEC 62061 standards — making the 6GK1561-1AA00 a reliable component in functional safety architectures across automotive, chemical, and energy sectors.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where PLCs, drives, sensors, and SCADA systems speak different communication languages, creating data islands that prevent unified process visibility. The Siemens 6GK1561-1AA00 directly addresses this by providing a standardized PROFIBUS DP and MPI gateway that unifies communication across heterogeneous device populations.

Sites running mixed generations of Siemens automation equipment — from older S5-compatible devices communicating via MPI to modern S7-1500 controllers on PROFIBUS — can use the CP 5611 as a common communication interface, eliminating the need for additional protocol converters or middleware layers. This simplifies network architecture, reduces communication latency, and improves overall system reliability and maintainability.

Remote monitoring and diagnostics are equally enhanced. With the CP 5611 installed, SCADA operators gain full visibility into field device status, PLC program states, and drive parameters from a centralized workstation — enabling remote fault isolation, alarm acknowledgment, and parameter adjustment without dispatching field technicians. This capability is particularly valuable in geographically distributed plants or hazardous environments where physical access is restricted or costly.

Production line transparency is achieved through continuous data logging and real-time KPI dashboards fed by the CP 5611’s high-speed PROFIBUS link. OEE metrics, cycle times, reject rates, and energy consumption data can be aggregated at the SCADA level and forwarded to MES platforms, enabling data-driven production optimization and compliance reporting. The result is a fully transparent production environment where every machine state, alarm event, and process deviation is captured, timestamped, and traceable.

System expansion is straightforward: the PROFIBUS DP network supported by the 6GK1561-1AA00 accommodates up to 126 nodes per segment, with repeaters extending reach across large plant floors. New devices — additional remote I/O stations, smart sensors, or variable speed drives — can be added to the network without reconfiguring the CP 5611, ensuring scalability as production requirements evolve and new automation assets are commissioned.

Every 6GK1561-1AA00 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication integrity, protocol handshake, and interface stability before dispatch. All units are covered by a 12-month warranty and are available from verified inventory for immediate shipment to global destinations.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the Siemens 6GK1561-1AA00?
The CP 5611 supports PROFIBUS DP transmission rates from 9.6 kbps up to 12 Mbps, automatically negotiating the bus speed with the network master. For most industrial applications, 1.5 Mbps or 12 Mbps is recommended to minimize cycle time and ensure deterministic data delivery across the PROFIBUS segment.

Q2: Is the 6GK1561-1AA00 compatible with TIA Portal and WinCC SCADA?
Yes. The CP 5611 is fully compatible with Siemens TIA Portal (V13 and above) and WinCC SCADA software when used with the appropriate SIMATIC NET PC software package. It supports both PROFIBUS DP and MPI protocols, enabling direct integration with S7-300, S7-400, and legacy S7-200 controllers via MPI, as well as S7-1500 systems through MPI bridging configurations.

Q3: How does the CP 5611 ensure network stability in high-noise industrial environments?
The 6GK1561-1AA00 implements PROFIBUS DP’s token-passing bus arbitration, which provides deterministic, collision-free communication even in electrically noisy environments typical of motor drives, welding equipment, and high-voltage switchgear. The PCI interface ensures stable data transfer between the card and the host PC, and the card supports galvanic isolation options when used with appropriate PROFIBUS connectors and shielded cable assemblies.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 6GK1561-1AA00?
All 6GK1561-1AA00 units supplied by ZYPLC are sourced from verified inventory channels and undergo pre-shipment functional testing to confirm communication protocol integrity, PCI interface operability, and PROFIBUS/MPI handshake performance. Each unit is covered by a 12-month warranty from the date of shipment, with technical support available for installation, commissioning, and network integration queries.
