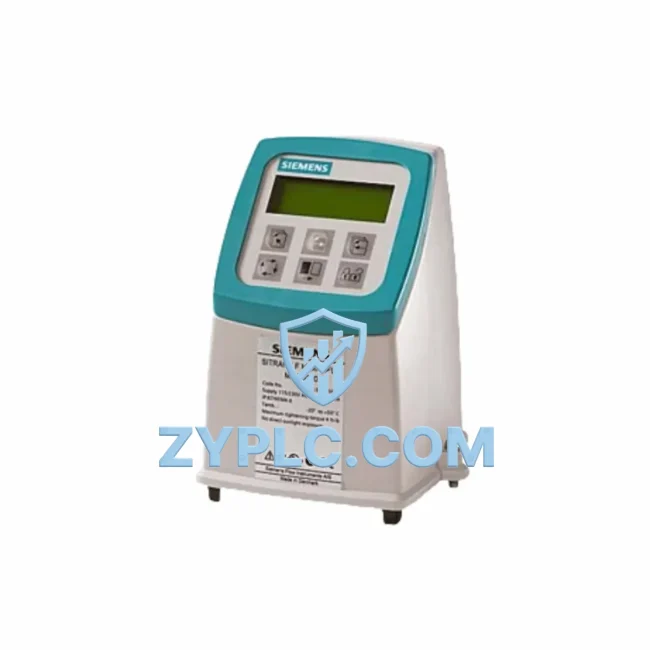

Siemens 7ME6910-1AA10-1BA0 Energy-Saving MAG 5000 Transmitter: Precision Flow Control for Industrial Energy Optimization
The Siemens 7ME6910-1AA10-1BA0 is a high-performance electromagnetic flow transmitter from the SITRANS FM MAG 5000 series, engineered to deliver accurate, low-drift volumetric flow measurement in demanding industrial environments. Designed for integration into energy-conscious automation architectures, this transmitter plays a central role in reducing unnecessary fluid consumption, eliminating process waste, and enabling data-driven decisions that directly lower operational energy costs. With ±0.4% measurement accuracy, HART communication output, and IP67 ingress protection, the 7ME6910-1AA10-1BA0 is built for continuous duty in water treatment, chemical processing, food and beverage, and general industrial utility management.
Every unit shipped by ZYPLC undergoes full functional verification and output calibration testing prior to dispatch. Stock is maintained on-hand for immediate fulfillment, and all products are covered by a 12-month warranty from the date of shipment, ensuring your procurement and maintenance teams can plan with confidence.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Model |
7ME6910-1AA10-1BA0 |
| Series |
SITRANS FM MAG 5000 |
| Measurement Accuracy |
±0.4% of reading |
| Output Signal |
4–20 mA HART (2-wire) |
| Power Consumption |
≤ 4 W (typical operating) |
| Operating Efficiency |
High — low self-consumption, continuous duty rated |
| Protection Rating |
IP67 (dust-tight, immersion-resistant) |
| Compatible Systems |
SIMATIC S7-1200 / S7-1500, DCS via HART, PROFIBUS DP gateway |
| Application Environment |
Water & wastewater, chemical dosing, utility metering, HVAC |
| Energy Saving Value |
Eliminates over-pumping, enables demand-based flow control |
| Sensor Compatibility |
SITRANS FM MAG 5100 W, MAG 3100, MAG 1100 series |
| Warranty |
12 Months from shipment date (ZYPLC) |
Energy-Aware Automation Architecture
In a fully integrated industrial energy management system, the Siemens 7ME6910-1AA10-1BA0 serves as the flow data acquisition node — feeding real-time volumetric measurements into the broader control and monitoring infrastructure. When paired with a SIMATIC S7-1500 PLC, the transmitter’s HART signal can be read via an analog input module such as the SM 531 or through a dedicated HART multiplexer, enabling the controller to execute demand-responsive pump scheduling and valve sequencing that eliminates idle-flow energy waste.
On the drive side, the SINAMICS G120 variable frequency drive works in closed-loop coordination with the MAG 5000 transmitter output to modulate pump motor speed in real time. Rather than running pumps at fixed speed against a throttling valve — a notoriously inefficient practice — the G120 adjusts motor frequency to match actual flow demand, cutting motor energy consumption by 20–50% in typical utility pumping applications. The SINAMICS G120C compact drive variant is particularly well-suited for space-constrained pump panels where the 7ME6910-1AA10-1BA0 is the primary process feedback source.
For power quality monitoring and energy accounting, the SENTRON PAC3200 or PAC4200 power monitoring device can be installed at the motor control center to log active power, reactive power, and energy consumption per pump circuit. When correlated with the flow data from the 7ME6910-1AA10-1BA0, plant engineers gain a precise specific energy consumption metric (kWh per m³), which is the foundational KPI for pump efficiency benchmarking and energy audit compliance.
At the field I/O level, the SIMATIC ET 200SP distributed I/O system provides a compact, DIN-rail-mounted interface for integrating the MAG 5000 transmitter’s analog output alongside digital signals from pressure transmitters, temperature sensors, and valve position feedback — all within a single PROFINET-connected node. This architecture reduces wiring complexity and enables faster commissioning compared to centralized I/O panels.
Operator visibility is delivered through a SIMATIC HMI KTP700 Basic or KTP900 Basic panel, where real-time flow trends, totalizer values, and energy consumption dashboards can be configured using TIA Portal. Alarm management for flow deviation, empty-pipe detection, and communication faults is handled natively within the HMI project, reducing the response time to process anomalies that would otherwise result in energy waste or product loss.
Network-level integration is supported via SCALANCE X208 managed Ethernet switches, which provide the PROFINET backbone connecting the S7-1500 controller, ET 200SP nodes, HMI panels, and HART gateway devices into a single, deterministic industrial network. For installations requiring wireless data backhaul to a SCADA or MES layer, the SCALANCE W780 access point enables secure Wi-Fi connectivity without disrupting the wired control network.
Power supply reliability for the entire field instrument cluster — including the 7ME6910-1AA10-1BA0 transmitter — is ensured by a SITOP PSU8200 24 VDC power supply unit, which provides regulated, filtered DC power with diagnostic output for load monitoring and predictive maintenance alerting.
Power Optimization in Real Production Lines
In water and wastewater treatment facilities, uncontrolled pump operation is one of the largest sources of avoidable energy expenditure. The Siemens 7ME6910-1AA10-1BA0, installed on the discharge line of a centrifugal pump, provides the continuous flow feedback necessary for the SIMATIC S7-1500 to implement a PID-based flow control loop. By maintaining the process at setpoint rather than allowing operators to manually throttle valves, the system eliminates the pressure drop losses associated with valve restriction — losses that translate directly into wasted motor energy.
In chemical dosing applications, accurate flow measurement from the 7ME6910-1AA10-1BA0 enables ratio-controlled dosing, where the dosing pump output is proportional to the main process flow. This eliminates over-dosing — a common source of both chemical waste and downstream treatment energy costs — while ensuring regulatory compliance with effluent quality standards.
For production lines with variable throughput, such as food and beverage filling or batch processing, the MAG 5000 transmitter’s fast response time and low-flow sensitivity allow the control system to detect line-pace changes within seconds and adjust pump or valve outputs accordingly. This tight synchronization between flow measurement and drive response reduces the frequency of production stoppages caused by flow deviation alarms, improving overall equipment effectiveness (OEE) and reducing the energy cost per unit of output.
Predictive maintenance benefits are realized through continuous monitoring of the transmitter’s empty-pipe detection and electrode coating diagnostics. Early identification of sensor fouling or process anomalies allows maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures — reducing both maintenance labor costs and the energy penalty associated with emergency restarts and production catch-up cycles.
ZYPLC maintains ready stock of the 7ME6910-1AA10-1BA0 and compatible MAG 5000 series components, with pre-shipment functional testing performed on every unit. The 12-month warranty covers manufacturing defects and operational failures under normal industrial service conditions, providing procurement teams with a reliable supply chain partner for both new installations and maintenance replacement programs.
Energy Optimization FAQ
Q1: How much energy can the 7ME6910-1AA10-1BA0 help save in a pump system?
When used as the feedback sensor in a closed-loop variable speed drive system with the SINAMICS G120, energy savings of 20–50% on pump motor consumption are achievable compared to fixed-speed operation with valve throttling. Actual savings depend on the load profile and system curve of the specific installation.
Q2: Is the 7ME6910-1AA10-1BA0 compatible with SIMATIC S7-1200 and S7-1500 controllers?
Yes. The 4–20 mA HART output is compatible with standard analog input modules on both the S7-1200 and S7-1500 platforms. HART secondary variables (temperature, totalizer) can be accessed via a HART gateway or multiplexer connected to the PROFIBUS or PROFINET network.
Q3: What is the recommended replacement or upgrade path from older MAG 5000 transmitters?
The 7ME6910-1AA10-1BA0 is a direct replacement for earlier MAG 5000 variants with the same sensor interface. It is compatible with SITRANS FM MAG 5100 W, MAG 3100, and MAG 1100 primary sensors. No sensor replacement is required in most upgrade scenarios — only the transmitter head needs to be exchanged.
Q4: What does the 12-month warranty from ZYPLC cover, and what is the testing process?
Every 7ME6910-1AA10-1BA0 unit shipped by ZYPLC is tested for output signal accuracy, HART communication integrity, and power consumption within specification before dispatch. The 12-month warranty covers failures attributable to manufacturing defects or component faults under normal operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team at plc.sales@zyplc.com.
